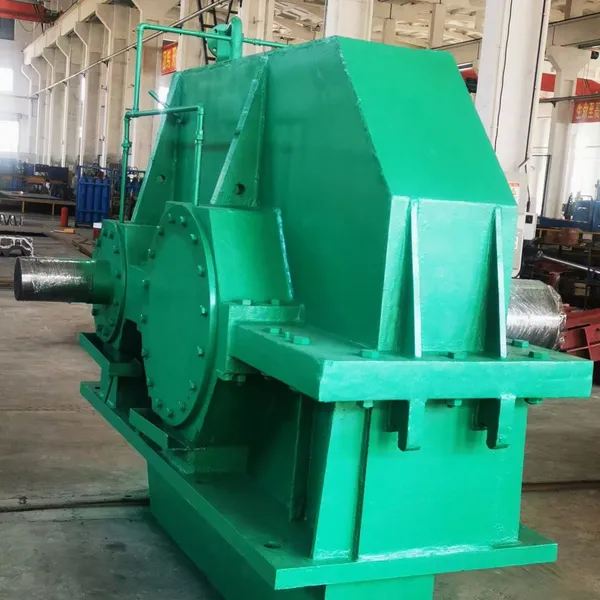

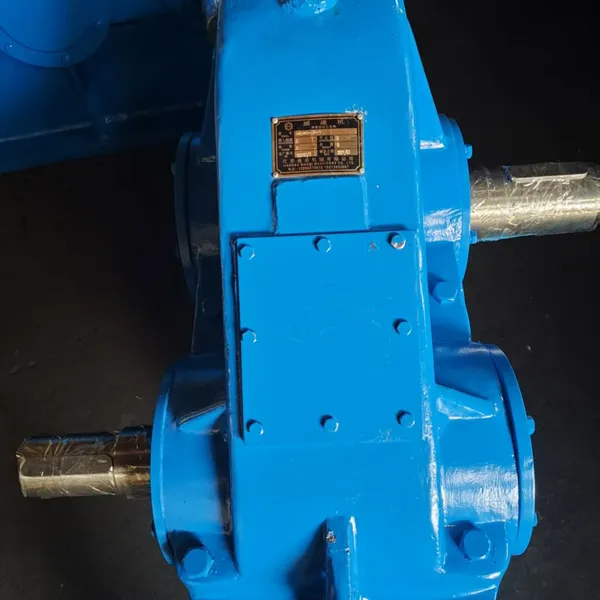

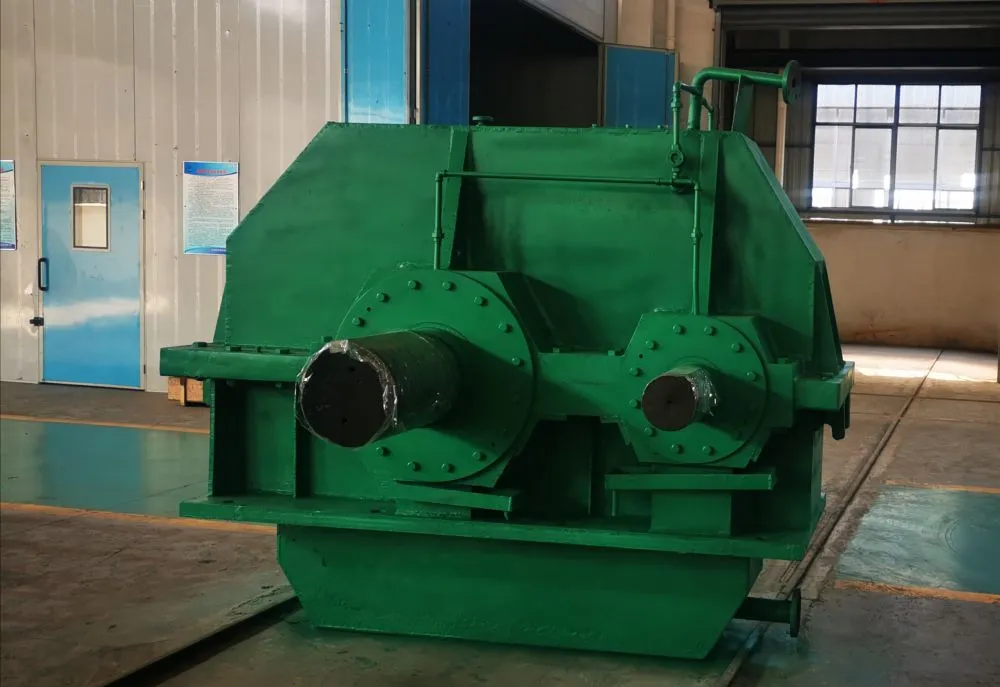

Jiangsu Manqi Machinery Co., Ltd. — a professional manufacturer founded in 2017 with a factory area of 10,000–30,000 square meters — proudly presents the MBY1000 Universal Ball Mill Gearbox. Designed for edge driven grinding mills, this gearbox delivers reliable power transmission, high torque capacity, and exceptional durability for mineral processing, cement production, and other heavy-duty milling applications. Engineered with precision spiral bevel gears and robust alloy steel construction, the MBY1000 ensures smooth operation, low noise, and extended service life, making it a trusted choice for mills worldwide.
Our gearbox is widely compatible with various mill sizes and configurations, thanks to its modular design and customizable mounting interfaces. Whether you need to retrofit an existing mill or equip a new plant, the MBY1000 offers a cost-effective solution that meets international quality standards.
Key Features & Technical Specifications
- High Torque Density: Optimized gear profile and heat treatment deliver maximum torque transmission with minimal weight.
- Spiral Bevel Gears: Smooth meshing reduces vibration and noise, ideal for continuous operation.

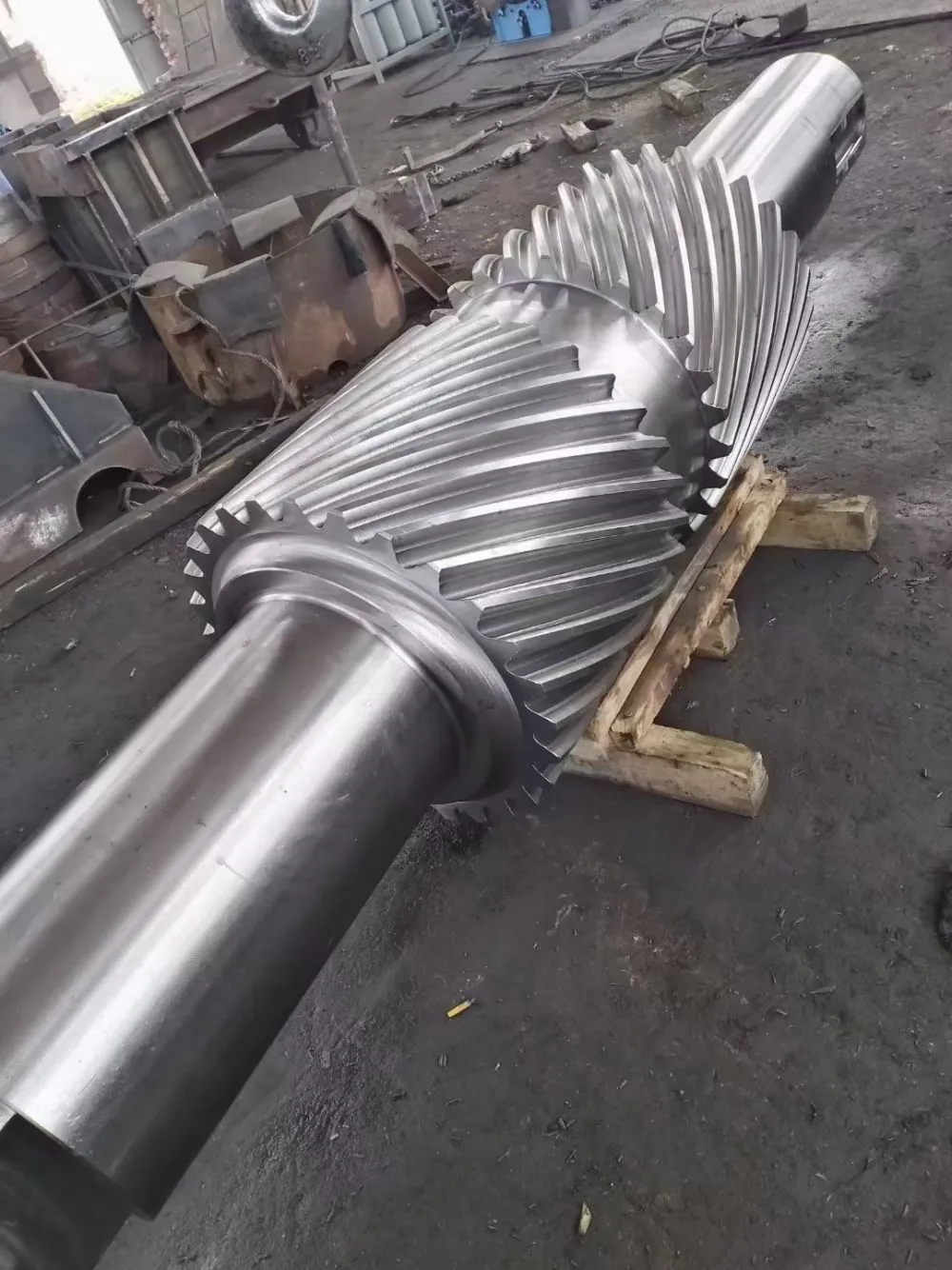

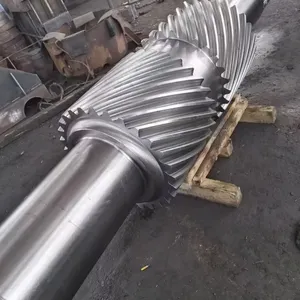

- Alloy Steel Construction: Gears made from 20CrMnTi / 20CrMo steel, carburized and quenched for surface hardness of HRC 58–62.
- Robust Bearing System: Equipped with heavy-duty roller bearings to withstand radial and axial loads.
- Reliable Lubrication: Standard oil bath lubrication; forced oil circulation system available as an option for high-speed / high-load applications.
- Compact & Modular Design: Easy to install, maintain, and integrate with existing mill drives.
- Customizable Input/Output Configurations: Flange, shaft, or coupling connection available upon request.
| Parameter | Value |
|---|---|
| Model | MBY1000 |
| Power Range | Up to 1000 kW (customizable) |
| Input Speed | 750 – 1500 rpm (adjustable) |
| Gear Type | Spiral Bevel |
| Gear Material | Alloy Steel (20CrMnTi / 20CrMo) |
| Lubrication | Oil Bath (standard) / Forced Circulation (optional) |
| Weight | Varies (available upon request) |
| Warranty | 12 months (extended available upon request) |
Advantages for Your Business
- Reduced Downtime: High reliability and easy maintenance minimize production interruptions.
- Energy Efficiency: Optimized gear mesh reduces power loss, lowering your operating costs.
- Versatile Compatibility: Fits most edge-driven ball mills, rod mills, and semi-autogenous mills.
- Quick Lead Time: Standard models in stock for fast delivery; custom orders manufactured within 30–45 days.
- Global Support: Our team provides technical assistance and spare parts for customers in Eastern Europe, Southeast Asia, Africa, and South Asia.
Trusted by Mills Worldwide
Since 2017, Jiangsu Manqi Machinery Co., Ltd. has been dedicated to manufacturing high-quality gearboxes and power transmission solutions. Our 10,000–30,000 m² factory is equipped with advanced CNC gear hobbing, grinding, and heat treatment facilities, ensuring strict quality control throughout production. With an annual export value below US$1 million but growing, we have successfully supplied gearboxes to clients in Eastern Europe, Southeast Asia, Africa, and South Asia. Our 11–50 skilled employees work together to deliver products that meet international standards.
Why choose the MBY1000? Because it combines proven engineering, robust materials, and flexible customization at a competitive price. We are confident that our gearbox will exceed your expectations. Contact us today for a quote or technical consultation — we ship from Port of Shanghai and are ready to support your next project.
Frequently Asked Questions (FAQ)
- Q1: Is the MBY1000 compatible with my existing mill?
- A: The MBY1000 is designed for edge-driven grinding mills and features customizable input/output flanges and mounting dimensions. Please provide your mill’s specifications, and we will verify compatibility.
- Q2: What is the typical lead time?
- A: Standard models are generally available within 2–3 weeks. Custom configurations typically require 30–45 days depending on complexity.
- Q3: Do you offer gearboxes for larger mills beyond 1000 kW?
- A: Yes, we can custom-design gearboxes for higher power ratings. Contact us with your requirements.
- Q4: What type of lubrication does the gearbox require?
- A: Standard operation uses oil bath lubrication. For high-speed or heavy-load conditions, we recommend an optional forced oil circulation system.
- Q5: How long is the warranty period?
- A: We offer a 12-month warranty from the date of shipment. Extended warranty plans are available upon request.
- Q6: Do you provide spare parts?
- A: Yes, we supply original spare parts such as gears, bearings, seals, and lubrication components. Keep your gearbox running for years.
- Q7: What is the shipping port?
- A: All shipments are made from the Port of Shanghai, China. We handle export documentation and arrange freight to your destination.
- Q8: Can I get a sample before bulk order?
- A: Sample orders are welcome for testing. Please contact our sales team to discuss terms.
