Hebei Speed Torque Transmission Technology Co., Ltd., established in 2017 with a modern factory spanning 3,000–5,000 square meters, is proud to present our high-quality JS Grid Coupling Alloy Snake Spring Flexible Shock Absorbing Shaft Connector. Designed for demanding industrial applications, this coupling combines the proven grid coupling technology with a unique alloy snake spring element to deliver exceptional torque transmission, vibration damping, and misalignment compensation. As an ISO9001 certified manufacturer, we ensure every unit meets rigorous quality standards—making it a reliable choice for power transmission systems worldwide.
Product Overview

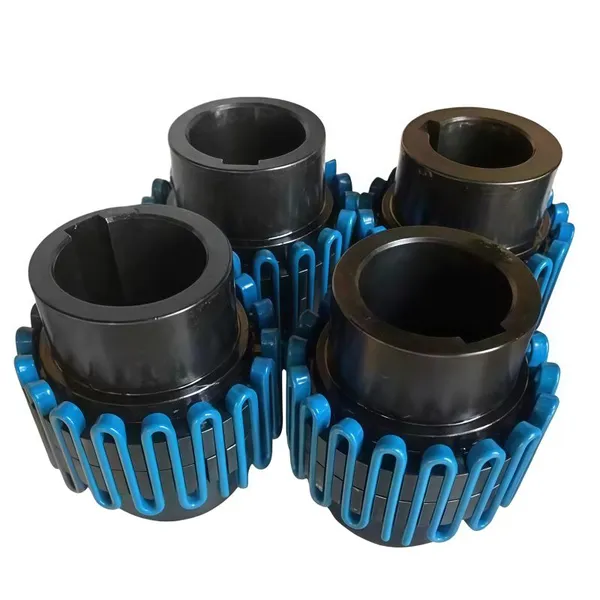

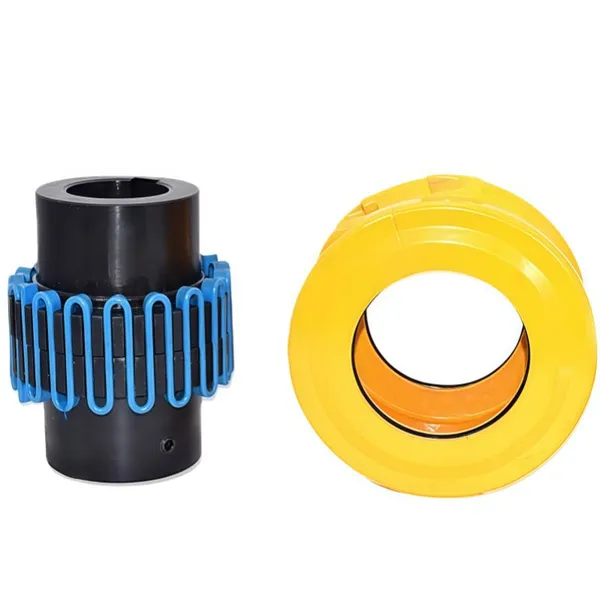

The JS Grid Coupling is a flexible coupling that utilizes a serpentine-shaped spring made from high-strength alloy steel. This snake spring design effectively absorbs shock loads and dampens torsional vibrations, protecting connected machinery from damage. With a compact and robust construction, it is ideal for connecting motors, reducers, pumps, fans, compressors, and other rotating equipment in industries such as mining, metallurgy, chemical, and material handling.
Key Features & Benefits
- Alloy Snake Spring Element: Made from specially treated alloy steel, the spring provides excellent elasticity, fatigue resistance, and long service life. It can accommodate angular, parallel, and axial misalignments without generating excessive reaction forces.
- Superior Shock Absorption: The grid spring structure acts as a natural damper, reducing peak loads by up to 30% compared to rigid couplings. This minimizes wear on bearings, seals, and other drive components.
- High Torque Capacity: Available in multiple sizes, the JS series offers torque ratings from 100 Nm to over 50,000 Nm, suitable for both light-duty and heavy-duty applications.
- Easy Installation & Maintenance: The two-piece design allows for quick assembly/disassembly without moving the connected equipment. The spring can be replaced separately, reducing downtime and replacement costs.
- Compact & Lightweight: Compared to other flexible couplings, the grid design offers a higher power-to-weight ratio, saving space and reducing inertia.
- Wide Operating Temperature Range: Suitable for environments from -30°C to +150°C (-22°F to +302°F), ensuring reliable performance in harsh conditions.
- Customizable Options: Available with keyway, spline, or clamping hub configurations. Different spring materials (e.g., stainless steel) and coatings (e.g., anti-corrosion) can be provided upon request.

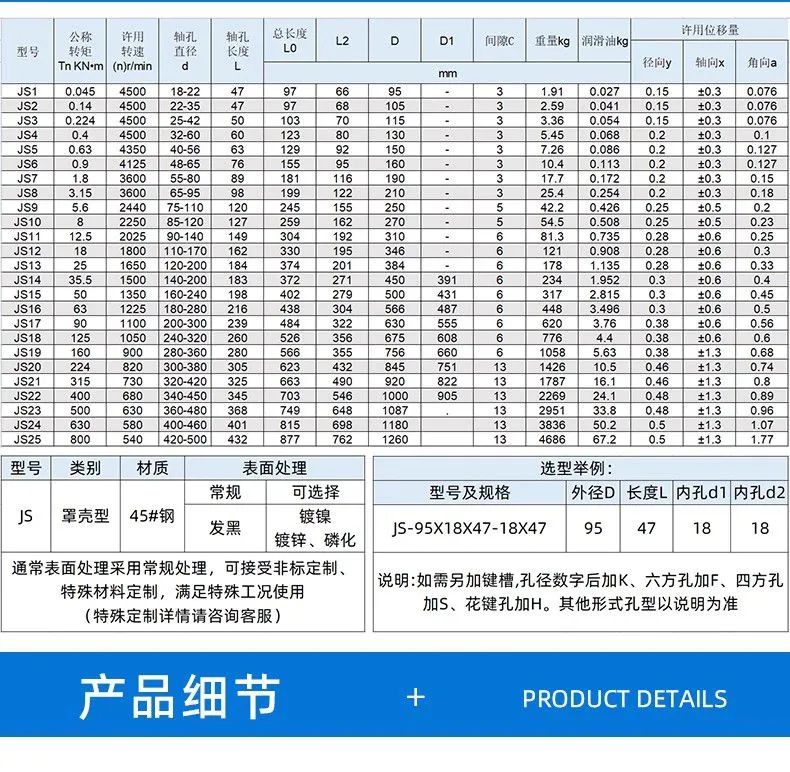

Technical Specifications (Typical Values)
| Parameter | Range / Value |
|---|---|
| Bore Diameter | 20 – 120 mm (custom sizes available) |
| Nominal Torque | 100 – 50,000 Nm |
| Maximum Speed | 1,800 – 4,500 RPM (depending on size) |
| Misalignment Capability | Angular: ≤1.5°, Parallel: ≤0.5 mm, Axial: ≤±2 mm |
| Material | Alloy Steel (40Cr, 42CrMo or equivalent) |
| Operating Temperature | -30°C to +150°C |
| Hub Finish | Black oxide, painted, or as required |
Why Choose Our JS Grid Coupling?
- Reliable Manufacturing: Our factory is ISO9001 certified, ensuring consistent quality control from raw material inspection to final assembly.
- Global Export Experience: With an annual export value of US$5–10 million, we ship to North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and more. Ports of Shanghai, Tianjin, and Qingdao are our main shipment hubs.
- Skilled Workforce: Our team of 101–200 experienced employees includes engineers dedicated to product innovation and custom solutions.
- Comprehensive Support: We provide technical documentation, installation guidance, and after-sales service to ensure your application runs smoothly.
Hebei Speed Torque Transmission Technology Co., Ltd. has been serving the global power transmission market since 2017. Our commitment to quality, competitive pricing, and fast delivery has earned us long-term partnerships with clients in diverse industries. We invite you to contact us for more details, samples, or customized solutions. Experience the durability and performance of our JS Grid Coupling – the smart choice for your shaft connection needs.
Frequently Asked Questions (FAQ)
Q1: What is the difference between a grid coupling and a jaw coupling?
A: Grid couplings use a flexible spring element (snake spring) that provides higher torque capacity and better shock absorption than elastomeric jaw couplings. They also tolerate higher temperatures and handle more misalignment.
Q2: Can this coupling be used in high-speed applications?
A: Yes, the JS Grid Coupling is designed for speeds up to 4,500 RPM depending on size. For applications exceeding this, please consult our technical team for custom balancing options.
Q3: What maintenance is required?
A: Regular inspection of the spring and hub surfaces is recommended. Lubrication is not normally required, but for harsh environments, a light coating of anti-seize compound can extend service life.
Q4: Do you offer non-standard bore sizes or keyway configurations?
A: Absolutely. We can machine hubs to your exact bore diameter, keyway dimensions, or spline profiles. Please provide your requirements when ordering.
Q5: How long is the warranty period?
A: We offer a standard 12-month warranty from the date of shipment against manufacturing defects. Extended warranties are available upon request.
Q6: What is the typical lead time for a standard size?
A: For standard JS series couplings in stock, lead time is 7–15 days. Larger quantities or custom sizes usually require 20–30 days.
Q7: Can the snake spring be replaced separately if damaged?
A: Yes, the spring is a replaceable component. We stock spare springs for all common sizes, making repairs quick and cost-effective.
Q8: Is this coupling suitable for vertical shaft applications?
A: Yes, the JS Grid Coupling can be used in vertical orientations. However, for vertical applications, we recommend using a retaining ring or set screw to prevent axial sliding.
