Welcome to Hebei Speed Torque Transmission Technology Co., Ltd. As a dedicated manufacturer of high-quality industrial coupling solutions since 2017, we are proud to present our Snake Spring Coupling Split Yellow Protective Cover – an innovative industrial coupler designed for durability, safety, and effortless maintenance. Our factory spans 3,000–5,000 square meters, and with an annual export value of US$5–10 million, we serve markets across North America, South America, Europe, Asia, Africa, and Oceania. This product embodies our commitment to reliable power transmission and easy upkeep, making it a preferred choice for demanding industrial environments.

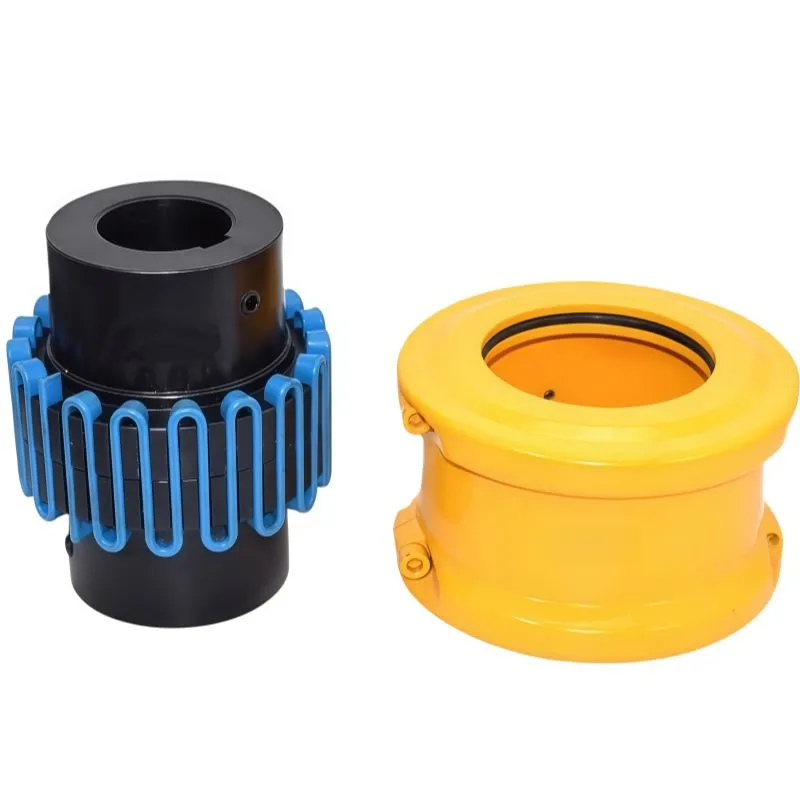

The snake spring coupling utilizes a unique serpentine spring design that provides high torsional flexibility and excellent vibration damping. The split construction allows for rapid installation and disassembly without disturbing the connected equipment, significantly reducing downtime. The bright yellow protective cover not only enhances visibility but also shields the spring elements from debris, dust, and accidental contact. Whether you are coupling motors to pumps, compressors, or conveyor drives, this coupler delivers consistent performance with minimal maintenance requirements.
Key Features & Benefits
- Split Design: Enables quick inspection and replacement of spring packs without moving the hub or shafts – saves time and labor.
- Snake Spring Element: Provides high elasticity, compensates for misalignment (angular, parallel, axial), and reduces peak loads on machinery.
- Yellow Protective Cover: Made from durable, impact-resistant material; easy to remove for maintenance; color-coded for quick identification.
- Easy Maintenance: No lubrication required; simple visual check of spring condition; spare parts (spring packs) are readily available.
- Wide Compatibility: Suitable for various shaft sizes and torque ranges; customizable bore diameters and keyways upon request.
- Robust Construction: Manufactured from high-grade alloy steel with heat treatment for enhanced strength and wear resistance.
- ISO9001 Certified: Our production processes and quality management system ensure consistent product reliability.
Technical Specifications (Typical Range – Customizable)
| Parameter | Value / Range |
|---|---|
| Coupling Type | Split snake spring (with yellow protective cover) |
| Material | High-grade alloy steel (spring), cast iron/steel (hubs) |
| Cover Material | Engineering plastic (yellow, UV resistant) |
| Torque Capacity | Customizable – typically from 50 Nm to 5,000 Nm (larger available) |
| Bore Diameter Range | 10 mm – 200 mm (customizable) |
| Max Speed | Up to 6,000 RPM (depending on size and balance grade) |
| Misalignment Capability | Angular: ±1°, Parallel: ±0.5 mm, Axial: ±2 mm |
| Temperature Range | -20°C to +80°C (higher with optional materials) |
The above values are typical for standard configurations. For non-standard requirements, please contact our engineering team – we offer custom bore sizes, keyways, balance grades, and special coatings to meet your specific application needs.
Why Choose Our Snake Spring Coupling?
- Time Saving: Split design reduces installation and maintenance time by up to 50% compared to traditional solid couplings.
- Cost Effective: No need for special tools; replace only the spring pack instead of the entire coupling.
- Safety: The yellow cover provides a visible safety barrier, preventing accidental contact with rotating springs.
- Versatility: Works with electric motors, diesel engines, gearboxes, pumps, fans, and more.
- Global Support: We export to over 20 countries and provide responsive after-sales service.
Frequently Asked Questions
- Q1: What is a snake spring coupling and how does it work?
- A snake spring coupling uses a continuous spiral spring element that transmits torque through elastic deformation. The spring absorbs shock loads, dampens vibration, and compensates for misalignment between two shafts. The split design allows the spring to be easily inspected or replaced without disconnecting the equipment.
- Q2: Why does this coupling have a yellow protective cover?
- The yellow cover serves multiple purposes: it protects the spring from external contaminants (dust, debris), prevents accidental contact with rotating parts for operator safety, and its bright color makes it easy to spot during maintenance checks. The cover is split and removable for quick access.
- Q3: Is this coupling easy to maintain? What is required?
- Yes, maintenance is straightforward. Because of the split design, you can simply remove the cover, inspect the spring for wear or breakage, and replace the spring pack if needed. No lubrication is required. Regular visual checks every few months are sufficient for most applications.
- Q4: What torque and bore sizes are available?
- Standard torque capacities range from approximately 50 Nm to 5,000 Nm, but we can customize up to higher values upon request. Bore diameters can be machined to your exact shaft size, typically from 10 mm to 200 mm. Please provide your shaft details when ordering.
- Q5: Can this coupling handle misalignment? How much?
- Yes, the snake spring design is inherently flexible. It can accommodate angular misalignment up to ±1°, parallel offset up to ±0.5 mm, and axial movement up to ±2 mm. For larger misalignments, we recommend consulting our engineering team for an appropriate solution.
- Q6: Do you offer custom options like special materials or coatings?
- Absolutely. We can provide couplings in stainless steel, with nickel plating, or with specialized coatings for corrosive or high-temperature environments. Custom balance grades (e.g., G6.3, G2.5) are also available. Just let us know your requirements.
- Q7: What is the lead time and shipping method?
- For standard sizes, lead time is typically 15–25 working days. Custom orders may take longer. We ship from Port of Shanghai, Port of Tianjin, or Port of Qingdao via sea, air, or express as per your preference.
- Q8: Is your company ISO certified?
- Yes, we are ISO9001 certified, ensuring our quality management system meets international standards. Each coupling undergoes rigorous inspection before shipment.
Trust Hebei Speed Torque Transmission Technology Co., Ltd. With our established factory (3,000–5,000 sqm), experienced team of 101–200 employees, and annual export value over US$5 million, we have the capacity to fulfill large orders with consistent quality. Our ISO9001 certification, combined with our presence in markets across six continents, demonstrates our reliability. Choose our Snake Spring Coupling Split Yellow Protective Cover for a coupling that simplifies your maintenance routine while delivering robust performance. Contact us today for a quote or technical consultation – we look forward to partnering with you!
