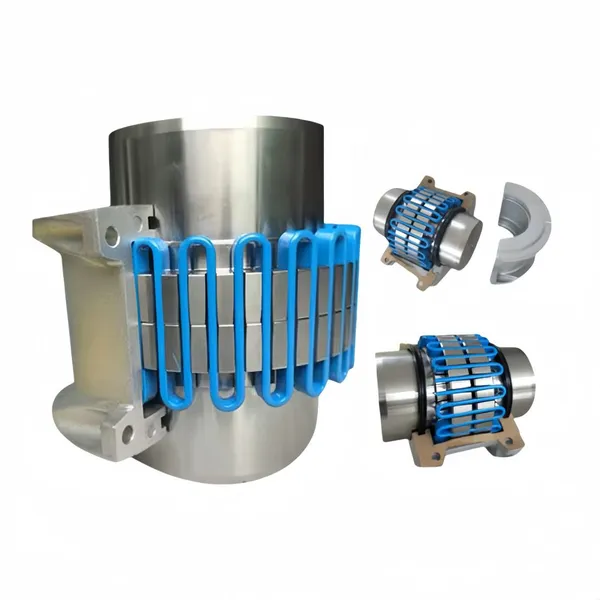

Hebei Speed Torque Transmission Technology Co., Ltd., established in 2017 and located in Cangzhou, Hebei, China, is a trusted manufacturer specializing in high-quality transmission components. With a factory spanning 3,000–5,000 square meters and employing 101–200 skilled workers, we deliver precision-engineered products to global markets. Our flexible snake spring coupling is designed to excel in demanding industrial machinery and equipment applications, offering reliable torque transmission while compensating for misalignments. This coupling combines durability, flexibility, and ease of installation to enhance your equipment’s performance and reduce maintenance costs.
Key Features & Technical Specifications
High Flexibility: The snake spring design allows for angular, parallel, and axial misalignment compensation, reducing stress on connected shafts and bearings.
Durable Material: Made from high-grade spring steel or optional stainless steel, providing excellent fatigue resistance and long service life.
Wide Torque Range: Available in torque capacities from 5 Nm to 500 Nm, with customizable options to meet specific application needs.
Zero Backlash: The spring element ensures zero backlash operation, ideal for precise motion control in servo-driven systems.

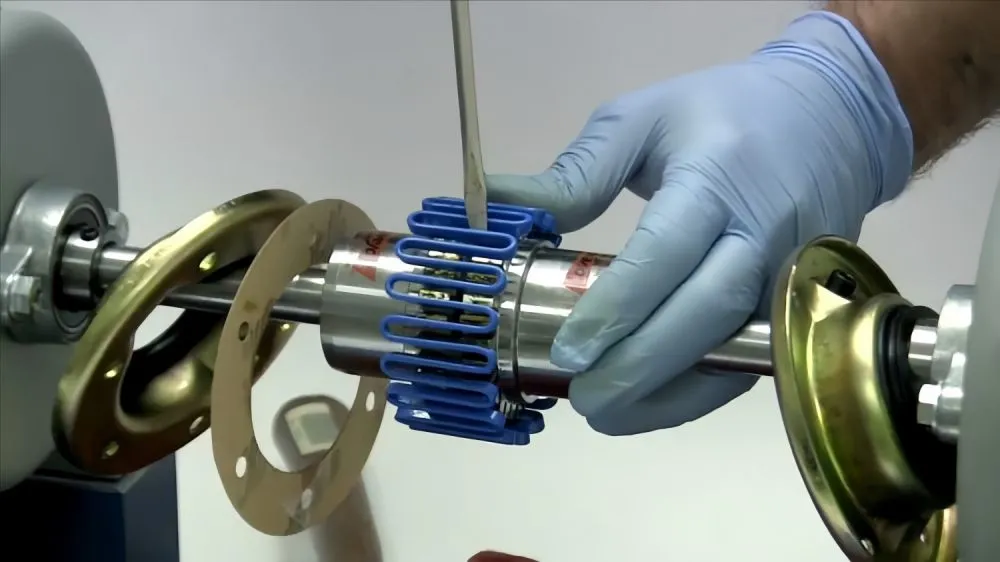

Easy Installation: Two-piece design with keyway and clamping hub options simplifies mounting and replacement.
Corrosion Resistance: Optional surface treatments (zinc plating, black oxide) enhance resistance to harsh environments.
Compact Size: Low inertia design suitable for high-speed applications without extra weight.
| Parameter | Value Range |
|---|---|
| Bore Diameter | 6 mm – 50 mm |
| Outer Diameter | 25 mm – 100 mm |
| Overall Length | 30 mm – 150 mm |
| Max. Speed | Up to 10,000 RPM (depending on size) |
| Operating Temperature | -30°C to +120°C |
| Materials | Spring Steel (standard), Stainless Steel (optional) |
Advantages for Your Application
Our flexible snake spring coupling offers significant benefits over traditional elastomeric or rigid couplings:
Reduced Vibration & Noise: The spring structure absorbs shock loads and dampens torsional vibrations, protecting connected equipment.
Extended Machine Life: By accommodating misalignment and reducing bearing loads, it prolongs the lifespan of motors, gearboxes, and pumps.
Maintenance-Free Operation: No lubrication required, saving time and costs in industrial environments.
Customizable Designs: We offer bore sizes, keyways, hub materials, and even special spring rates according to your blueprint or performance requirements.
Versatile Applications: Suitable for conveyors, mixers, compressors, generators, and other rotating machinery.
Why Choose Hebei Speed Torque?
With an annual export value of US$5–10 million, we supply customers across North America, South America, Europe, Asia, Africa, and Oceania. Our factory is ISO9001 certified, ensuring consistent quality control. We ship from major ports including Shanghai, Tianjin, and Qingdao, providing reliable logistics. Our team of 101–200 experienced professionals is dedicated to quick response and technical support. Whether you need standard couplings or custom-engineered solutions, we deliver on time with competitive pricing.
Contact us today to discuss your coupling requirements. Request a quote or engineering drawing review – we are ready to support your next project.
Frequently Asked Questions (FAQ)
What is the maximum torque this coupling can handle?
The standard torque range is from 5 Nm to 500 Nm, but custom versions can be designed for higher torques up to 2000 Nm. Please contact our technical team with your specific requirements.Can this coupling operate in high-temperature environments?
Yes, the standard operating temperature range is -30°C to +120°C. For extreme temperatures (up to 250°C), we offer special spring steel or a stainless steel option. Please advise your working conditions.Does the coupling require lubrication?
No, the snake spring coupling is maintenance-free and does not need any lubrication. This reduces downtime and maintenance costs.How do I select the correct size for my application?
You need to know the shaft diameters, torque requirement, and available space. Use our online selector tool or send an inquiry with your motor power, RPM, and shaft sizes. Our engineers will recommend the best model.Is the coupling suitable for servo motors?
Absolutely. Our zero-backlash design makes it ideal for servo drives and motion control applications where precision is critical.What materials are available?
Standard material is spring steel. Optional stainless steel (304/316) is available for corrosive environments. Surface treatments like zinc plating, black oxide, or nickel plating can also be applied.Can I get a sample before bulk order?
Yes, we support sample orders. Simply pay the sample cost and shipping; samples are typically shipped within 7–10 days after confirmation.What is the lead time for production?
For standard sizes, lead time is 15–20 days. For custom orders, it depends on complexity, usually 25–35 days. We also have a stock program for quick delivery.
