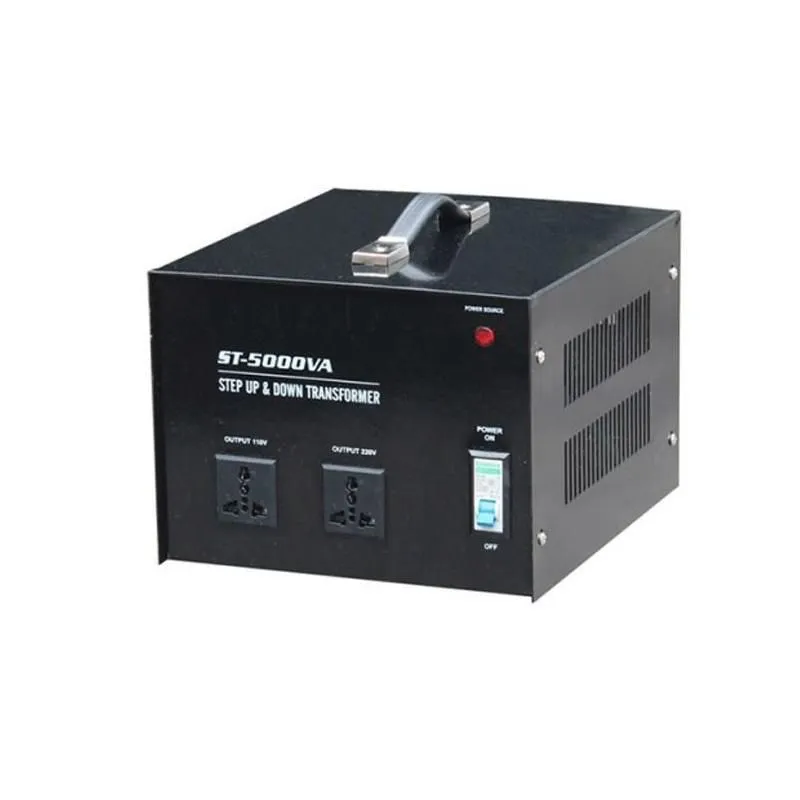

Jinhua Dika Electrical Equipment Co., Ltd. presents our premium 5000W Step Down Transformer, engineered to reliably convert 220V/240V 50Hz mains power to 110V/120V 60Hz output. As a dedicated manufacturer with over a decade of experience in voltage conversion solutions, we understand the critical need for stable, heavy-duty power when operating North American or Japanese equipment in countries with higher voltage grids. Our transformer is built with high-grade silicon steel cores and pure copper windings, ensuring minimal energy loss and superior thermal management. Whether you're powering industrial machinery, medical devices, or large workshop tools, this unit delivers consistent voltage regulation even under continuous full load.
Key Features & Technical Specifications
- High Power Capacity: Rated at 5000W continuous, with a surge capacity of up to 6000W for brief periods, accommodating heavy start-up currents of motors and compressors.
- Dual Input/Output Flexibility: Accepts both 220V and 240V input (50Hz) with automatic tap selection, outputs 110V or 120V (60Hz) via user-selectable switch or fixed configuration.
- Pure Copper Windings: Low resistance and high conductivity reduce heat generation, extending transformer life and maintaining efficiency above 95%.
- Heavy-Duty Steel Enclosure: Powder-coated steel casing with built-in ventilation grilles protects internal components from dust and mechanical impact. Optional built-in cooling fan for high-temperature environments.
- Built-in Safety Protections: Integrated thermal overload protector automatically shuts off power if internal temperature exceeds safe limits; input/output fuses provide short-circuit protection.
- Stable Frequency Conversion: While maintaining input frequency at 50Hz, the transformer delivers stable 60Hz output suitable for sensitive electronics like CNC controllers or lab equipment.
| Parameter | Value |
|---|---|
| Rated Power | 5000W (5000VA) |
| Input Voltage | 220V / 240V AC ±10% |
| Output Voltage | 110V / 120V AC ±3% |
| Input Frequency | 50Hz ±2% |
| Output Frequency | 60Hz ±2% (synchronized with input) |
| Insulation Class | Class H (180°C) / Class F optional |
| Protection Index | IP20 (indoor use); IP54 optional |
| Dimensions (L×W×H) | Approx. 400×300×350 mm (customizable) |
Customer Benefits
- Universal Compatibility: Ideal for converting 220-240V 50Hz to 110-120V 60Hz, enabling seamless operation of US/Canadian appliances, power tools, and medical equipment in Europe, Asia, Africa, and other 220V regions.
- Rugged Durability: Heavy-duty construction with high-temperature resistant materials ensures long service life even in demanding industrial environments.
- Energy Efficient: Low no-load losses and high efficiency reduce electricity costs during prolonged use.
- Easy Installation: Pre-wired with heavy-duty input/output cables and standard NEMA or IEC sockets (customizable per market). Wall-mount brackets available upon request.
- Reliable Safety: Overload, short-circuit, and thermal protection provide peace of mind for continuous operation.
Why Choose Jinhua Dika Electrical Equipment Co., Ltd.?
As a professional manufacturer with 11-50 employees and an annual export value of US$1 million - US$1.5 million, we have supplied transformers to markets across North America, South America, Europe, Southeast Asia, Africa, and Oceania. Our products are manufactured under strict quality control systems certified to ISO9001, ISO14000, and OHSAS18001, ensuring consistency and reliability. We ship from major Chinese ports including Shanghai, Tianjin, Guangzhou, and Ningbo, with fast lead times and flexible packaging options. Every transformer undergoes thorough load testing and insulation resistance measurement before shipment. Our dedicated after-sales team provides technical support and spare parts availability for years to come. Choose Dika for a voltage conversion solution that combines industrial-grade performance with competitive pricing.
Frequently Asked Questions
Q1: Can this transformer be used continuously at full load (5000W)?
A: Yes, our heavy-duty design allows continuous operation at full rated power (5000W) under normal ambient temperatures (up to 40°C). For sustained loads above 90%, we recommend ensuring adequate ventilation or selecting the optional cooling fan model.
Q2: Does this transformer convert frequency from 50Hz to 60Hz?
A: The transformer does not actively change frequency; it operates as an electromagnetic device, preserving the input frequency on the output. If your equipment strictly requires 60Hz, ensure your input power is already 60Hz (e.g., from a generator or frequency converter). However, most motors and resistive loads can tolerate ±2Hz difference; for precise frequency conversion, we recommend a separate frequency converter.
Q3: What type of input/output plug does it come with?
A: Standard units come with input flying leads (no plug) for hardwiring, and output with a NEMA 5-20R receptacle (US standard) or universal socket. Custom plug configurations (e.g., UK, EU, Schuko) are available upon request with minimum order quantities.
Q4: Is this transformer safe for sensitive electronics like computers or medical devices?
A: Yes, the toroidal core design (optional) reduces electromagnetic interference, and the tight voltage regulation (±3%) ensures clean output. For ultra-sensitive devices, we recommend adding an external surge protector or line filter.
Q5: What is the weight and shipping method?
A: Approximate weight is 28 kg. We ship via sea freight (FOB/CIF) or air express (DHL/UPS/FedEx) for smaller quantities. The transformer is packed in a sturdy plywood case with foam cushioning.
Q6: Can I use this transformer outdoors?
A: The standard IP20 rating is for indoor dry locations. For outdoor or dusty environments, we can provide an IP54 weatherproof enclosure as an option. Please specify when ordering.
Q7: Do you offer custom input/output voltage combinations?
A: Absolutely. We can manufacture step-down transformers with custom input ranges (e.g., 200V-260V) and output voltages (100V, 127V, etc.). Lead time is typically 15-25 working days for custom orders.
Q8: What certifications does your transformer have?
A: Our manufacturing facility holds ISO9001, ISO14001, and OHSAS18001 certifications. The transformers themselves can be tested and certified according to CE, RoHS, or UL standards upon request. Please contact us for specific certification needs.
Ordering & Support
Contact our team for bulk pricing, technical datasheets, or a custom quotation. We offer OEM/ODM services and can adapt the transformer to your brand and specification. With competitive pricing and reliable after-sales support, Jinhua Dika is your trusted partner for voltage conversion solutions.
