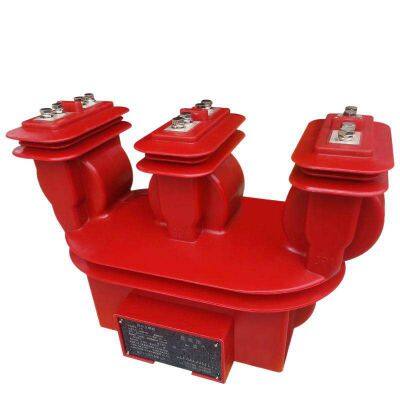

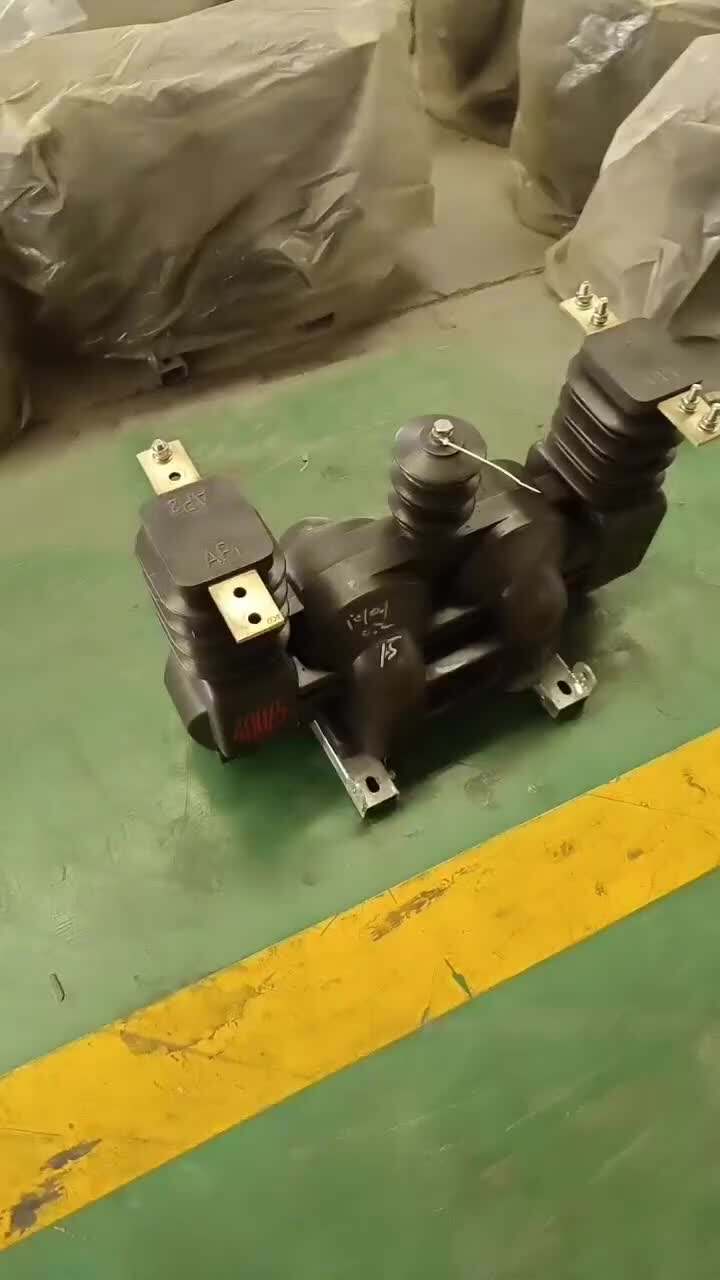

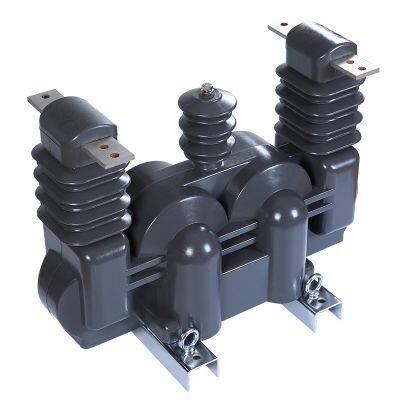

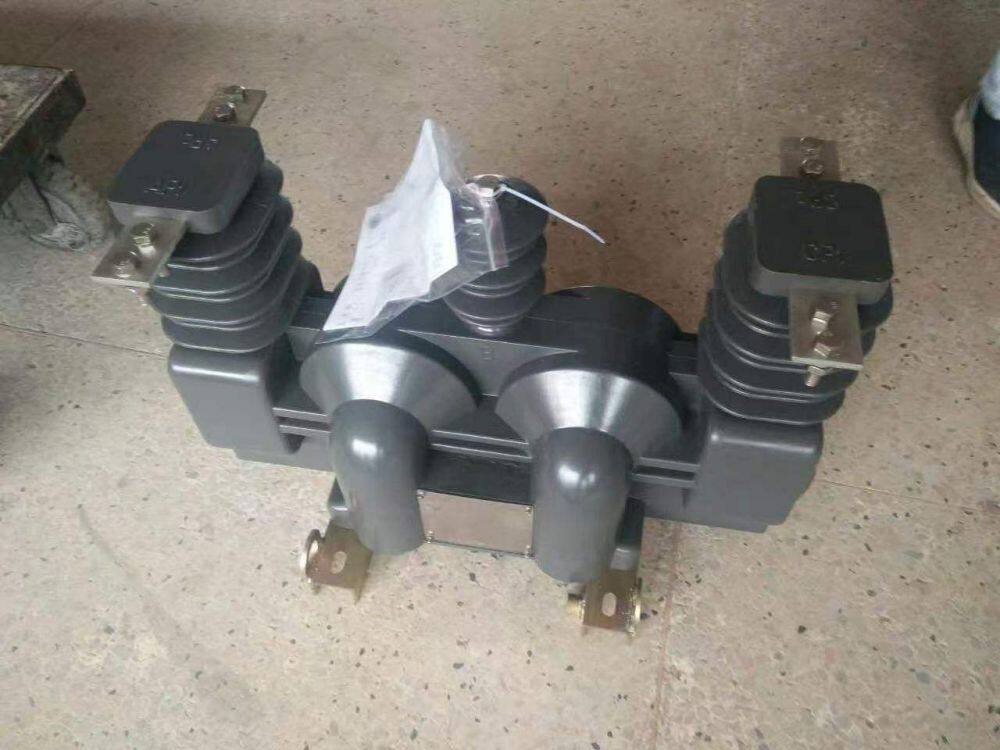

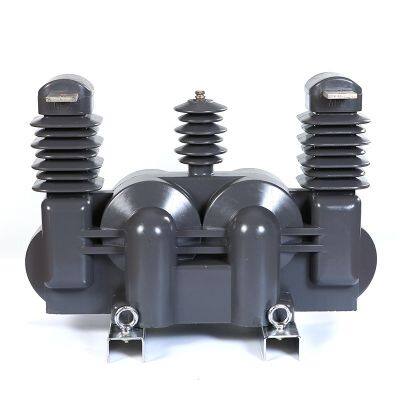

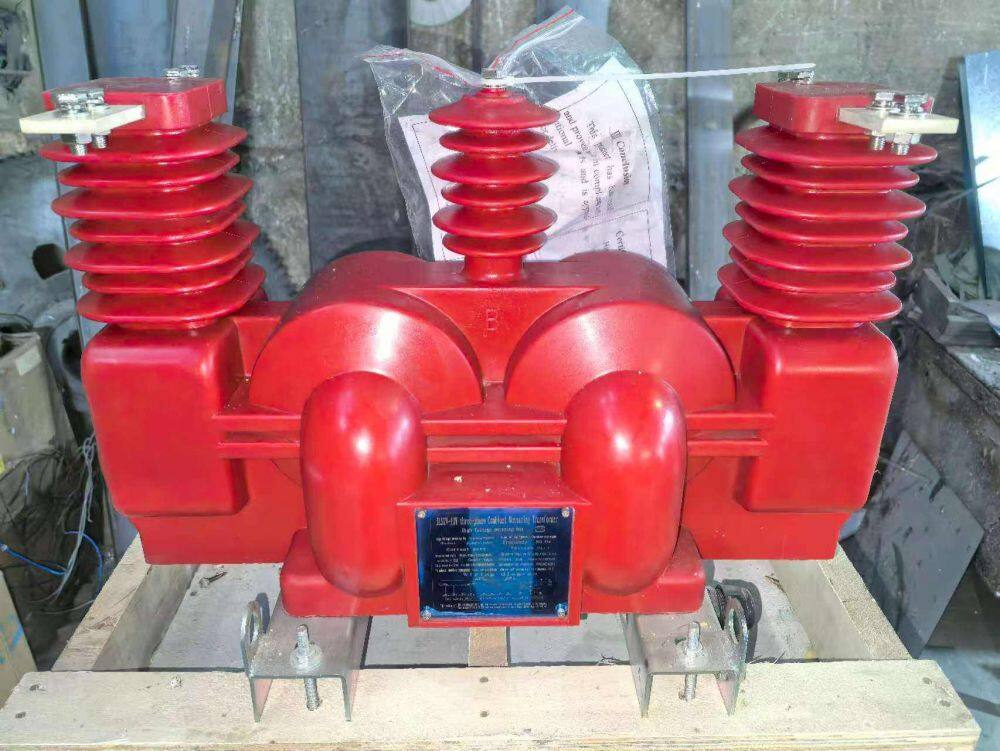

Combination 6KV 10KV 11KV 13.8KV Current Transformer CT and Voltage Transformer VT
US$ 470
1 - 14 Piece
US$ 430
≥15 Piece
Key Specifications
Get Latest Price
Brand Name:
dika
Place of Origin:
China
Model Number:
JLSZV-10
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
7 days
Related Products
-
66kv 69kv Current Transformer Single Phase Oil AUTOTRANSFORMER TOROIDAL 230kv Outdoor Type Current Transformer Current TrasfomerUS$ 2500 - 2700MOQ: 1 Piece -
AUTOTRANSFORMER TOROIDAL 35KV Oil Immersed Type Combined Current Transformer CT and Voltage Transformer VT Instrument 110VUS$ 2200 - 2500MOQ: 1 Piece
-
10KV Combined Current Transformer CT and Voltage Transformer VT Instrument AUTOTRANSFORMER TOROIDAL Three Phase Meter Box 110VUS$ 2500 - 3000MOQ: 1 Piece
-
Factory Direct Sale of LZZBJ9-10 High Voltage Current Transformer for 10KV Cabinets Three-Phase 220V Output 50Hz Frequency"US$ 60 - 80MOQ: 1 Piece
-
JLSZY-10 Outdoor Single-Phase Three-Wire High Voltage Measuring Box 10KV Dry Combined Transformer for Power UseUS$ 500 - 620MOQ: 1 Piece
Brand Name
dika
Place of Origin
China
Model Number
JLSZV-10
Combination CT & VT
JLSZV-6 (6) 10kV combination transformer/dry-type power metering box/combination ct pt dry-type power metering box outdoor current and voltage combination transformer

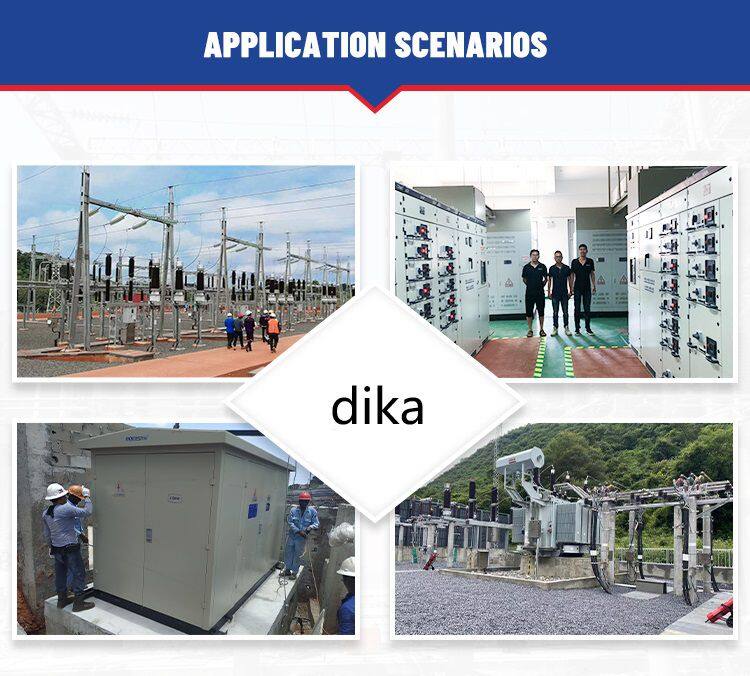

This voltage and current combined transformer is suitable for voltage, current and energy measurement and relaying protection at the three-phase circui of AC 50Hz nd rated voltage 10kV,it is not only applied to the rural outdoor transformer substations, but also the small-sized industrial transformer substations and distribution substations.This product can fully take the place of LSJW-10 type oil-immersed combined transformer.
This type of transformer is designed into the such structure: epoxy-resin(Swiss Ciba CW5837) casting, fully sealed and post type.Due to employing the outdoor epoxy-resin casting,the product is featured with long service life, withstanding the electric arc,ultraviolet ray and aving, etc. This product is combined by two single-phase full-insulation voltage transformers that are formed into "V" -shaped connection and two current transformers that are connected to phases A and C in series.And,the current transformer secondary windings that are equipped with the taps can get the different current ratios
The secondary outlet terminal has a connection guard.this guard has an outlet hole at the bottom, so, it is very convenient to connect the wires. and it is ver safe and reliable,realizing the electricity larceny prevention. In addition,the channe! of base has four installation holes that are helpful for mounting.
The secondary outlet terminal has a connection guard.this guard has an outlet hole at the bottom, so, it is very convenient to connect the wires. and it is ver safe and reliable,realizing the electricity larceny prevention. In addition,the channe! of base has four installation holes that are helpful for mounting.
We can custom made this CT VT combination as the client's requirements and technical specifications.
Such as :
combination CT & VT: 1. CT-150/5; 0,5; 10VA, VT 10000/100; 0,5; 100VA 2. CT-100/5; 0,5; 10VA, VT 10000/100; 0,5; 100VA 3. CT-100/5; 0,5; 10VA, VT 6000/100; 0,5; 100VA 4. CT-150/5; 0,5; 10VA, VT 6000/100; 0,5; 100VA
Service environment
1. Ambient temperature：-30℃~ +50℃，and measuring average RH within 24 hours ≤50℃；
2. Altitude: Not exceed 2500m above sea level；
3. Ambient humidity: Daily average RH ≤ 95%; Monthly average RH ≤ 90%
4. Earthquake intensity: ≤ Degree 8
5. Water vapor pressure:Daily average RH ≤ 2.2kPa; Monthly average RH ≤ 1.8kPa;
6. Ambient environment: no fire, explosion danger, serious pollution, chemical corrosion and severe vibration place
2. Altitude: Not exceed 2500m above sea level；
3. Ambient humidity: Daily average RH ≤ 95%; Monthly average RH ≤ 90%
4. Earthquake intensity: ≤ Degree 8
5. Water vapor pressure:Daily average RH ≤ 2.2kPa; Monthly average RH ≤ 1.8kPa;
6. Ambient environment: no fire, explosion danger, serious pollution, chemical corrosion and severe vibration place
