Product Overview

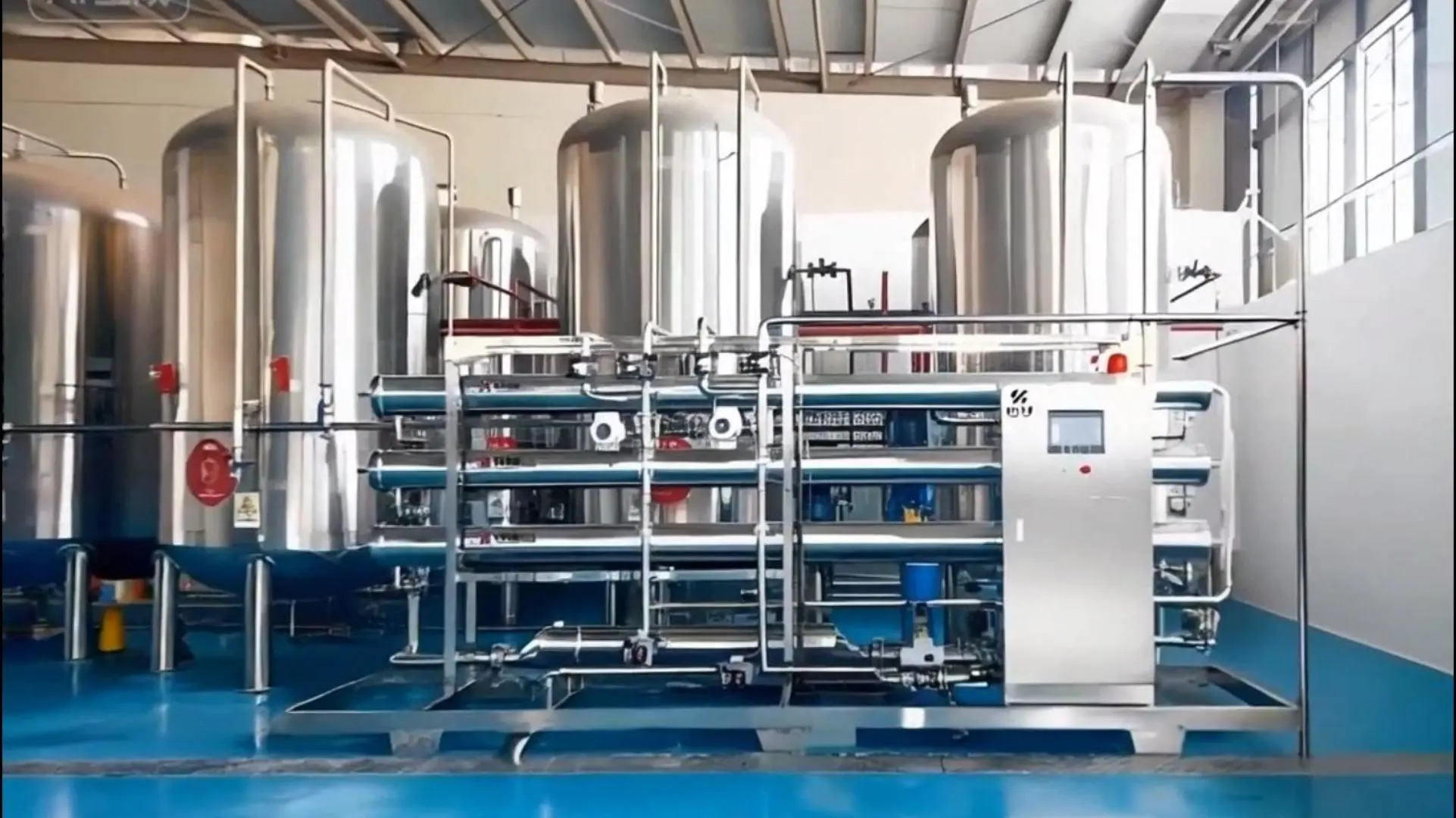

The Dairy Whole Production Line Membrane Sterilization and Concentration Equipment, developed by Zhengzhou Chlory Technology Co., Ltd.—a National High-tech Enterprise with over 20 years of membrane separation expertise—is a specialized integrated solution tailored for the dairy processing industry. Targeting core industry pain points such as thermal nutrient loss, high energy consumption, and flavor damage in traditional dairy processing (pasteurization, vacuum evaporation), this system adopts advanced membrane separation technologies (Microfiltration - MF, Ultrafiltration - UF, Nanofiltration - NF).
It realizes efficient sterilization, purification, and concentration of dairy products (raw milk, whey, yogurt base, etc.) through molecular-level sieving and low-temperature physical separation. While effectively removing bacteria, somatic cells, macromolecular impurities, and redundant salts, it maximizes the retention of heat-sensitive nutrients (whey protein, immunoglobulin, vitamins) and natural flavors. Fully compliant with international standards (GMP, FDA), the system has been widely applied in milk powder, whey protein powder, condensed milk, and functional dairy production, providing reliable support for high-quality, low-consumption, and standardized production in the dairy industry.
Core Advantages
1. Low-Temperature Operation & Nutrient Preservation
Operates at room temperature (25-40℃) without phase change, avoiding thermal denaturation of heat-sensitive components such as whey protein and vitamins. The retention rate of active nutrients reaches ≥95%, ensuring the natural nutritional value and flavor of dairy products.
2. High-Efficiency Sterilization & Stable Quality
MF/UF membrane technology achieves ≥99.99% removal of bacteria, yeast, mold, and somatic cells in dairy products, replacing traditional pasteurization. It solves the problem of cold turbidity caused by protein-polyphenol complexes, extending the shelf life of dairy products to 6-12 months while maintaining consistent product quality.
3. Energy Saving & Cost Reduction
Energy consumption is only 30-40% of traditional vacuum evaporation concentration processes, significantly reducing water and electricity costs. The pure physical separation process requires no chemical agents or filter aids, avoiding secondary pollution and reducing operating costs by 30-50%.
4. Dual-Function Integration & High Adaptability
Integrates sterilization, purification, concentration, and desalination functions. Supports customized configuration for different dairy products (raw milk, whey, probiotic drinks) and production scales (pilot to industrial), adapting to both new production line construction and old line upgrades.
5. Compliant & Safe Production
All parts in contact with materials are made of food-grade 304/316L stainless steel and PVDF/ceramic membranes, complying with strict food safety standards. The process has no chemical residues, ensuring the safety and hygiene of dairy products and meeting regulatory requirements.
Main Features
1. Modular Design & Flexible Configuration
Supports customized combination of MF (sterilization), UF (protein concentration), and NF (lactose concentration/desalination) membrane modules based on processing requirements. Processing capacity ranges from 50-100 Kg/h (pilot scale) to 5000-8000 Kg/h (industrial scale), adapting to diverse production needs.
2. Intelligent Automatic Control
Equipped with a PLC control system and touchscreen interface, enabling real-time monitoring and automatic adjustment of key parameters (pressure, flow rate, temperature, turbidity, protein concentration). Supports unattended operation, automatic backwashing, and abnormal alarm functions, reducing manual intervention and human error.
3. Integrated CIP Cleaning System
Built-in online Clean-in-Place (CIP) system with acid, alkali, and enzyme cleaning programs. Automatically cleans membrane surfaces and pipelines without disassembly, efficiently removing protein adsorption, colloidal deposition, and scaling, extending membrane service life to 2-3 years.
4. Durable & Corrosion-Resistant Materials
Adopts food-grade membrane materials (PVDF, ceramic, TFC) and 304/316L stainless steel for wetted parts, featuring excellent chemical resistance (pH 2-12) and corrosion resistance. It adapts to harsh dairy processing conditions (high viscosity, high protein content) and avoids material leaching.
5. Turnkey Project Capability
Provides one-stop services from technical con-sultation, dairy product property analysis, pilot-scale verification, and equipment manufacturing to on-site installation, commissioning, and opera-tor training. Seamlessly integrates with existing dairy production lines (centrifuges, spray dryers) to form a complete processing chain.
Technical Parameters
Parameter Category |
Specification Range |
Processing Capacity |
50 Kg/h – 8000 Kg/h (customizable based on production needs) |
Membrane Configuration |
MF: 0.1–1 μm; UF: 10–50 kDa; NF: 200–500 Da (selectable) |
Operating Pressure |
MF/UF: 0.1–0.7 MPa; NF: 1.0–2.0 MPa |
Operating Temperature |
5–45℃ (optimal: 25–35℃) |
Separation Efficiency |
Bacteria/somatic cell removal rate ≥99.99%; Macromolecular impurity removal rate ≥95%; Nutrient retention rate ≥95% |
Feed Liquid Adaptability |
Viscosity: ≤50 mPa·s; pH: 2–12; Applicable to raw milk, whey, yogurt base, etc. |
Material in Contact with Product |
304/316L stainless steel, food-grade PVDF/ceramic/TFC membranes, FDA-compliant seals |
Control System |
PLC automatic control + touchscreen; Real-time monitoring of pressure/flow/quality |
Power Consumption |
0.3–1.2 kW·h/m³ of treated liquid (varies by membrane type and capacity) |
Membrane Service Life |
2–3 years (under normal operation and maintenance) |
Water Recovery Rate |
70–85% (adjustable based on product requirements) |
Core Components
Component Unit |
Core Equipment |
Function Description |
Pretreatment Unit |
5–10 μm precision filter, buffer tank, variable-frequency feed pump |
Remove large-particle impurities (sediment, fat globules) to protect membrane elements; stabilize feed flow and pressure |
Membrane Separation Unit |
MF/UF/NF membrane modules (anti-fouling coating), circulation pump |
Core separation unit: MF achieves sterilization; UF concentrates protein; NF realizes lactose concentration/desalination |
Control Unit |
PLC controller, pressure/flow/temperature sensors, protein concentration analyzer |
Automatically adjust process parameters; monitor separation effect in real time; trigger alarms for abnormalities |
CIP Cleaning Unit |
CIP tank, cleaning pump, acid-base reagent tanks, spray nozzles |
Online cleaning of membrane modules and pipelines; remove fouling and restore membrane performance |
Auxiliary Unit |
Intermediate storage tank, concentration tank, heat exchanger, sampling valve |
Store treated dairy products; adjust concentration; facilitate quality inspection; control feed liquid temperature |
Application Scenarios
1. Raw Milk Processing
Application: Sterilization, purification, and preliminary concentration of raw milk for milk powder production.
Membrane Solution: MF sterilization + UF concentration.
Value: Removes bacteria and somatic cells without damaging nutrients, concentrates milk protein from 3.2% to 8-12%, reduces subsequent spray drying energy consumption by 40%+, and improves milk powder solubility.
2. Whey Protein Concentration & Purification
Application: Processing of whey (by-product of cheese production) to produce whey protein powder.
Membrane Solution: UF membrane (10-50 kDa) concentration + NF desalination.
Value: Concentrates whey protein from 0.8% to 80-90%, removes 60-80% of lactose and salts, improves product protein content and taste, and meets high-quality whey protein production standards.
3. Functional Dairy Production (Probiotic Drinks)
Application: Sterilization and probiotic retention in probiotic milk drinks.
Membrane Solution: MF sterilization of base liquid + UF interception of probiotic bacteria.
Value: Sterilizes the base liquid while retaining probiotic activity (retention rate ≥98%), extends product shelf life, and avoids probiotic inactivation caused by high-temperature sterilization.
4. Condensed Milk & Low-Acid Dairy Processing
Application: Concentration and desalination of condensed milk, low-acid milk drinks.
Membrane Solution: NF membrane concentration + desalination.
Value: Concentrates lactose from 4.5% to 30-40% at room temperature, reduces salt content by 50-70% to improve taste, avoids lactose crystallization caused by traditional evaporation, and ensures product stability.
Company Profile
With 20+ years of experience in chlorination system manufacturing, ZLN is a certified (ISO 9001, ISO 14001, ISO 18001) original equipment manufacturer (OEM) specializing in water treatment solutions. We offer:
1. Customized package design (AutoCAD, SolidWorks-supported engineering).
2. After-sales services: On-site inspection, electrolyzer refurbishment, and capacity upgrades.
3. Membership in China's Chlorine Committee, ensuring compliance with global industry standards.
