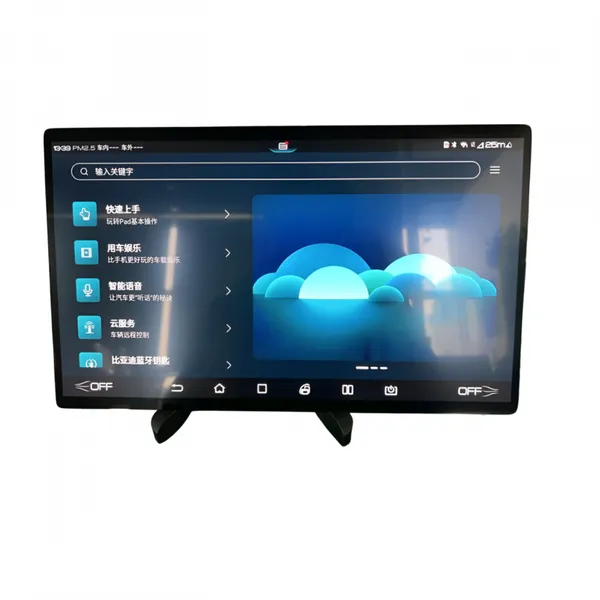

CSOT PAF601BA1-1 15.6" FHD 1920x1080 Automotive-Grade TFT-LCD Display with Touch Panel – OEM Replacement for BYD Central Control Screens (LVDS Interface)
Key Specifications
Feature Specification
Model CSOT PAF601BA1-1
Screen Size 15.6" Diagonal
Resolution 1920 x 1080 (FHD), 141 PPI
Panel Technology LTPS TFT-LCD
Touch Panel Integrated Capacitive Touch
Display Mode FFS (Fringe Field Switching), Normally Black
Brightness 650 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.)
Color Gamut 100% NTSC, 16.7M Colors
Viewing Angle 85/85/85/85 (Typ.) (CR≥10)
Response Time 30 ms (Typ.) (Tr+Td)
Interface LVDS (2 ch, 8-bit), 50-Pin Connector
Refresh Rate 60Hz
Operating Temperature -30°C ~ +60°C
Storage Temperature -40°C ~ +90°C
Weight 1.15 kg (Typ.)
Active Area 345.6(W) x 194.4(H) mm
Outline Dimension 357(W) x 214.4(H) x 15.25(D) mm
OEM Replacement for BYD Central Control Infotainment Screens
Automotive Aftermarket Screen Repair & Upgrades
Fleet Maintenance & Parts Supply
Automotive Service Centers & Repair Workshops
Vehicle Infotainment System Integration Projects
