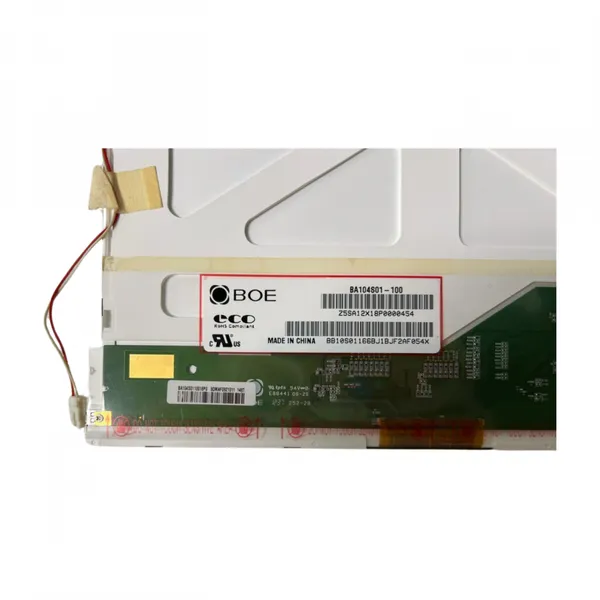

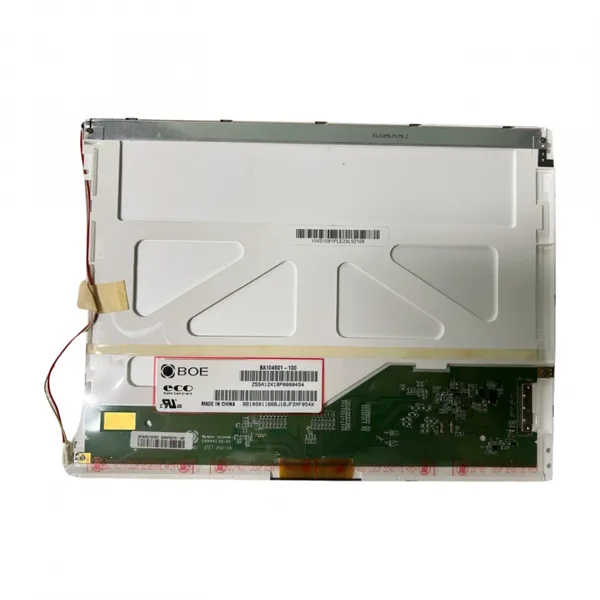

BOE BA104S01-100 10.4" SVGA Industrial LCD Panel, 10.4inch Lcd Screen for Industrial Use
Product Spotlights
BOE BA104S01-100 10.4" SVGA Industrial LCD Panel, 10.4inch lcd screen for industrial use
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
LCM
Usage:
Monitor LCM
Response Time:
25ms
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
7 days
Related Products
-
Universal Portable Monitor Driver Board – USB-C One-Cable Solution, Supports 15.6"/16" 2.5K/4K LCD Panels, EDP 40-PIN InterfaceNegotiableMOQ: 1 Piece -
13.3" Premium 72% NTSC LCD Panel – MND301BA1-2 | Full HD 1920x1080, EDP 30-PIN Interface, Ideal for Laptop Repurposing & DIY MonitorsNegotiableMOQ: 1 Piece
-
MNG007ZA1-1 16" 3.2K Premium LCD Panel – 3200×2000, 165Hz, 100% DCI-P3, EDP 40-PIN – Ideal for High-Performance Laptop ReplacementNegotiableMOQ: 1 Piece
-
AUO M190PW01 V8 19" WXGA+ LCD Panel: 1440×900, 250 Cd/m², 1000:1 Contrast | Reliable Monitor DisplayNegotiableMOQ: 1 Piece
-
Type-C to EDP Controller Board | 1K • 2K • 4K | PD Fast Charge | Dual USB-C DIY Portable Monitor Driver BoardNegotiableMOQ: 1 Piece
Type
LCM
Usage
Monitor LCM
Response Time
25ms
Touch Screen Type
Other, without TP
Viewing Angle
IPS
Display Technology
TFT
Digital LCD Module Type
Timing Module
DOT-Matrix Graphic LCD Module Type
Row/Column Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Non-Customized
Transport Package
NEW
Specification
A
Trademark
SF
Origin
CHINA
BOE BA104S01-100 10.4" SVGA Industrial LCD Panel
Key Specifications
| Specification | Details |
|---|---|
| Brand / Model | BOE BA104S01-100 |
| Screen Size | 10.4" Diagonal (4:3 Aspect Ratio) |
| Resolution | 800 x 600 (SVGA) — 96 PPI |
| Panel Type | a-Si TFT-LCD, TN Mode (Normally White, Transmissive) |
| Surface Finish | Clear / Anti-Glare options available |
| Brightness | 400–500 cd/m² (Typ.) depending on configuration |
| Contrast Ratio | 400:1 to 800:1 (Typ.) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) — 12 o'clock optimal |
| Display Colors | 262K / 16.7M (6-bit or 6-bit + Hi-FRC) |
| Response Time | 25–30 ms (Typ.)(Tr+Td) |
| Refresh Rate | 60Hz |
| Backlight | WLED, side-entry (top), 30,000–50,000 hours lifespan |
| Signal Interface | LVDS (1 ch, 6/8-bit) — 20-pin terminal connector |
| Input Voltage | 3.3V (Typ.) |
| Display Area | 211.2(W) x 158.4(H) mm |
| Visible Area | 215.0(W) x 162.0(H) mm |
| Dimensions | 236.0(W) x 176.9(H) x 5.6(D) mm |
| Weight | 288g (Typ.) |
| Operating Temp. | -20 ~ 70°C |
| Storage Temp. | -30 ~ 80°C |
Ideal For:
Industrial Control Panels & HMIs
Medical Imaging Equipment
Test & Measurement Instruments
Digital Signage & Kiosks
Factory Automation Displays
POS (Point-of-Sale) Systems
Security & Surveillance Monitors
Interface Verification:
LVDS (1 channel, 6/8-bit) — 20-pin terminal connector
Single 3.3V power supply required
No built-in backlight driver — external driver required
