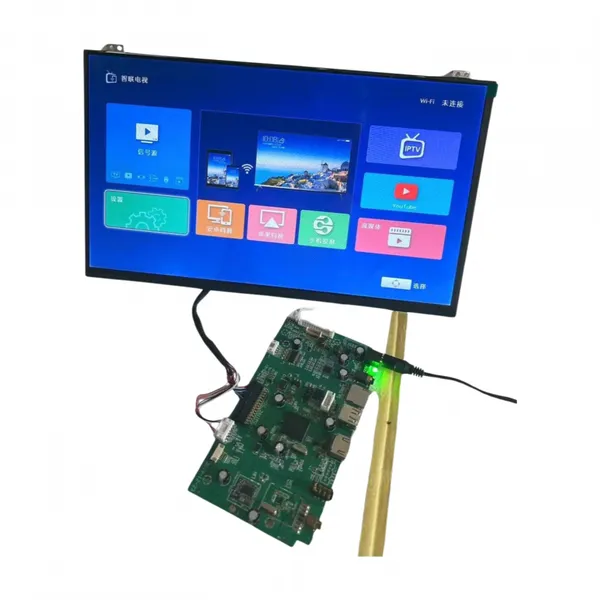

13.3" HD 1366x768 LVDS 40-Pin LCD Screen – Replacement Panel for Laptops, Chromebooks & Portable Displays (Matte/Anti-Glare Options)

13.3
13.3
13.3
13.3
13.3
13.3
13.3
13.3

Product Spotlights

Screen size: 13.3 inches

Native resolution: 1366 x 768 (HD)

Interface: LVDS, 40-pin connector, 0.5mm pitch
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
LCM
Usage:
Small-sized LCM
Response Time:
25ms
Contact Supplier Request Quote Chat Now
Shenzhen Samfong Opto Technology CO.,LTD.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type LCM
Usage Small-sized LCM
Response Time 25ms
Touch Screen Type Other, without TP
Viewing Angle TN＋FILM
Display Technology TFT
Digital LCD Module Type Timing Module
DOT-Matrix Graphic LCD Module Type Row/Column Control Type
LCD Drive Mode Multiplex Drive LCD Module
Customized Customized
Transport Package NEW
Specification A
Trademark SF
Origin CHINA

13.3" HD 1366x768 LVDS 40-Pin LCD Screen – Replacement Panel for Laptops, Chromebooks & Portable Displays (Matte/Anti-Glare Options)


Key Specifications


Feature Specification

Screen Size 13.3" Diagonal

Resolution 1366 x 768 (HD / WXGA), 118 PPI

Aspect Ratio 16:9

Panel Technology TN (Twisted Nematic), Normally White

Backlight WLED (White LED), Edge-Type

Interface LVDS, 40-Pin Connector (0.5mm Pitch)

Brightness 220 – 300 cd/m² (Typical)

Contrast Ratio 400:1 – 600:1 (Typical)

Viewing Angle 45/45/15/30 (Typ.)

Signal Interface LVDS (1 ch, 6-bit or 8-bit)

Refresh Rate 60Hz

Surface Treatment Anti-Glare / Matte (variants available)

Operating Temperature 0 ~ 50°C

Active Area 293.42(W) x 164.97(H) mm

Key Features & Benefits


Cost-Effective Repair Solution: This replacement panel offers a fraction of the cost of a new device, providing an economical option for laptop repair centers, IT departments, and refurbishment operations.


Standard LVDS Interface: Equipped with a 40-pin LVDS connector (0.5mm pitch), this panel ensures broad compatibility with a wide range of 13.3-inch laptops and Chromebooks that feature the same interface standard.


Energy-Efficient LED Backlight: The WLED backlight technology consumes less power compared to traditional CCFL backlights, contributing to extended battery life in portable devices and a slimmer panel profile.


Clear HD Visuals: The 1366x768 resolution delivers crisp text and image rendering suitable for everyday computing tasks, web browsing, and multimedia consumption.


Durable Construction: Featuring a matte anti-glare surface with hard coating (3H), the panel is designed to resist scratches and reduce reflections in bright environments.


Compatibility Advisory


This panel is designed for devices that meet the following specifications:


Screen size: 13.3 inches


Native resolution: 1366 x 768 (HD)


Interface: LVDS, 40-pin connector, 0.5mm pitch


Backlight type: LED


Important: While this panel is widely compatible, variations exist in connector placement (bottom right vs. bottom left) and finish (glossy vs. matte). Please verify your original screen's model number and connector type before purchasing. Known compatible series include:


Dell Inspiron / Latitude series (selected 13.3" models)


Toshiba Chromebook 2 CB35 & other 13.3" Toshiba laptops


Models using AUO B133XW03 V.1 or equivalent panels


Applications


Laptop Screen Repair & Replacement Services


Chromebook Repair & Maintenance


IT Equipment Refurbishment & Parts Supply


Educational Institution Device Repair Programs


Computer Repair Workshops & Service Centers
