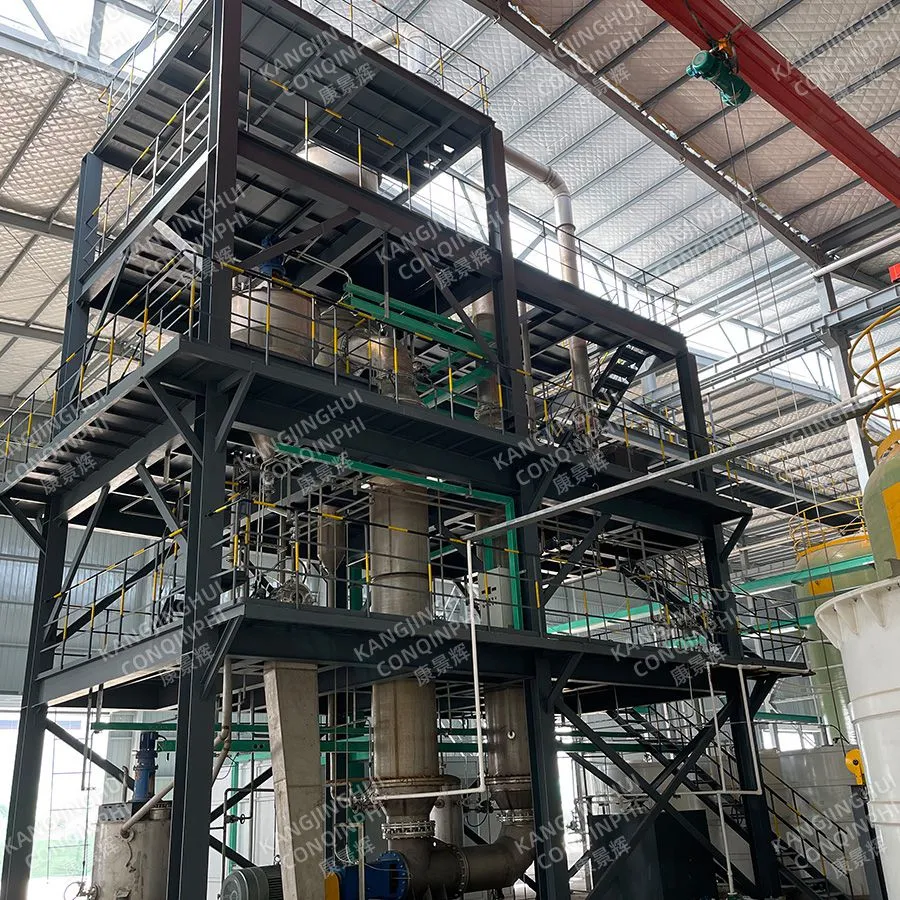

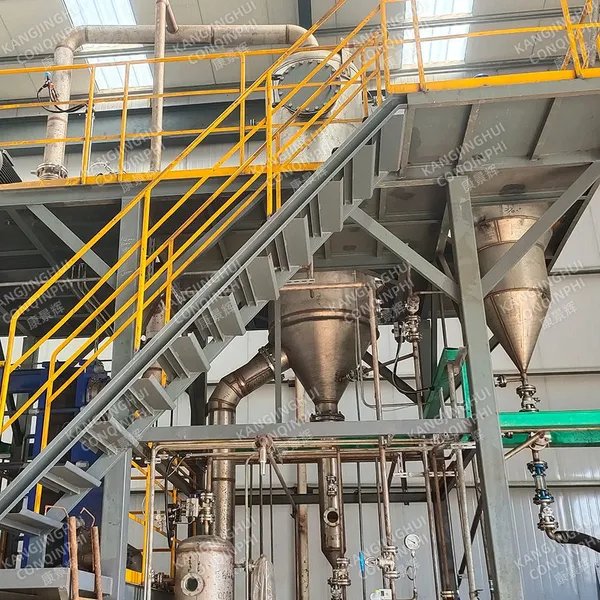

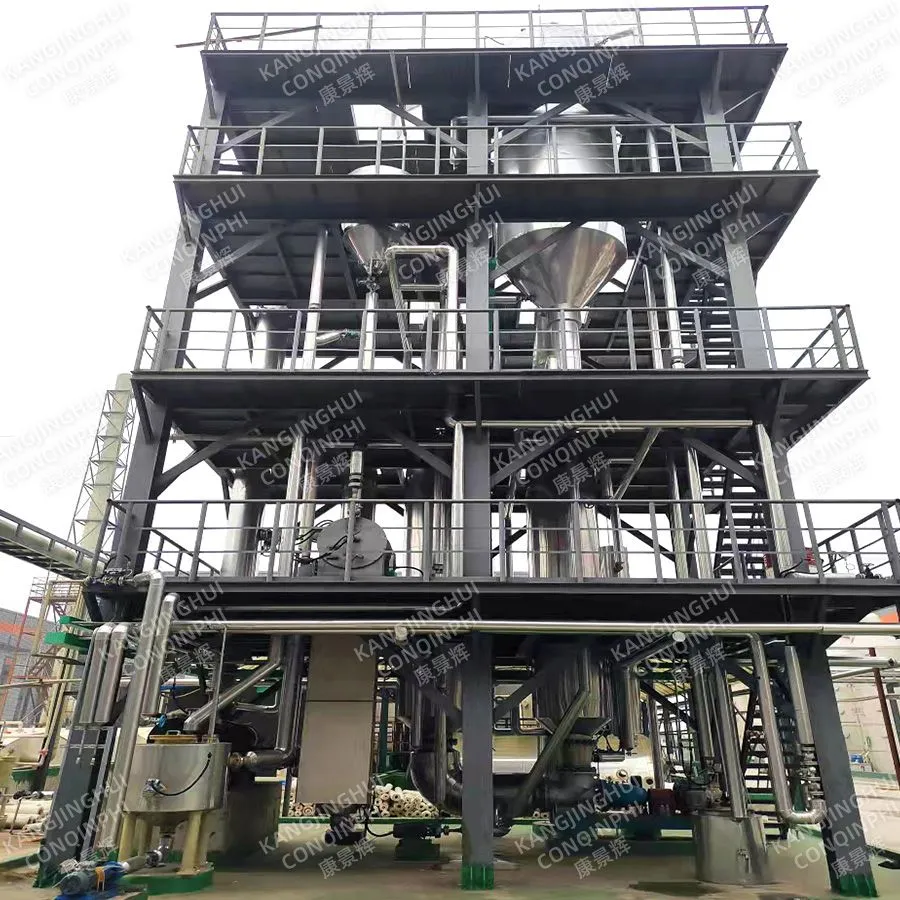

Help CenterIndustrial Wastewater Treatment MVR Evaporation System, Zero Liquid Discharge, Salt Crystallization Solution
Product Spotlights
Related Products
-
Energy Efficient MVR Evaporation System 316L Stainless Steel Automatic Operation 220VUS$ 3490 - 654000MOQ: 1 Combo -
Semi-Automatic MVR Evaporator Machine 304 SS 200L/h Feed Flow Rate IP54 EnclosureUS$ 3490 - 654000MOQ: 1 Combo
-
PLC Controlled MVR Evaporator Equipment 304 Stainless Steel 500L/h Evaporation CapacityUS$ 3490 - 654000MOQ: 1 Combo
-
Customized MVR Evaporation System Supplied With Mill Test Report and Lifetime Technical SupportUS$ 3490 - 654000MOQ: 1 Combo
-
MVR Evaporator Unit 1000kg/h Capacity With Touch Screen PLC Control and CIP DesignUS$ 3490 - 654000MOQ: 1 Combo
Qingdao Conqinphi Environmental Technology Group Co., Ltd., a leading manufacturer established in 2015 with a 10,000–30,000 sqm factory and 201–300 employees, proudly presents our Industrial Wastewater Treatment MVR Evaporation System — a complete Zero Liquid Discharge (ZLD) and Salt Crystallization Solution. This system is engineered to help industries meet stringent environmental regulations while recovering valuable water and salt byproducts. With annual exports exceeding US$10 million, our MVR evaporator has been trusted by clients across North America, South America, Europe, Asia, and Africa.
Our MVR (Mechanical Vapor Recompression) technology uses a compressor to recycle the latent heat of vapor, dramatically reducing energy consumption compared to traditional multi-effect evaporators. The result is a compact, efficient, and reliable system that can treat high-salinity wastewater, achieving zero liquid discharge with solid salt crystallization. Whether your effluent comes from chemical processing, oil & gas, textile dyeing, or desalination, this solution offers a sustainable path forward.
Key Features & Technical Specifications
- Energy Efficiency: MVR technology consumes only 20–30 kWh per ton of evaporated water, up to 70% less than traditional evaporators.
- Zero Liquid Discharge: All wastewater is converted into clean distillate (≥95% recovery) and dry crystalline salt, eliminating pollution discharge.
- Salt Crystallization: Integrated crystallizer produces high-purity salt suitable for reuse or safe disposal; customizable crystal size control.
- Modular Design: Skid-mounted or containerized options for easy installation and scalability from 1 TPH to 100 TPH.
- Corrosion Resistance: Constructed from stainless steel 316L or duplex materials, with optional anti-scaling coatings for harsh brines.
- Intelligent Control: PLC + HMI system with remote monitoring capability, automatic start/stop, and real-time alarms.
- Low Maintenance: Self-cleaning cyclone separator and anti-fouling heat exchanger design reduce downtime.
- Environmental Compliance: Helps meet ZLD regulations (China GB, EU, US EPA) — certifications available upon request.
Technical Parameters (Typical Model)
| Parameter | Value |
| Evaporation Capacity | 5 – 100 tons/day (customizable) |
| Feed Water TDS | Up to 250,000 ppm (25% salinity) |
| Distillate Quality | TDS |
| Salt Purity | ≥ 98% (dry, free-flowing) |
| Operating Temperature | 60 – 100 °C |
| Power Consumption | ≤ 30 kWh/ton water |
| Compressor Type | Centrifugal or Roots (oil-free) |
| Control System | PLC + HMI / SCADA ready |
Advantages for Your Business
- Reduce Operating Costs: Lower energy and chemical consumption compared to conventional thermal evaporation.
- Water Reuse: Recover high-quality distillate for boiler feed, cooling tower makeup, or process use.
- Salt as a Resource: Capture valuable sodium chloride, sodium sulfate, or mixed salts for industrial reuse, turning waste into revenue.
- Compliance Made Easy: Achieve zero discharge without the complexity of multiple treatment steps.
- Fast ROI: Typical payback period of 2–4 years depending on water cost and salt value.
Trusted by Global Clients
Since 2015, Qingdao Conqinphi Environmental Technology Group has delivered over 200 industrial wastewater projects worldwide. Our factory spans 10,000–30,000 sqm with a dedicated R&D team. We hold multiple management system certifications including ISO9001, ISO14000, and OHSAS18001 (copies available upon request). Our main markets cover North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, and the Middle East – a testament to the reliability and performance of our MVR systems. We provide full after-sales support, including commissioning, training, and spare parts supply from our Qingdao port.
Choose Conqinphi for your zero liquid discharge journey. Contact us today for a free feasibility study and customized proposal. Let’s turn your wastewater into a resource – sustainably and profitably.
Frequently Asked Questions (FAQ)
- Q: What is the minimum and maximum capacity of your MVR system? A: Our standard designs range from 1 ton per hour (24 TPD) to 100 TPD. Custom capacities can be engineered upon request.
- Q: Can the system handle high organic content or scaling-prone wastewater? A: Yes, we offer pre-treatment options (like softening, anti-scalant dosing) and advanced heat exchanger designs to minimize fouling. Each system is tailored to your specific water chemistry.
- Q: What is the typical energy consumption? A: For most brine streams, the system consumes 20–30 kWh per ton of evaporated water. The exact figure depends on TDS level and operating temperature.
- Q: Do you provide turnkey installation and commissioning? A: Absolutely. We can supply modular skids or full plant integration. Our service team supervises installation, conducts performance tests, and trains your operators.
- Q: What certifications does the equipment hold? A: Our manufacturing process complies with ISO9001, ISO14000, and OHSAS18001. Specific product certifications (e.g., CE, ASME) can be arranged at extra cost and lead time.
- Q: How long does delivery take? A: Typical lead time is 45–90 days after down payment, depending on system size and complexity. We ship from Qingdao port, China.
- Q: Can you provide references? A: Yes, we have installed systems in multiple countries. Reference lists and case studies are available upon signing an NDA.
- Q: What is the warranty period? A: Standard warranty is 12 months from commissioning or 18 months from shipment, whichever comes first. Extended warranties available.
