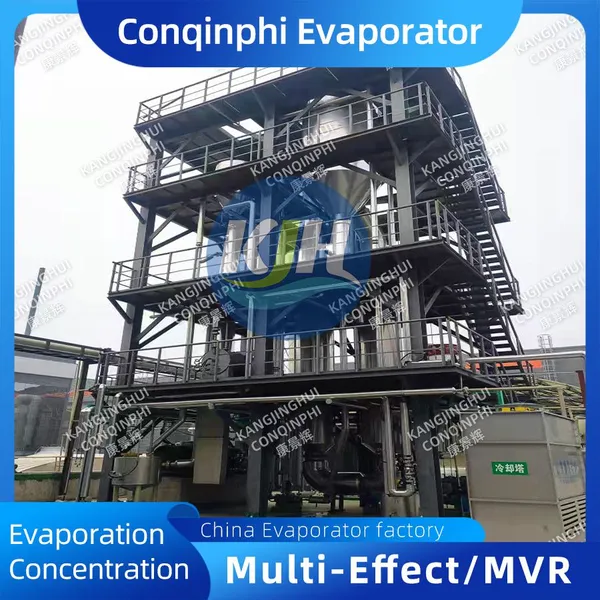

Printing Dyeing Wastewater Treatment MVR Evaporation Crystallizer for Zero Liquid Discharge
Product Spotlights
MVR evaporator crystallizer for printing dyeing ZLD – up to 95% water recovery, low energy consumption (25-60 kWh/m³), anti-scaling design, PLC automation, modular capacities, and proven global installations from ISO-certified manufacturer.
US$ 6450 - 814500
MOQ: 5 Combos
Key Specifications
Get Latest Price
Material:
Other, SS316L / Duplex stainless steel / Titanium
Application:
Other, Printing and dyeing wastewater
Processing capacity:
5-200 m³/day
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
15 days
Related Products
-
0.5-80t/h Falling Film MVR Evaporation Concentration Crystallizer With Forced CirculationUS$ 6450 - 814500MOQ: 5 Combos -
Petrochemical, Ternary Lithium, Metallurgy, Food, Pesticides MVR Evaporation CrystallizerUS$ 6450 - 814500MOQ: 5 Combos
-
MVR Evaporation Concentration Crystallizer for Fine Chemicals and Pickling Wastewater TreatmentUS$ 6450 - 814500MOQ: 5 Combos
-
Low Temperature Falling Film Forced Circulation MVR Crystallizer for WastewaterUS$ 6450 - 814500MOQ: 5 Combos
-
Multi-Effect MVR Evaporation Crystallizer for Metal Smelting, Electroplating, Chemicals, JuiceUS$ 6450 - 814500MOQ: 5 Combos
Material
Other, SS316L / Duplex stainless steel / Titanium
Application
Other, Printing and dyeing wastewater
Processing capacity
5-200 m³/day
Evaporation temperature
60-100 °C
Compressor type
Centrifugal / Roots / Screw
Energy consumption
25-60 kWh/m³ (customizable)
Control mode
PLC + HMI touch screen (automated)
Output solid content
≥95% (crystal salt)
Qingdao Conqinphi Environmental Technology Group Co., Ltd. presents our advanced Printing Dyeing Wastewater Treatment MVR Evaporation Crystallizer, engineered specifically for zero liquid discharge (ZLD) applications. As a dedicated manufacturer with over 200 employees and a 10,000–30,000 m² factory, we combine proven thermal separation technologies with robust mechanical design to help textile and dyeing facilities recover clean water and valuable salts. Our system reduces liquid waste volume by over 95% while producing high-purity condensate that can be reused directly in production processes.
Key Features and Technical Advantages
- Mechanical Vapor Recompression (MVR) Core – Uses a low-energy compressor to recycle latent heat, achieving energy savings of 60–75% compared to traditional multi-effect evaporation.
- Custom-Engineered Crystallization – Optimized for high-salinity printing dyeing wastewater (TDS up to 200,000 mg/L), producing separable crystal salts suitable for industrial reuse or safe disposal.
- Anti-Fouling and Scaling Design – Forced circulation configuration with special anti-scaling coatings and periodic flushing cycles ensures stable long-term operation even with complex organic/inorganic mixtures.
- Fully Automated Operation – PLC-based control with remote monitoring capability, minimal manual intervention, and real-time data logging for compliance reporting.
- Modular and Compact Footprint – Pre-assembled skid-mounted units available for capacities from 5 m³/day to 200 m³/day, reducing on-site installation time.
Technical Specifications (Typical Model)
| Parameter | Specification |
| Feed capacity | 50 m³/day (customizable from 5–200 m³/day) |
| Evaporation temperature | 80 °C (adjustable 60–100 °C) |
| Compressor power | 75 kW (centrifugal type) |
| Energy consumption | ~40 kWh/m³ of evaporated water |
| Material of construction | SS316L / Duplex stainless steel |
| Control system | PLC + HMI with remote access |
| Output product | Distilled water (TDS |
Benefits for Your Facility
- Achieve Zero Liquid Discharge compliance with local discharge regulations – no wastewater leaves the site.
- Reduce fresh water consumption by recycling up to 95% of process water, lowering utility costs.
- Recover valuable sodium sulfate or mixed salts that can be sold or reused, generating additional revenue.
- Minimize maintenance downtime with durable compressor design and self-cleaning heat exchangers.
- Easy integration with existing pretreatment systems (e.g., DAF, biological treatment, UF/RO).
Trust and Experience
Since 2015, Qingdao Conqinphi Environmental Technology Group has served clients across 5 continents, with an annual export value exceeding US$10 million. Our factory covers 10,000–30,000 m², housing a dedicated R&D team of 30+ engineers specialized in evaporation and crystallization. We hold multiple quality and management system certifications, including ISO9001, ISO14000, OHSAS18001, ensuring consistent product excellence. Over 200 printing and dyeing plants worldwide have successfully deployed our MVR systems, achieving reliable ZLD operation. Contact us today for a free wastewater analysis and a customized proposal to meet your specific treatment targets.
FAQ
-
What is the typical payback period for this system?
Based on water savings and salt recovery, most clients see a return on investment within 2–4 years, depending on local water and electricity costs. -
Can the system handle fluctuating wastewater composition?
Yes, our PLC automatically adjusts temperature and circulation rate. Pre-treatment is recommended for high organic loads to protect the compressor. -
What maintenance is required?
Routine checks include compressor oil levels, heat exchanger pressure drop, and salt discharge mechanism. A preventive maintenance schedule can be provided. -
Is the system suitable for high-turbidity or viscous waste?
We can integrate a forced-circulation design with enlarged tubes and a self-cleaning strainer to handle up to 5% solid content in feed. -
Do you offer a warranty and after-sales support?
Yes, standard warranty is 12 months from commissioning. Extended warranty and remote monitoring services are available upon request. -
What is the footprint of a 50 m³/day unit?
Approximately 12 m × 8 m × 6 m (L×W×H). Custom layouts are possible to fit existing plant space. -
Can the recovered salt be used directly in the dyeing process?
Depending on the purity (typically ≥95% NaCl equivalents), many customers reuse the salt as a dyeing auxiliary after simple refining.
