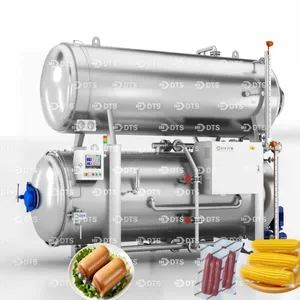

Help CenterDouble-tank Water Bath Sterilizer for Fresh Corn/ham and Sausage/heat Sterilizer Industrial
Product Spotlights
High-temperature short-time process: Preheated hot water enables rapid HTST sterilization.
Flexible container compatibility: Water buoyancy protects deformable containers under high temperature.
Suitable for large packs & high-viscosity products: Rotation ensures uniform heating, while water buoyancy protects packaging during rotation.
Related Products
-
Large Industrial Retort/water Immersion Retort/pouch AutoclaveUS$ 30000 - 100000MOQ: 1 Unit -
DTS Sterilization Retort /retort Pouch Process/thermal Sterilization/pouch AutoclaveUS$ 30000 - 100000MOQ: 1 Unit
-
Bagged Cheese Sterilizer/Sterilization Machine for Vacuum-Packaged FoodUS$ 30000 - 100000MOQ: 1 Unit
-
Sausage Sterilization Retort/Vacuum Packaged Cooked Food Sterilization PotUS$ 30000 - 100000MOQ: 1 Unit
-
Water Immersion Retort / Sterilization Equipment for Vacuum-packed Meat ProductsUS$ 30000 - 100000MOQ: 1 Unit
Ⅰ.Working Principle
Load product baskets, close the door (locked via triple safety interlocks for full-process mechanical security). The PLC controls automatic sterilization per preset recipes:
Inject preheated hot water into the retort; circulate via high-flow pumps and optimized pipes.
Steam injection heats water for sterilization; flow switching ensures uniform heat distribution.
Programmed pressure control (via automatic air injection/discharge) adapts to 3-piece cans, 2-piece cans, flexible/plastic packages, etc.
Optional hot water recovery during cooling saves energy.
An alarm signals completion; unload for the next batch.
II.Description
The water immersion retort features unique liquid flow switching technology for uniform internal temperature. Preheated hot water from a tank enables fast heating and sterilization, with hot water recycled post-process for energy efficiency.
Ⅲ. Advantages
Uniform water flow: Flow direction switching ensures vertical/horizontal uniformity, delivering water to each product tray’s center for dead-end-free sterilization.
HTST treatment: Preheated hot water enables high-temperature short-time sterilization.
Deformable container compatibility: Water buoyancy protects containers under high temperatures.
Large/high-viscosity food suitability: Rotation ensures even heating of large canned/high-viscosity foods, with water buoyancy safeguarding packaging during rotation.
➦ Timely service from a real manufacturer
➦ Years of experience in food sterilization industry
➦ Free sterilization solution support
Model
Diameter
(mm)
Body Length
(mm)
Volume
(m³)
Length
(mm)
Width
(mm)
Height
(mm)
Basket size
(LWHmm)
Design temperature(℃)
Test Pressure
(bar)
Design pressure
(bar)
J-1002
1000
1600
1.49
3200
1700
2900
758×650×621
147
4.4
3.5
J-1003
1000
2400
2.12
4000
1700
2900
758×650×621
147
4.4
3.5
J-1203
1200
2700
3.45
4500
2100
3350
860×800×775
147
4.4
3.5
J-1204
1200
3600
4.47
5400
2100
3350
860×800×775
147
4.4
3.5
J-1205
1200
4500
5.49
6300
2100
3350
860×800×775
147
4.4
3.5
J-1403
1400
3000
5.24
5200
2500
3900
920×920×915
147
4.4
3.5
J-1404
1400
3900
6.62
6050
2500
3900
920×920×915
147
4.4
3.5
J-1504
1500
4250
8.26
6650
2600
4450
1000×1000×975
147
4.4
3.5
J-1505
1500
5300
10.12
7700
2600
4450
1000×1000×975
147
4.4
3.5
The listed price serves as a deposit. Before placing an order, please be sure to contact us to discuss your detailed requirements and obtain an accurate quote, thereby avoiding any unnecessary complications.
