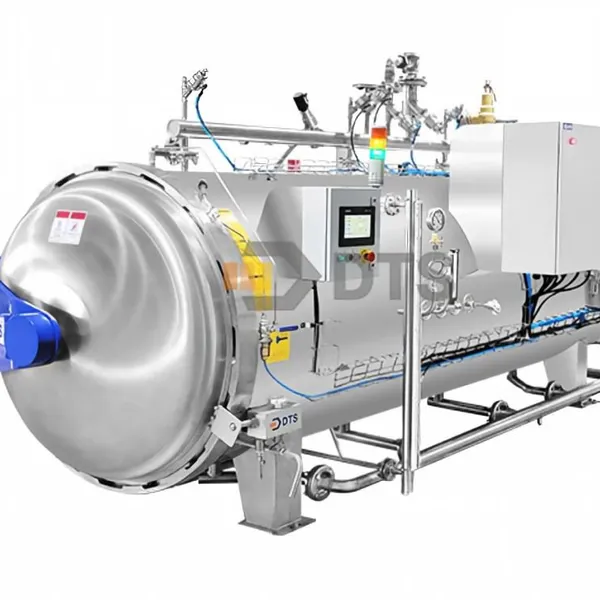

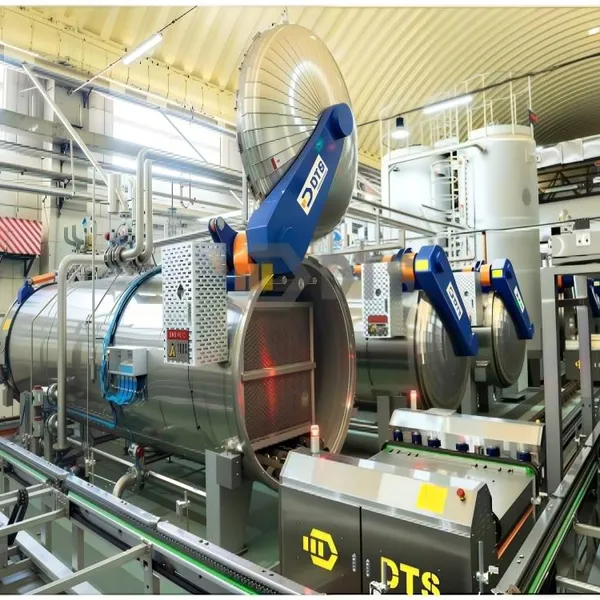

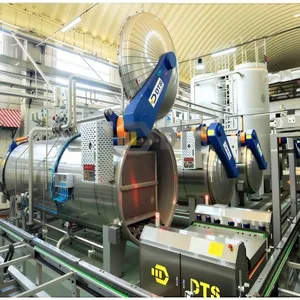

Help CenterBeef Canned Food High-Temperature Retort Sterilizer / Commercial Sterility Processing Equipment
Product Spotlights
Related Products
-
Yellow Croaker Canned Fish Retort Sterilization Equipment / Export Food Processing Sterilization SystemUS$ 30000 - 100000MOQ: 1 Unit -
Water Spray Retort for PP Cup Pet Wet Food With Counter-Pressure System/Autoclav/US$ 30000 - 100000MOQ: 1 Unit
-
Double-tank Water Bath Sterilizer for Fresh Corn/ham and Sausage/heat Sterilizer IndustrialUS$ 30000 - 100000MOQ: 1 Unit
-
Canned Food Retort Sterilizer/Auotoclave Sterilizer/Water Spray RetortUS$ 30000 - 100000MOQ: 1 Unit
-
Steam& Air Retort /Fish Canned Food High-temperature Sterilization Equipment/Autoclave Food Sterilizer/Canned Fish RetortUS$ 30000 - 100000MOQ: 1 Unit
Working Principle
Load the full loaded basket into Retort, close the door. The retort door is locked through triple safety interlock to guarantee the safety. The door is mechanically locked throughout the whole process.
The sterilization process is automatically carried out according to the recipe of the input micro processing controller PLC.
In the beginning, steam is injected into the retort vessel through the steam spreader pipes, and air escape through vent valves. When both time and temperature conditions established in the process are met simultaneously, the process advance to come-up phase.In the whole come-up and sterilization phase, retort vessel is filled with saturated steam without any residual air in case of any uneven heat distribution and insufficient sterilization. The bleeders must be open for the entire vent, come-up, cooking step so that the steam can form convection to ensure the temperature uniformity.
Advantages
●Uniform heat distribution
By removing the air in the retort vessel, the purpose of saturated steam sterilization is achieved. Therefore, in the end of come-up vent phase, the temperature in the vessel reaches a very uniform state.
●Comply with FDA/USDA certification
DTS has experienced thermal verification experts and is a member of IFTPS in the United States. It fully cooperates with FDA-approved third-party thermal verification agencies. The experience of many North American customers has made DTS familiar with FDA/USDA regulatory requirements and cutting-edge sterilization technology.
●Simple and reliable
Compared with other forms of sterilization, there is no other heating medium for the come-up and sterilization phase, so only the steam needs to be controlled to make the batch of products consistent. FDA has explained the design and operation of the steam retort in detail, and many old canneries have been using it, so customers know the working principle of this type of retort, making this type of retort easy for old users to accept.
Model |
Diameter (mm) |
Body Length (mm) |
Volume (m³) |
Length (mm) |
Width (mm) |
Height (mm) |
Basket size (LWHmm) |
Design temperature(℃) |
Test Pressure (bar) |
Design pressure (bar) |
Z- 1002 |
1000 |
1600 |
1.49 |
3200 |
1850 |
2000 |
758×650×621 |
147 |
4.4 |
3.5 |
Z-1003 |
1000 |
2400 |
2.12 |
4000 |
1850 |
2000 |
758×650×621 |
147 |
4.4 |
3.5 |
Z-1203 |
1200 |
2700 |
3.45 |
4500 |
1900 |
1850 |
860×800×775 |
147 |
4.4 |
3.5 |
Z-1204 |
1200 |
3600 |
4.47 |
5000 |
1900 |
1850 |
860×800×775 |
147 |
4.4 |
3.5 |
Z-1205 |
1200 |
4500 |
5.49 |
5800 |
1900 |
1850 |
860×800×775 |
147 |
4.4 |
3.5 |
Z-1403 |
1400 |
3000 |
5.24 |
3850 |
2450 |
2600 |
920×920×915 |
147 |
4.4 |
3.5 |
Z-1404 |
1400 |
3900 |
6.62 |
4800 |
2450 |
2600 |
920×920×915 |
147 |
4.4 |
3.5 |
Z-1504 |
1500 |
4250 |
8.26 |
5700 |
2450 |
2600 |
1000×1000×975 |
147 |
4.4 |
3.5 |
Z-1505 |
1500 |
5300 |
10.12 |
6600 |
2450 |
2600 |
1000×1000×975 |
147 |
4.4 |
3.5 |
Z-1605 |
1600 |
5650 |
12.27 |
6400 |
2700 |
3400 |
1070×1070×1050 |
147 |
4.4 |
3.5 |
Z-1606 |
1600 |
6800 |
14.58 |
7300 |
2700 |
3400 |
1070×1070×1050 |
147 |
4.4 |
3.5 |
Z-1805 |
1800 |
6500 |
17.81 |
7500 |
3200 |
3800 |
1220×1220×1170 |
147 |
4.4 |
3.5 |
Z-1806 |
1800 |
7800 |
21.12 |
8500 |
3200 |
3800 |
1220×1220×1170 |
147 |
4.4 |
3.5 |
The listed price serves as a deposit. Before placing an order, please be sure to contact us to discuss your detailed requirements and obtain an accurate quote, thereby avoiding any unnecessary complications.
