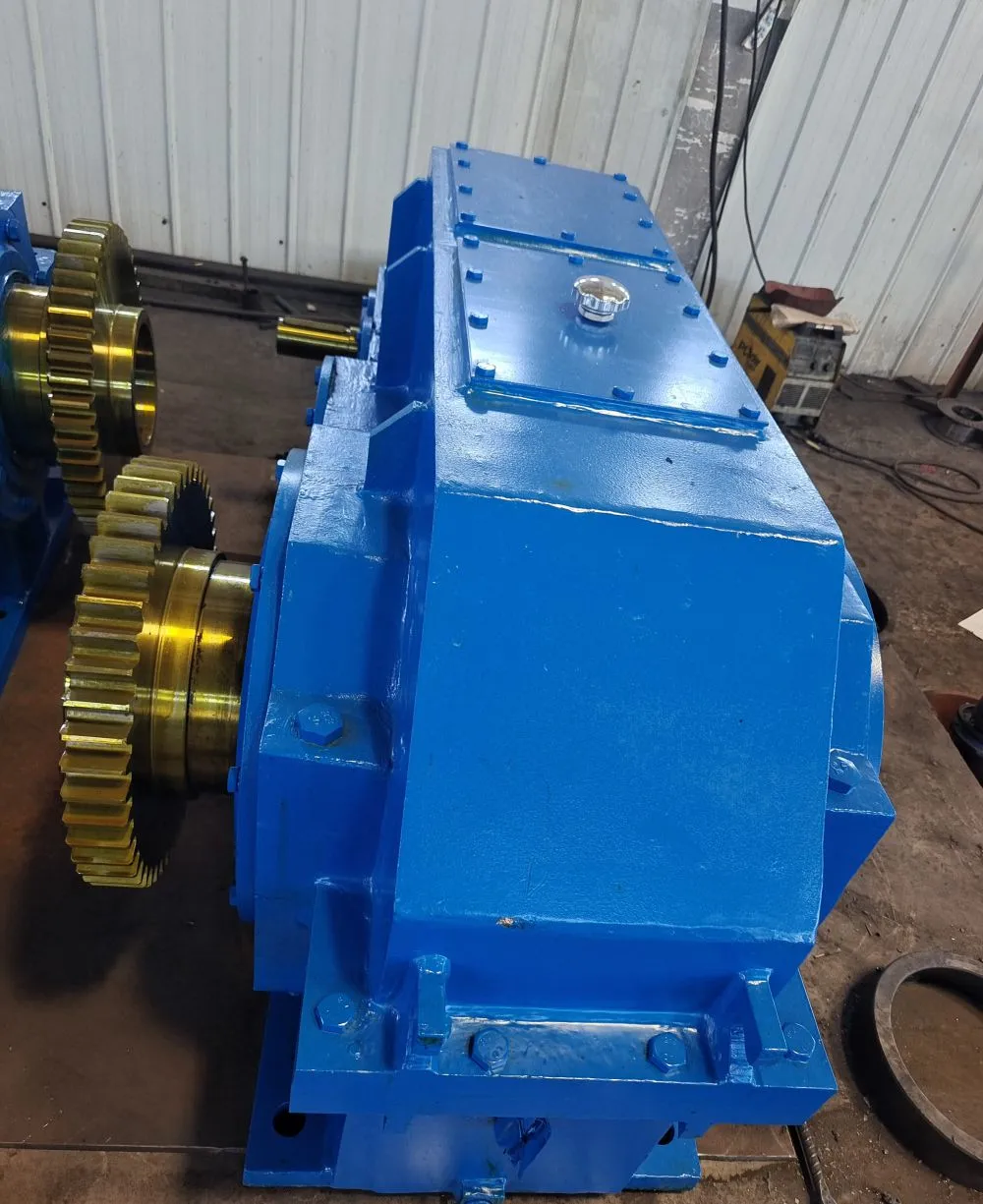

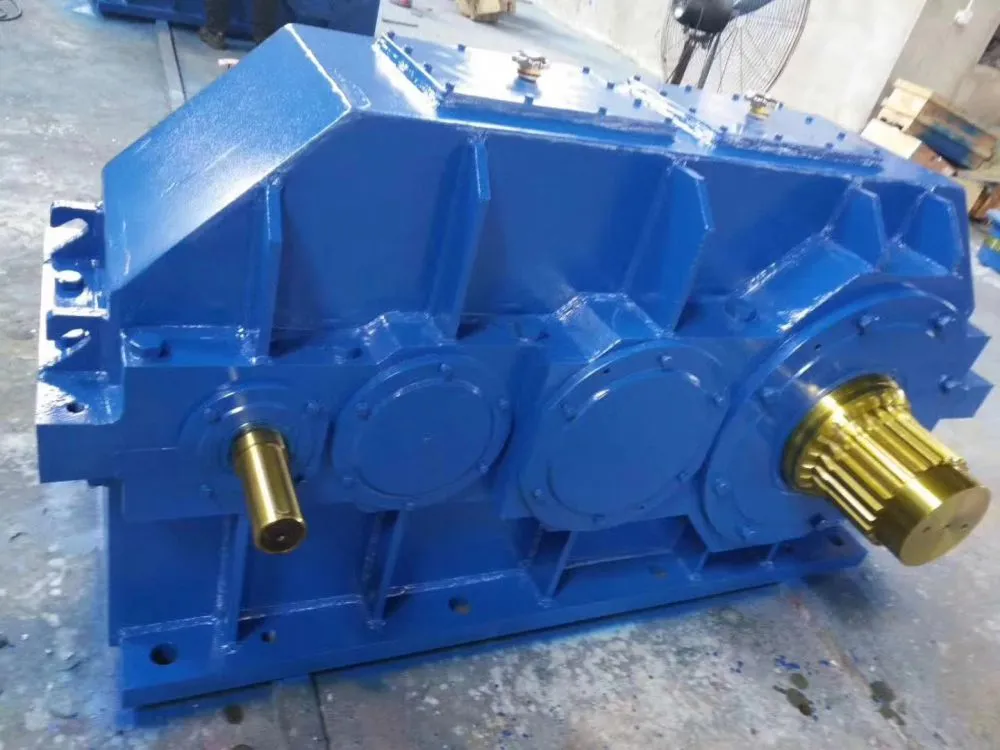

As a specialized manufacturer of power transmission components, Jiangsu Manqi Machinery Co., Ltd. is proud to introduce the QJY4S Crane Reducer, engineered specifically for the demanding requirements of high-torque hoisting applications. Operating from our modern facility in Suzhou, we combine precision engineering with robust manufacturing to deliver reducers that ensure reliable performance, extended service life, and enhanced safety in material handling operations. Our focus on the hoisting and crane industry allows us to tailor solutions that meet the rigorous standards for torque capacity, shock load resistance, and operational smoothness. The QJY4S model represents our commitment to providing durable and efficient power transmission for cranes, winches, and other heavy-duty lifting equipment, helping our clients in Eastern Europe, Southeast Asia, Africa, and South Asia optimize their machinery's performance and reliability.
The QJY4S reducer is a cornerstone for heavy lifting operations, designed to convert high-speed motor input into the high-torque, low-speed output essential for safe and controlled hoisting. Its construction and features directly address the common challenges in crane applications.
Engineered for High Torque and Shock Loads: The core design philosophy prioritizes exceptional torque transmission and the ability to withstand sudden, heavy shock loads common during crane start-up, emergency stops, or uneven loading. The gear teeth are precision-cut and heat-treated to maximize surface hardness and core toughness, minimizing the risk of pitting, spalling, or tooth breakage under stress.
Robust Housing and Sealing System: The housing is manufactured from high-grade cast iron, providing excellent vibration damping and structural integrity to protect the internal gearing. A multi-labyrinth sealing system, combined with high-quality oil seals, effectively prevents lubricant leakage and ingress of contaminants like dust, moisture, and debris, which is crucial for reducers operating in harsh industrial or outdoor environments.
Smooth and Quiet Operation: Utilizing helical and bevel gear combinations, the QJY4S ensures power is transmitted smoothly with minimal vibration and noise. This not only contributes to a better working environment but also reduces wear on bearings and other components, leading to lower maintenance requirements and longer intervals between services.
High Efficiency and Thermal Management: Optimized gear geometry and high-quality bearings contribute to high mechanical efficiency, translating motor power into useful lifting force with minimal energy loss. The design facilitates effective heat dissipation from the gear mesh and bearings into the housing and lubricant, preventing overheating during continuous or cyclic duty cycles.
Versatile Mounting and Configuration: Designed for flexibility in installation, the reducer can be configured for foot mounting or flange mounting to suit different machine frameworks. Input and output interfaces are standardized to accommodate common IEC motor flanges and output shaft connections, simplifying integration into new or existing crane systems.
Comprehensive Lubrication: The unit employs a reliable oil bath lubrication system. The correct oil level and viscosity ensure all gears and bearings are continuously lubricated and cooled. For ease of maintenance, it is equipped with oil filling plugs, level plugs, and drain plugs.
To provide a clear overview of its capabilities, here are key technical specifications for the QJY4S Crane Reducer. Specific ratios and exact dimensions can be customized based on application requirements.
| Parameter | Description / Typical Range |
|---|---|
| Model Series | QJY4S |
| Primary Application | Bridge Cranes, Gantry Cranes, Hoists, Winches |
| Gear Arrangement | Helical & Bevel Gear (Right-Angle) |
| Available Reduction Ratios | Wide range available (e.g., from ~5:1 to over 100:1) |
| Housing Material | GG25/HT250 Grade Cast Iron |
| Gear Material & Treatment | 20CrMnTi Alloy Steel, Carburized, Quenched, & Ground |
| Input Power Range | Suitable for motors from several kW to tens of kW |
| Output Torque Capacity | Designed for High Torque (Specific ratings available upon request) |
| Lubrication | Oil Bath (Synthetic or Mineral Industrial Gear Oil) |
| Mounting Options | Foot Mounted (F) or Flange Mounted (K) |
Choosing the QJY4S Crane Reducer from Jiangsu Manqi Machinery brings tangible benefits to your operation. Enhanced safety and reliability are paramount, as the robust build reduces the risk of catastrophic failure. Reduced downtime and maintenance costs result from the durable construction and effective sealing. Furthermore, the improved energy efficiency lowers operational expenses over the reducer's long lifespan. Its ease of installation and configuration saves valuable time during machine assembly or retrofit projects.
Backed by our manufacturing expertise since 2017 and supported by a dedicated team of 11-50 professionals in our 10,000-30,000 square meter facility, we ensure consistent quality and reliable performance in every QJY4S reducer we produce. Our growing annual export value, serving markets from Eastern Europe to South Asia via the Port of Shanghai, is a testament to the trust our international clients place in our products. We understand the critical role a reducer plays in hoisting machinery, and we stand behind the durability and performance of the QJY4S. For detailed specifications, custom ratio requirements, or to discuss how this reducer can be integrated into your specific crane or hoisting application, we encourage you to contact our technical sales team for a professional consultation and quotation.
Frequently Asked Questions (FAQ)
Q1: What types of cranes or hoisting machinery is the QJY4S reducer suitable for?
A1: The QJY4S is specifically engineered for a wide range of high-torque hoisting equipment. This includes but is not limited to overhead bridge cranes, gantry cranes, wire rope hoists, chain hoists, and various types of winches used in material handling, construction, and industrial settings.
Q2: Can this reducer handle the frequent start-stop cycles and shock loads common in crane operation?
A2: Absolutely. A key design focus for the QJY4S is its capacity to endure shock loads and dynamic forces. The use of high-strength alloy steel gears, advanced heat treatment, and a rigid cast iron housing ensures it can reliably manage the demanding duty cycles typical of crane applications.
Q3: What are the available mounting configurations?
A3: To offer installation flexibility, the QJY4S is available in standard foot-mounted (F) and flange-mounted (K) configurations. The specific mounting style can be selected based on your machinery's design framework and space constraints.
Q4: How do I determine the correct reduction ratio and torque rating for my application?
A4: Selecting the optimal ratio and size requires details such as motor power (kW/RPM), required output speed (RPM), desired output torque (Nm), and the service factor for your specific crane duty cycle. Our technical team can assist you with this selection process based on your provided application parameters.
Q5: What kind of maintenance does this crane reducer require?
A5: Maintenance primarily involves regular checks and changes of the gear oil according to the operating hours and environmental conditions. It is recommended to check for oil leaks, unusual noise, or vibration periodically. The initial oil change is typically after the first 500 hours of operation, with subsequent intervals as per the operational manual.
Q6: Is the QJY4S compatible with standard IEC metric motors?
A6: Yes, the input side of the reducer is designed with a standard IEC motor mounting flange (e.g., IEC B5, B14 flanges). This allows for direct coupling with a wide range of standard AC or DC motors, simplifying the drive system assembly.
Q7: Can you provide custom modifications, such as special shaft dimensions or paint?
A7: As a manufacturer, we have the capability to offer certain customizations. Modifications like specific output shaft dimensions (length, diameter, keyway), special surface treatments, or paint colors can often be accommodated. Please discuss your specific requirements with our sales department for feasibility and lead time.
Q8: What is your typical lead time for the QJY4S reducer, and what are the shipping terms?
A8: Lead time varies based on order quantity, specific configuration, and current production schedule. Standard models may have shorter lead times. We primarily ship from the Port of Shanghai and can arrange shipments under standard international trade terms like FOB, CIF, or CFR, depending on the destination market.
