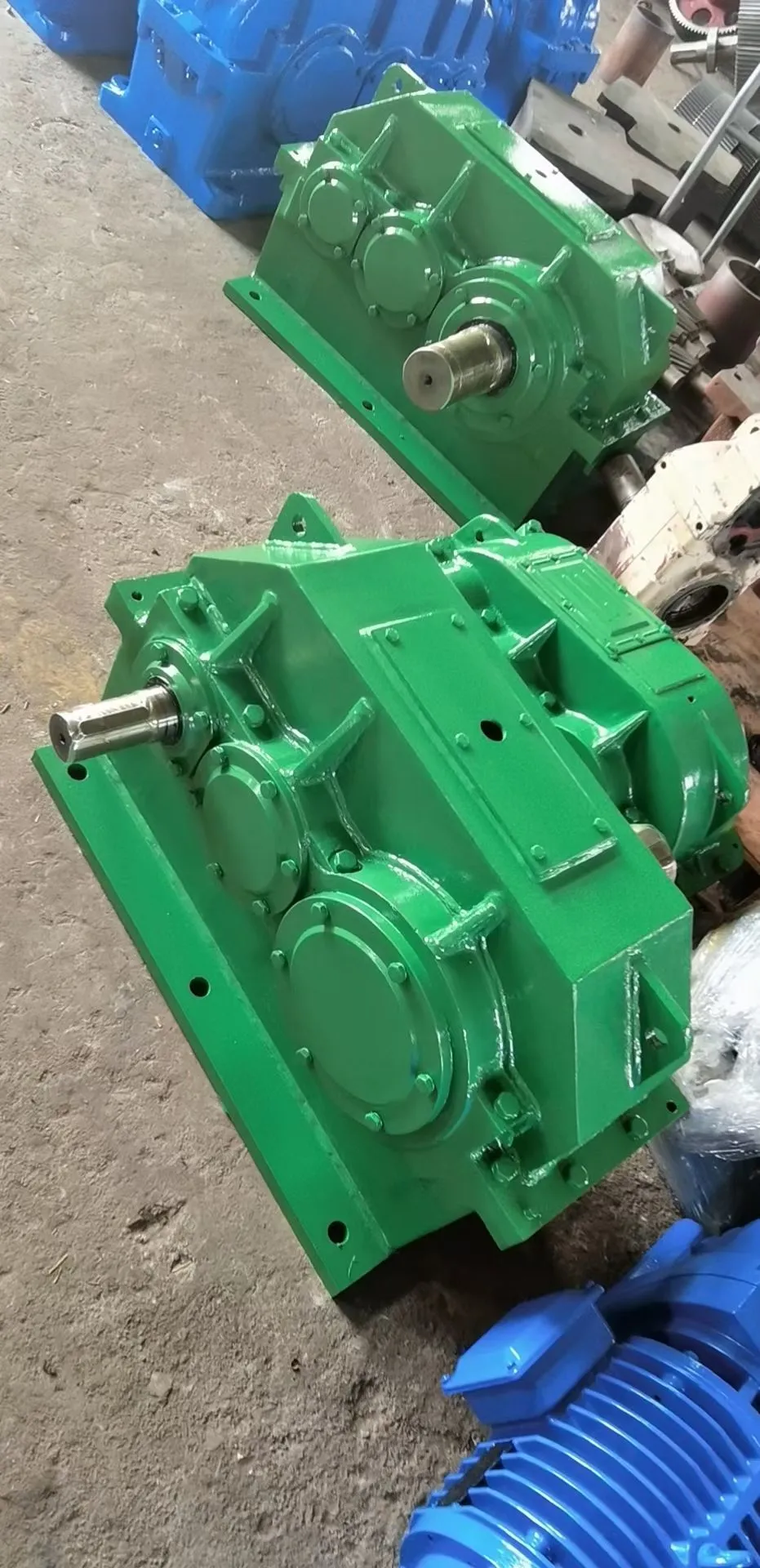

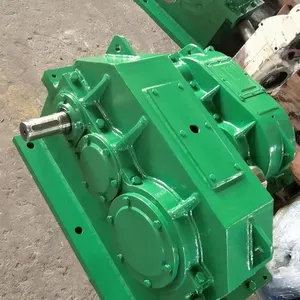

Help CenterQJY3S Soft Tooth Gear Reducer Construction Crane Equipment
Product Spotlights
Related Products
-
QY3S355 Cylindrical Gear Reducer With 15 kW Power Rating for Industrial LiftingNegotiableMOQ: 1 Piece -
QY3S450 Crane Gearbox Featuring Compact Design and High Torque OutputNegotiableMOQ: 1 Piece
-
QY34S500 Crane Gearbox Supplied With Mill Test Report and 18-Month WarrantyNegotiableMOQ: 1 Piece
-
QY34S630 Cylindrical Gear Reducer With On-Site Technical Support and Spare Parts KitNegotiableMOQ: 1 Piece
-
QY3S560 Crane Gearbox With 98% Efficiency and Forged Alloy Steel ConstructionNegotiableMOQ: 1 Piece
As a dedicated manufacturer of power transmission solutions, Jiangsu Manqi Machinery Co., Ltd. proudly presents the QJY3S Soft Tooth Gear Reducer, engineered specifically for the demanding environment of construction crane equipment. Since our establishment in 2017, we have focused on delivering reliable, high-performance components that enhance operational efficiency and safety. This reducer is a testament to our commitment, offering a robust and precise torque conversion solution that ensures smooth, powerful, and dependable lifting operations, directly addressing the core needs of crane manufacturers and operators.
The QJY3S gear reducer is designed to be the heart of your construction crane's motion control system. Its core technology and construction offer distinct advantages:
Superior Helical Soft Tooth Design: The helical soft tooth gears are precision-machined to provide exceptionally smooth engagement and power transmission. This design significantly reduces operational noise and vibration compared to standard spur gears, leading to less wear on the entire drivetrain and a more comfortable working environment.
Enhanced Durability & Load Capacity: Manufactured from high-grade alloy steels and subjected to advanced heat treatment processes, the gears offer an optimal balance of toughness and surface hardness. This results in a remarkable ability to withstand shock loads and continuous heavy-duty cycles common in crane applications, extending the service life of the equipment.
Optimized Thermal Management: The robust cast iron housing is engineered for efficient heat dissipation. Combined with a reliable oil bath lubrication system, it ensures stable operating temperatures even under prolonged, high-torque loads, preventing thermal degradation and maintaining consistent performance.
High Transmission Efficiency: The precision-ground helical teeth minimize friction and power loss within the gearbox. This high efficiency translates directly into energy savings for the end-user and allows for the potential use of a slightly smaller prime mover, optimizing the crane's overall design and operational costs.
Versatile Configuration Options: The QJY3S is available in various mounting configurations (foot-mounted or flange-mounted) and a wide range of standard reduction ratios. Custom ratios and specific interface dimensions can be developed to seamlessly integrate with your existing crane designs or new projects.
Beyond its core features, the QJY3S provides tangible benefits for your business:
Reduced Maintenance Downtime: The reliable design and quality construction lead to longer intervals between maintenance checks and reduced unplanned breakdowns, maximizing crane availability on critical construction sites.
Improved Operational Safety: Smooth, predictable power delivery enhances control during lifting and positioning operations, contributing to a safer worksite.
Cost-Effective Performance: The extended lifespan and energy-efficient operation lower the total cost of ownership over the crane's operational life, providing excellent long-term value.
The following table outlines key technical specifications for the standard QJY3S series. Please note that custom specifications are available to meet your precise requirements.
| Parameter | Description / Range |
|---|---|
| Gear Type | Helical Soft Tooth |
| Housing Material | High-Grade Cast Iron |
| Mounting Options | Foot Mounted, Flange Mounted |
| Standard Ratio Range | 5:1 to 100:1 (Custom ratios available) |
| Lubrication Method | Oil Bath |
| Input Configuration | IEC Standard Motor Input Shaft or Coupling |
Operating from our modern 10,000-30,000 square meter facility in Suzhou, Jiangsu, our team of 11-50 skilled professionals ensures every QJY3S reducer meets stringent quality control standards before shipment from the Port of Shanghai. Our growing presence in markets across Eastern Europe, Southeast Asia, Africa, and South Asia is built on a foundation of reliable products and trustworthy partnerships. The QJY3S Soft Tooth Gear Reducer embodies this promise, offering a durable, efficient, and customizable solution that empowers your construction cranes to perform at their peak. Contact Jiangsu Manqi Machinery today to discuss how this reducer can be integrated into your equipment, enhancing performance and reliability on your next project.
Frequently Asked Questions (FAQ)
What makes 'soft tooth' gears advantageous for crane reducers?
Soft tooth gears, typically referring to gears that are not through-hardened to extreme surface hardness, offer a favorable combination of a tough core and a hardened surface. This makes them more resistant to the shock loads and impact stresses frequently encountered in construction crane operations, reducing the risk of catastrophic tooth failure compared to very hard, brittle gears.Can the QJY3S reducer be customized for a specific crane model?
Yes, customization is a key service we offer. We can adjust the reduction ratio, mounting flange dimensions, input/output shaft sizes, and even the housing design to ensure a perfect fit and optimal performance for your specific crane application.What is the expected service life and maintenance schedule for this reducer?
With proper installation and regular oil changes as per the recommended intervals (typically every 2,000-4,000 operational hours, depending on duty cycle), the QJY3S reducer is designed for a long service life. Regular inspections for oil level, leaks, and unusual noise are advised.What type of lubrication oil is recommended?
We recommend using a high-quality, extreme pressure (EP) industrial gear oil with a viscosity grade suitable for your operating temperature range. Specific oil recommendations are provided in the product manual.How does this reducer handle the high starting torque of crane hoists?
The helical soft tooth design and robust construction are specifically engineered to manage high intermittent and shock loads. The gear material's properties allow it to absorb and distribute these forces effectively, protecting the drivetrain.Is the reducer suitable for both slewing and hoisting motions on a crane?
While the QJY3S is primarily designed for hoisting and trolley travel applications due to its torque characteristics, it can be evaluated for slewing functions depending on the specific torque, speed, and duty cycle requirements. Consultation with our engineers is recommended for slewing applications.What are the available input power and output torque ranges?
The standard series covers a broad range. For precise power and torque specifications to match your motor and load, please provide your application details so we can recommend or design the most suitable model.Do you provide installation guidance and technical support?
Absolutely. Comprehensive installation manuals, dimensional drawings, and technical data sheets are provided. Our engineering team is also available to offer support during the integration phase of your project.
