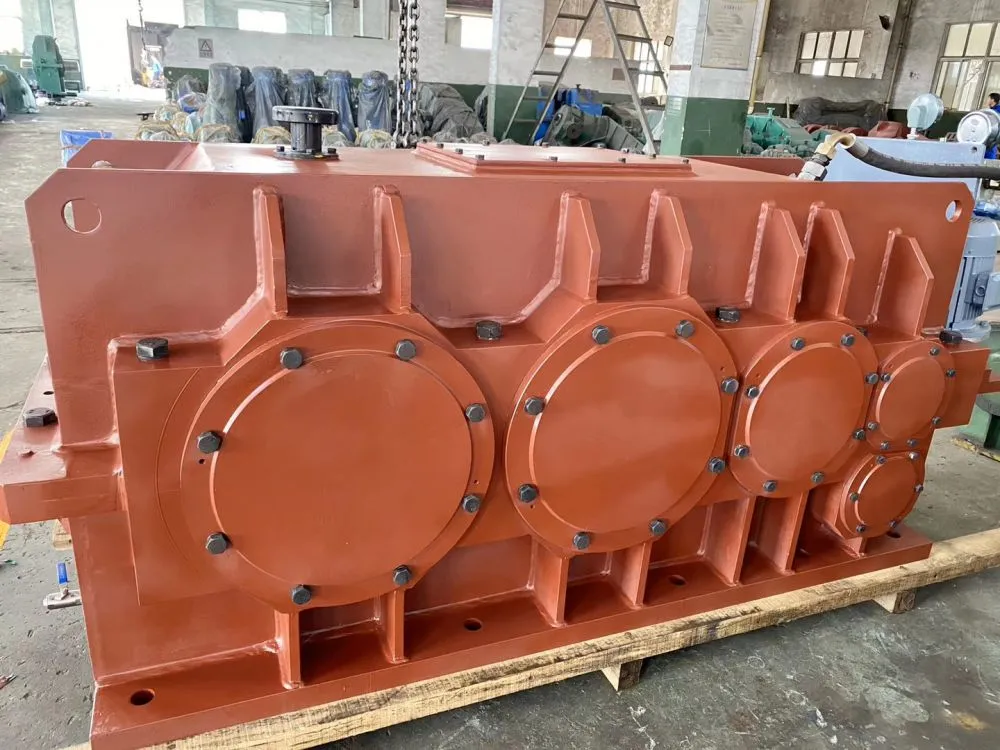

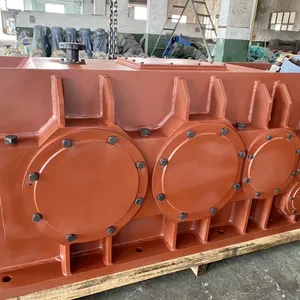

As a dedicated manufacturer, Jiangsu Manqi Machinery Co., Ltd. specializes in producing robust and reliable power transmission components. Our QY34D500 Cylindrical Gear Reducer is engineered specifically for demanding crane winch applications, offering a combination of high efficiency, durability, and precise speed control. Built in our modern facility in Suzhou, this hard tooth surface reducer is designed to withstand heavy loads and harsh operational environments, ensuring your crane systems operate smoothly and with minimal downtime.
The core value of the QY34D500 lies in its ability to deliver consistent torque reduction with exceptional energy efficiency, directly contributing to lower operational costs and enhanced equipment lifespan for crane operators. By focusing on precision manufacturing and quality materials, we provide a gearbox solution that meets the rigorous demands of lifting and material handling across various global markets, including Eastern Europe, Southeast Asia, Africa, and South Asia.
Key Features & Technical Specifications:
High-Efficiency Hard Tooth Surface: The gears are manufactured using high-strength steel alloys and undergo specialized hardening processes. This results in a hard tooth surface that significantly reduces wear, increases load-bearing capacity, and maintains high transmission efficiency over extended periods.
Optimized for Crane Winch Duty: The design incorporates features to handle the specific torque profiles, shock loads, and intermittent operation typical of crane winches, ensuring reliable performance during lifting, lowering, and holding operations.
Robust Construction & Sealing: The housing is designed for strength and rigidity. Advanced sealing systems are employed to prevent lubricant leakage and ingress of contaminants, which is critical for operation in outdoor or dusty environments.
Precision Gear Meshing: Advanced machining ensures precise gear tooth profiles and accurate meshing. This minimizes noise, vibration, and heat generation, leading to smoother operation and reduced maintenance needs.
Flexible Configuration Options: The reducer can be configured with different mounting styles (foot or flange) and is compatible with various input sources, such as electric motors or hydraulic motors, allowing for integration into diverse crane system designs.
Thermal Management: The design facilitates effective heat dissipation, preventing overheating during continuous or high-duty cycles, which protects internal components and maintains performance.
Technical Parameters Table:
| Parameter | Description / Value |
|---|---|
| Model | QY34D500 |
| Reducer Type | Cylindrical Gear, Single or Multi-stage (customizable) |
| Nominal Reduction Ratio Range | Available upon request (typical for winch: 5:1 to 50:1) |
| Input Power Capacity | Designed for medium to high-power crane winch drives |
| Maximum Output Torque | High torque output suitable for heavy lifting |
| Mounting Style | Foot Mounted (standard), Flange Mounted (optional) |
| Input/Output Shaft Configuration | Solid shaft, keyed or splined (customizable) |
| Lubrication | Oil bath lubrication (standard) |
Benefits for Your Crane Operation:
Enhanced Durability & Longevity: The hard tooth surface and robust construction reduce wear, leading to a longer service life and fewer replacements, lowering your long-term capital expenditure.
Improved Operational Efficiency: High transmission efficiency means less energy is lost as heat or friction, translating into lower power consumption for your crane's winch system.
Reliable Performance Under Load: Designed for shock loads and variable speeds, this reducer provides stable and reliable speed reduction, ensuring safe and precise control of lifting operations.
Reduced Maintenance Costs: Precision manufacturing and effective sealing minimize common failure points, reducing the frequency and cost of routine maintenance and unscheduled repairs.
Adaptable System Integration: The available configuration options allow this reducer to be tailored to fit your existing crane winch setup or new system design, simplifying the upgrade or installation process.
Jiangsu Manqi Machinery, established in 2017 and operating from a significant factory space, combines manufacturing expertise with a focus on international markets. Our experience in exporting to diverse regions like Eastern Europe, Southeast Asia, Africa, and South Asia means we understand the varied operational conditions and standards required globally. We ship from the Port of Shanghai, ensuring efficient logistics. While our annual export volume is growing, our commitment is to providing dependable, high-value mechanical components like the QY34D500 reducer. This product embodies our focus on creating durable, efficient solutions that support the critical work of crane operations worldwide, helping you achieve greater productivity and equipment reliability.
Frequently Asked Questions (FAQ):
What is the primary advantage of a "hard tooth surface" in this reducer?
A hard tooth surface, achieved through processes like heat treatment, significantly increases the gear's resistance to wear, abrasion, and pitting. For a crane winch reducer, this translates to a longer lifespan under high-stress, cyclical loading, reducing the frequency of gear replacement and associated downtime.Can the QY34D500 reducer be used with different types of drive motors?
Yes, it is designed to be compatible with various input drives. It can be coupled with standard electric motors or hydraulic motors commonly used in crane systems. The input shaft configuration (keyed or splined) can be customized to match your specific motor interface.How does this reducer contribute to energy efficiency in a crane winch?
The high-efficiency design minimizes power losses through precise gear geometry, high-quality bearings, and optimized lubrication. This means the winch motor consumes less electrical or hydraulic power to achieve the same output torque, leading to operational cost savings.Is the reduction ratio fixed, or can it be customized?
While standard ratios are available, the QY34D500 design allows for customization of the reduction ratio to match your specific winch speed and torque requirements. Please consult with our technical team for your application needs.What mounting options are available for installation?
The standard configuration is foot mounting, which is common for base-plate installation. A flange-mounted version is also available as an option, which can be beneficial for direct mounting to a motor or other structural components.What kind of maintenance does this gear reducer require?
Primary maintenance involves periodic checking and changing of the lubricating oil according to operational hours and environment. The robust sealing system helps keep the oil clean and inside the housing, extending oil change intervals. Regular inspection of mounting bolts and external condition is also recommended.Can this reducer handle the shock loads from sudden starts/stops in winch operation?
Yes, the design incorporates considerations for shock loads. The hard tooth surface gears and sturdy housing are engineered to absorb and withstand the dynamic forces encountered during abrupt acceleration or deceleration in lifting tasks.What is the typical delivery lead time for this product?
Lead time depends on order quantity and specific configuration (standard vs. customized). For standard models, we aim for efficient production and shipment from the Port of Shanghai. Please contact us for an accurate timeline based on your order details.
