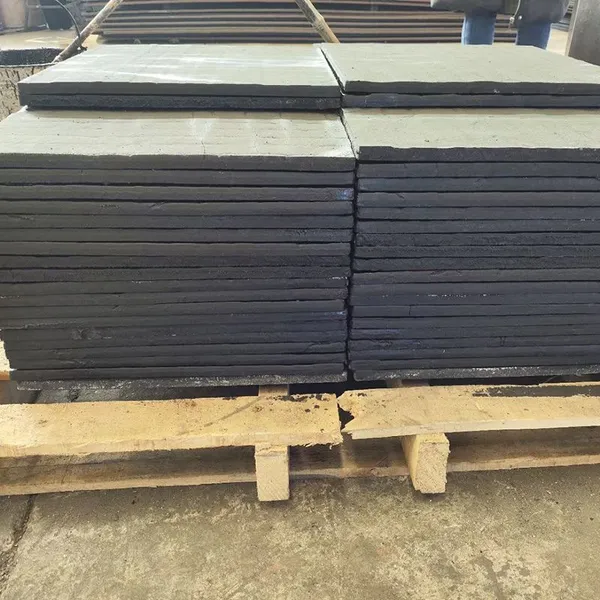

Help CenterCustom-Cut CCO Wear Plate With Beveled Edges for Easy Welding Preparation
Product Spotlights
Related Products
-
Overlay Abrasion Wear Resistant Plates Chromium Carbide Steel PlateUS$ 0.65 - 0.95MOQ: 100 Kilograms -
Wear Resistant Material Mining Welding Chromium Carbide Overlay Wear Steel PlateUS$ 0.65 - 0.95MOQ: 100 Kilograms
-
High-Quality Carbon Steel Plate With Chromium Carbide Overlay for Industrial ApplicationsUS$ 0.65 - 0.95MOQ: 100 Kilograms
-
Chromium Carbide Overlay Carbon Steel Plate/Sheet for Heavy Duty Wear ResistanceUS$ 0.65 - 0.95MOQ: 100 Kilograms
-
Super Wear Resistant Chromium Carbide Coated Overlay Cco Wear PlateUS$ 0.65 - 0.95MOQ: 100 Kilograms
As a leading manufacturer specializing in advanced wear-resistant solutions, Wuxi Yansheng Technology Co., Ltd. is proud to introduce our premium Custom-Cut CCO Wear Plate with Beveled Edges. Leveraging over seven years of expertise since our establishment in 2017 and operating from our expansive 1,000-3,000 square meter facility, we deliver high-performance components engineered for the most demanding industrial environments. Our CCO wear plates are precision-customized to your exact specifications, featuring pre-beveled edges that significantly streamline welding preparation, saving you valuable time and labor costs while ensuring a robust, long-lasting installation.
This product is designed to combat severe abrasion and moderate impact in heavy machinery. The core value lies in its dual offering: superior wear resistance from the Chromium Carbide Overlay (CCO) and enhanced installation efficiency through pre-fabricated beveled edges. This combination directly translates to reduced equipment downtime, lower maintenance frequency, and extended service life for your critical assets.
Key Product Features & Technical Advantages:
- Premium CCO Material: The overlay consists of a high-chromium carbide alloy, offering exceptional hardness and resistance to sliding abrasion, making it ideal for applications involving bulk material handling.
- Custom Precision Cutting: We cut each plate to your provided dimensions and shapes, ensuring a perfect fit for your specific equipment, whether it's a chute, hopper, fan blade, or conveyor component.
- Pre-Beveled Edges: The edges are machined to a standard weld-prep bevel (commonly 30°-45°), eliminating the need for on-site grinding or preparation. This guarantees optimal weld penetration and a stronger bond.
- Optimized Bonding Layer: The CCO overlay is metallurgically bonded to a tough, ductile steel base plate (typically A36 or similar), providing excellent impact absorption and preventing overlay spallation.
-
Versatile Application: Specifically engineered for industries where abrasion is a primary cause of failure. Common applications include:
- Mining & Mineral Processing: Crusher liners, skip liners, slurry pipe elbows.
- Cement Industry: Raw mill fan blades, clinker cooler plates, cyclone liners.
- Power Generation: Coal pulverizer wear parts, ash handling systems.
- Steel & Foundry: Sinter plant equipment, blast furnace components.
Detailed Technical Specifications & Options:
| Parameter | Typical Specification / Options |
| Base Material | Mild Steel (A36, Q235) or Low-Alloy Steel |
| Overlay Material | High Chromium Carbide (CCO) |
| Overlay Hardness | HRC 58 - 65 |
| Overlay Thickness | Available upon request (e.g., 4mm, 6mm, 8mm) |
| Total Plate Thickness | Customizable from 6mm to 50mm+ |
| Bevel Angle | Standard 30°, 37.5°, or 45°; Custom angles available |
| Bevel Depth | Typically 1.5mm - 3mm, customizable |
| Cutting Tolerance | ±1.5mm on dimensions, ±1° on angles |
| Surface Finish | Mill finish on base; Overlay as-welded or lightly ground |
Benefits for Your Operation:
- Extended Component Life: The CCO overlay can extend wear life by 3 to 8 times compared to standard steel plates, drastically reducing replacement part frequency.
- Reduced Installation Time & Cost: Pre-beveled edges cut welding preparation time by up to 50%, allowing for faster equipment repairs and maintenance windows.
- Improved Weld Quality: Consistent, machine-cut bevels ensure proper fit-up and weld penetration, leading to more reliable and durable installations.
- Inventory & Logistics Efficiency: Receive plates ready for immediate installation, reducing on-site fabrication needs and associated labor/skill requirements.
- Customization Flexibility: We adapt to your unique project needs, from non-standard shapes to specific bevel requirements, acting as an extension of your engineering team.
Trust in a manufacturer with a proven global track record. Wuxi Yansheng Technology supports an annual export value of US$50 Million - US$100 Million, serving key markets across North America, South America, Europe, Asia, Africa, and Oceania. Our operations are backed by a robust quality management system certified to ISO9001, ISO14001, and OHSAS18001 standards, ensuring every custom-cut CCO wear plate meets stringent production controls. With a dedicated workforce of 101-200 people and efficient shipment through major ports like Shanghai, Ningbo, and Tianjin, we are equipped to handle large-volume orders and deliver on schedule. Choose our Custom-Cut CCO Wear Plates to not only protect your equipment but also optimize your maintenance workflow. Contact us today with your drawings or specifications for a detailed quotation and technical support.
Frequently Asked Questions (FAQ):
-
Q: What is the primary advantage of CCO over other hardfacing materials?
A: CCO (Chromium Carbide Overlay) offers an exceptional combination of high hardness for abrasion resistance and good fracture toughness. It performs well under both high-stress abrasion and moderate impact conditions, often outlasting ceramic tiles or purely hard-but-brittle alloys. -
Q: Can you cut the plates into complex shapes, or only rectangles?
A: We specialize in custom cutting. Using advanced CNC plasma or oxy-fuel cutting systems, we can produce virtually any shape you require—rectangles, circles, trapezoids, or complex profiles based on your CAD drawings. -
Q: What welding procedure is recommended for installing these plates?
A: We typically recommend using low-hydrogen electrodes (such as E7018) or flux-cored wires suitable for joining hardfaced materials to mild steel. Specific Welding Procedure Specifications (WPS) can be provided upon request. -
Q: How does the beveled edge affect the welding process?
A: The pre-cut bevel creates a groove for the weld bead, allowing for deeper penetration and a larger weld cross-sectional area. This results in a significantly stronger joint compared to a simple square-edge butt weld, enhancing the plate's attachment integrity. -
Q: What information do you need from me to provide a quote?
A: To provide an accurate quote, we typically need: detailed dimensional drawings (with tolerances), required material thickness (base and overlay), quantity, bevel specifications, and your target delivery port. -
Q: What is your typical lead time for custom-cut orders?
A: Lead time depends on order complexity and volume. For standard customizations, production can often be completed within 2-4 weeks after order confirmation and drawing approval. Expedited services may be available. -
Q: Do you provide any post-weld machining or finishing services?
A: Yes, secondary services like grinding the overlay surface to a specific smoothness, drilling bolt holes, or adding counterbores are available. Please specify these requirements during the inquiry stage. -
Q: How are the plates packaged for export to prevent damage?

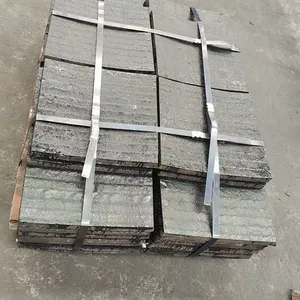

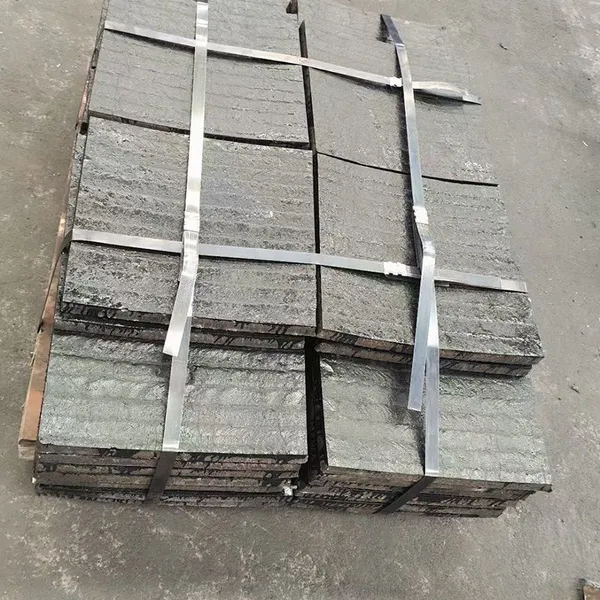

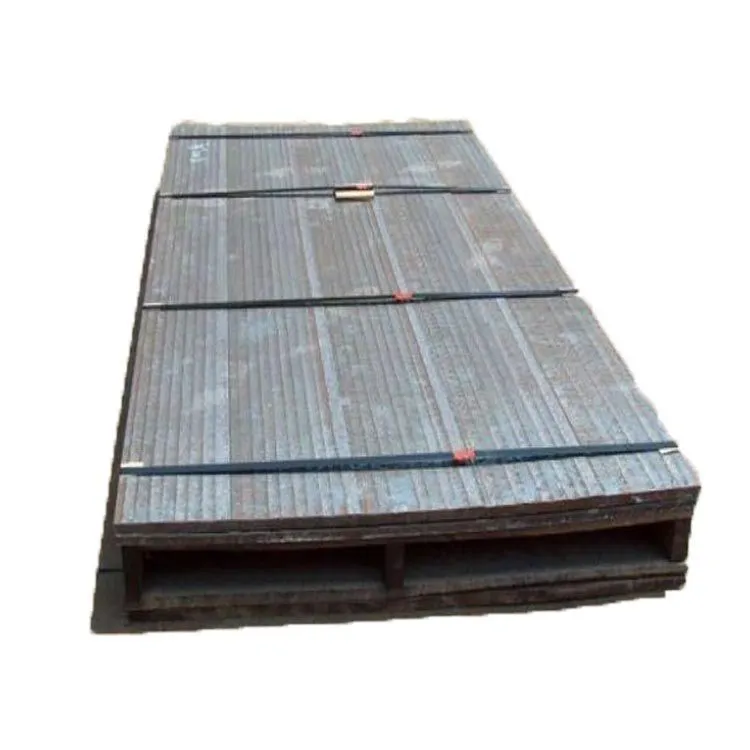

A: Plates are carefully stacked, separated with protective material, securely strapped onto wooden skids or pallets, and wrapped in waterproof material. We tailor packaging to the shipment mode and destination to ensure safe arrival.
