Product Spotlights

1.Factory Direct Pricing 2.Dual Wet and Dry Grinding 3.High Mineral Liberation Efficiency 4.Premium Wear-Resistant Liners 5.Low Energy Consumption 6.Continuous 24/7 Automation 7.Lifetime Spare Parts Support
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Ball Mill
Warranty:
1 year
Motor Power:
Other
Contact Supplier Request Quote Chat Now
Henan Staurk Machinery Co.,Ltd
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjing Shanghai
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Ball Mill
Warranty 1 year
Motor Power Other
After-sales Service 24/7 technical support
Condition New
Motor Type AC Motor
Rotationl Speed Other
Application Mine
Materials Gold
Transport Package Standard
Specification Customized
Trademark Staurk
Origin China

Product Overview

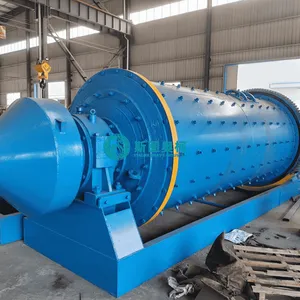

Get high-performance size reduction directly from the source with our Factory Direct Grinding Ball Mill. Engineered as a heavy-duty, multi-purpose solution for the global mining and metallurgy sectors, this robust ore milling ball mill is designed to process a wide array of hard rock ores and industrial minerals.

Supporting both dry grinding and wet grinding configurations, this mill offers unparalleled flexibility. It effortlessly transitions between handling dry powder feeds and high-slurry mineral streams, ensuring optimal mineral liberation, consistent particle fineness, and highly cost-effective operations.

Versatile Processing Capabilities

This industrial mill is fully optimized to operate across diverse material workflows:

  • Wet Grinding Mode: The definitive choice for downstream mineral processing circuits. It easily mill gold, copper, iron, and silver rock into a highly uniform slurry, preparing the material perfectly for flotation or cyanidation leaching.

  • Dry Grinding Mode: Engineered for enclosed, moisture-free processing setups. Ideal for pulverizing coal, cement raw meals, limestone, and specialized industrial chemical minerals without water requirements.

Core Product Advantages

  • Factory-Direct Savings & High ROIBy sourcing your machinery directly from our manufacturing plant, you completely eliminate third-party agency markups and middleman fees. This guarantees the most competitive wholesale price while maintaining strict international quality control.

  • Dual Wet & Dry Milling FlexibilityThe internal drum and discharge mechanics can be quickly customized as either a Grate Discharge (best for rapid output and avoiding over-grinding in wet mining slurries) or an Overflow Type (best for ultra-fine dry powder finishing).

  • Heavy-Duty Component LongevityBuilt to handle severe abrasive wear, the inner cylinder is lined with premium high-manganese steel alloy or thick, impact-absorbing rubber liners. Combined with industrial-grade steel grinding balls, this setup ensures high structural integrity and cuts down unscheduled maintenance.

  • High-Efficiency Power TransmissionEquipped with an advanced drive motor, heavy-duty reduction gearbox, and automated lubrication systems, the mill delivers powerful continuous torque while lowering specific energy consumption per ton of processed rock.

Technical Highlights & Support

  • Automation Ready: Features full integration with centralized PLC control systems to monitor bearing temperatures and motor loads in real time for safe, 24/7 continuous operation.

  • Turnkey Engineering: We provide complete foundational layout designs, professional on-site installation guidance, and a lifetime supply of original wear-resistant spare parts and high-quality grinding balls.


Technical Specifications


Model Cylinder RPM (r/min) Ball Load (t) Feeding Size (mm) Discharging Size (mm) Capacity (t/h) Motor Model Power (kW) Weight (t)
MQG600*1800 45.5 0.5 ≤ 10 0.074-0.5 0.2-0.5 Y160M-6 7.5 2.5
MQG900*1800 38 1.8 ≤ 20 0.074-0.6 0.8-2 Y180L-6 15 5.8
MQG900*3000 37.4 2.7 ≤ 20 0.074-0.3 0.8-3 Y200L2-6 22 7.5
MQG1200*2400 32 4.8 ≤ 25 0.074-0.6 1.5-4 Y225M-6 30 9.8
MQG1200*4500 30 5.2 ≤ 25 0.074-0.6 1.5-6 Y280S-6 45 13.2
MQG1300*4000 36 5.8 ≤ 25 0.074-0.6 2-6 Y280S-8 45 14.8
MQG1500*3500 28.8 8.3 ≤ 25 0.074-0.6 3-6 YR280M-8 90 17.6
MQG1500*4500 28.8 10 ≤ 25 0.074-0.4 4-8 JR125-8 95 22.3
MQG1500*5700 28.8 12 ≤ 25 0.074-0.4 5-10 JR126-8 110 26.7
MQG1500*6400 28.8 13 ≤ 25 0.074-0.4 8-12 JR127-8 130 29.2
MQG1830*3600 24.5 12 ≤ 25 0.074-0.4 5-10 JR127-8 130 31.4
MQG1830*5400 24.5 15 ≤ 25 0.074-0.4 5-20 JR137-8 210 33.6
MQG1830*6400 24.5 19 ≤ 25 0.074-0.4 6-25 JR137-8 210 36.5
MQG1830*7000 24.5 20 ≤ 25 0.074-0.4 8-30 JR138-8 245 39.6
MQG2100*3600 24.1 21 ≤ 25 0.074-0.6 8-20 YR355L1-8 210 43.2
MQG2100*4500 24.57 26 ≤ 25 0.074-0.6 8-35 JR138-8 280 53.6
MQG2200*3600 21.8 22 ≤ 25 0.074-0.6 9-25 JR138-8 245 47.8
MQG2200*4500 21.4 27 ≤ 25 0.074-0.6 10-30 JR138-8 280 54.7
MQG2200*7500 21.8 35 ≤ 25 0.074-0.6 10-40 JR158-8 380 68.4
MQG2200*9000 21.4 36 ≤ 25 0.074-0.6 10-45 JR1510-8 475 76.5
MQG2400*3600 21.26 26 ≤ 25 0.074-0.6 10-40 JR138-8 280 63.8
MQG2400*7000 21.8 36 ≤ 25 0.074-0.6 10-45 JR1510-8 475 82.4
MQG2400*8000 21.8 42 ≤ 25 0.074-0.6 13-50 JR630-8 560 85.7
MQG2400*10000 21 65 ≤ 25 0.074-0.6 15-60 YR560-8 710 88.6
MQG2600*8000 19.6 52 ≤ 25 0.074-0.6 16-70 JR1512-8 630 97.8
MQG2700*3600 21.4 39 ≤ 25 0.074-0.4 13-75 JR158-8 380 86.8
MQG2700*4500 21.4 43 ≤ 25 0.074-0.4 13-90 JR1510-8 475 91.8
MQG3000*5400 19 58 ≤ 25 0.074-0.6 - TDMK-30 630 119.7
MQG3000*9000 18.3 78 ≤ 25 0.074-0.4 20-90 YR1000-8/1180 1000 152.4
MQG3000*11000 18 100 ≤ 25 0.074-0.6 30-90 YR6306-8 1120 166.7
MQG3200*3600 18.6 56.5 ≤ 25 0.074-0.6 20-80 YR6302-8 630 127.4
MQG3200*4500 18.6 65 ≤ 25 0.074-0.6 20-90 YR6302-8 800 138.6
MQG3200*5400 18 72 ≤ 25 0.074-0.6 30-100 YR1000-8 1000 146.7
MQG3200*9000 18 85 ≤ 25 0.074-0.6 30-100 YR6302-8 1250 168.6
MQG3600*4500 18 86 ≤ 25 0.074-0.6 30-100 YR6302-8 1250 158.7
MQG3600*6000 18 117 ≤ 25 0.074-0.6 45-180 - 14000 195.6
MQG4000*6000 16.9 145 ≤ 25 0.074-0.6 60-230 - 1800 221.7
MQG4500*6000 15.6 180 ≤ 25 0.074-0.6 80-300 - 2300 269.6


Product Tags: Factory Direct Ball Mill , Mineral Grinding Machine , Gold Ore Processing Mill
