100A Steel Control Cabinet Outdoor Monitor Equipment With Surge Protection Power Distribution Box IP55
Product Spotlights
IP55-rated steel enclosure provides robust protection against dust and water jets for outdoor use. Integrated 100A power distribution with surge protection safeguards sensitive monitoring equipment. Features a customizable interior with adjustable DIN rails for flexible component layout. Durable powder-coated finish ensures corrosion resistance. Simplifies installation and enhances system reliability for surveillance and telecom applications.
US$ 100
≥10 Units
Key Specifications
Get Latest Price
Material:
High-grade steel
Protection Rating:
IP55
Rated Current:
100A
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
100A Steel Power Distribution Box Outdoor Monitor Equipment With PLC Control Cabinet NEMA 4X EnclosureUS$ 100MOQ: 10 Units -
220V 100A Steel Control Box With Distribution Panel Outdoor Monitor Equipment Weatherproof Electric CabinetUS$ 100MOQ: 10 Units
-
100A Rated Steel Electric Control Panel Outdoor Monitor Equipment Distribution Cabinet for Industrial AutomationUS$ 100MOQ: 10 Units
-
100A 3-Phase Steel Electric Control Box Outdoor Monitor Equipment Main Distribution Panel With Circuit BreakersUS$ 100MOQ: 10 Units
-
Salt Fog Resistant, Explosion-Proof Termination for Coastal and Industrial Power GridsUS$ 50MOQ: 10 Units
Material
High-grade steel
Protection Rating
IP55
Rated Current
100A
Surge Protection
Integrated
Application
Outdoor monitoring equipment power distribution
Configuration
Customizable internal layout
Mounting Type
Wall-mounted
Finish
Powder-coated
Standard Compliance
Available upon request
As a professional manufacturer of industrial electrical enclosures, Jinhua Dika Electrical Equipment Co., Ltd. is proud to introduce our robust 100A Steel Control Cabinet designed for demanding outdoor environments. This cabinet is engineered to provide a secure, protected, and reliable power distribution point for critical monitoring equipment, integrating surge protection to safeguard sensitive electronics against voltage transients. With an IP55 rating and a durable steel construction, it is the ideal solution for installations exposed to weather and dust, ensuring uninterrupted operation for your surveillance, telecommunications, or industrial monitoring systems.
This outdoor control cabinet is more than just a protective shell; it is a comprehensive power management node. Its core value lies in delivering operational resilience. By centralizing power distribution and incorporating surge protection within a single, sealed unit, it simplifies installation, reduces points of failure, and significantly enhances the longevity and reliability of the connected monitoring equipment. For system integrators and project managers, this translates to lower maintenance costs, reduced downtime, and peace of mind knowing that critical infrastructure is protected.
Key Features & Technical Specifications:
- Robust Construction: Fabricated from high-grade steel, the cabinet offers superior mechanical strength and impact resistance, providing a secure housing for electrical components.
- Superior Environmental Protection: The IP55 rating guarantees protection against dust ingress and low-pressure water jets from any direction, making it suitable for outdoor and semi-outdoor applications.
- Integrated Surge Protection: Pre-installed or provisioned for surge protective devices (SPDs) to divert harmful voltage spikes away from sensitive monitoring equipment, preventing damage and data loss.
- High-Capacity Power Distribution: Rated for 100A, the cabinet can handle significant electrical loads, supporting multiple devices such as cameras, sensors, communication modems, and lighting.
- Customizable Internal Layout: The interior is designed with adjustable mounting plates and DIN rails, allowing for flexible arrangement of circuit breakers, terminal blocks, power supplies, and other components to meet specific project requirements.
- Durable Finish: A powder-coated finish provides excellent corrosion resistance, ensuring the cabinet maintains its integrity and appearance even in coastal or industrial atmospheres.

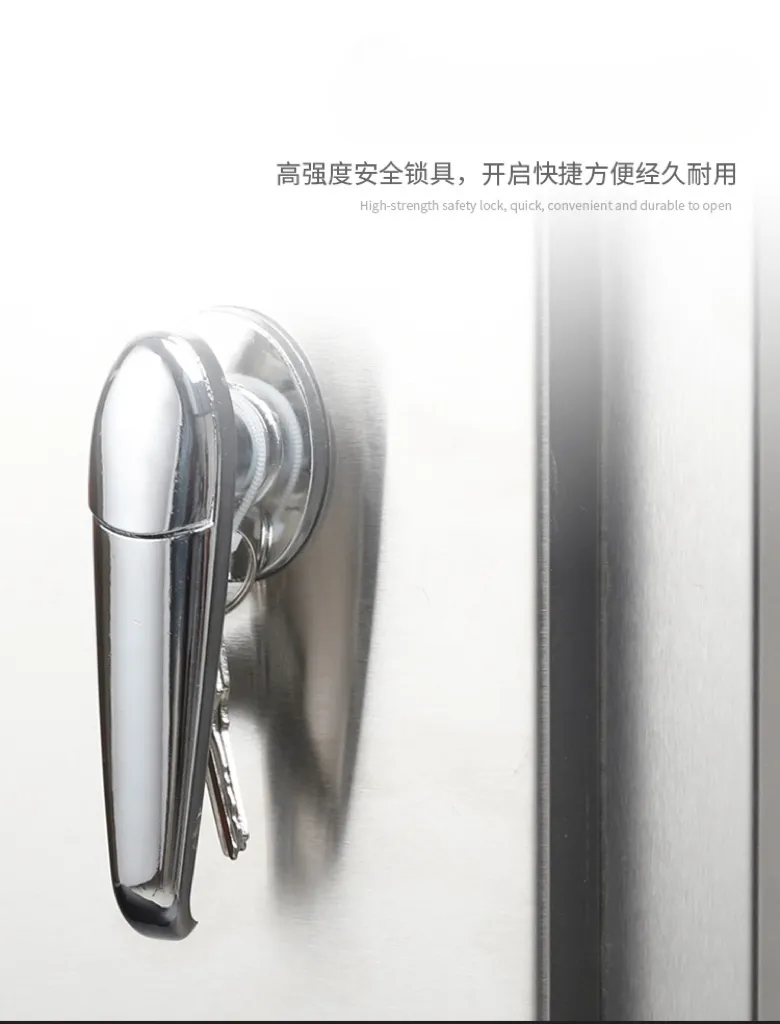

- Secure Access: Features a lockable door with a robust handle, preventing unauthorized access and tampering.
- Effective Thermal Management: Designed with ventilation considerations (optional fans or louvers) to prevent overheating of internal components, crucial for maintaining equipment performance.
Detailed Technical Parameters:
| Parameter | Specification |
| Main Material | Cold-rolled steel sheet |
| Protection Degree (IP Code) | IP55 |
| Rated Operational Current (Ie) | 100 Amperes |
| Surge Protection Device (SPD) Rating | Customizable (e.g., 40kA, Type 2) |

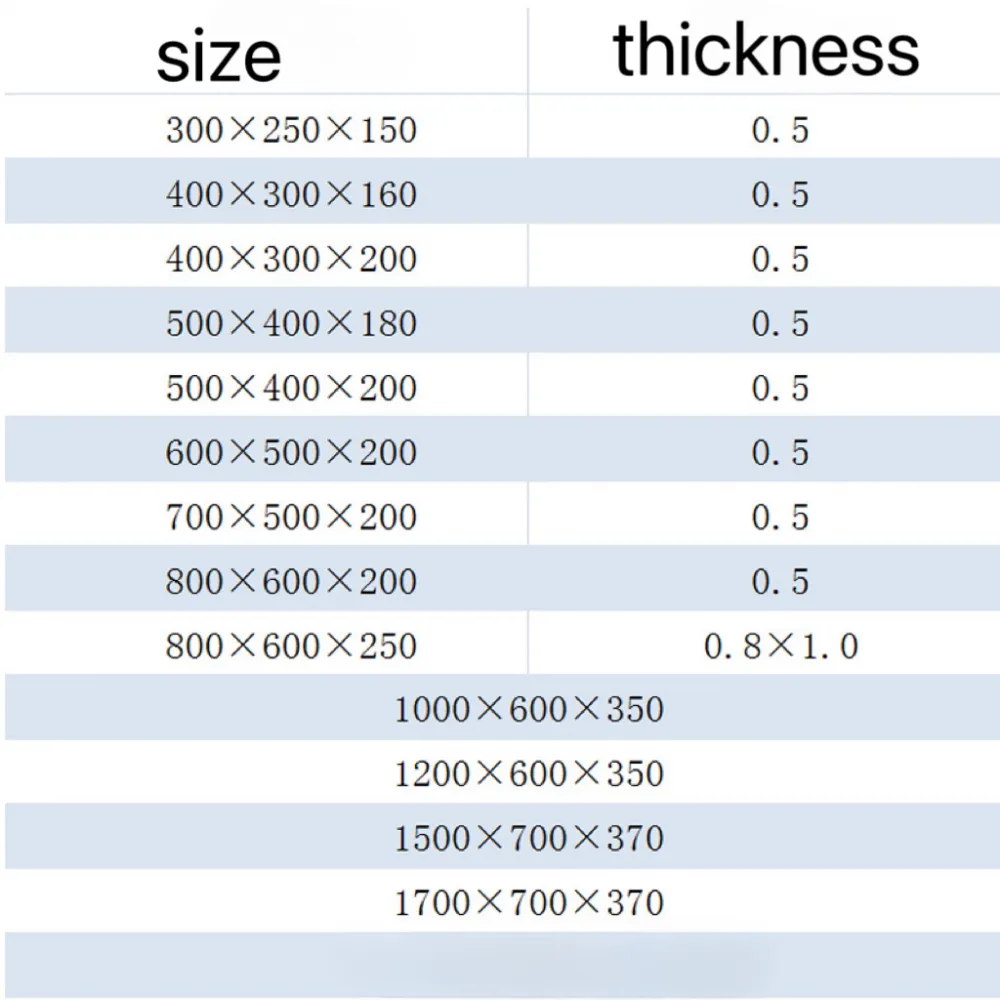

| Typical Dimensions (HxWxD) | Approx. 600 x 500 x 250 mm (Customizable) |
| Mounting | Wall-mounted (brackets included) |
| Door Opening Angle | > 90 degrees |
| Internal Configuration | Adjustable DIN rails & mounting plates |
| Color | Standard RAL 7035 (Light grey), other colors optional |
| Lock | Standard cylinder lock |
Benefits for Your Project:
- Enhanced System Reliability: Protects expensive monitoring equipment from electrical surges and environmental hazards, reducing failure rates.
- Simplified Installation & Maintenance: A pre-configured, all-in-one enclosure reduces on-site wiring time and provides organized, accessible components for easier servicing.
- Cost-Effective Solution: Prevents costly equipment replacements and system downtime, offering a strong return on investment over the lifecycle of the installation.
- Scalability & Flexibility: The adaptable interior allows for future system expansions or reconfigurations without replacing the entire cabinet.
- Professional Aesthetic: Provides a neat, professional appearance for outdoor installations, important for municipal, commercial, and industrial sites.
Backed by Jinhua Dika's commitment to quality and a proven track record in international markets, this control cabinet is a reliable choice. Our company holds relevant management system certifications and exports to a wide range of regions including North America, Europe, Southeast Asia, and Africa. With an annual export value reflecting consistent demand and trust from global clients, you can be confident in the performance and durability of our products. Our expertise in manufacturing allows for customization to meet specific technical or logistical needs, ensuring a perfect fit for your application. Choose this outdoor control cabinet to build a foundation of power integrity and protection for your critical monitoring systems.
Frequently Asked Questions (FAQ)
-
Q: What does the IP55 rating mean for my outdoor installation?
A: IP55 signifies a high level of protection. The "5" for solids means it is dust-protected (not totally dust-tight, but sufficient for most outdoor scenarios). The "5" for liquids means it is protected against water jets from any direction. This makes the cabinet suitable for most outdoor conditions except prolonged immersion or high-pressure cleaning. -
Q: Is the surge protection device included, and what is its rating?
A: The cabinet is designed and equipped to integrate surge protection. The specific SPD module (its current rating, such as 40kA, and protection level) can be selected based on your local electrical standards and the sensitivity of your connected equipment. We can provide guidance or pre-install the recommended module upon request. -
Q: Can the internal layout be modified to fit my specific components?
A: Absolutely. A key feature is its customizable interior. The mounting plates and DIN rails are adjustable. You can provide a layout diagram, and we can often pre-assemble or configure the internal structure to accommodate your specific circuit breakers, power supplies, and terminal blocks. -
Q: What are the shipping and delivery terms for this product?
A: We ship globally from major Chinese ports like Shanghai, Tianjin, Guangzhou, and Ningbo. Delivery terms (e.g., FOB, CIF) and lead times depend on order quantity, customization level, and destination. We provide clear quotations with these details. -
Q: Does the steel construction make it prone to rust?
A: Not with our standard finish. The cabinet undergoes surface treatment and is finished with a high-quality powder coat, which provides excellent resistance to corrosion, UV radiation, and mild chemicals, making it durable for outdoor use. -
Q: What is the maximum ambient temperature this cabinet can operate in?
A: The standard cabinet is rated for operation within a typical industrial temperature range (e.g., -25°C to +55°C). For environments exceeding this range, we can discuss options like special coatings, enhanced ventilation, or air conditioning units. -
Q: Are the electrical components inside (like terminals) included?
A: The cabinet is typically supplied as an empty enclosure with mounting hardware (rails, plates). Electrical components are not included unless specified in a customized order. This allows you to source preferred brands or meet specific project specifications. -
Q: Do you provide technical drawings or 3D models for integration planning?
A: Yes, upon request, we can provide 2D dimension drawings (DXF, PDF) of standard or customized cabinets to assist your engineers in the planning and integration phase.
