100A 3-Phase Steel Electric Control Box Outdoor Monitor Equipment Main Distribution Panel With Circuit Breakers
Product Spotlights
Durable 100A 3-phase steel enclosure designed for outdoor monitor equipment power distribution. Features integrated circuit breakers for reliable protection, weatherproof construction (IP rating customizable), and a safe, organized layout. Customizable with extra components. Built for longevity and stability in demanding environments, simplifying installation and safeguarding critical systems.
US$ 100
≥10 Units
Key Specifications
Get Latest Price
Material:
Steel
Rated Current:
100A
Phase Configuration:
3-Phase
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Salt Fog Resistant, Explosion-Proof Termination for Coastal and Industrial Power GridsUS$ 50MOQ: 10 Units -
Cold Shrink Cable Termination for 8.7/15kV 3-Core Systems, Explosion-Proof & Outdoor RatedUS$ 50MOQ: 10 Units
-
8.7/15kV 3-Core Cold Shrink Termination With Explosion-Proof and Salt Fog Resistant DesignUS$ 50MOQ: 10 Units
-
Explosion-Proof Outdoor Cable Termination for Mining and Petrochemical ApplicationsUS$ 50MOQ: 10 Units
-
Heavy-Duty 8.7/15kV Cold Shrink Termination With Extended Warranty and MTRUS$ 50MOQ: 10 Units
Material
Steel
Rated Current
100A
Phase Configuration
3-Phase
Application
Outdoor Monitor Equipment Power Distribution
Main Components
Circuit Breakers
Enclosure Type
Weatherproof Control Box
Installation Type
Wall-mounted or Floor-standing
Customization
Available upon request
As a professional manufacturer, Jinhua Dika Electrical Equipment Co., Ltd. specializes in providing robust and reliable power distribution solutions for demanding industrial and commercial applications. Our 100A 3-Phase Steel Electric Control Box is engineered to serve as the main distribution panel for outdoor monitor equipment, ensuring stable and protected power supply in challenging environments. Built with durability and safety as core principles, this panel is designed to withstand outdoor conditions while housing critical circuit protection components.
This control box is more than just an enclosure; it's a centralized hub for managing and distributing electrical power to sensitive monitoring systems, including CCTV cameras, traffic monitoring units, environmental sensors, and communication infrastructure. We understand that equipment failure due to power issues is not an option, which is why our panel integrates high-quality circuit breakers within a sturdy steel housing, offering a dependable solution for engineers and project managers.
Key Features and Technical Advantages:
- Robust Steel Construction: The enclosure is fabricated from high-grade steel, providing excellent mechanical strength, impact resistance, and protection against environmental elements. It is typically treated with anti-corrosion coatings (e.g., powder coating) to enhance longevity in outdoor settings.
- Comprehensive Circuit Protection: Pre-installed with circuit breakers suitable for a 100A, 3-phase supply. These breakers provide reliable overload and short-circuit protection for the main incoming lines and outgoing feeder circuits connected to the monitor equipment.

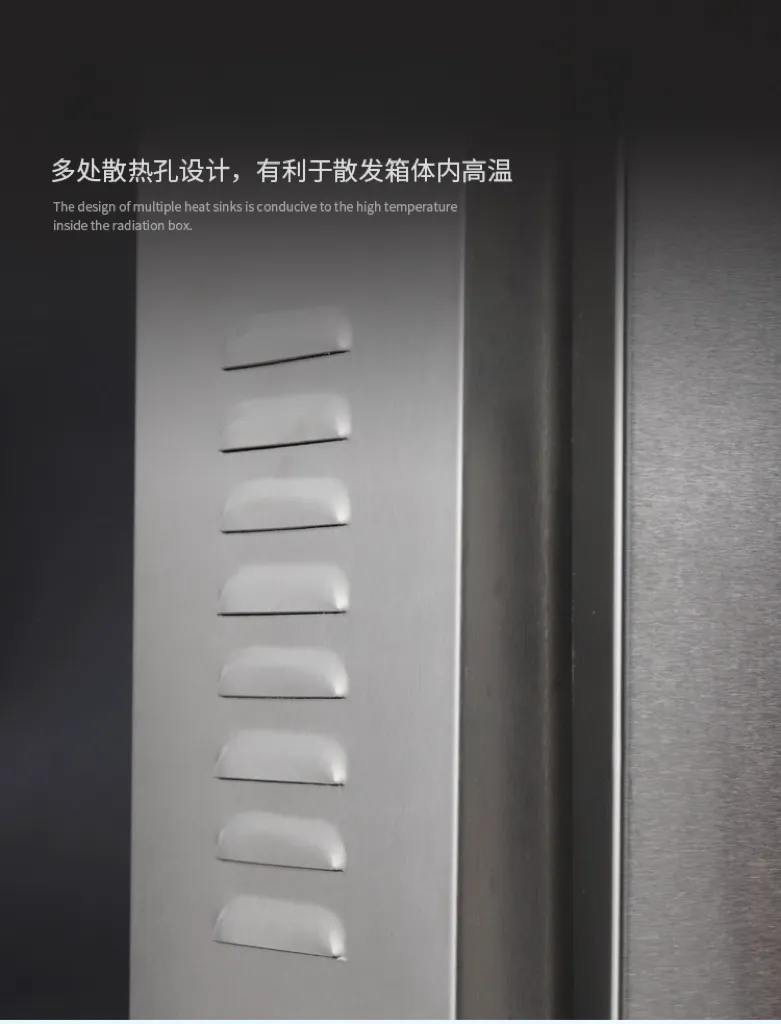

- Weatherproof and Dustproof Design: Engineered for outdoor installation (IP rating customizable upon request, common options include IP54, IP65), featuring gasketed doors, rain hoods, and proper ventilation to prevent ingress of water, dust, and debris.
- Organized and Safe Layout: The internal layout is designed for clarity and safety. Components are neatly arranged on a mounting plate with clear labeling. Ample wiring space and cable entry points (with glands) facilitate easy and compliant installation.
- Scalable and Customizable Design: While configured as a main distribution panel, the design allows for scalability. Additional spaces (ways) for extra breakers, meters (voltage, current), surge protection devices (SPD), or terminal blocks can be incorporated based on project specifications.
- Enhanced Safety Features: Includes a locking mechanism on the door for restricted access, insulated busbars, and proper earthing/grounding terminals to ensure operational safety for personnel and equipment.
Technical Specifications Table:
| Parameter | Specification |
| Rated Operational Current | 100 Amperes |
| Number of Phases | 3-Phase + Neutral + Earth |
| Rated Insulation Voltage (Ui) | Typically 690V AC or higher |
| Enclosure Material | Cold-rolled steel sheet |
| Protection Degree (IP) | Customizable (e.g., IP54, IP65 for outdoor) |
| Circuit Breaker Type | Molded Case Circuit Breakers (MCCB) or others |
| Mounting | Wall-mounted or floor-standing base |
| Internal Layout | DIN-rail mounted components, labeled |
Benefits for Your Project:
- Reliability: Minimizes downtime of critical outdoor monitoring systems by providing a stable and protected power source.
- Reduced Maintenance: The durable construction and quality components lead to a long service life with minimal maintenance requirements.
- Simplified Installation: A pre-assembled and tested unit reduces on-site wiring time and complexity for electrical contractors.
- Safety Compliance: Designed with standard electrical safety practices in mind, aiding in compliance with site safety regulations.
- Cost-Effectiveness: Protects valuable downstream equipment from electrical faults, preventing costly repairs or replacements.
Backed by Jinhua Dika Electrical's commitment to quality, evidenced by our adherence to ISO9001 quality management systems, this control panel is a product of rigorous manufacturing processes. Our experience in serving diverse global markets, from North America and Western Europe to Southeast Asia and Africa, equips us with the knowledge to deliver products suitable for various regional standards and climatic conditions. With an annual export value reflecting our market presence and a dedicated team of 11-50 professionals, we ensure each panel meets functional and durability expectations. Choose this robust 100A 3-Phase Distribution Panel to form the reliable heart of your outdoor monitoring network. Contact us today to discuss your specific requirements or to request a customized quotation.
Frequently Asked Questions (FAQ):
-
Q: Is this panel ready for immediate connection, or is internal wiring required?
A: The panel is typically supplied as a partially assembled unit with main circuit breakers installed and busbars connected. Final internal wiring for outgoing circuits is often done on-site based on the specific monitor equipment layout, but we can provide fully wired solutions upon request. -
Q: What is the typical IP rating for outdoor use, and can it be customized?
A: For standard outdoor applications, ratings like IP54 (dust and water splash protected) or IP65 (dust-tight and protected against water jets) are common. Yes, the IP rating can be customized based on your environmental exposure assessment. -
Q: Can additional components like surge protectors or energy meters be integrated?
A: Absolutely. The panel design is modular. We can integrate surge protection devices (SPDs), analog/digital meters, contactors, or extra terminal blocks according to your project's specifications during the manufacturing stage. -
Q: What type of circuit breakers are included, and are they from a specific brand?
A> The panel is configured with reliable molded case circuit breakers (MCCBs) suitable for the 100A, 3-phase rating. We can use breakers from reputable international or domestic brands based on your preference, availability, and certification requirements. -
Q: How should this distribution panel be grounded for safety?
A> The enclosure includes a dedicated and clearly marked earth/grounding terminal bar inside. It is crucial to connect this bar to a proper external earth grounding system as per local electrical codes during installation to ensure safety. -
Q: What are the shipping and delivery terms for this product?
A> We ship globally from major Chinese ports like Shanghai, Tianjin, Guangzhou, and Ningbo. Delivery terms (e.g., FOB, CIF) and lead times depend on order quantity, customization level, and destination. We provide detailed logistics proposals with quotations. -
Q: Do you provide technical drawings or installation guidelines?
A> Yes, we provide general arrangement drawings, schematic diagrams (if customized), and basic installation guidelines with the product. For complex projects, our technical team is available for support. -
Q: Is this panel suitable for harsh coastal environments with salt spray?
A> The standard steel enclosure with powder coating offers good protection. For highly corrosive environments like coastal areas, we recommend specifying additional corrosion protection measures, such as higher-grade stainless steel components or enhanced coating specifications.
