Evaporation Circulation Innovative PTFE/PFA/PVDF Lined Centrifugal Pump for Chemical Medium with Corrosion Resistance
We are China well know brand : shanghai TFL (teflon) Anti Corrosion group company .
Over 30 years of history,
160 employees,
The annual output value is 30 million US dollars,
We export to: Saudi Arabia, Australia, Russia .....
our Products: Anti Corrosion pipeline/valve/tank/pump/reactor...

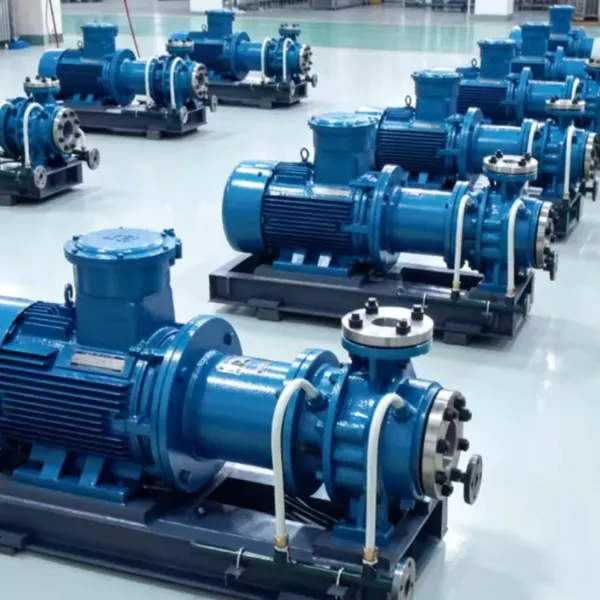

Parameters of IMD PTFE magnetic pump
Product alias: IMD four fluorine magnetic pump
Main material: fluorine plastic
Flow range: 2-180m³/h
Head range: 12-62m
Temperature range: -20°-120°.
Power range:2.2-18.5Kw
Four details-2.0 process upgrade. Striving for excellence
Standard design |
Reasonable structure |
Stable performance |
Wide range of applications |
Casing |
Bearing |
Motor |
Fasteners |
|
● High quality ● Stainless steel housing ● Corrosion and wear resistant |
● Mirror surface treatment of bearing box ● Mounting without deformation ● Double life time |
● Branded copper core motor ● Strong power ● Safe and efficient |
● Stainless steel fasteners ● In corrosive environments ● Longer life |
Performance Parameter
tem |
Model |
Rev =2900r/min Medium density=1000kg/m³ |
|||||||
Flow |
Pump head |
η |
Inlet |
Outlet |
Npsh |
Power |
Weight |
||
(m³/h) |
(m) |
(%) |
(mm) |
(mm) |
(m) |
(kW) |
(kg) |
||
1 |
IMD40-25-140 |
6 |
25 |
35 |
φ40 |
φ25 |
3 |
3 |
75 |
2 |
IMD40-25-150 |
6 |
28 |
33 |
φ40 |
φ25 |
3 |
3 |
75 |
3 |
IMD40-25-160 |
6 |
33 |
32 |
φ40 |
φ25 |
3 |
3 |
75 |
4 |
IMD40-25-180 |
6 |
40 |
30 |
φ40 |
φ25 |
3 |
4 |
85 |
5 |
IMD40-25-200 |
6 |
50 |
28 |
φ40 |
φ25 |
3 |
5.5 |
105 |
6 |
IMD50-32-140 |
12 |
25 |
38 |
φ50 |
φ32 |
3.5 |
3 |
75 |
7 |
IMD50-32-150 |
12 |
28 |
39 |
φ50 |
φ32 |
3.5 |
4 |
80 |
8 |
IMD50-32-160 |
12 |
33 |
40 |
φ50 |
φ32 |
3.5 |
4 |
80 |
9 |
IMD50-32-180 |
12 |
40 |
36 |
φ50 |
φ32 |
3.5 |
5.5 |
110 |
10 |
IMD50-32-200 |
12 |
50 |
34 |
φ50 |
φ32 |
3.5 |
7.5 |
115 |
11 |
IMD65-50-145 |
25 |
25 |
50 |
φ65 |
φ50 |
4 |
4 |
85 |
12 |
IMD65-50-160 |
25 |
32 |
53 |
φ65 |
φ50 |
4 |
5.5 |
90 |
13 |
IMD65-40-180 |
25 |
40 |
48 |
φ65 |
φ40 |
4 |
7.5 |
120 |
14 |
IMD65-40-200 |
25 |
50 |
45 |
φ65 |
φ40 |
4 |
11 |
250 |
15 |
IMD80-65-125 |
50 |
20 |
58 |
φ80 |
φ65 |
4 |
7.5 |
95 |
16 |
IMD80-65-150 |
50 |
25 |
57 |
φ80 |
φ65 |
4.5 |
7.5 |
120 |
17 |
IMD80-65-165 |
50 |
35 |
55 |
φ80 |
φ65 |
4.5 |
11 |
180 |
18 |
IMD80-50-180 |
50 |
40 |
51 |
φ80 |
φ65 |
4.5 |
11 |
185 |
19 |
IMD80-50-200 |
50 |
50 |
48 |
φ80 |
φ65 |
4.5 |
15 |
195 |
20 |
IMD100-80-125 |
100 |
20 |
60 |
φ100 |
φ80 |
5 |
11 |
180 |
21 |
IMD100-80-150 |
100 |
25 |
62 |
φ100 |
φ80 |
5 |
15 |
220 |
22 |
IMD100-80-170 |
100 |
36 |
60 |
φ100 |
φ80 |
5 |
18.5 |
245 |
23 |
IMD125-100-180 |
150 |
35 |
63 |
φ125 |
φ100 |
6 |
30 |
320 |
