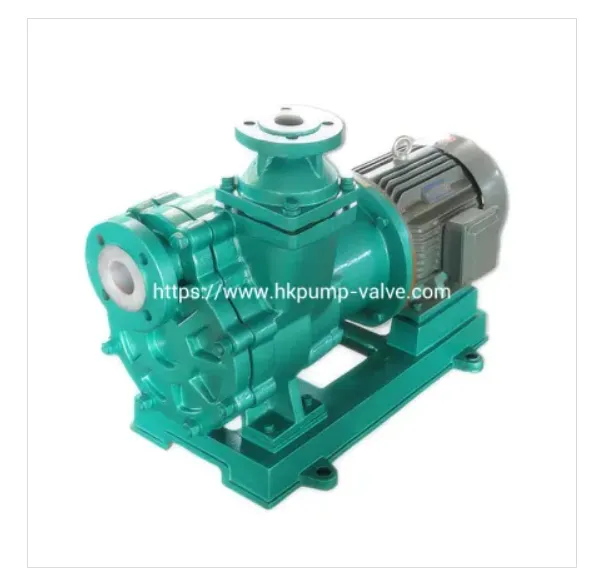

ZCQ self-priming magnetic pump
ZCQ self-priming magnetic pump is a perfect combination of self-priming pump and magnetic pump. Adopting magnetic coupling transmission, it is a product that applies the working principle of permanent magnetic coupling to self-priming pump, with reasonable design, advanced technology, full seal, no leakage, corrosion resistance and other characteristics, and its performance reaches the advanced level of similar products. Magnetic pump to static seal instead of dynamic seal, so that the pump overflow parts in a completely sealed state, there is no dynamic sealing point, a complete solution to the mechanical seal of other pumps can not be avoided, running, bubbling, dripping of the ills. Magnetic pump has good self-priming function. Its overflow parts are made of corrosion-resistant fluorine material. Therefore, it is widely used in medicine, food, alkali, printing and dyeing, painting and other industries and the transportation of flammable and explosive, volatile, toxic, organic solvents and precious liquids. It has the advantages of strong corrosion resistance, fast gas-liquid separation, short self-priming time, high suction range, long working time, high efficiency, quiet and low vibration.
ZCQ self-priming magnetic pump parameters
Product alias: ZCQ fluorine self-priming pump
Main material: fluorine plastic
Flow range: 3-55m³/h
Head range: 10-32m
Use temperature: -20°C-100°C
Power range: 2.2-7.5Kw
Four details-2.0 process upgrade. Striving for excellence
| standard design | structurally sound | stable performance | wide range of applications |
| Casing ●High quality ●Stainless steel housing ●Corrosion and wear resistant | Bearing ●Mirror surface treatment of bearing box ●Mounting without deformation ●Double life time | Motor ●Branded copper core motor ●Strong power Safe and efficient | Fasteners ● Stainless steel fasteners ●In corrosive environments ●Longer life |
Performance Parameter
|
Serial number |
Model |
rotation speed (Rev) =2900r/min , medium density (Medium density)=1000kg/m ³ |
||||||||
| Flow | Pump head | η | Inlet | Outlet | Npsh | Power | self-priming | self-priming | ||
| Model | (m³/h) | (m) | (%) | (mm) | (mm) | (m) | (kw) | (m) | (s ) | |
| 1 | ZCQ40-32-125 | 5 | 22 | 42 | φ40 | φ32 | 3 | 2.2 | 3 | 150 |
| 6.3 | 20 | |||||||||
| 7 | 10 | |||||||||
| 2 | ZCQ40-32-160 | 3 | 34 | 24 | φ40 | φ32 | 3 | 4 | 3 | 150 |
| 6.3 | 32 | |||||||||
| 7.5 | 28 | |||||||||
| 3 | ZCQ50-40-125 | 10 | 22 | 42 | φ50 | φ40 | 3 | 2.2/3 | 3 | 150 |
| 12.5 | 20 | |||||||||
| 15 | 18 | |||||||||
| 4 | ZCQ50-32-160 | 10 | 34 | 48 | φ50 | φ32 | 3.5 | 5.5 | 3 | 150 |
| 12.5 | 32 | |||||||||
| 15 | 26 | |||||||||
| 5 | ZCQ65-50-160 | 15 | 32 | 55 | φ65 | φ50 | 4 | 7.5 | 3 | 150 |
| 25 | 30 | |||||||||
| 30 | 25 | |||||||||
| 6 | ZCQ80-65-125 | 35 | 28 | 48 | φ80 | φ65 | 4.5 | 7.5 | 3 | 180 |

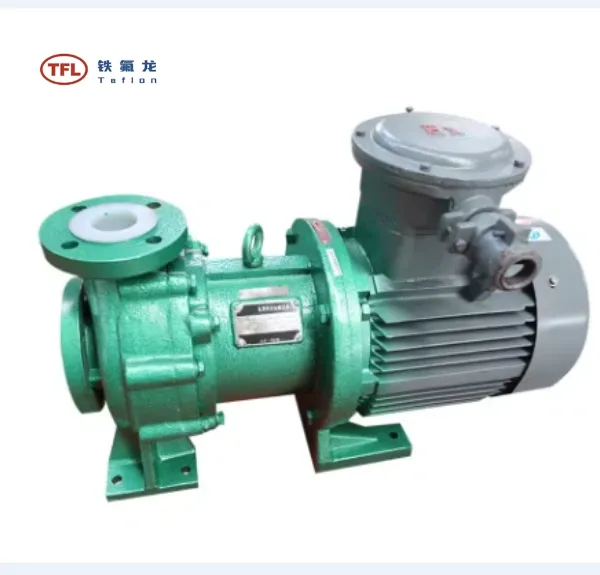

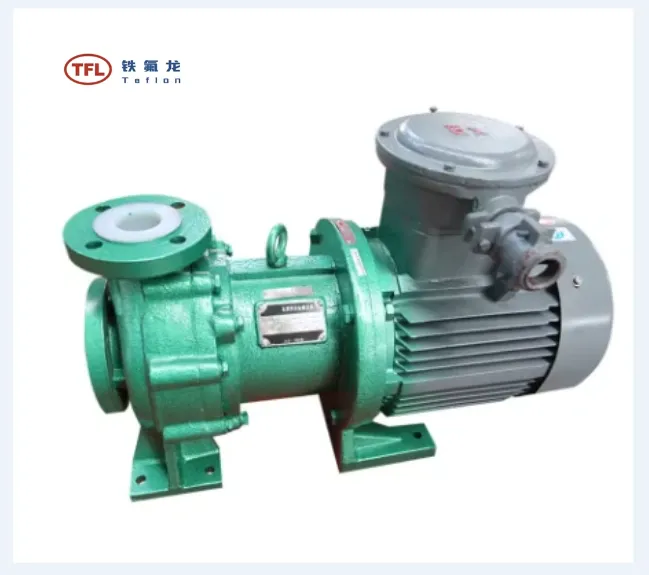

Parameters of IMD PTFE magnetic pump
Product alias: IMD four fluorine magnetic pump
Main material: fluorine plastic
Flow range: 2-180m³/h
Head range: 12-62m
Temperature range: -20°-120°.
Power range:2.2-18.5Kw
Four details-2.0 process upgrade. Striving for excellence
Standard design |
Reasonable structure |
Stable performance |
Wide range of applications |
Casing |
Bearing |
Motor |
Fasteners |
|
● High quality ● Stainless steel housing ● Corrosion and wear resistant |
● Mirror surface treatment of bearing box ● Mounting without deformation ● Double life time |
● Branded copper core motor ● Strong power ● Safe and efficient |
● Stainless steel fasteners ● In corrosive environments ● Longer life |
Performance Parameter
tem |
Model |
Rev =2900r/min Medium density=1000kg/m³ |
|||||||
Flow |
Pump head |
η |
Inlet |
Outlet |
Npsh |
Power |
Weight |
||
(m³/h) |
(m) |
(%) |
(mm) |
(mm) |
(m) |
(kW) |
(kg) |
||
1 |
IMD40-25-140 |
6 |
25 |
35 |
φ40 |
φ25 |
3 |
3 |
75 |
2 |
IMD40-25-150 |
6 |
28 |
33 |
φ40 |
φ25 |
3 |
3 |
75 |
3 |
IMD40-25-160 |
6 |
33 |
32 |
φ40 |
φ25 |
3 |
3 |
75 |
4 |
IMD40-25-180 |
6 |
40 |
30 |
φ40 |
φ25 |
3 |
4 |
85 |
5 |
IMD40-25-200 |
6 |
50 |
28 |
φ40 |
φ25 |
3 |
5.5 |
105 |
6 |
IMD50-32-140 |
12 |
25 |
38 |
φ50 |
φ32 |
3.5 |
3 |
75 |
7 |
IMD50-32-150 |
12 |
28 |
39 |
φ50 |
φ32 |
3.5 |
4 |
80 |
8 |
IMD50-32-160 |
12 |
33 |
40 |
φ50 |
φ32 |
3.5 |
4 |
80 |
9 |
IMD50-32-180 |
12 |
40 |
36 |
φ50 |
φ32 |
3.5 |
5.5 |
110 |
10 |
IMD50-32-200 |
12 |
50 |
34 |
φ50 |
φ32 |
3.5 |
7.5 |
115 |
11 |
IMD65-50-145 |
25 |
25 |
50 |
φ65 |
φ50 |
4 |
4 |
85 |
12 |
IMD65-50-160 |
25 |
32 |
53 |
φ65 |
φ50 |
4 |
5.5 |
90 |
13 |
IMD65-40-180 |
25 |
40 |
48 |
φ65 |
φ40 |
4 |
7.5 |
120 |
14 |
IMD65-40-200 |
25 |
50 |
45 |
φ65 |
φ40 |
4 |
11 |
250 |
15 |
IMD80-65-125 |
50 |
20 |
58 |
φ80 |
φ65 |
4 |
7.5 |
95 |
16 |
IMD80-65-150 |
50 |
25 |
57 |
φ80 |
φ65 |
4.5 |
7.5 |
120 |
17 |
IMD80-65-165 |
50 |
35 |
55 |
φ80 |
φ65 |
4.5 |
11 |
180 |
18 |
IMD80-50-180 |
50 |
40 |
51 |
φ80 |
φ65 |
4.5 |
11 |
185 |
19 |
IMD80-50-200 |
50 |
50 |
48 |
φ80 |
φ65 |
4.5 |
15 |
195 |
20 |
IMD100-80-125 |
100 |
20 |
60 |
φ100 |
φ80 |
5 |
11 |
180 |
21 |
IMD100-80-150 |
100 |
25 |
62 |
φ100 |
φ80 |
5 |
15 |
220 |
22 |
IMD100-80-170 |
100 |
36 |
60 |
φ100 |
φ80 |
5 |
18.5 |
245 |
23 |
IMD125-100-180 |
150 |
35 |
63 |
φ125 |
φ100 |
6 |
30 |
320 |
Company: Shanghai Corrosion resistant Valve & engineering Group company
Address : No. 369 Maoting Road, Songjiang Industrial Zone, Shanghai
part of our customers :
Clariant Catalyst (Shanghai) Co., Ltd
Ounuofa Chemical (Shanghai) Co., Ltd
Foxconn Group
Kajue Trading (Iran)
TeYou Powder Equipment (Shanghai) Trading Co., Ltd
Zhuangxin Wanfeng (Shanghai) Chemical Co., Ltd
Foshan Alco Industrial Equipment Manufacturing Co., Ltd
Jerry Oil and Gas Engineering Co., Ltd
Taiwan Chlor Alkali Industry Co., Ltd
Jerry Oil and Gas Engineering Co., Ltd
Nimir Industrial Chemical
Trimex world
ENGRO POLYMER AND CHEMICALS LTD
Arvand Petrochemical Company Ltd
Shi Baft Petrochemical Company Ltd
Shandong Electric Power Construction
Indonesia Golden Eagle Group
Russian Nakhodka Mineral Fertilizer Plant
BASF.
SINOPEC.
Welcome your team to visit our factory, it is 50 km far from the exhibition to our factory, we locate at song jiang district of shanghai city .
