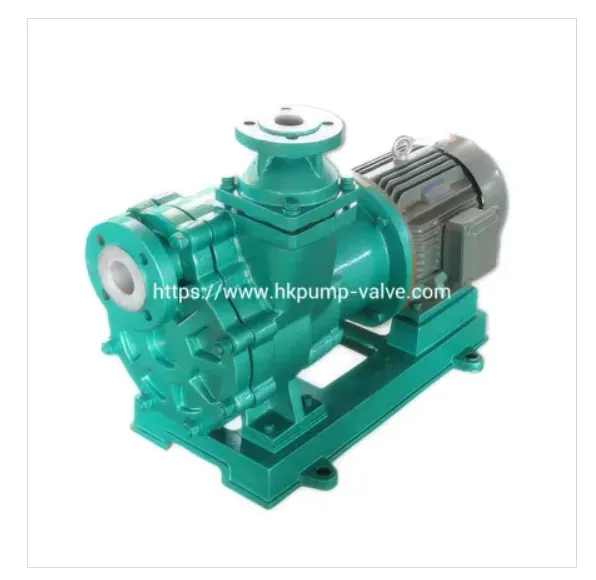

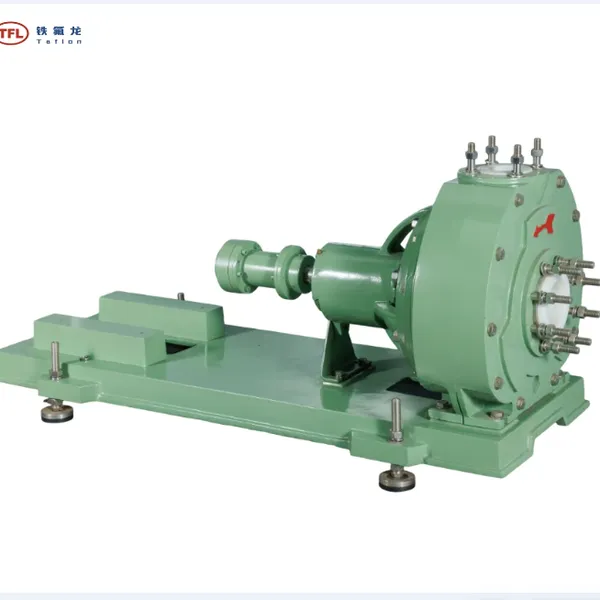

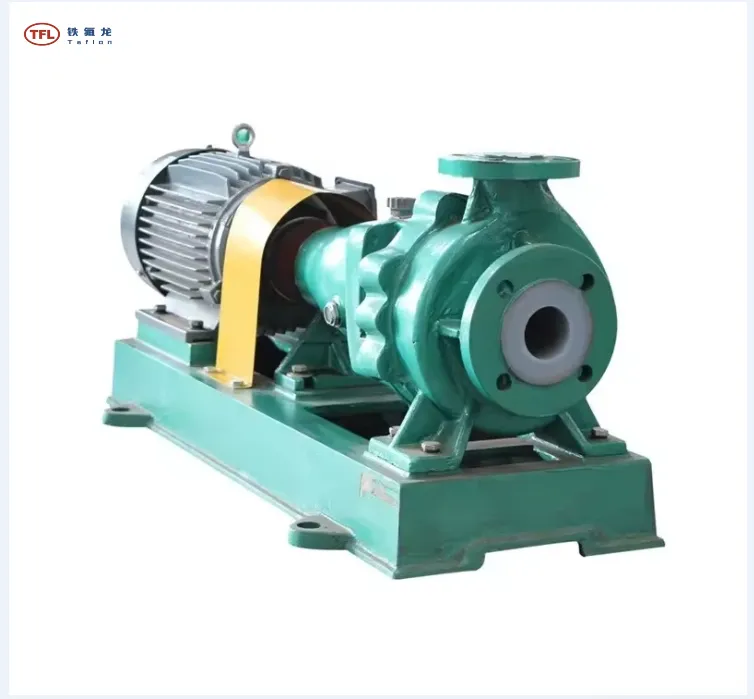

Fluorine Lined Pipeline Pump Vertical Chemical Acid Pump
We are China well know brand : shanghai TFL (teflon) Anti Corrosion group company .
Over 30 years of history,
160 employees,
The annual output value is 30 million US dollars,
We export to: Saudi Arabia, Australia, Russia .....
our Products: Anti Corrosion pipeline/valve/tank/pump/reactor...

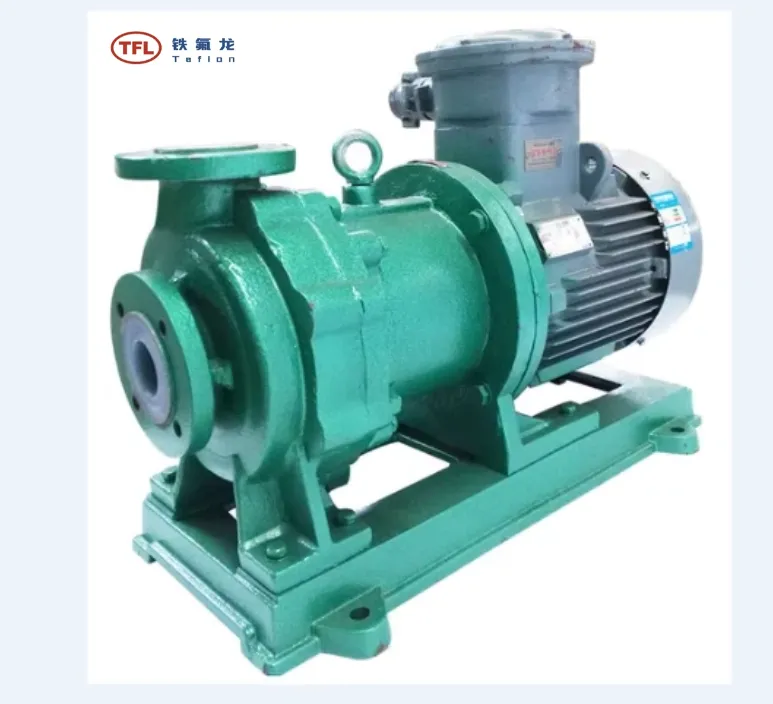

Parameters of IMD PTFE magnetic pump
Product alias: IMD four fluorine magnetic pump
Main material: fluorine plastic
Flow range: 2-180m³/h
Head range: 12-62m
Temperature range: -20°-120°.
Power range:2.2-18.5Kw
Four details-2.0 process upgrade. Striving for excellence
Standard design |
Reasonable structure |
Stable performance |
Wide range of applications |
Casing |
Bearing |
Motor |
Fasteners |
|
● High quality ● Stainless steel housing ● Corrosion and wear resistant |
● Mirror surface treatment of bearing box ● Mounting without deformation ● Double life time |
● Branded copper core motor ● Strong power ● Safe and efficient |
● Stainless steel fasteners ● In corrosive environments ● Longer life |
Performance Parameter
tem |
Model |
Rev =2900r/min Medium density=1000kg/m³ |
|||||||
Flow |
Pump head |
η |
Inlet |
Outlet |
Npsh |
Power |
Weight |
||
(m³/h) |
(m) |
(%) |
(mm) |
(mm) |
(m) |
(kW) |
(kg) |
||
1 |
IMD40-25-140 |
6 |
25 |
35 |
φ40 |
φ25 |
3 |
3 |
75 |
2 |
IMD40-25-150 |
6 |
28 |
33 |
φ40 |
φ25 |
3 |
3 |
75 |
3 |
IMD40-25-160 |
6 |
33 |
32 |
φ40 |
φ25 |
3 |
3 |
75 |
4 |
IMD40-25-180 |
6 |
40 |
30 |
φ40 |
φ25 |
3 |
4 |
85 |
5 |
IMD40-25-200 |
6 |
50 |
28 |
φ40 |
φ25 |
3 |
5.5 |
105 |
6 |
IMD50-32-140 |
12 |
25 |
38 |
φ50 |
φ32 |
3.5 |
3 |
75 |
7 |
IMD50-32-150 |
12 |
28 |
39 |
φ50 |
φ32 |
3.5 |
4 |
80 |
8 |
IMD50-32-160 |
12 |
33 |
40 |
φ50 |
φ32 |
3.5 |
4 |
80 |
9 |
IMD50-32-180 |
12 |
40 |
36 |
φ50 |
φ32 |
3.5 |
5.5 |
110 |
10 |
IMD50-32-200 |
12 |
50 |
34 |
φ50 |
φ32 |
3.5 |
7.5 |
115 |
11 |
IMD65-50-145 |
25 |
25 |
50 |
φ65 |
φ50 |
4 |
4 |
85 |
12 |
IMD65-50-160 |
25 |
32 |
53 |
φ65 |
φ50 |
4 |
5.5 |
90 |
13 |
IMD65-40-180 |
25 |
40 |
48 |
φ65 |
φ40 |
4 |
7.5 |
120 |
14 |
IMD65-40-200 |
25 |
50 |
45 |
φ65 |
φ40 |
4 |
11 |
250 |
15 |
IMD80-65-125 |
50 |
20 |
58 |
φ80 |
φ65 |
4 |
7.5 |
95 |
16 |
IMD80-65-150 |
50 |
25 |
57 |
φ80 |
φ65 |
4.5 |
7.5 |
120 |
17 |
IMD80-65-165 |
50 |
35 |
55 |
φ80 |
φ65 |
4.5 |
11 |
180 |
18 |
IMD80-50-180 |
50 |
40 |
51 |
φ80 |
φ65 |
4.5 |
11 |
185 |
19 |
IMD80-50-200 |
50 |
50 |
48 |
φ80 |
φ65 |
4.5 |
15 |
195 |
20 |
IMD100-80-125 |
100 |
20 |
60 |
φ100 |
φ80 |
5 |
11 |
180 |
21 |
IMD100-80-150 |
100 |
25 |
62 |
φ100 |
φ80 |
5 |
15 |
220 |
22 |
IMD100-80-170 |
100 |
36 |
60 |
φ100 |
φ80 |
5 |
18.5 |
245 |
23 |
IMD125-100-180 |
150 |
35 |
63 |
φ125 |
φ100 |
6 |
30 |
320 |
part of our customers :
Clariant Catalyst (Shanghai) Co., Ltd
Ounuofa Chemical (Shanghai) Co., Ltd
Foxconn Group
Kajue Trading (Iran)
TeYou Powder Equipment (Shanghai) Trading Co., Ltd
Zhuangxin Wanfeng (Shanghai) Chemical Co., Ltd
Foshan Alco Industrial Equipment Manufacturing Co., Ltd
Jerry Oil and Gas Engineering Co., Ltd
Taiwan Chlor Alkali Industry Co., Ltd
Jerry Oil and Gas Engineering Co., Ltd
Nimir Industrial Chemical
Trimex world
ENGRO POLYMER AND CHEMICALS LTD
Arvand Petrochemical Company Ltd
Shi Baft Petrochemical Company Ltd
Shandong Electric Power Construction
Indonesia Golden Eagle Group
Russian Nakhodka Mineral Fertilizer Plant
BASF.
SINOPEC.
