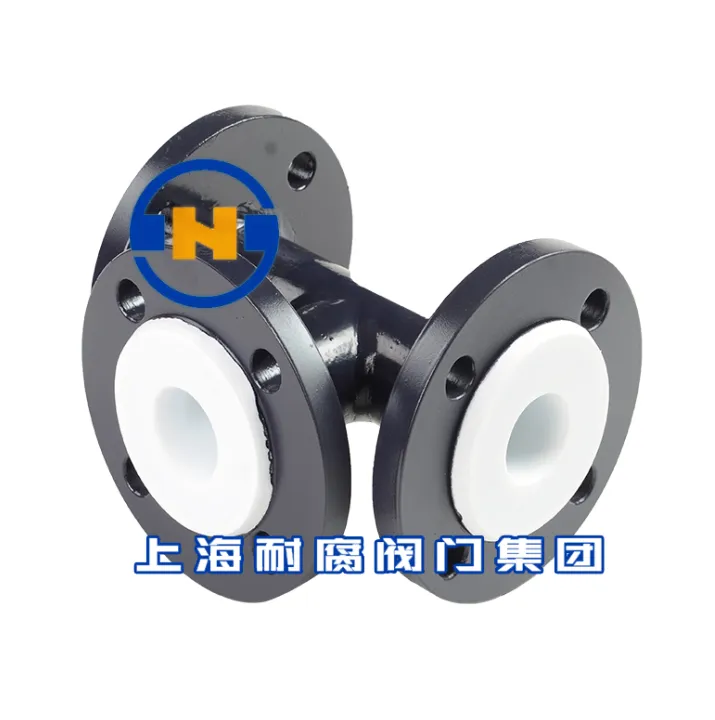

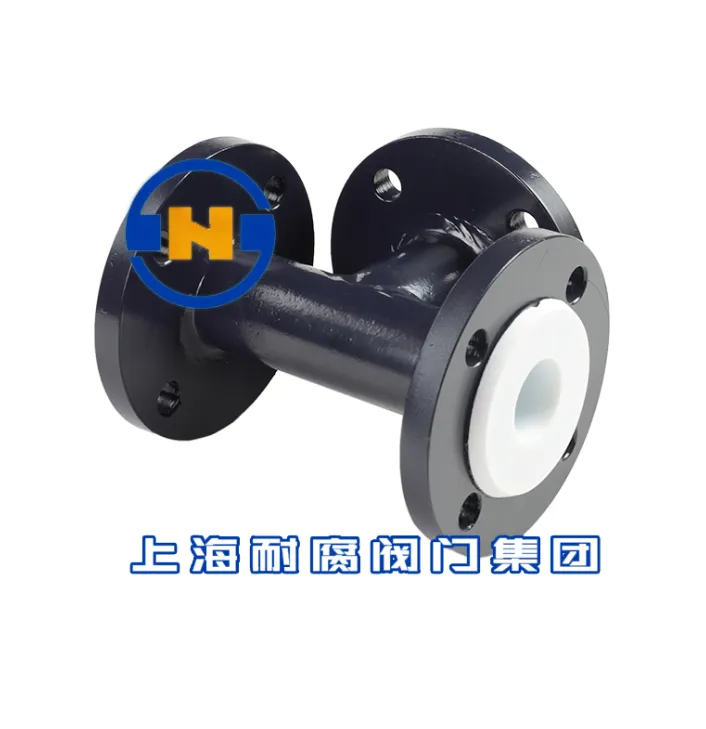

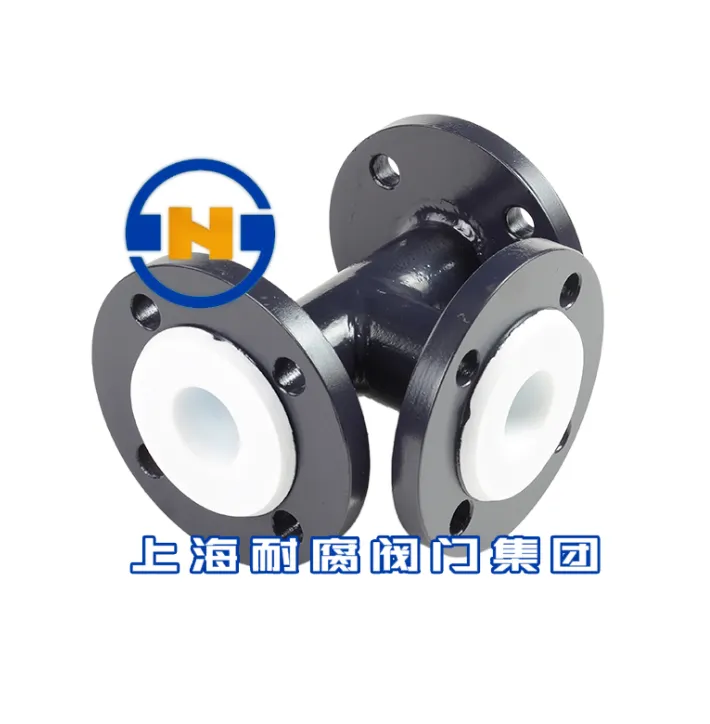

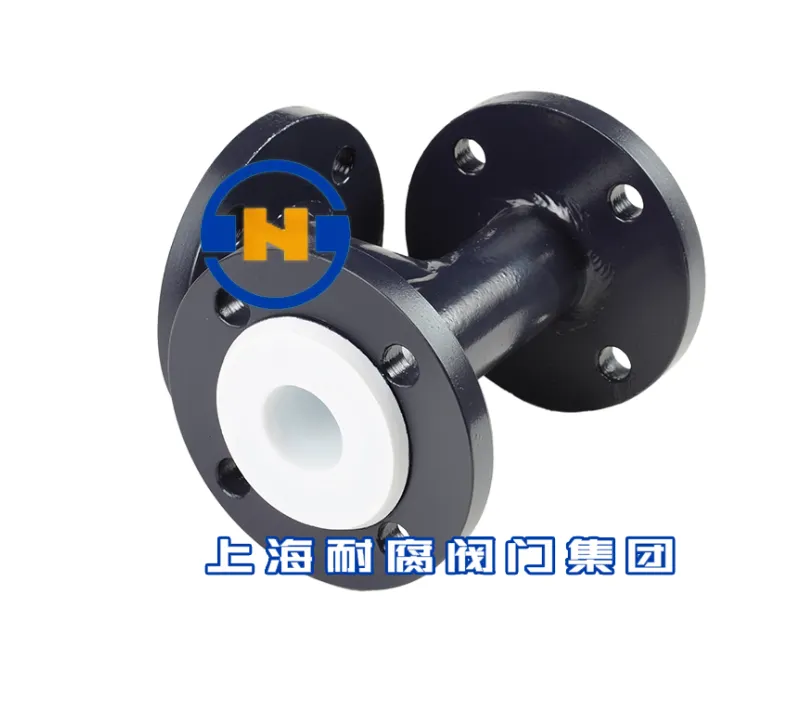

Fluorine lined tee, fluorine lined pipe fittings
Produce various types of pipes, elbows, reducers, pipeline compensators, tees, tees, instrument joints, and filters.
1、 Pipeline compensator is used to compensate for size errors caused by thermal expansion and contraction of pipelines, as well as damage caused by vibration when connecting pump outlets to brittle materials such as glass and graphite.
2、 Filters are suitable for various types of pipelines, used to filter impurities in the medium inside the pipes, ensure the safe operation of equipment in the process device, extend its service life, and pay attention to directionality during installation.
3、 Various types of pipes, elbows, tees, and tees are made of national standard seamless steel pipes and standard imperial seamless steel pipes. Flanges can be customized according to customer requirements, including HG, GB, JB, ANSI, JIS, DIN, and other national standards. They can be forged or cast according to customer requirements.
We are China well know brand : shanghai TFL (teflon) Anti Corrosion group company.
with more than 30 years history.
160 employees,
The annual output value is 30 million US dollars,
We export to: Saudi Arabia, Australia, Russia, Taiwan .....
our Products: Anti Corrosion pipeline/valve/tank/pump/reactor......
we also provide : Chemical engineering services Chemical Engineering Process Design Design PMC EPC technology
| Technical performance specifications | HG/T 21562 | |||
| Flange size | GB/T 9113、 HG/T 20592、JB/T 79、 ASME B16.5 | |||
| Inspection and Testing | GB/T 26480、 GB/T 13927◻API598 | |||
| Nominal Pressure | PN10 | PN16 | CL150 | |
| Test pressure（Mpa) | strength test | 1.5 | 2.4 | 3 |
| Applicable Temperature |
≤ 180 ° C (different materials are selected for different operating temperatures) | |||
| Applicable Medium | Media containing various concentrations of aqua regia, sulfuric acid, hydrochloric acid. hydrofluoric acid, as well as various organic acids, strong acids, and strong oxidants. |
Steel lined pipes and fittings series
● Main connection dimensions and weight
|
Nominal diameter (DN) |
Steel pipe outer diameter | PN1.6MPa | |||||
| Wall thickness |
Three-way, four-way H |
Reducer L |
|||||
| Steel pipe fittings t (minimum) | Village layer T (smallest) | ||||||
| Push tube | Roto-molded tube | Spiral tube | |||||
| 25×25 | 33.7x33.7 | 3.38×3.38 | 2.0 | 2.0 | 1.2 | 90 | |
| 32*32 | 42.4x42,4 | 3.56×3.56 | 2.0 | 2.0 | 1.25 | 95 | |
| 32×25 | 42.4×33.7 | 3.56×3.38 | 95 | ||||
| 40×40 | 48.3×48.3 | 3.68×3.68 | 2.5 | 2.0 | 1.30 | 100 | |
| 40*32 | 48.3×42.4 | 3.68×3.56 | 100 | ||||
| 40×25 | 48.3×33.7 | 3.68×3.38 | 100 | ||||
| 50×50 | 60.3×60.3 | 3.91×3.91 | 2.5 | 2.5 | 1.35 | 115 | |
| 50×40 | 60.3×48.3 | 3.91×3.68 | 115 | ||||
| 50×32 | 60.3×42,4 | 3.91×3.56 | |||||
| 50×25 | 60.3×33.7 | 3.91x3.38 | |||||
| 65*65 | 76.1x76.1 | 5.16×5.16 | 3.0 | 2.5 | 1.4 | 125 | |
| 65×50 | 76.1×60.3 | 5.16×3.91 | 125 | ||||
| 65×40 | 76.1×48.3 | 5.16×3.68 | |||||
| 65*32 | 76.1×42.4 | 5.16×3.56 | |||||
| 80×80 | 88.9×88.9 | 5.49×5.49 | 3.0 | 3.0 | 1.45 | 140 | |
| 80×65 | 88.9×76.1 | 5.49×5.16 | 140 | ||||
| 80×50 | 88.9×60.3 | 5.49×3.91 | |||||
| 80×40 | 88.9×60.3 | 5.49×3.68 | |||||
| 100×100 | 88.9×48.3 | 6.02×6.02 | 3.5 | 3.0 | 1.5 | 165 | |
| 100×80 | 114.3×114.3 | 6.02×5.49 | 165 | ||||
| 100*65 | 114.3×88.9 | 6.02×5.16 | |||||
| 100×50 | 114.3×76.1 | 6.02×3.91 | |||||
| 125×125 | 114.3×60.3 | 6.55×6.55 | 3.5 | 3.5 | 1.6 | 190 |
190 |
| 125×100 | 139.7×139.7 | 6.55×6.02 | |||||
| 125×80 | 139.7×114.3 | 6.55×5.49 | |||||
| 125×65 | 139.7×88.9 | 6.55×5.16 | |||||
| 150×150 | 139.7×76.1 | 7.11×7.11 | 4.0 | 3.5 | 1.8 | 205 | |
| 150x125 | 168.3×139.7 | 7.11×6.55 | 205 | ||||
| 150×100 | 168.3*114.3 | 7.11×6.02 | |||||
| 150×80 | 168.3×88.9 | 7.11×5.49 | |||||
| 200×200 | 219.1×219.1 | 6.35×6.35 | 4.5 | 4.5 | 2.0 | 230 |
230 |
| 200×150 | 219.1×168.3 | 6.35×7.11 | |||||
| 200×125 | 219.1×139.7 | 6.35×6.55 | |||||
| 200x100 | 219.1×114.3 | 6.35×6.02 | |||||
| 250×250 | 273.0×373.0 | 6.35×6.35 | 5.0 | 5.0 | 2.2 | 280 | |
| 250×200 | 273.0×219.1 | 6.35×6.35 | 280 | ||||
| 250×150 | 273.0×168.3 | 6.35×7.11 | |||||
| 250×125 | 273.0×139.7 | 6.35×6.55 | |||||
| 300x300 | 323.9×323.9 | 8.38×8.38 | 6.0 | 5.0 | 2.4 | 305 | 305 |
| 300×250 | 323.9×273.0 | 8.38×6.35 | |||||
| 300×200 | 323.9×219.1 | 8.38×6.35 | |||||
| 300×125 | 323.9×168.3 | 8.38×6.55 | |||||
| 350×350 | 355.6×355.6 | 9.53×9.53 | 6.0 | 5.0 | 2.6 | 380 | |
| 350×300 | 355.6×323.9 | 9.53×8.38 | 380 | ||||
| 350×250 | 355.6×273.0 | 9.53×6.35 | |||||
| 350×200 | 355.6×219.1 | 9.53×6.35 | |||||
| 400×400 | 406.4×406.4 | 9.53×9.53 | 6.0 | 5.0 | 2.8 | 380 | 380 |
| 400*350 | 406.4×355.6 | 9.53*9.53 | |||||
| 400*300 | 406.4×323.9 | 9.53×8.38 | |||||
| 400×250 | 406.4×273.0 | 9.53×6.35 | |||||
| 400×200 | 406.4×219.1 | 9.53×6.35 | |||||
| Note: 1) The steel pipe sizes in the above table are British pipes. Other standard steel pipes can also be used according to customer needs. 2) Flange connection sizes can be based on customer needs, using national standards, German standards, American standards, Japanese standards, etc. |
