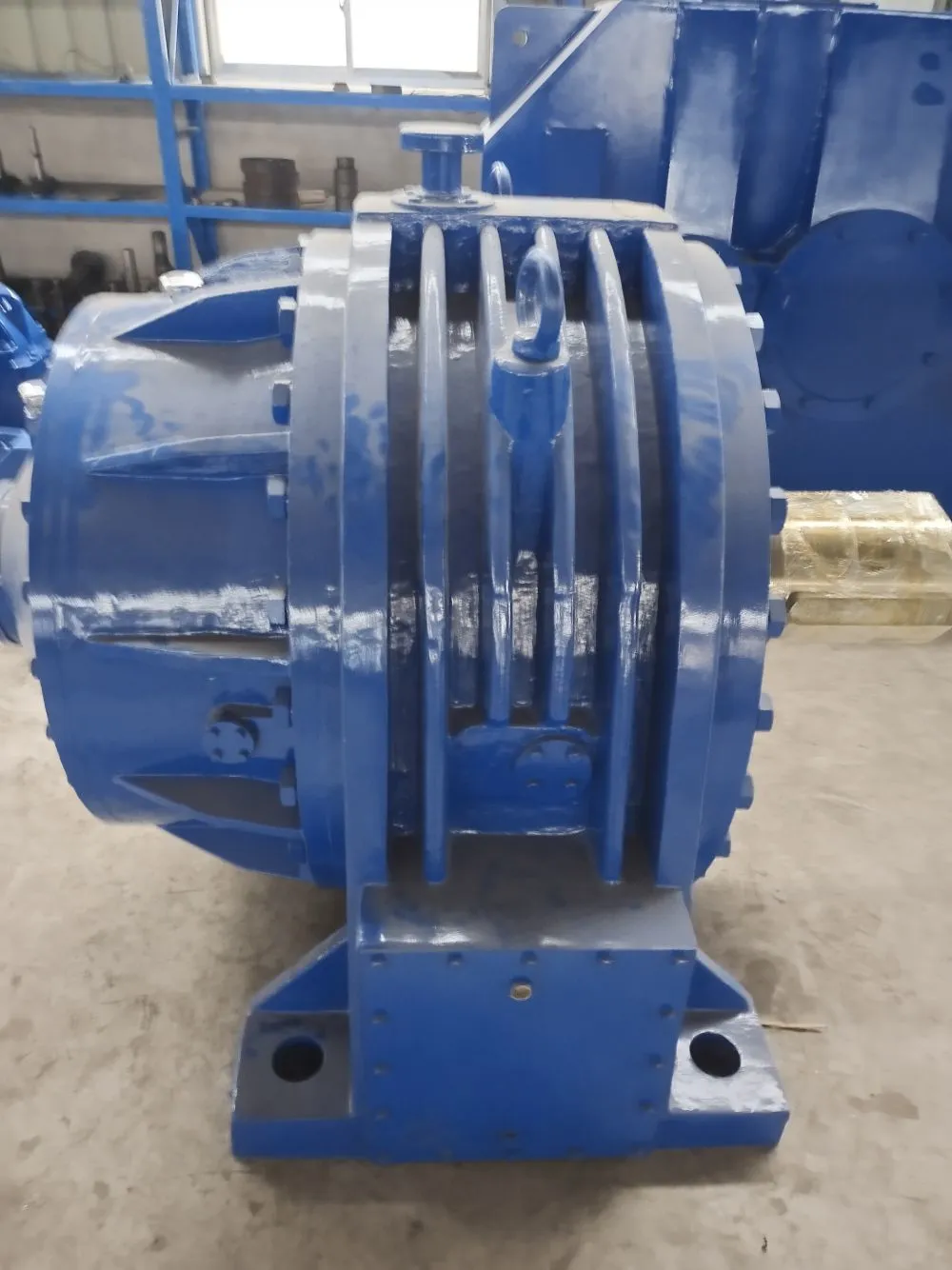

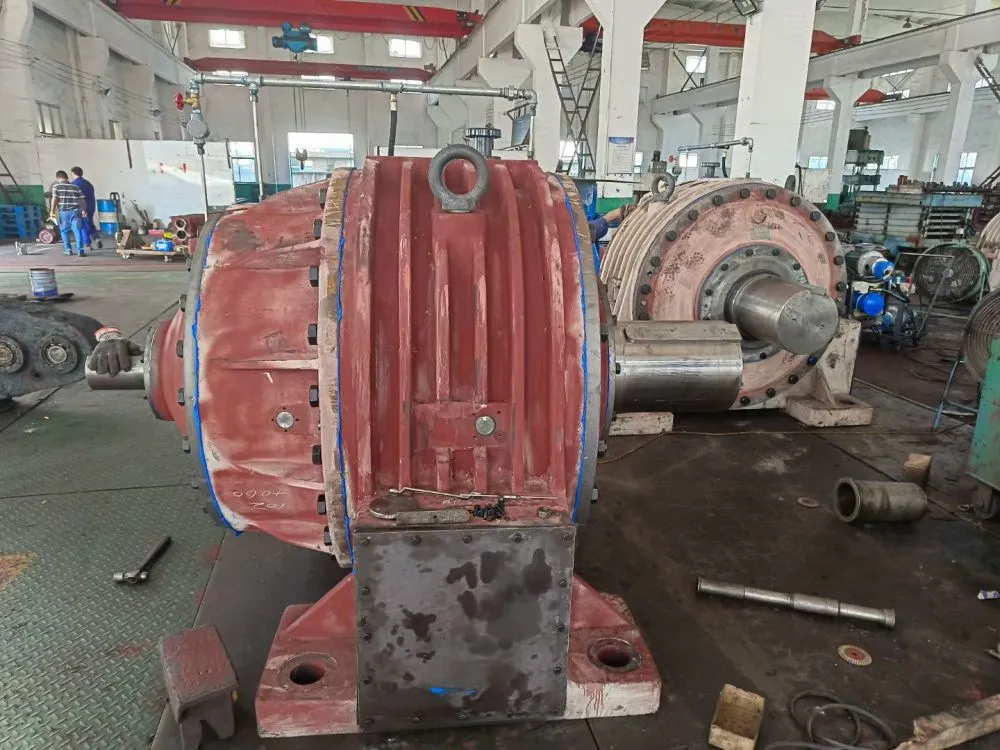

As a dedicated manufacturer of power transmission solutions, Jiangsu Manqi Machinery is proud to present the NGW112 Compact Structure Planetary Gear Reducer, engineered specifically for the demanding requirements of crane machinery. With our manufacturing expertise since 2017, we understand the critical need for reliability and compact design in material handling applications. This gear reducer is designed to deliver high torque density and operational stability, ensuring smooth and efficient power transmission for various crane mechanisms, from hoisting and trolley travel to slewing motions. Our focus on precision engineering in our Suzhou facility allows us to offer a product that combines robust performance with a space-saving footprint, making it an ideal choice for crane manufacturers and retrofit projects.
The NGW112 series represents a significant advancement in gear reducer technology for crane applications. Its core value lies in delivering exceptional torque output from a remarkably compact and lightweight housing, a crucial factor in crane design where weight and space are at a premium. The planetary gear design inherently provides high efficiency, excellent load distribution, and torsional stiffness, which are paramount for the precise and safe control of loads. We have optimized this design to withstand the shock loads, frequent start-stop cycles, and variable duty cycles typical of crane operations.
Key Features and Technical Advantages:
- High Torque Density: The multi-stage planetary design achieves a high power-to-size ratio, delivering substantial output torque from a compact unit, reducing the overall size and weight of the crane's drive system.
- Robust Construction for Crane Duty: Built to endure. The gearbox features a high-strength cast iron housing for vibration damping and durability. Gears are manufactured from case-hardened alloy steel, precision ground for smooth operation, high load capacity, and long service life under strenuous conditions.
- Excellent Sealing and Protection: Equipped with high-performance seals and standard IP65 protection, the reducer is well-guarded against dust and water jets, making it suitable for outdoor and harsh industrial environments. IP66 protection is available upon request for more demanding applications.
- High Efficiency and Low Backlash: Precision manufacturing ensures minimal power loss and very low backlash, which is critical for precise positioning and smooth motion control in crane hoisting and traversing functions.
- Flexible Mounting and Configuration: Designed for easy integration. The NGW112 offers multiple mounting options including foot-mounted and flange-mounted versions. It can be coupled with standard IEC motors via an adapter, simplifying the drive train assembly.
- Optimized Thermal Management: The compact structure is designed with efficient heat dissipation in mind, supported by the use of high-quality synthetic lubricants that maintain stable viscosity across a wide temperature range.
Technical Specifications Table:
| Parameter | Specification / Value |
| Series Model | NGW112 |
| Nominal Reduction Ratio Range | Available from 3.15:1 up to 100:1 (Multi-stage configurations) |
| Rated Output Torque Range | Up to 12,000 Nm (Specific torque depends on ratio and service factor) |
| Maximum Input Speed | Up to 3000 rpm |
| Average Mechanical Efficiency | ≥ 96% per stage |
| Backlash | Low backlash grade available (Customizable upon request) |
| Lubrication | Synthetic oil (Standard), Grease lubrication option |
| Operating Temperature Range | -25°C to +90°C (Ambient) |
| Noise Level | Designed for low-noise operation, typically below 75 dB(A) |
Benefits for Crane Machinery Applications:
- Space and Weight Savings: The compact design allows for more flexible installation in the confined spaces of crane machinery, contributing to a lighter overall crane structure and potentially higher payload capacity.
- Enhanced Reliability and Uptime: The robust planetary design with high-quality components reduces the risk of unexpected failure, minimizing maintenance needs and crane downtime, which is critical for port operations, construction sites, and manufacturing facilities.
- Improved Control and Safety: Low backlash and high torsional stiffness enable precise load handling and positioning, enhancing operational safety and control responsiveness.
- Reduced Lifetime Cost: High efficiency translates to lower energy consumption. Combined with durability and reduced maintenance, the total cost of ownership is favorably impacted.
- Simplified Integration: Standard interfaces and mounting options streamline the design and assembly process for crane manufacturers, reducing engineering time and complexity.
Our commitment at Jiangsu Manqi Machinery is backed by a modern manufacturing facility spanning 10,000-30,000 square meters, equipped to maintain consistent quality control from raw material inspection to final testing. With a dedicated team of 11-50 professionals, we focus on producing reliable power transmission components that meet the practical needs of our clients in Eastern Europe, Southeast Asia, Africa, and South Asia. We ensure efficient logistics through the Port of Shanghai. The NGW112 Planetary Gear Reducer is more than just a component; it's a testament to our focus on creating durable, efficient, and space-conscious solutions for heavy industry. For crane manufacturers seeking a balance of performance, reliability, and compact design, the NGW112 offers a compelling solution. Contact us to discuss how this gear reducer can be integrated into your specific crane application or to request detailed technical documentation and a customized quotation.
Frequently Asked Questions (FAQ):
Q1: What makes the NGW112 specifically suitable for crane machinery compared to a standard industrial gearbox?
A1: The NGW112 is engineered with crane duty cycles in mind. It features a robust design to handle shock loads, high starting torque, and frequent reversals common in hoisting and traversing. Its compact structure is crucial for saving space and weight on the crane structure itself.
Q2: Can this gear reducer be used for both hoisting and travel motions on a crane?
A2: Yes, the NGW112 series is versatile. Depending on the selected ratio, torque rating, and configuration, it can be effectively applied to drive hoist winches, trolley travel systems, and long-travel gantry motions. The specific model selection should be based on the required speed, torque, and duty cycle for each function.
Q3: What lubrication options are available, and what are the maintenance intervals?
A3: The standard version is filled with high-performance synthetic oil for long life and stable operation across temperatures. A grease-lubricated version is optional for certain applications where sealing is a primary concern or for very low-speed operations. Initial oil change is recommended after the first 500 hours of operation, with subsequent intervals typically ranging from 10,000 to 20,000 hours under normal conditions, depending on the operational environment.
Q4: Is the input flange compatible with standard IEC metric motors?
A4: Yes, the NGW112 is designed with a standard IEC input flange (size customizable upon request), allowing for direct coupling with a wide range of standard AC or DC motors. This simplifies sourcing and integration.
Q5: How do I select the correct reduction ratio and torque rating for my crane application?
A5: Selection requires knowing your motor speed (RPM), desired output speed, the load to be moved, the required acceleration, and the duty cycle (e.g., FEM or ISO classification). Our technical team can assist with this calculation based on your application parameters to ensure optimal performance and service life.
Q6: Are custom modifications, such as special shaft dimensions or mounting patterns, possible?
A6: Yes, as a manufacturer, we offer customization services. Modifications to output shaft dimensions (diameter, length, keyway), special mounting flanges, or paint colors can be discussed and provided based on your project's specific requirements and order quantity.
Q7: What is the typical lead time for an order of the NGW112 gear reducer?
A7: Lead times vary based on the specific configuration, ratio, and order volume. Standard models may have shorter lead times, while customized units require additional engineering and production time. We provide estimated lead times upon quotation to help with your project planning.
Q8: What kind of warranty or after-sales support do you provide?
A8: We stand behind the quality of our products. A standard warranty period is provided against manufacturing defects. Furthermore, we offer technical support for installation, startup guidance, and can supply spare parts as needed to support the lifecycle of the product in your equipment.
