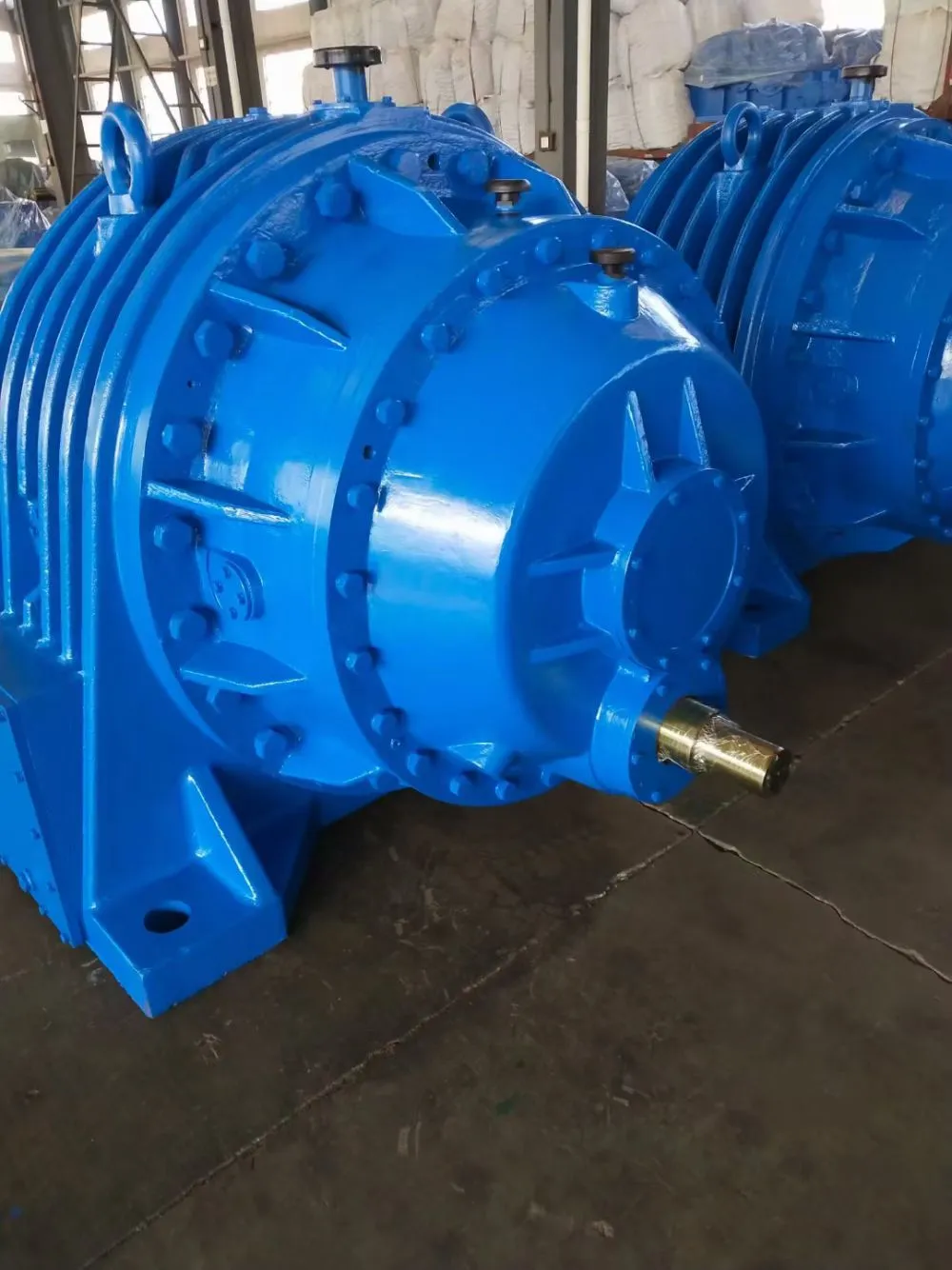

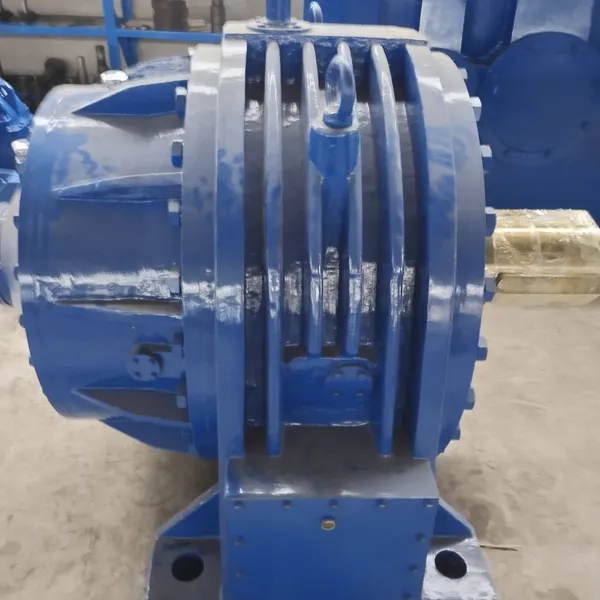

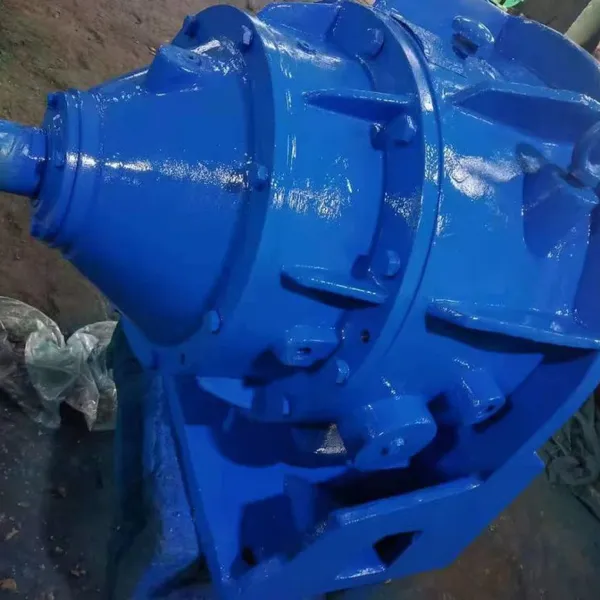

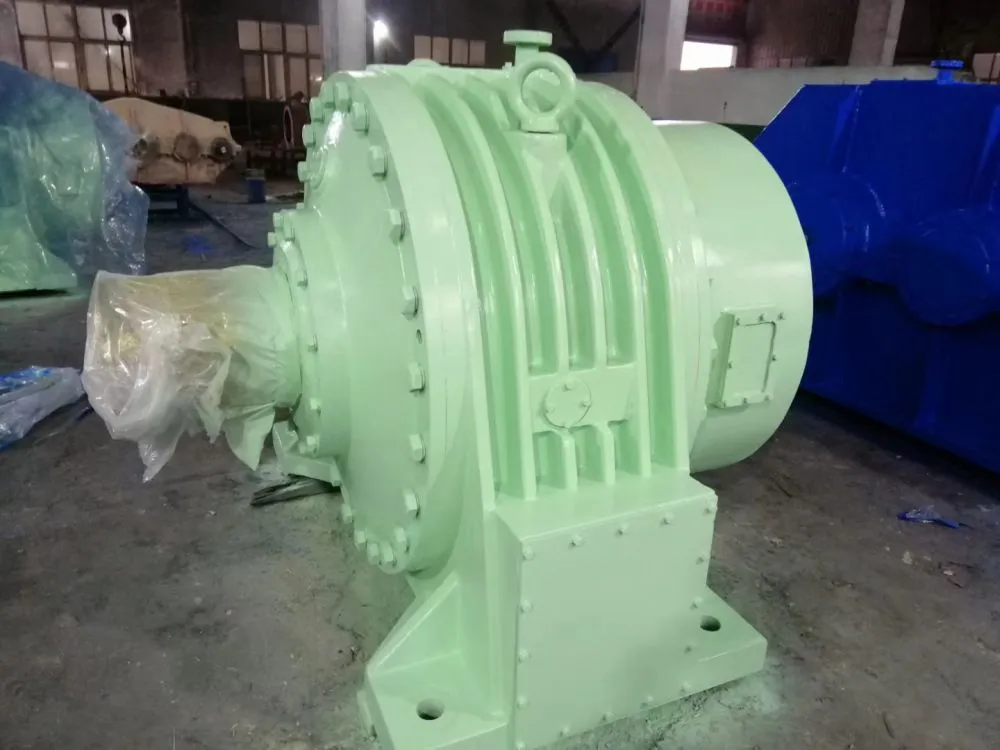

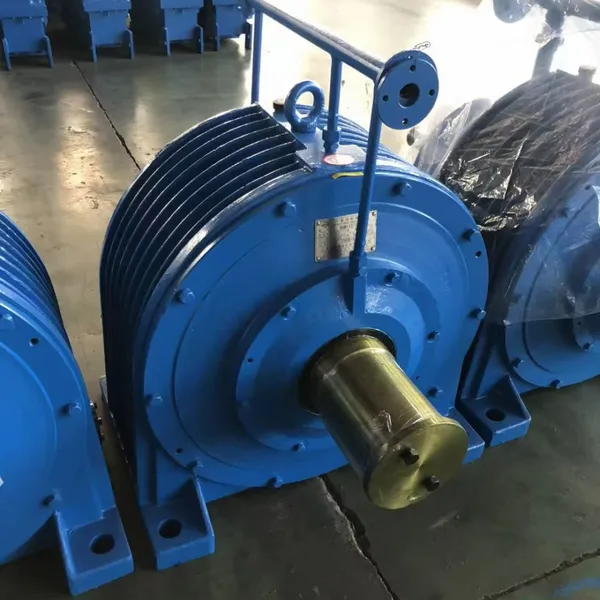

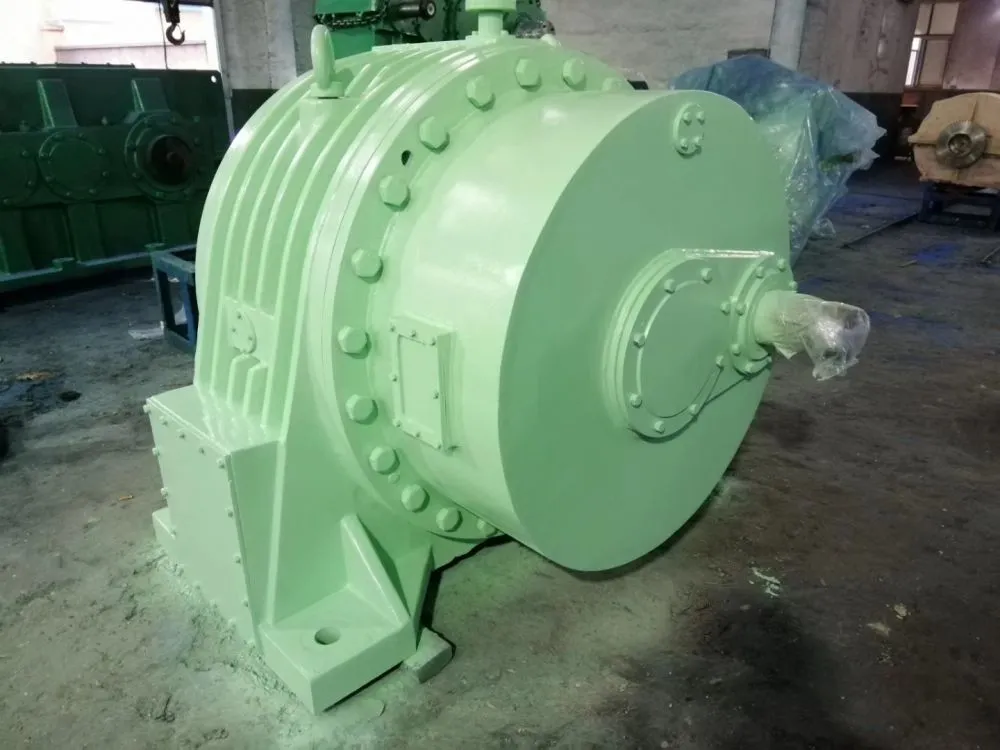

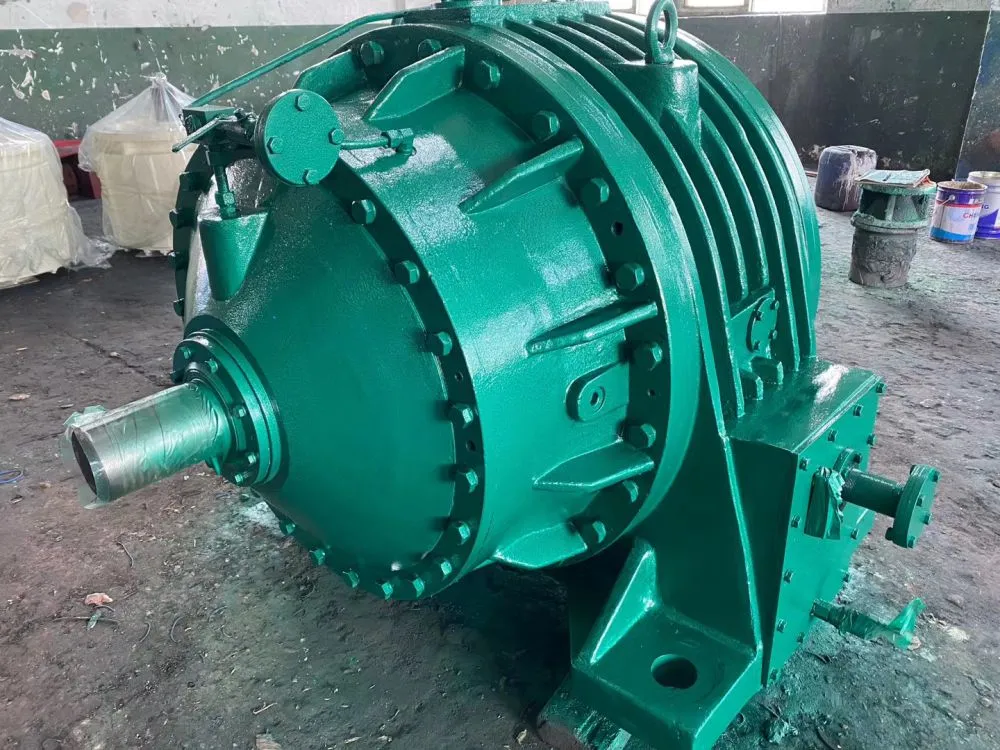

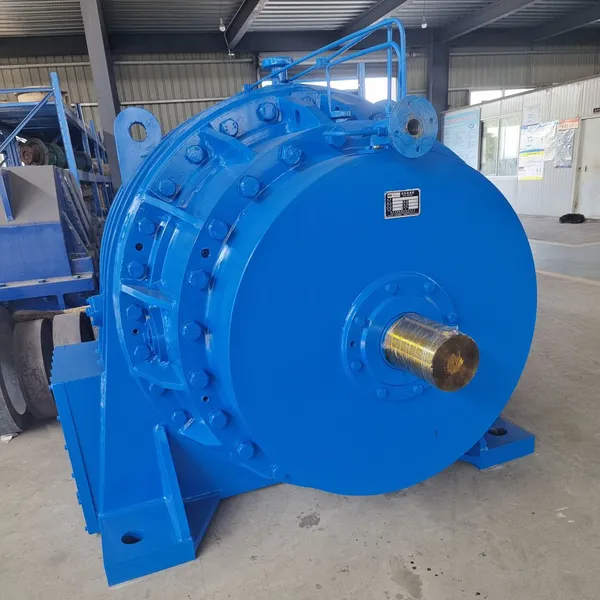

As a professional manufacturer of precision gear drives, Jiangsu Manqi Machinery Co., Ltd. proudly presents the NGW73 series Planetary Gear Reducers. Engineered with a focus on high torque density, these reducers deliver exceptional power transmission capability within a compact and robust design. Since our establishment in 2017, we have dedicated our expertise in our 10,000-30,000 square meter facility to producing reliable mechanical components for global markets, including Eastern Europe, Southeast Asia, Africa, and South Asia. The NGW73 series is a testament to our commitment to providing efficient, durable, and versatile solutions for demanding industrial applications.
Product Features & Technical Advantages:
High Torque Density Design: The core planetary gear arrangement maximizes torque output relative to the unit's size and weight, allowing for powerful performance in space-constrained installations.
Robust Construction: Manufactured from high-strength materials, the gearbox housing and internal components are built to withstand high loads and ensure long-term operational reliability.
High Efficiency: Precision-machined gears and optimized bearing arrangements minimize power loss, contributing to energy savings and reduced operational costs.
Versatile Mounting Options: Designed to accommodate various installation requirements, including foot-mounted, flange-mounted, and shaft-mounted configurations.
Smooth & Quiet Operation: Balanced design and quality manufacturing result in low vibration and noise levels, suitable for environments where noise reduction is important.
Wide Ratio Range: Available in a selection of reduction ratios to match specific speed and torque requirements for different applications.
Standardized Interfaces: Input and output shafts are designed to interface seamlessly with standard IEC motors and driven equipment.
Durability & Long Service Life: High-quality bearings, hardened gears, and effective sealing protect the internal mechanism from contaminants, extending the product's lifespan.
Technical Specifications & Parameters:
The following table outlines key specifications for the NGW73 series. Specific ratios, exact dimensions, and torque values are customizable based on application needs.
| Parameter | Description / Typical Range |
|---|---|
| Model Series | NGW73 |
| Gear Type | Planetary (Epicyclic) |
| Key Design Feature | High Torque Density |
| Nominal Ratio Range | Available from single-stage to multi-stage configurations (specific ratios available upon request) |
| Input Power Range | Suitable for motors within a defined power spectrum (details customizable) |
| Input Configuration | Direct coupling or with IEC standard motor adapter |
| Output Configuration | Solid shaft, typically keyed |
| Mounting Styles | Foot-mounted (F), Flange-mounted (L), Shaft-mounted (S) |
| Housing Material | High-grade cast iron or aluminum alloy |
| Primary Applications | Conveying systems, mixing machinery, extrusion lines, lifting devices, and other heavy-duty industrial drives |
Benefits for Our Clients:
Space Optimization: The compact design enables installation in machinery where space is limited, without sacrificing required torque.
Enhanced System Performance: Provides reliable and precise speed reduction and torque multiplication, improving the overall efficiency and control of the driven equipment.
Reduced Maintenance Needs: Durable construction and quality components lead to lower wear rates, decreasing downtime and maintenance frequency.
Adaptability: Multiple mounting and configuration options allow for easy integration into existing or new system designs.
Cost-Effectiveness: High efficiency and durability translate into lower energy consumption and longer service intervals, offering a favorable return on investment.
Jiangsu Manqi Machinery operates from a modern facility equipped to support consistent production quality. With a dedicated team of 11-50 professionals, we manage the entire manufacturing process to ensure every NGW73 reducer meets stringent performance criteria. Our products are exported globally via the Port of Shanghai, facilitating efficient logistics for our international partners in Eastern Europe, Southeast Asia, Africa, and South Asia. This NGW73 Planetary Gear Reducer embodies our practical approach to solving power transmission challenges: by delivering a product that combines high torque density, reliable construction, and flexible application options. We invite you to leverage our manufacturing capability to find a gear solution that fits your specific industrial requirements.
Frequently Asked Questions (FAQ):
Q: What is "high torque density," and why is it important?
A: High torque density refers to the ability of a gearbox to deliver a high amount of torque relative to its physical size and weight. It's crucial for applications where space is limited but high power transmission is required, allowing for more compact and efficient machine designs.Q: Can the NGW73 reducer be directly connected to my standard IEC motor?
A: Yes. The input configuration is designed for direct coupling with standard IEC motors. Adapter flanges or specific input shafts can be provided to ensure a seamless and secure connection.Q: What industries are these gear reducers typically used in?
A: They are commonly applied in industries requiring robust and reliable drives, such as material handling (conveyors, hoists), processing (mixers, extruders), construction equipment, and various automated machinery.Q: Are different reduction ratios available for the NGW73 model?
A: Absolutely. The planetary design allows for a range of reduction ratios through single or multi-stage configurations. The specific ratio needed for your application can be selected during the ordering process.Q: How does the mounting configuration affect installation?
A: We offer foot-mounted, flange-mounted, and shaft-mounted styles. Foot-mounted is common for base-plate installation, flange-mounted for direct motor attachment, and shaft-mounted for situations where the reducer surrounds the driven shaft. The choice depends on your machine's layout.Q: What is the expected service life, and what maintenance is involved?
A: With proper application and alignment, these reducers are designed for a long operational life. Maintenance typically involves periodic checks of seals and lubrication levels. The robust construction minimizes the need for frequent internal maintenance.Q: Can I request a custom input or output shaft design?
A> Customization options are available. Modifications to shaft dimensions, keyways, splines, or special flanges can often be accommodated based on your technical drawings and requirements.Q: What is your production and delivery capability for international orders?
A: Our factory in Suzhou has significant production capacity. We export regularly via Shanghai port, ensuring reliable shipping to our main markets. Lead times and shipping details can be confirmed upon order inquiry.
