As a leading manufacturer with over a decade of experience, Qingdao Yongke Machinery specializes in providing robust and efficient plastic machinery solutions. Our HDPE/PP Spiral Corrugated Pipe Extrusion Line is engineered specifically for the demanding requirements of water tank applications, offering a reliable method to produce high-strength, leak-proof piping systems essential for modern water storage infrastructure.
This complete production line represents a significant investment in quality and durability for businesses involved in water management, agricultural irrigation, and industrial tank manufacturing. We understand that the integrity of your final product depends on the precision and consistency of the pipes used, which is why our extrusion line is designed for optimal performance and long-term operational stability.

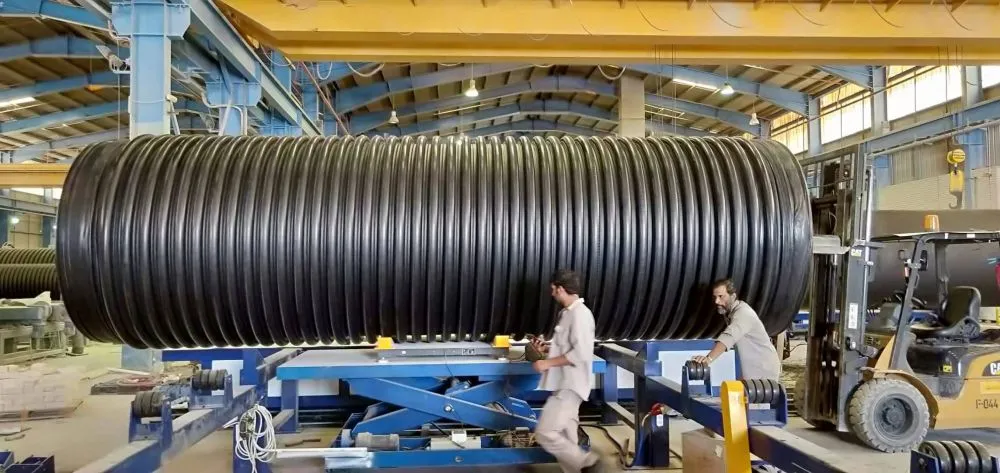

The core value of our system lies in its ability to transform raw HDPE or PP materials into structurally superior corrugated pipes with a seamless spiral design. This design is not only cost-effective but also provides exceptional hoop strength and resistance to external loads, making it an ideal choice for buried or partially buried water tank applications where durability is paramount.
Key Features & Technical Advantages:
- Dual-Material Compatibility: The line is expertly configured to process both High-Density Polyethylene (HDPE) and Polypropylene (PP), offering flexibility in material selection based on project-specific needs such as chemical resistance or temperature tolerance.
- Advanced Spiral Corrugation Technology: Utilizes a precision-engineered spiral mold and forming system that creates uniform, interlocking corrugations. This process enhances the pipe's ring stiffness and collapse resistance while maintaining a smooth inner surface for optimal fluid flow.
- High-Efficiency Extruder: Equipped with a high-torque, energy-saving extruder featuring a specially designed screw for stable melting and homogeneous mixing of the polymer, ensuring consistent wall thickness and material properties throughout the pipe length.
- Fully Automated PLC Control: The entire production process, from feeding and extrusion to cooling, haul-off, and cutting, is managed by a user-friendly PLC system with a touchscreen HMI. This allows for precise control over parameters like temperature, speed, and diameter, minimizing human error and maximizing repeatability.
- Integrated Vacuum Cooling System: A multi-stage vacuum calibration and cooling tank ensures the pipe is rapidly and uniformly cooled, locking in the corrugated shape and preventing deformation, which is critical for maintaining dimensional accuracy and joint compatibility.
- Robust Haul-Off & Cutting Unit: Features a heavy-duty caterpillar haul-off with synchronized speed control for consistent pulling force, paired with an automatic traveling cutter or saw for precise, clean cuts to the desired pipe length.
Technical Specifications Overview:
| Parameter | Details |
| Suitable Materials | HDPE, PP |
| Typical Pipe Diameter Range | 200mm - 2000mm (Customizable) |
| Corrugation Profile | Spiral (Helical) Design |
| Control System | PLC with Touchscreen Interface |
| Cooling Method | Vacuum Calibration Water Tank |
| Power Requirements | Configurable (e.g., 380V/50Hz or as requested) |
Note: Specific output rates, motor power, and dimensions are tailored to the client's required pipe size and production volume.
Benefits for Your Business:
- Superior Product Quality: Produce pipes with excellent impact strength, corrosion resistance, and long service life, perfectly suited for potable water storage and harsh environmental conditions.
- Operational Cost Savings: The line's energy-efficient design, high automation level, and low maintenance requirements contribute to a reduced total cost of ownership over its lifespan.
- Production Scalability: With its continuous operation capability, the line supports high-volume production to meet large-scale water tank project demands efficiently.
- Design Flexibility: We work with clients to customize the line for specific pipe diameters, wall thicknesses, and corrugation patterns, enabling you to cater to niche markets or unique project specifications.
Backed by Qingdao Yongke Machinery's strong track record—established in 2010, operating from a 10,000-30,000 square meter facility, and supported by a dedicated team of 51-100 professionals—this extrusion line is built to global standards. Our commitment to quality management (ISO9001), environmental responsibility (ISO14000), and occupational health and safety (OHSAS18001) is integrated into every machine we build. With an annual export value between US$1-1.5 Million and a presence in markets across North America, Europe, Asia, Africa, and Oceania, our equipment has proven its reliability worldwide, shipping conveniently from the Port of Qingdao.
Investing in our HDPE/PP Spiral Corrugated Pipe Extrusion Line means investing in a partnership with a proven manufacturer. You gain not just a machine, but a solution designed to enhance your production capacity, ensure product consistency, and help you secure more contracts in the competitive water tank and infrastructure sector. Contact us today to discuss how we can tailor this line to your specific operational goals and start producing high-quality pipes that meet the highest standards of performance and durability.
Frequently Asked Questions (FAQ)
-
What is the main advantage of a spiral corrugated pipe over a smooth pipe for water tanks?
The spiral corrugated design provides significantly higher ring stiffness and resistance to external soil pressure and loads when buried. This structural integrity is crucial for large water storage tanks, preventing collapse or deformation and ensuring long-term, leak-free operation.
-
Can this line produce pipes for applications other than water tanks?
Absolutely. While optimized for water tank applications, the pipes produced are also suitable for drainage systems, culverts, stormwater management, and other civil engineering projects requiring durable, large-diameter plastic conduits.
-
How do I choose between HDPE and PP material for my pipes?
The choice depends on the specific application. HDPE generally offers excellent low-temperature impact strength and stress crack resistance. PP can provide higher heat deflection temperature. Our technical team can advise based on the chemical exposure, temperature range, and mechanical requirements of your project.
-
What level of training and technical support is provided with the machine?
We provide comprehensive installation guidance, on-site or remote operational training for your technicians, and detailed manuals. Ongoing technical support is available to ensure smooth production and troubleshoot any operational queries.
-
Is the production output speed adjustable?
Yes, the line's speed is fully adjustable through the PLC control system. You can fine-tune the extrusion, haul-off, and cutting speeds to balance production rate with optimal pipe quality for different diameters and wall thicknesses.
-
How energy-efficient is this extrusion line?
The line incorporates energy-saving technologies such as high-efficiency motors, optimized heating zones with insulation, and an intelligent control system that manages power consumption. Specific energy usage data can be provided based on the final configuration.
-
What is the lead time for delivery and installation?
Lead time varies depending on the level of customization and current production schedule. A typical timeframe can be provided upon finalization of the technical specifications. We coordinate shipping from Qingdao port and can assist with installation planning.
-
Are spare parts readily available?
We maintain a stock of critical spare parts and consumables. A recommended spare parts list will be provided with the machine to ensure you can perform timely maintenance and minimize downtime.
