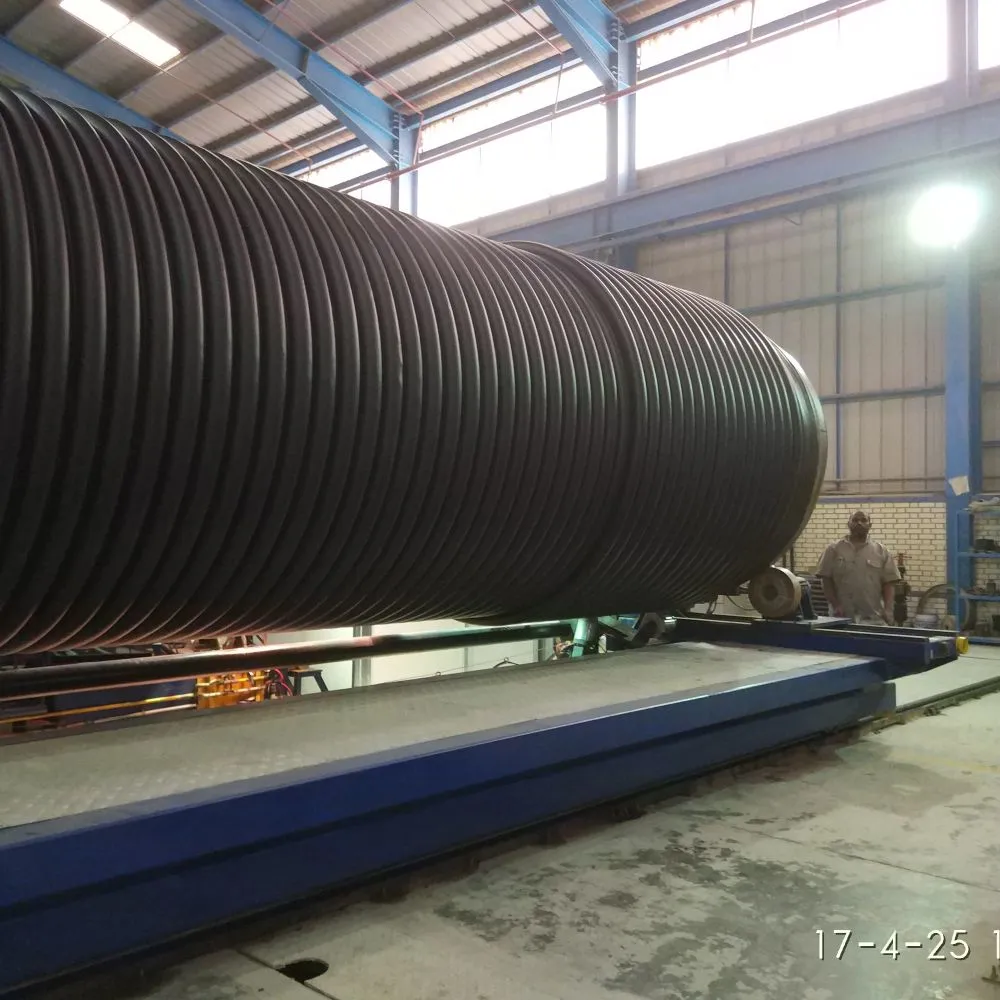

As a leading manufacturer with over a decade of expertise, Qingdao Yongke Machinery Co., Ltd. specializes in providing robust and efficient plastic pipe production solutions. Our Plastic HDPE Krah Pipe Extrusion Line is engineered for the high-volume manufacturing of large-diameter, high-strength spiral-wound pipes, a critical component for modern infrastructure projects worldwide. This line represents a significant investment in productivity, offering reliability and precision for businesses aiming to lead in the drainage, sewage, and culvert pipe markets.
Operating from our expansive 10,000-30,000 square meter facility in Qingdao, we combine advanced engineering with stringent quality controls certified under ISO9001, ISO14000, and OHSAS18001. Our machinery is trusted by clients across North America, South America, Europe, Asia, Africa, and Oceania, reflecting our commitment to global standards and customer satisfaction. This extrusion line is designed not just as a machine, but as a complete production ecosystem that enhances your operational efficiency and product quality.
Core Product Features & Technical Advantages:
Advanced Spiral Winding Technology: The core of the Krah process, this technology winds a continuous HDPE profile into a strong, leak-proof pipe. It allows for the production of pipes with diameters far exceeding those possible with conventional extrusion, making it ideal for large-scale civil engineering applications.
High-Precision Extrusion System: Equipped with a high-output, stable single or dual extrusion head. The system ensures consistent material flow and profile shape, which is crucial for the structural integrity of the final pipe.
Intelligent Control & Automation: A centralized PLC control system with a user-friendly touch-screen HMI allows for precise parameter setting, real-time monitoring, and fault diagnosis. This reduces operator dependency and minimizes production errors.
Robust Structural Design: The machine frame is constructed from high-grade steel, providing exceptional stability and vibration damping during high-speed operation, which is essential for maintaining pipe dimensional accuracy.
Customizable Configuration: The line can be tailored to specific production needs, including options for different pipe diameter ranges, wall thicknesses, extrusion head types, and auxiliary equipment like haul-offs, cutting systems, and pipe handling devices.
Energy-Efficient Drive System: Utilizing servo motors or advanced frequency conversion technology, the drive system offers precise speed control while optimizing energy consumption, contributing to lower operational costs.
Key Technical Specifications:
| Parameter | Specification / Capability |
| Suitable Material | Primarily HDPE (PE80, PE100) |
| Pipe Diameter Range | Wide range, commonly from 300mm to 4000mm (customizable) |
| Wall Thickness | Adjustable, typically from 10mm to 50mm+ |
| Control System | PLC with Touch Screen Interface |
| Winding Method | Continuous Spiral Winding with Interlocking Profile |
| Production Speed | Variable, depends on pipe diameter and profile size |
Benefits for Your Business:
Expand Product Portfolio: Enables production of very large diameter pipes (over 2 meters) that open up new market segments in municipal, industrial, and mining projects.
Superior Product Quality: Produces pipes with excellent ring stiffness, impact resistance, and chemical corrosion resistance, ensuring long service life and reduced maintenance costs for end-users.
High Production Efficiency: The continuous winding process allows for long, seamless pipe lengths, reducing installation joints and time on-site. Automation features streamline the production cycle.
Material & Cost Efficiency: The spiral winding design can optimize material usage compared to solid wall extrusion for certain diameters. The energy-efficient drives also help control operating expenses.
Operational Flexibility: Quick changeover between different pipe diameters and specifications allows for responsive production scheduling to meet diverse customer orders.
Strong Technical Support: Backed by our team of 51-100 skilled professionals, we provide comprehensive installation guidance, operator training, and after-sales service to ensure your line performs optimally.
With an annual export value of US$1-1.5 Million and a presence in major global markets from North America and Europe to Southeast Asia and Africa, Qingdao Yongke Machinery has established a reputation for reliable industrial equipment. Our machinery is shipped worldwide from the Port of Qingdao, ensuring efficient logistics. Choosing our HDPE Krah Pipe Extrusion Line means partnering with a certified manufacturer dedicated to your production success. This machine is more than an asset; it's a gateway to capturing a larger share of the growing demand for durable, large-scale plastic pipe systems. Contact us today to discuss how this line can be configured for your specific factory requirements and market goals.
Frequently Asked Questions (FAQ):
Q: What is the main advantage of the Krah/spiral winding method over traditional extrusion for large pipes?
A: The spiral winding method excels in producing pipes with extremely large diameters (over 2m) that are difficult or impossible with conventional direct extrusion. It also allows for long, continuous lengths and can offer material savings for certain applications.Q: Can this line process materials other than HDPE?
A: The line is primarily optimized for HDPE (PE80/PE100), which is the standard material for Krah pipes due to its strength and flexibility. Processing other polyolefins may be possible but would require evaluation and potential system adjustments.Q: What level of automation does the extrusion line offer?
A: It features a high level of automation centered on a PLC control system. Key processes like winding speed, extrusion temperature, and pipe diameter are controlled and monitored via the touch screen, reducing manual intervention and improving consistency.Q: How is the pipe's leak-proof joint achieved in the spiral winding process?
A: The specially designed HDPE profile has an interlocking "hook" or "Krah" joint. As the profile is wound, these joints snap together under heat and pressure, creating a strong, continuous, and inherently leak-proof seal along the entire pipe length.Q: What is the typical lead time for delivery and installation?
A: Lead times vary based on the specific configuration and current order book. As an established manufacturer with efficient production processes, we strive to provide competitive delivery schedules. Detailed timelines can be provided upon request after finalizing specifications.Q: Do you provide training for our operators and maintenance staff?
A: Yes, comprehensive training for your operators and maintenance technicians is a standard part of our service. This includes both theoretical instruction and hands-on practice with the machine to ensure safe and efficient operation.Q: What after-sales support can we expect?
A: Our support includes remote technical assistance via phone or online, a supply of critical spare parts, and the availability of service engineers if needed. We are committed to ensuring minimal downtime for your production.Q: Can the machine be customized for a specific pipe diameter outside the standard range?
A: Absolutely. A key strength of our design is its customizability. We can engineer the extrusion heads, winding mandrel, and supporting systems to accommodate a wide range of specific diameter requirements for your projects.
