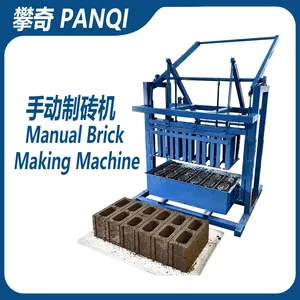

MANUAL BRICK-MAKING MACHINE
Fully Manual Power-Free Design · Mobile & Stationary Two Versions · Interchangeable Custom Block Molds
Product Overview
This fully manual brick-making machine has two optional versions: mobile wheeled model and stationary fixed model. Equipped with labor-saving lever compression system, it requires zero electricity or generator, allowing immediate production in off-grid rural villages and remote construction sites.
Both models adopt identical compression structure and operation process, differing only in base frame. Fully mechanical manual drive without any electric components brings fewer spare parts and ultra-low daily maintenance cost. Replaceable custom molds support production of hollow blocks, solid standard bricks, interlocking grass pavers, slope protection special-shaped blocks and other non-fired cement blocks.
Technical Parameters
| Parameter Name | Parameter Value |
|---|---|
| Overall Dimensions | 1270*980*1370mm |
| Machine Weight | 350kg |
| Molding Cycle | 30 seconds per cycle |
| Output Per Molding | 400×200×200mm Hollow Block: 4 pcs / cycle |
| 400×150×200mm Hollow Block: 5 pcs / cycle | |
| 400×100×200mm Hollow Block: 7 pcs / cycle | |
| Daily Output (8 Working Hours) | 300-400 molding cycles |
| Required Operators | 1-2 workers |
Applicable Range
Finished Blocks We Can Produce: Solid standard bricks, hollow concrete blocks, interlocking grass pavers, permeable special-shaped paving blocks and other small non-fired cement blocks. Quick mold replacement meets construction demands for rural housing, farm access roads, slope protection and other medium & small infrastructure projects.
Applicable Raw Materials: Fine aggregate materials including silt sand, cement, stone sand, fly ash, crushed construction waste and mineral slag are all compatible. Easily accessible local raw materials effectively cut down production costs. No power required, perfectly fit for field construction and remote rural sites across Africa and Southeast Asia.
Note: This machine only produces cement-based non-fired blocks, NOT suitable for pure clay red bricks which need kiln firing.
|
Sand Aggregate |
Fly Ash |
|
Crushed Construction Waste |
Silt Sand |

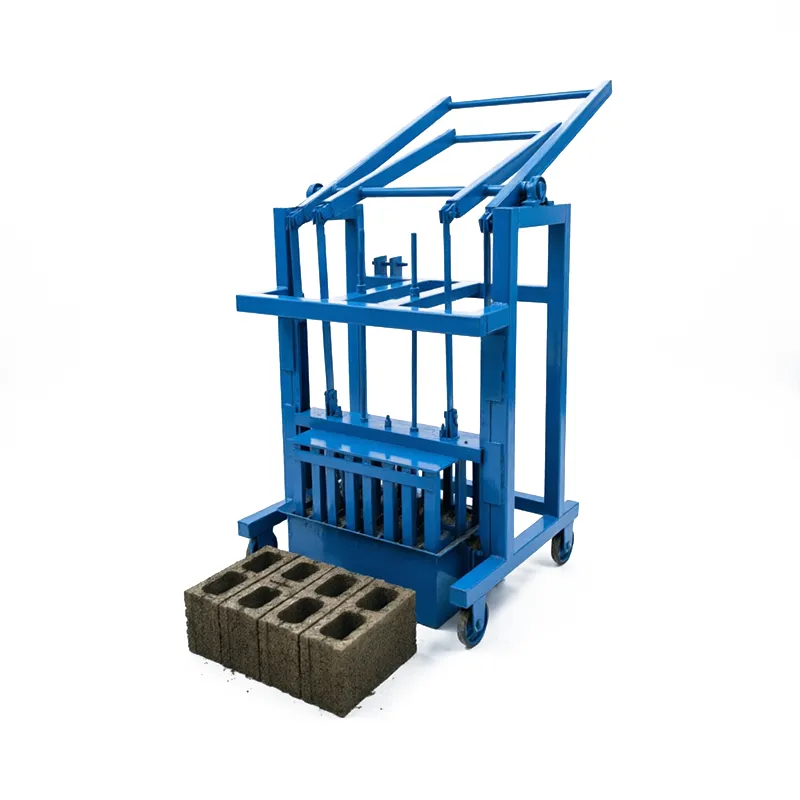

Machine Display
Molding Effect
Adopting labor-saving lever compression technology, the machine ensures stable, consistent production. Finished cement blocks feature high compact density, neat sharp edges and precise standard dimensions, without chipping, cracking or hollow defects inside.
Mold Display
All custom molds are manufactured with high-strength wear-resistant steel, featuring high hardness, anti-deformation performance and long service lifespan. We support fully customized special-shaped molds to satisfy diverse personalized production demands from global buyers.
Full Range Machine Models
We are a professional manufacturer specializing in complete brick-making equipment series. Besides this fully manual power-free block machine shown on this page, we also supply electric hydraulic, fully automatic and diesel mobile brick machines for mass non-fired cement block production. Feel free to contact us for full catalog & detailed quotations of all models.
Company Introduction
Henan Panqi Heavy Industry Technology Co., Ltd. is located in Xingyang, Zhengzhou, with an independent large production base in Wen County, Jiaozuo. We have focused on recycling & construction machinery manufacturing for over 10 years, integrating independent R&D, production, global sales and one-stop after-sales service. Our factory covers 15,000 ㎡ standardized production workshop and has obtained ISO9001 international quality management system certification.
Our main product lineup includes metal balers, metal shearing machines, hydraulic waste compactors, plastic shredders and solid waste sorting separators. We also provide matched solid waste crushing machines and complete non-fired brick production lines with customized turnkey project solutions. Our machinery is widely sold across domestic China and exported to Africa, Southeast Asia, South America and other global regions. We offer free site survey, customized solution design, overseas installation & commissioning guidance, and accept FOB bulk wholesale orders.
Delivery Scene
Frequently Asked Questions
❓ How to choose mobile model or stationary model?
Select the mobile wheeled version for field mobile production without fixed workshop; stationary model is more suitable for long-term mass production inside a permanent factory building.
❓ Does this machine need electricity? Can it work in power-off mountain villages?
It adopts 100% pure manual lever driving system with zero motor and circuit parts. It can operate full-day production in mountain villages and remote off-grid construction sites with no power supply at all.
❓ One mold only produces one type of block? Is mold replacement hard to operate?
One matched mold corresponds to one block specification. The disassembly structure is simplified for easy operation, one single worker can finish full mold replacement within 10 minutes.
❓ What’s the actual daily output for 8 working hours with 30s molding cycle?
After deducting material feeding, block transferring and short rest time, stable 300-400 molding cycles can be completed every 8 hours. The total finished block quantity depends on your customized mold size.
❓ Machine total weight reaches 350kg, can one person push the mobile model?
Equipped with thickened solid load-bearing rollers, it can be pushed easily by one worker on flat concrete ground. Two workers are recommended for rough dirt rural roads.
❓ What’s the maximum aggregate particle size allowed? Can large raw stones be used directly?
Only fine aggregate particles under 10mm are permitted. Oversized raw stones must be crushed and screened in advance, otherwise it will cause mold jamming and damaged incomplete block blanks.
