Help CenterQT4-40 Ecological Flyash Brick Making Machine Construction Waste Paver Block Machine
Product Spotlights
Related Products
-
High-quality Cement Brick Making Machine Manufacturer, Paving Brick Production MachineUS$ 1850MOQ: 1 Unit -
Automatic Brick Making Machine Equipment Cement Brick Making Machinery From China Construction Compressed Brick Making MachineUS$ 399 - 1142MOQ: 1 Set
-
Made in China Automatic Block Production Brick Making Machine Concrete Interlock Block Making Machine Brick Maker MachineUS$ 399 - 1142MOQ: 1 Set
-
Small Machines for Brick Making Ethiopia Brick Making Machine Brick Making Machine South AfricaUS$ 499 - 1420MOQ: 1 Set
-
Manual Brick Making Machine Block Making Machine Fully Automatic Foam Concrete Machine for Iraq and Southeast AsiaUS$ 499 - 1420MOQ: 1 Set

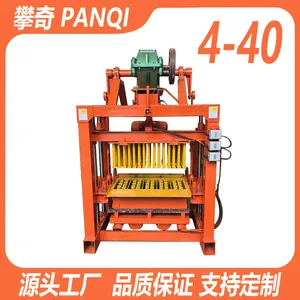

The 4-40 semi-automatic non-fired brick making machine is a cost-effective main production equipment for small and medium-sized brick factories and construction sites. The entire machine has a fully mechanical structure with no hydraulic components, resulting in a low failure rate and simple maintenance. Equipped with dual high-frequency vibration motors, the standard molding cycle is 40 seconds per mold, producing dense and uniform bricks. By changing different specifications of wear-resistant molds, it can mass-produce a full range of building materials, including hollow blocks, permeable paving bricks, slope protection bricks, and curb stones. It is compatible with various low-cost raw materials such as river sand, construction waste, fly ash, and slag, and is widely used in residential construction, municipal roads, garden slope protection, and infrastructure projects. The machine has a small footprint, requires only 1-2 operators, supports multiple international voltages, and has strong export adaptability.
Technical Parameters
| Item | Specification |
|---|---|
| Model | 4-40 Semi-Automatic Brick Making Machine |
| Overall Dimensions | 1650 × 1200 × 2100 mm |
| Machine Weight | 1100 kg |
| Power & Voltage | 9KW, Customizable Voltage |
| Molding Cycle | 40 seconds per mold |
| Brick Output Per Mold | 400*200*200mm Hollow Bricks (4 pcs/time) 400*150*200mm Hollow Bricks (5 pcs/time) 400*100*200mm Hollow Bricks (7 pcs/time) |
| 8-hour Output | 400–500 molding cycles in 8 working hours |
| Operator Required | 1–2 people are sufficient |
| After-sales Service | 1-year full machine warranty with remote technical guidance |
Applicable Range
Applicable Products:
Solid bricks, hollow blocks, paving pavers, curb stones, permeable bricks and other construction blocks, meeting diverse demands of various engineering projects.
Applicable Raw Materials:
Cement, sand, aggregate, fly ash, coal gangue, construction waste, slag and more. Abundant local raw materials cut production costs, eco-friendly and cost-effective.

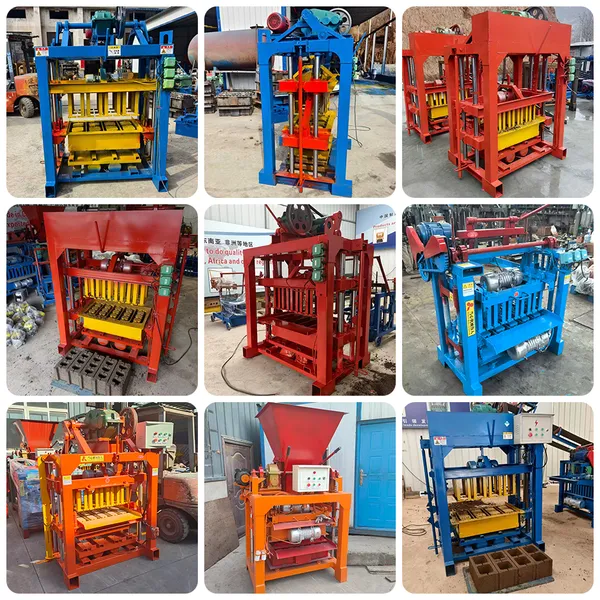

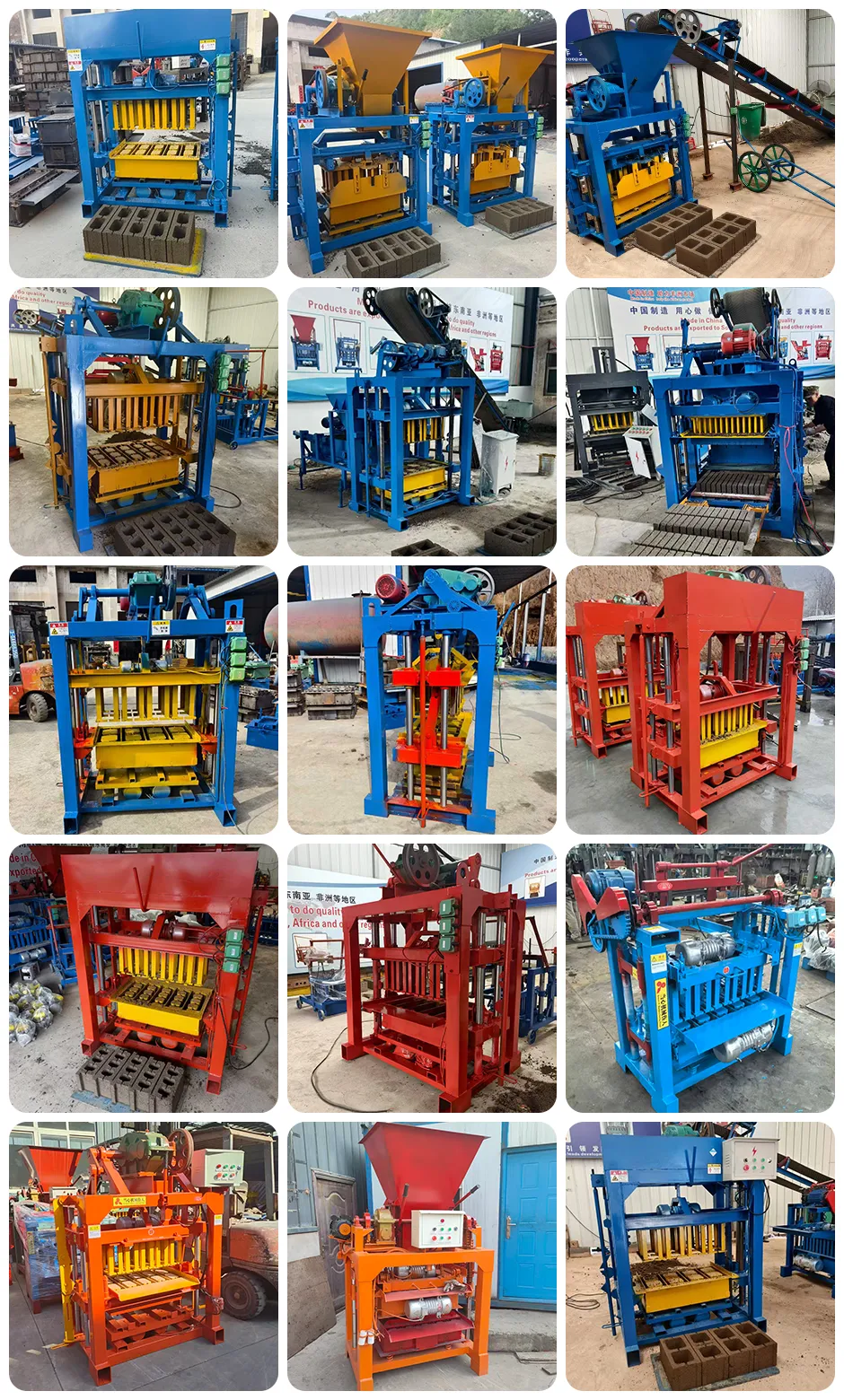

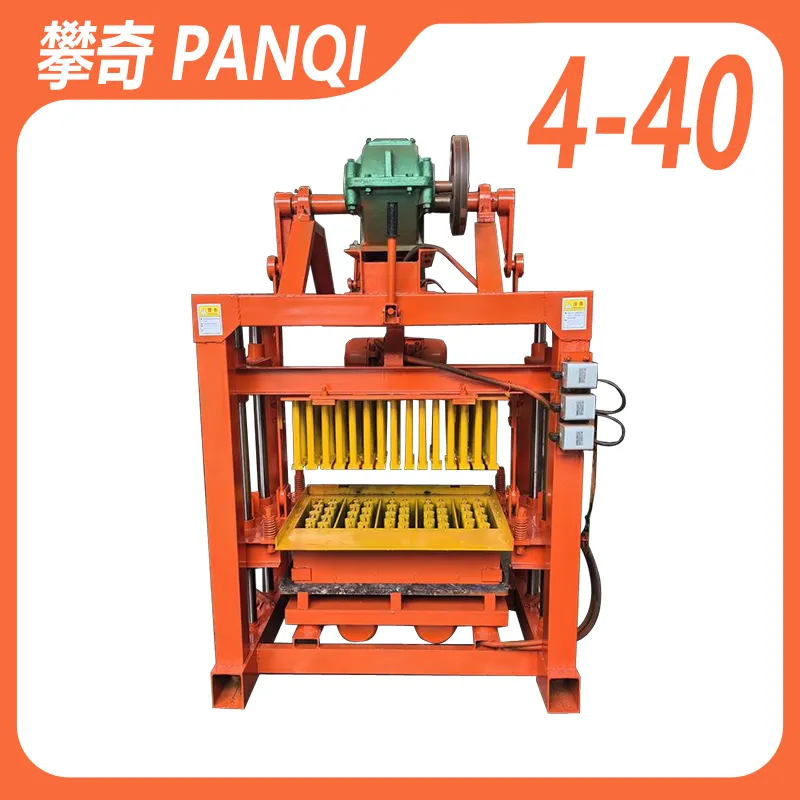

Machine Display
Molding Effect
The machine adopts high-frequency vibration compaction molding technology for fast and stable brick output. The finished brick blanks feature high compactness, smooth edges and uniform dimensions, with no chipped corners, broken edges or hollow cavities.
Production Site Scene
Color Brick Rendering
Mold Display
We supply a full range of customized molds for hollow blocks, solid standard bricks, permeable pavers and curb stones in various sizes. All molds are manufactured from high-quality wear-resistant steel, featuring high hardness, anti-deformation performance and long service life. Custom special-shaped molds are available to meet customers’ diverse production requirements.

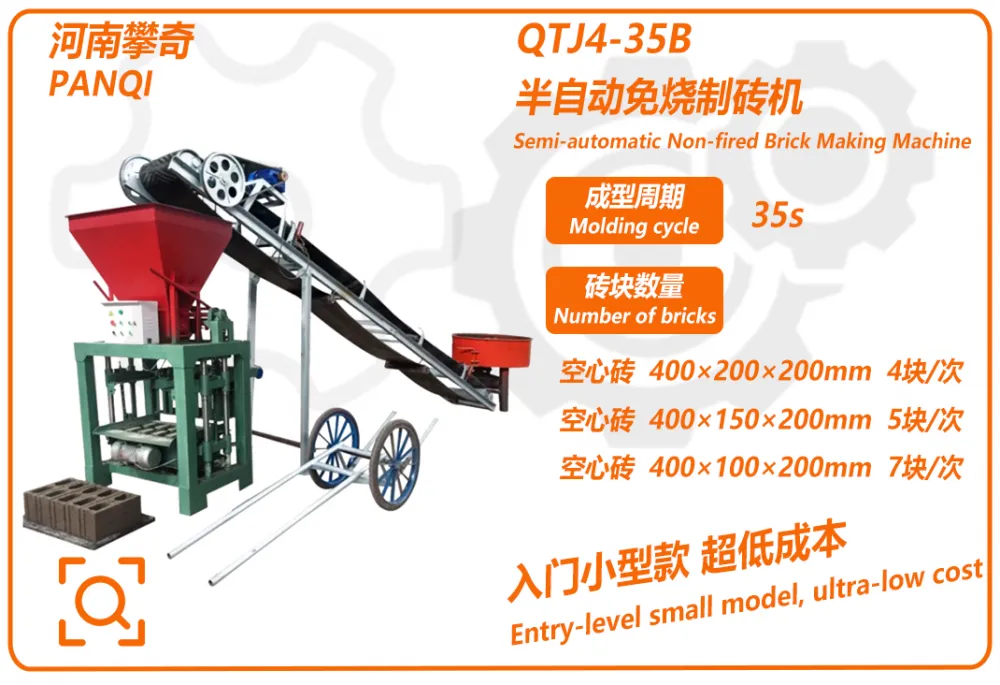

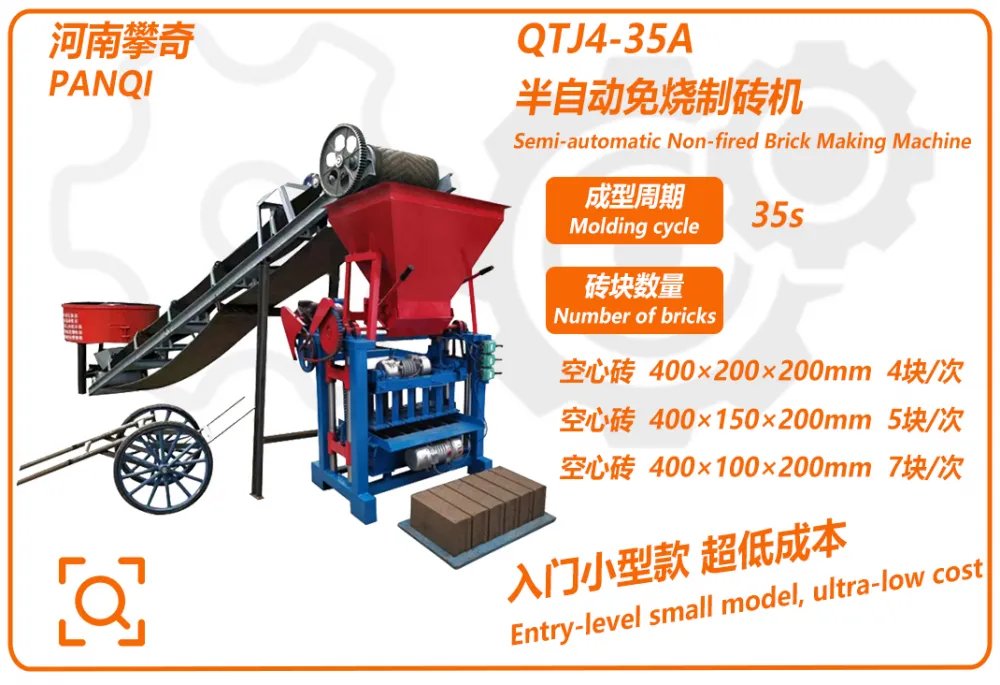

Same Series Products

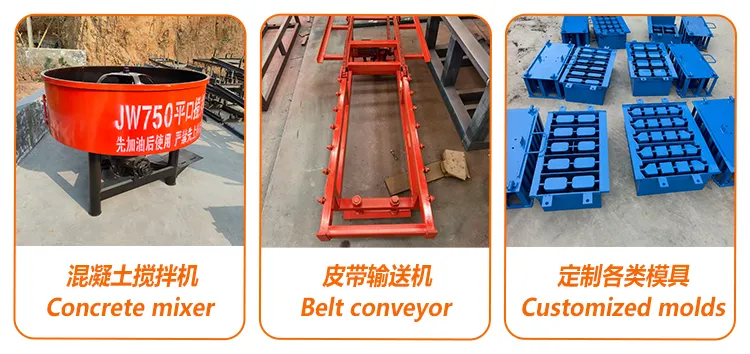

Optional Supporting Equipment
Concrete Mixer
Belt Conveyor
Customized Production Molds

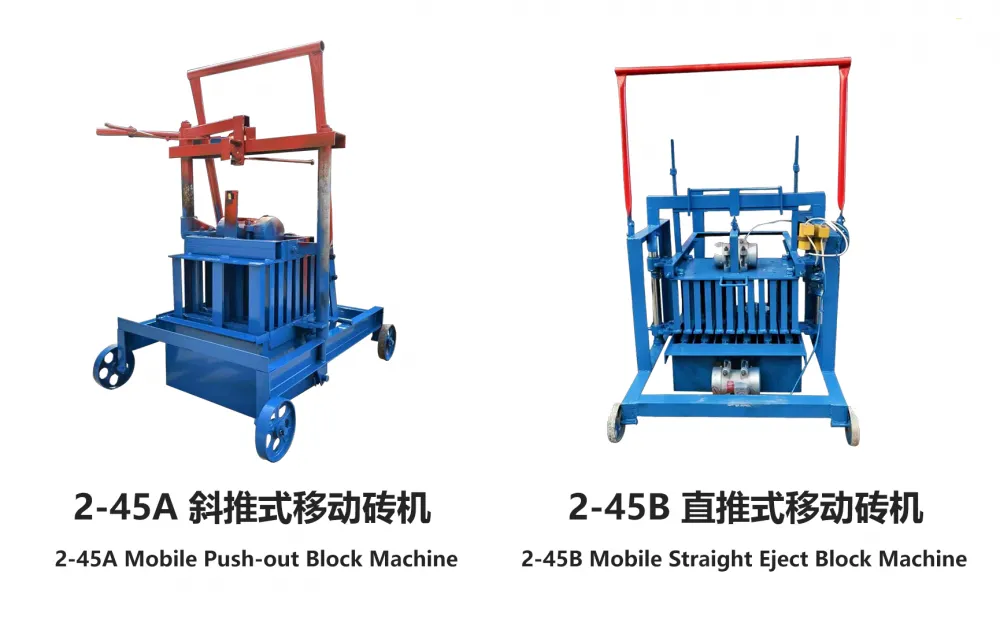

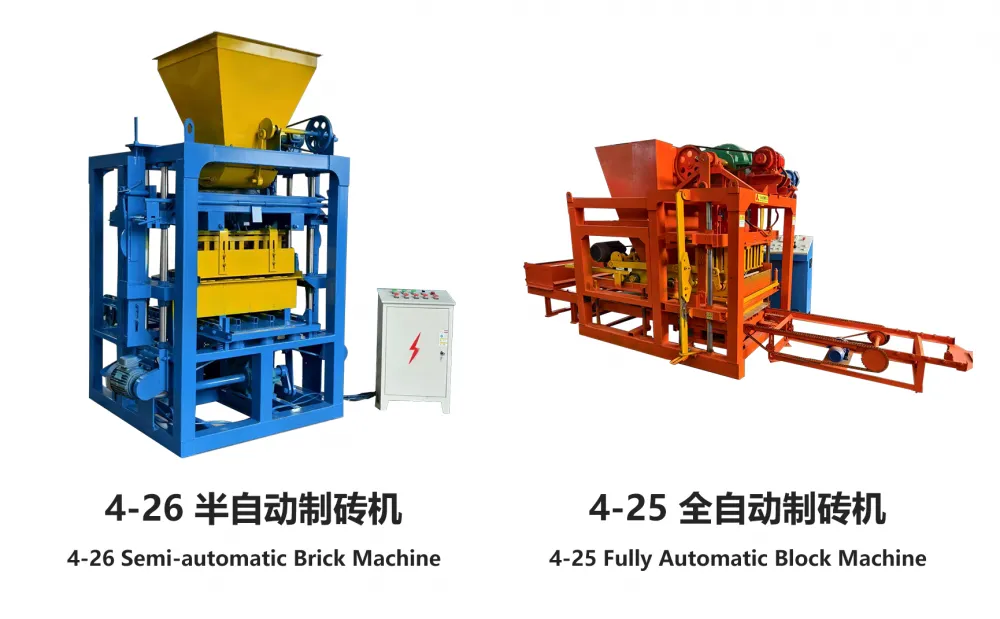

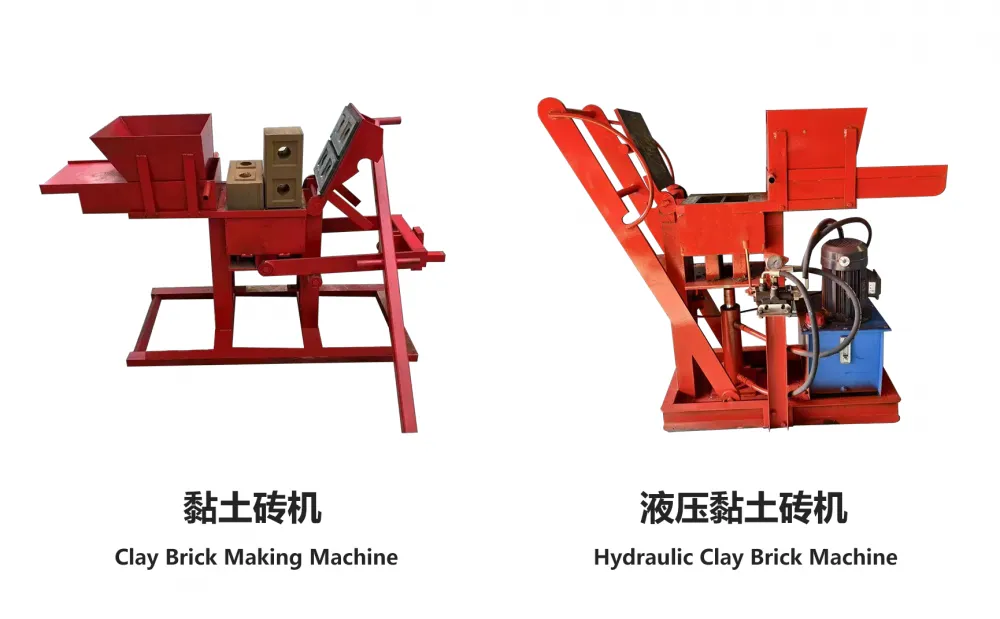

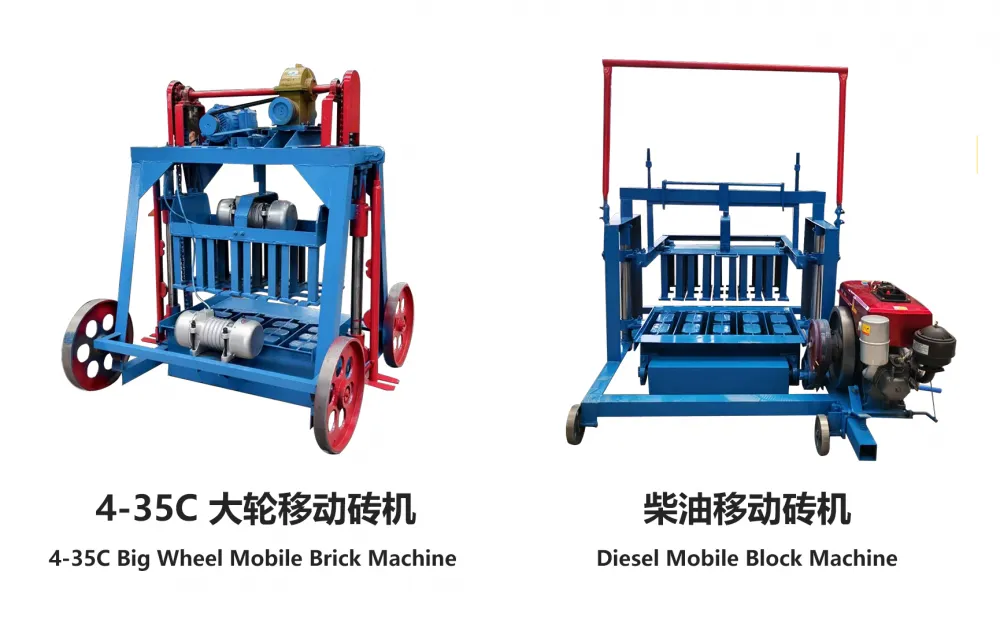

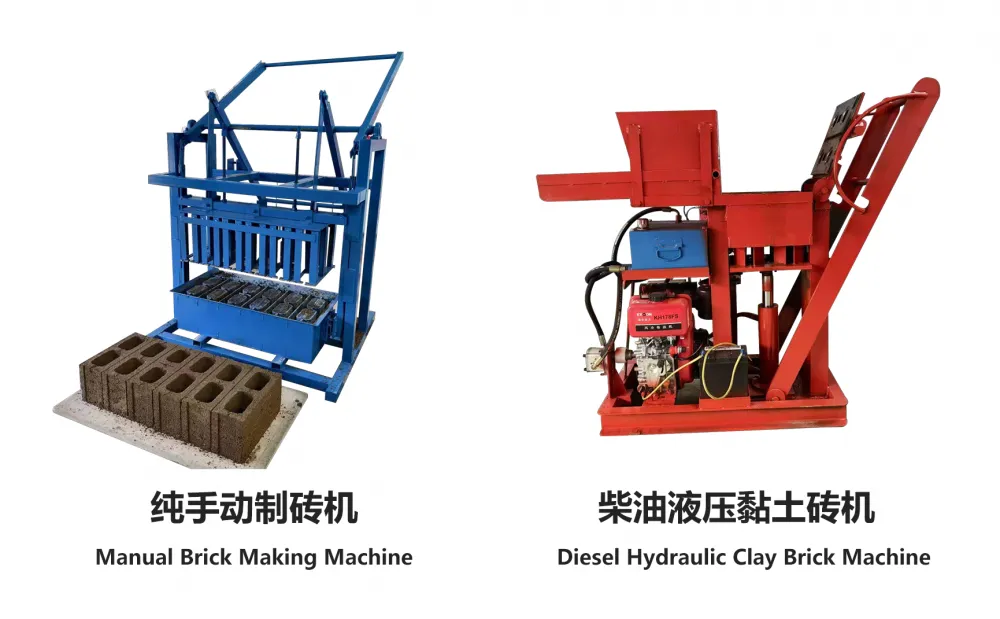

Other Optional Products
Company Introduction
Henan Panqi Heavy Industry Technology Co., Ltd. is located in Xingyang, Zhengzhou, with a production base in Wen County, Jiaozuo. We have focused on recycling resource machinery for over 10 years, integrating R&D, production, sales and after-sales service.
We have a self-built standardized workshop of 15,000 ㎡ and have been certified to ISO9001 Quality Management System.
Our core products cover five series: metal balers, metal shears, hydraulic baling machines, plastic shredders and solid waste sorting equipment. We also provide complete solid waste crushing lines and non-fired brick making plants, and customize full production lines according to clients’ requirements.
Our equipment is supplied to domestic industrial and mining manufacturers and exported to many countries. We provide site survey, customized solution design, installation & commissioning, and accept FOB orders.
Delivery Scene
FAQ
Q: What is the daily output of 4-40 brick machine?
A: It can complete 400–500 molding cycles within 8 working hours under normal conditions, varying with raw materials and operation.
Q: Is the machine difficult to operate? How many workers are needed?
A: Semi-automatic operation, easy to learn. Only 1-2 workers are enough for the whole production process.
Q: Can it produce different bricks?
A: Yes. Various bricks can be produced by replacing different molds with high cost performance.
Q: This machine has no hydraulic parts, is the molding strength sufficient?
A: Equipped with dual high-frequency vibration motors, it compacts materials through high-frequency resonance. The compactness meets national standard strength requirements for hollow blocks and paving bricks, with lower maintenance cost than hydraulic models.
Q: Can 4-40 machine be exported overseas, how to adapt voltage?
A: Motors and electric control system can be customized for 220V/380V/415V and other international voltages, matched with corresponding transformers for local power grid.
Q: What waste materials fit 4-40 brick machine, any mixing requirements?
A: River sand, construction waste, fly ash, slag, coal gangue, shale are all available with flexible mixing ratio, only a small amount of cement needed, we provide free mature mixing formula.
Q: Will molds wear fast? How long is the mold warranty for 4-40 model?
A: Molds are made of wear-resistant manganese steel with service life 8-12 months. The whole machine has 1-year warranty, spare parts for molds are supplied for non-artificial damage.
Q: If only purchase 4-40 main machine for small construction site, what auxiliary machines are needed?
A: Concrete mixer + belt conveyor for automatic feeding, manual feeding is also available for narrow site, auxiliary equipment optional based on budget.
