Home > Industrial Equipment & Components > Power Transmission Parts > Speed Reducer > ZDY560 Cylindrical Gear Reducer With Mill Test Report and Extended Warranty

ZDY560 Cylindrical Gear Reducer With Mill Test Report and Extended Warranty

ZDY560 Cylindrical Gear Reducer With Mill Test Report and Extended Warranty thumbnail-3

ZDY560 Cylindrical Gear Reducer With Mill Test Report and Extended Warranty thumbnail-4

ZDY560 Cylindrical Gear Reducer With Mill Test Report and Extended Warranty thumbnail-5

ZDY560 Cylindrical Gear Reducer With Mill Test Report and Extended Warranty photo-1

ZDY560 Cylindrical Gear Reducer With Mill Test Report and Extended Warranty photo-2

ZDY560 Cylindrical Gear Reducer With Mill Test Report and Extended Warranty photo-3

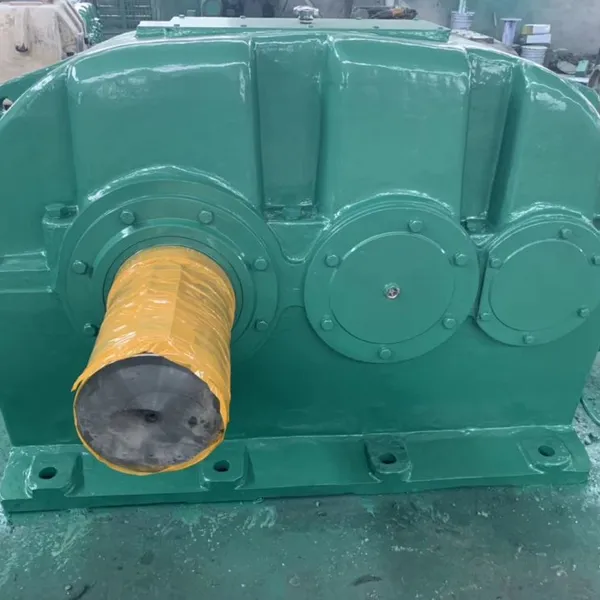

ZDY560 Cylindrical Gear Reducer With Mill Test Report and Extended Warranty photo-4

ZDY560 Cylindrical Gear Reducer With Mill Test Report and Extended Warranty photo-5

Product Spotlights

The ZDY560 Cylindrical Gear Reducer delivers reliable power transmission for heavy-duty applications. Its key selling points include hardened and ground gears for durability and efficiency, a robust housing with advanced sealing to prevent leaks, and versatile mounting options. Crucially, it comes with a Mill Test Report for verified material quality and an Extended Warranty for long-term investment protection, ensuring operational confidence and reduced lifecycle costs.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

Other, Cylindrical Gear Reducer

Application:

Other, Heavy Machinery

Model:

ZDY560

Contact Supplier Request Quote Chat Now

Jiangsu Manqi Machinery Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Other, Cylindrical Gear Reducer

Application Other, Heavy Machinery

Model ZDY560

Gear Configuration Parallel Shaft, Hardened and Ground

Input Power Range Customizable based on application

Output Torque Capacity Available upon request

Mounting Position Foot-mounted, Flange-mounted optional

Lubrication Oil Bath Lubrication

Cooling Method Natural Cooling, Fan Cooling optional

Standard Accessories Mill Test Report, Extended Warranty

As a dedicated manufacturer with a modern facility in Suzhou, Jiangsu, Jiangsu Manqi Machinery Co., Ltd. is proud to present the ZDY560 Cylindrical Gear Reducer. Engineered for demanding industrial environments, this robust gearbox is designed to deliver reliable power transmission and torque multiplication. We understand that downtime is costly, which is why each ZDY560 unit is backed by a comprehensive Mill Test Report and an Extended Warranty, providing you with verifiable quality assurance and long-term operational peace of mind. Our commitment to precision manufacturing and stringent quality control ensures that every reducer leaving our factory meets the high standards required by global markets in Eastern Europe, Southeast Asia, Africa, and South Asia.

The ZDY560 is a testament to advanced gear engineering, built to withstand the rigors of continuous operation in various heavy-duty applications. Its core value lies in providing a durable, efficient, and trustworthy solution for power transmission needs.

Superior Gear Design & Construction: Featuring hardened and precision-ground cylindrical gears, the ZDY560 ensures minimal noise, high efficiency, and exceptional load-bearing capacity. The gears are manufactured from high-grade alloy steel, undergoing rigorous heat treatment processes to achieve optimal hardness and fatigue resistance.
Robust Housing & Sealing: The gearbox housing is constructed from high-strength cast iron or ductile iron, providing excellent rigidity and vibration damping. Advanced sealing systems, including labyrinth seals and high-quality oil seals, are employed at all shaft ends to effectively prevent oil leakage and ingress of contaminants, ensuring long-term lubrication integrity.
High Efficiency & Energy Savings: Through optimized gear tooth profiles and precision machining, the ZDY560 achieves high mechanical efficiency, which translates directly into lower energy consumption and reduced operational costs over its lifespan.
Versatile Mounting & Configuration: Designed for flexibility, the reducer supports standard foot mounting. Flange-mounted versions or special mounting configurations are available upon request to suit specific spatial and integration requirements within your machinery layout.
Comprehensive Cooling & Lubrication: The unit utilizes a reliable oil bath lubrication system for all critical components. For applications with higher thermal loads, an optional fan cooling system can be specified to maintain optimal operating temperatures and enhance service life.

To provide a clear overview of its capabilities, here are some key technical parameters. Please note that specific ratings can be customized based on your application's exact requirements.

Parameter	Description / Typical Range
Model Series	ZDY560 (Parallel Shaft Cylindrical Reducer)
Gear Stages	Single, Double, or Triple stage configurations available
Reduction Ratio Range	Wide range available, customizable from approximately 1.25:1 to 100:1+
Input Power	Designed for medium to high power applications
Input/Output Shaft Arrangement	Horizontal input and output shafts (other arrangements optional)
Lubricant	Industrial Extreme Pressure (EP) Gear Oil

Benefits for Your Business:

Enhanced Reliability: The proven cylindrical gear design and robust construction minimize the risk of unexpected failures, ensuring consistent performance in critical processes.
Reduced Maintenance Costs: High-quality components and effective sealing lead to longer maintenance intervals and lower lifetime servicing costs.
Documented Quality: The included Mill Test Report provides traceable material and hardness data, giving you confidence in the product's inherent quality and compliance with specifications.
Investment Protection: The Extended Warranty offer demonstrates our confidence in the product's durability and provides financial protection against early-life defects.
Application Flexibility: Suitable for a broad spectrum of industries including mining, cement, steel, rubber & plastic, and material handling for equipment like conveyors, mixers, crushers, and extruders.

Trust is built on transparency and proven performance. Operating from our 10,000-30,000 square meter manufacturing base, our team of 11-50 skilled professionals is focused on delivering industrial power transmission solutions that you can depend on. Our growing export footprint across Eastern Europe, Southeast Asia, Africa, and South Asia is a testament to the reliability of our products like the ZDY560. We combine this manufacturing expertise with the concrete assurance of a Mill Test Report and an Extended Warranty, offering you not just a product, but a partnership for productivity. Choose the ZDY560 Cylindrical Gear Reducer for a combination of robust engineering, verified quality, and committed support. Contact us today to discuss your specific requirements or to request a detailed quotation.

Frequently Asked Questions (FAQ)

Q: What is included in the Mill Test Report for the ZDY560 reducer?
A: The Mill Test Report (MTR) is a certified document from the material supplier. For the ZDY560, it typically includes verification of the chemical composition, mechanical properties (like tensile strength and yield strength), and hardness test results for the key steel components used in the gears and shafts, ensuring they meet the specified grade standards.
Q: What does the Extended Warranty cover and for how long?
A: The Extended Warranty provides coverage beyond the standard warranty period for manufacturing defects in materials and workmanship under normal use. The specific duration and terms will be detailed in the sales contract. It is designed to offer you additional long-term security for your investment.
Q: Can the ZDY560 be customized for a specific mounting configuration or shaft size?
A: Yes, customization is possible. While we offer standard configurations, we can discuss modifications such as specific flange designs, special shaft dimensions (keyways, diameters), or alternative mounting positions to fit your existing equipment seamlessly.
Q: What is the recommended service and maintenance schedule for this gearbox?
A: General maintenance includes regular checks of oil level and condition, monitoring for unusual noise or vibration, and ensuring seals are intact. The first oil change is typically recommended after the initial run-in period (e.g., 500 hours), with subsequent changes based on operating conditions. A detailed maintenance manual is provided with the unit.
Q: Is this reducer suitable for high-ambient temperature environments?
A: The standard natural cooling design is suitable for many applications. For operations in high ambient temperatures or with high thermal loads, we strongly recommend opting for the fan cooling accessory, which significantly improves heat dissipation and maintains optimal internal temperature.
Q: How do I select the correct reduction ratio and power rating for my application?
A: Proper selection requires knowing your driven machine's required output torque/speed, the input motor power and speed, service factors, and duty cycle. Our technical team can assist you with this selection process. Please provide your application details for a tailored recommendation.
Q: What is the lead time for ordering the ZDY560 reducer?
A: Lead time depends on the order quantity and the specific configuration (standard vs. customized). For standard models, we generally maintain a faster turnaround. We will provide an accurate lead time estimate with your formal quotation.
Q: What are the main industries that use the ZDY560 series?
A: This series is widely used in heavy industrial sectors such as mining and mineral processing, bulk material handling (conveyors), construction machinery, the cement industry, mixing and agitation applications in chemical/pharmaceutical sectors, and various processing lines in the rubber and plastic industries.
