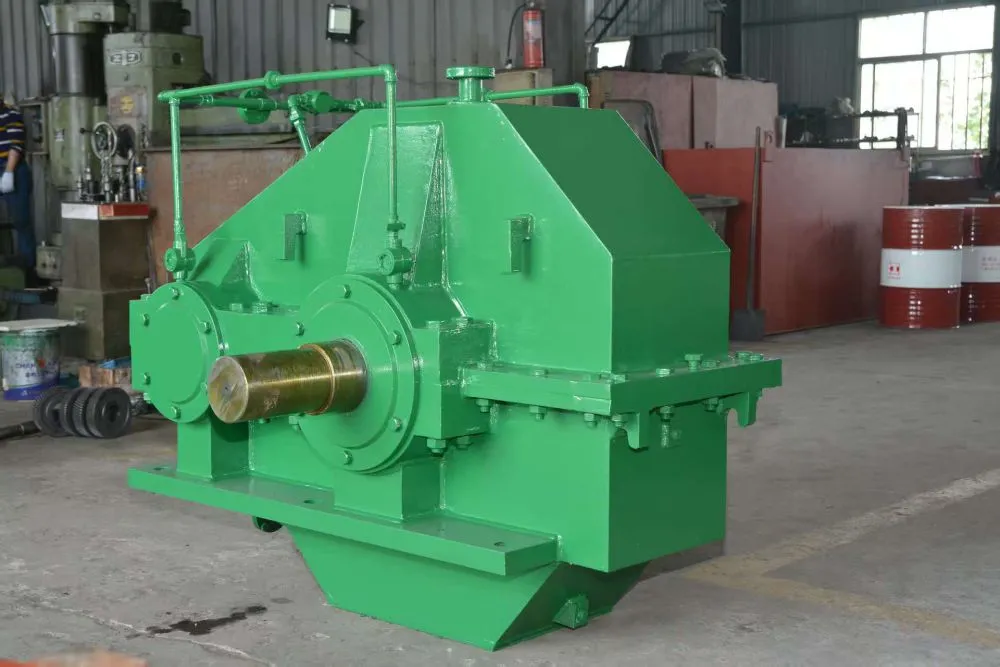

As a professional manufacturer of power transmission solutions, Jiangsu Manqi Machinery is proud to introduce our ZD40 Cylindrical Gear Reducer. Engineered for reliability and performance in demanding industrial environments, this reducer combines robust construction with precision engineering to deliver consistent torque and speed control for a wide range of machinery. Based in Suzhou, our facility leverages over 7 years of manufacturing expertise to produce components that meet the rigorous demands of global markets, including Eastern Europe, Southeast Asia, and Africa. The ZD40 is designed to be a workhorse, offering a durable and efficient solution for applications where downtime is not an option.
The core of the ZD40's performance lies in its carefully selected materials and design. The use of a high-grade cast iron housing provides exceptional rigidity and vibration damping, protecting the internal gears and bearings from external shocks and misalignment. Inside, the hardened alloy steel gear teeth are precision machined and heat-treated to achieve a superior surface hardness, significantly enhancing wear resistance and extending the service life of the unit. This combination ensures smooth power transmission with minimal noise and optimal efficiency.
- Robust Construction: The heavy-duty cast iron housing offers excellent mechanical strength and effectively dissipates heat generated during operation.
- Enhanced Durability: Hardened gear teeth provide superior resistance to pitting and wear, even under high cyclic loading conditions.
- High Torque Capacity: The cylindrical gear design is optimized for high torque transmission, making it suitable for heavy-starting loads.
- Efficient Power Transmission: Precision gear meshing and high-quality bearings contribute to high mechanical efficiency, reducing energy consumption.
- Versatile Mounting: Standard foot mounting and a solid output shaft allow for flexible integration into various machine layouts.
- Low Maintenance: Sealed housing and reliable oil bath lubrication system minimize the need for frequent maintenance.
For detailed performance specifications, please refer to the key parameters in the table below. These values are based on standard configurations and can be customized upon request to suit specific application requirements.
| Parameter | Specification |
| Model | ZD40 |
| Rated Output Torque | Up to 4000 Nm |
| Reduction Ratio Range | 5:1 to 100:1 (Standard Range) |
| Input Power Range | 0.75 kW to 22 kW |
| Input Speed | Up to 1500 rpm |
| Housing Material | Cast Iron (Grade HT250) |
| Gear Material & Treatment | 20CrMnTi, Carburized and Hardened |
| Efficiency | ≥ 96% (Single Stage) |
The advantages of the ZD40 translate directly into benefits for your operation. Increased equipment uptime is achieved through its durable construction, reducing unexpected failures. Lower operational costs result from its high efficiency and reduced maintenance needs. Furthermore, its reliable performance under variable loads ensures consistent product quality in processes like conveying, mixing, or lifting. The standard IEC motor flange interface simplifies motor pairing, speeding up installation and reducing integration complexity.
Jiangsu Manqi Machinery supports its products with a manufacturing base spanning 10,000-30,000 square meters and a dedicated team focused on quality control. Our experience in serving diverse international markets means we understand the requirements for reliable shipment and technical support. We invite you to experience the difference a robust and well-made gear reducer can make. For specific torque-speed curves, dimensional drawings, or to discuss a custom configuration for your application, please contact our sales team. Let us provide you with a power transmission solution that is built to last.
Frequently Asked Questions (FAQ)
-
What is the main advantage of a cylindrical gear design over other types?
Cylindrical gears (spur or helical) are known for their high efficiency, ability to handle high speeds and loads, and relatively simple manufacturing, which often translates to cost-effectiveness for many industrial applications. -
Can the ZD40 reducer be used in outdoor or dusty environments?
The standard housing provides good protection. For harsh environments, an optional IP55 or higher protection rating can be specified to guard against dust and water jets, making it suitable for many outdoor applications. -
What type of lubrication is required, and what is the maintenance interval?
The unit uses oil bath lubrication. The initial fill of high-quality industrial gear oil is provided. Maintenance intervals depend on operating conditions but typically involve checking oil level and quality periodically, with longer intervals due to the sealed design. -
Is the input flange compatible with standard IEC motors?
Yes, the input is designed with a standard IEC motor flange (size available upon request), allowing for direct coupling with a wide range of commercially available AC motors. -
What is the lead time for standard models?
For standard ZD40 models with common ratios, we typically maintain stock or offer short production lead times. Exact lead times can be confirmed upon order inquiry. -
Can you provide different output shaft configurations?
Yes. While a solid shaft is standard, hollow shaft configurations or special keyway dimensions can be arranged as a customization option to fit your specific coupling or sprocket requirements. -
Do you provide installation and dimensional drawings?
Comprehensive technical documentation, including 2D dimensional drawings and installation guidelines, is provided with the product and is available for download upon request during the quotation process. -
What industries are your main clients from?
Our gear reducers are commonly used in industries such as bulk material handling (conveyors), food processing, packaging machinery, construction equipment, and various general industrial automation lines, particularly in the markets we serve.
