Heavy Cast Iron Workpiece CNC Gantry Milling for Construction Machinery Frames

Heavy Cast Iron Workpiece CNC Gantry Milling for Construction Machinery Frames thumbnail-2

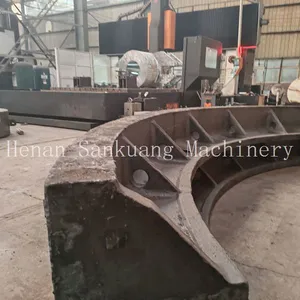

Heavy Cast Iron Workpiece CNC Gantry Milling for Construction Machinery Frames thumbnail-3

Heavy Cast Iron Workpiece CNC Gantry Milling for Construction Machinery Frames thumbnail-4

Heavy Cast Iron Workpiece CNC Gantry Milling for Construction Machinery Frames thumbnail-5

Heavy Cast Iron Workpiece CNC Gantry Milling for Construction Machinery Frames photo-1

Heavy Cast Iron Workpiece CNC Gantry Milling for Construction Machinery Frames photo-2

Heavy Cast Iron Workpiece CNC Gantry Milling for Construction Machinery Frames photo-3

Heavy Cast Iron Workpiece CNC Gantry Milling for Construction Machinery Frames photo-4

Heavy Cast Iron Workpiece CNC Gantry Milling for Construction Machinery Frames photo-5

Product Spotlights

A fully customizable, heavy-duty CNC gantry milling machine specifically engineered for high-precision machining of large cast iron construction machinery frames. Features exceptional rigidity, high-power spindle, and customizable travels/load capacity to enhance production capability, ensure part quality, and provide long-term durability with a lower total cost of ownership.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material Compatibility:

Heavy cast iron, steel, alloy workpieces

Machine Type:

CNC Gantry Milling Machine

Primary Application:

Machining large construction machinery frames

Contact Supplier Request Quote Chat Now

Henan San Kuang Machinery Technology Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Compatibility Heavy cast iron, steel, alloy workpieces

Machine Type CNC Gantry Milling Machine

Primary Application Machining large construction machinery frames

Control System Siemens or Fanuc CNC system (customizable)

Worktable Load Capacity Up to 20 tons (customizable)

Travel (X/Y/Z) Customizable, e.g., 3000x2000x1000mm

Spindle Power 30-50 kW (available upon request)

Positioning Accuracy High precision, customizable to requirements

Cooling System High-pressure coolant system (optional)

As a leading manufacturer with over a decade of experience, Henan San Kuang Machinery Technology Co., Ltd. specializes in providing robust, high-precision machining solutions for heavy industries. Our Heavy Cast Iron Workpiece CNC Gantry Milling Machine is engineered specifically for the demanding task of machining large-scale construction machinery frames. Built within our expansive 10,000-30,000 square meter facility by a skilled team of 51-100 professionals, this machine represents our commitment to delivering durable, reliable, and highly efficient equipment that meets the rigorous standards of global markets from North America and Europe to Southeast Asia and Africa.

Core Product Features & Technical Advantages:

Unmatched Rigidity & Stability: The machine's reinforced gantry structure and heavy-duty cast iron base are designed to absorb vibrations and maintain exceptional stability during the high-force milling of tough materials like cast iron, ensuring superior surface finish and extended tool life.
High-Precision Machining: Equipped with precision ball screws, linear guides, and a high-performance CNC system (Siemens or Fanuc options available), it delivers consistent, repeatable accuracy essential for complex frame components, meeting tight tolerance requirements.
Customizable Large Capacity: Tailored to handle massive workpieces typical in construction machinery, the worktable load capacity and machining travels (X, Y, Z axes) are fully customizable to suit specific frame dimensions and production volumes.
Powerful Spindle & Efficient Chip Removal: A high-torque, high-power spindle (30-50 kW range) tackles deep cuts in cast iron. Coupled with an optional high-pressure coolant system, it ensures efficient chip removal, effective cooling, and uninterrupted production cycles.
User-Friendly Operation & Automation Ready: The intuitive CNC interface simplifies programming and operation. The design is compatible with automation peripherals like pallet changers or robotic loading systems, facilitating integration into smart manufacturing lines.

Technical Specifications Overview:
The following table outlines key customizable parameters. Final specifications are determined based on your specific workpiece and production needs.

Parameter	Specification / Option
Max Workpiece Weight	Customizable, typically up to 20,000 kg
X/Y/Z Axis Travel	Customizable (e.g., 3000mm x 2000mm x 1000mm)
Spindle Speed Range	Wide range, customizable (e.g., 50-4000 rpm)
CNC Control System	Siemens, Fanuc, or other reputable brands (optional)
Positioning Accuracy	High precision grade, customizable upon request
Coolant System	Standard flood coolant; High-pressure system optional

Benefits for Your Business:

Enhanced Production Capability: Machine large, complex cast iron frames in a single setup, reducing handling time and improving throughput.
Superior Part Quality & Consistency: Achieve precise geometries, excellent surface integrity, and dimensional stability part after part, reducing rework and scrap rates.
Long-Term Durability & Lower TCO: The rugged construction ensures minimal downtime and lower maintenance costs over the machine's lifespan, offering a favorable total cost of ownership.
Adaptability & Future-Proofing: The customizable nature allows the machine to adapt to evolving product designs and integrate with future factory automation initiatives.

Backed by our comprehensive quality management systems including ISO9001 and ISO14000, and supported by an annual export value reflecting strong international trust, this CNC Gantry Milling Machine is more than just equipment—it's a productivity partnership. We ensure reliable shipment from major ports like Shanghai, Qingdao, and Tianjin. Choose a solution built on a foundation of industrial expertise and proven performance. Contact us today to discuss customizing this powerful milling center for your specific construction machinery frame manufacturing challenges.

Frequently Asked Questions (FAQ):

What is the maximum weight of a workpiece this machine can handle?
The machine is designed for heavy-duty applications. The standard configuration can typically handle workpieces up to 20 tons, but this is fully customizable based on your specific requirements for even larger frames.
Can it machine materials other than cast iron?
Absolutely. While optimized for heavy cast iron, the machine's powerful spindle and rigid structure are equally capable of milling various steels, alloys, and other hard metals used in heavy equipment manufacturing.
How customizable are the machine's travel distances and table size?
Extremely customizable. The X, Y, and Z axis travels, as well as the worktable dimensions and load capacity, are key parameters we tailor to match your largest frame components and production workflow.
What kind of precision and surface finish can I expect?
Utilizing precision components and advanced control systems, the machine delivers high positioning accuracy and repeatability. For cast iron frames, it can achieve surface finishes suitable for functional mating surfaces without extensive secondary processing.
What after-sales support and training do you provide?
We provide comprehensive installation guidance, operator training, and technical support. A detailed manual and access to our engineering team ensure smooth integration into your production line.
Is the CNC control system user-friendly for our operators?
Yes. We offer industry-standard control systems from brands like Siemens or Fanuc, known for their intuitive programming interfaces and widespread use, which helps reduce the operator learning curve.
What are the power requirements for this large machine?
Being a heavy-duty machine, it requires a substantial power supply, typically in the range of 80-150 kVA depending on the spindle configuration. Specific requirements will be detailed in the customized proposal.
How do you ensure machine quality and reliability?
Our manufacturing process adheres to strict quality standards, including ISO 9001. Each machine undergoes rigorous factory testing and run-off procedures before shipment to verify performance against agreed specifications.
