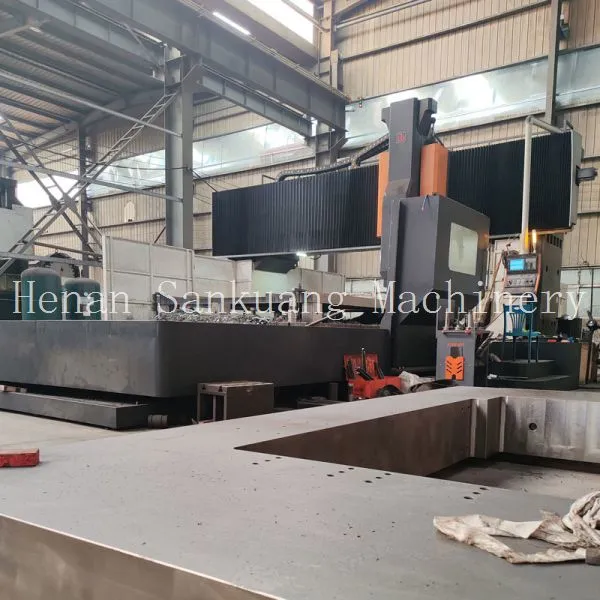

As a specialized manufacturer with over a decade of experience in precision heavy machinery, Henan San Kuang Machinery Technology Co., Ltd. proudly presents our advanced Tight Tolerance Fixed Gantry Milling Machine. Engineered specifically for the demanding task of machining large hydraulic blocks and other massive, complex components, this machine combines structural rigidity with high-precision control. Our factory, spanning 10,000-30,000 square meters and backed by a robust quality management system including ISO 9001, is dedicated to delivering industrial equipment that meets the stringent requirements of global markets across North America, Europe, Asia, and beyond. This milling solution is designed to provide manufacturers with the capability to achieve exceptional accuracy on large workpieces, directly enhancing production efficiency and part quality.
This machine is built around a fixed gantry structure, which provides unparalleled stability and rigidity compared to moving gantry designs. This is critical for maintaining tight tolerances during the machining of heavy, dense materials typical in hydraulic blocks. The integration of an MTR (Modular Tooling Ready) spindle system offers significant advantages in tool interchangeability, reduced setup times, and enhanced machining flexibility for complex operations.
Core Features & Technical Advantages:
- Unmatched Structural Integrity: The fixed gantry and heavily ribbed, stress-relieved cast iron or welded steel construction minimize vibration and thermal deformation, ensuring consistent precision even during prolonged, heavy-duty cutting cycles.
- High-Precision Machining: Equipped with high-resolution linear scales and precision ball screws, the machine is capable of achieving and holding tight tolerances essential for hydraulic component sealing surfaces and critical bore dimensions.
- Large Capacity & Flexibility: Designed to accommodate oversized workpieces, the machine features a generously sized worktable and extensive XYZ travels. Configurations are available to suit specific part size requirements.
- Powerful & Versatile MTR Spindle: The heart of the machine, the MTR spindle, provides high torque at low speeds for heavy milling and high-speed capability for finishing. Its modular design allows for quick tool changes and adaptation to various machining tasks.
- Advanced CNC Control: Operated by a user-friendly, high-performance CNC system, it supports complex 3D contouring, fine surface finishing, and efficient programming for batch production.
- Efficient Chip & Coolant Management: Integrated systems for chip removal and high-pressure coolant delivery ensure uninterrupted operation, protect the workpiece, and extend tool life, which is crucial for deep cavity machining in hydraulic blocks.
Key Technical Specifications (Typical Configuration):
| Parameter | Specification / Capability |
| Gantry Structure | Fixed Bridge Design |
| Spindle Type | MTR (Modular Tooling Ready) Spindle |
| Spindle Power | High-power AC Servo Spindle (Customizable) |
| Table Working Area | Customizable (e.g., 2000mm x 3000mm and larger) |
| XYZ Travel | Customizable based on application |
| Positioning Accuracy | High precision, suitable for tight tolerance work |
| Control System | Industry-standard High-performance CNC |
| Coolant System | High-pressure through-spindle coolant optional |
Benefits for Your Business:
- Elevated Part Quality: Achieve the precise dimensions and surface finishes required for reliable hydraulic systems, reducing leakage and failure rates.
- Reduced Production Time: The machine's rigidity and power allow for aggressive metal removal rates, while the MTR spindle minimizes non-cutting time.
- Handling of Large Components: Eliminate the need for multiple setups or subcontracting for oversized hydraulic blocks and frames, keeping production in-house.
- Long-Term Reliability: Built for industrial endurance, it offers low maintenance and high uptime, providing a strong return on investment.
- Adaptability: While ideal for hydraulic blocks, it is equally capable for machining large molds, dies, aerospace components, and energy sector parts.
Our commitment to quality is demonstrated through our comprehensive certifications, including ISO 9001 for quality management and ISO 14000 for environmental management. With an annual export value ranging from US$2.5 Million to US$5 Million, we have successfully served a diverse global clientele across six continents. Our machines are shipped from major ports like Shanghai, Qingdao, and Tianjin, ensuring reliable logistics. Choosing our Tight Tolerance Fixed Gantry Milling Machine means partnering with an experienced manufacturer dedicated to providing robust, precision machinery that enhances your manufacturing capabilities. We encourage you to contact us with your specific workpiece dimensions and tolerance requirements for a tailored solution.
Frequently Asked Questions (FAQ):
-
Q: What exactly does "tight tolerance" mean for this machine?
A: "Tight tolerance" refers to the machine's ability to consistently achieve and hold very small dimensional deviations from the programmed path, often within a few microns over large areas. This is critical for mating surfaces, seal grooves, and precision bores in hydraulic components. -
Q: Why is a fixed gantry design preferred for machining large hydraulic blocks?
A: In a fixed gantry design, the heavy crossbeam is stationary, and the table moves in the X-axis. This provides superior rigidity and mass stability, minimizing vibration and deflection during heavy cuts on dense materials like cast iron or steel blocks, which is essential for precision. -
Q: What are the main advantages of the MTR spindle system?
A: The MTR spindle offers modularity, allowing for potentially quicker tool changes and compatibility with a range of standardized tooling interfaces. It can enhance productivity by reducing setup time and providing a reliable, high-performance connection for heavy milling. -
Q: Can this machine handle other materials besides the typical metals for hydraulic blocks?
A> Absolutely. While optimized for ferrous metals like cast iron and steel, the machine's power and control system make it suitable for machining large components from aluminum alloys, other non-ferrous metals, and even certain high-strength composites, depending on tooling. -
Q: How do you ensure accuracy over the entire large work area?
A> Accuracy is maintained through a combination of a thermally stable mechanical structure, precision-ground guideways, high-quality ball screws, and often, closed-loop feedback systems like linear scales. The machine's design inherently resists geometric errors over long travels. -
Q: What kind of control system is used, and is operator training provided?
A> The machine is typically equipped with a well-known, industry-standard CNC control system known for its reliability and user-friendly interface. Comprehensive operation and programming manuals are provided, and basic training can be arranged. -
Q: What are the lead time and payment terms for such a large machine?
A> Lead times vary based on the specific configuration and current production schedule. Standard payment terms often involve a deposit with order confirmation and balance before shipment. We work closely with clients to establish a feasible schedule and terms. -
Q: Do you provide installation support and after-sales service?
A> Yes. We provide detailed installation manuals and can offer remote guidance. For complex installations, on-site technician support can be arranged. We also supply a comprehensive warranty and have a team for technical support and spare parts supply.
