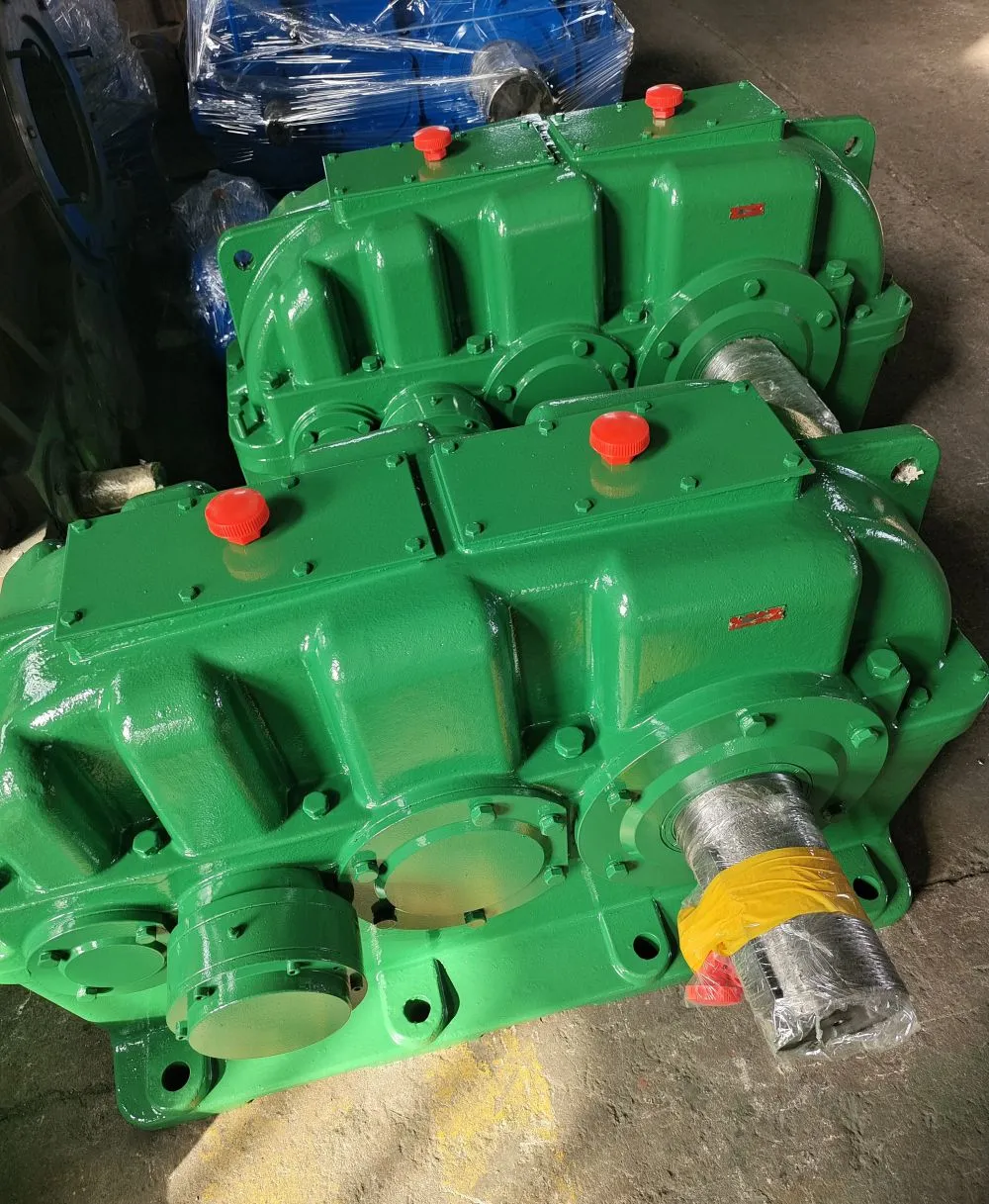

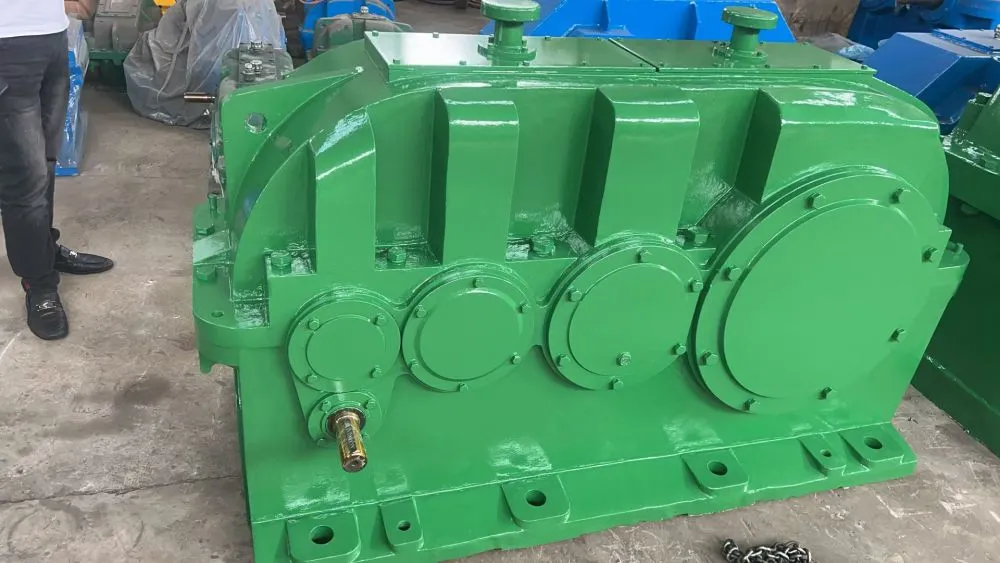

As a dedicated manufacturer with a focus on precision power transmission solutions, Jiangsu Manqi Machinery is proud to present the ZSY500 Hardened Helical Gear Reducer. Engineered in our modern facility in Suzhou, this reducer is built for one primary purpose: to deliver reliable, high-torque power transmission in the most demanding industrial environments. We understand that downtime is costly, which is why the ZSY500 is designed with hardened helical gears and a robust construction to ensure exceptional load capacity and long service life, providing our clients in sectors like mining and construction with a dependable component for their critical machinery.
The core of the ZSY500's performance lies in its advanced gear technology and thoughtful engineering. Let's delve into the specific features and benefits that set this gear reducer apart.
- Superior Gear Design: Features precision-cut, carburized and hardened helical gears. This process significantly increases surface hardness and core toughness, leading to excellent wear resistance, reduced noise levels, and smooth, efficient power transfer even under shock loads.
- Robust Housing & Construction: The gearbox housing is manufactured from high-grade cast iron, providing superior rigidity and vibration damping. This ensures precise alignment of gears and bearings is maintained, protecting internal components and extending overall lifespan.
- High Load Capacity & Torque Density: Optimized gear geometry and high-strength materials allow the ZSY500 to handle high radial and axial loads. Its compact design offers a high torque-to-size ratio, saving valuable space in machinery layouts.
- Efficient Thermal Management: Designed with efficient heat dissipation in mind. The housing's ribbed structure increases surface area, and combined with high-quality lubricants, it maintains optimal operating temperatures, preventing overheating and lubricant breakdown.
- Versatile Mounting & Configuration: Available in standard foot-mounted (ZSY) and flange-mounted (ZSYF) configurations. Output shafts can be supplied as solid or hollow, providing flexibility for direct coupling with various driven equipment like conveyors, mixers, and crushers.
- Sealed for Reliability: Equipped with high-performance lip seals and, in some configurations, labyrinth seals at input and output shafts to effectively prevent lubricant leakage and ingress of contaminants like dust and moisture.
The technical specifications of the ZSY500 are tailored to meet a wide range of industrial requirements. Below is a summary of key parameters. Please note that specific values depend on the selected reduction ratio and configuration.
| Parameter | Description / Typical Range |
| Model | ZSY500 (Foot-mounted), ZSYF500 (Flange-mounted) |
| Center Distance | 500 mm |
| Standard Reduction Ratio (i) | Available from approximately 8:1 to 100:1 (Custom ratios possible) |
| Gear Hardness | Gear teeth surface hardness ≥ 58-62 HRC |
| Gear Accuracy | Manufactured to Grade 6-7 standards (GB/T 10095) |
| Lubrication | Oil bath lubrication (Synthetic or mineral industrial gear oil recommended) |
| Operating Temperature Range | -10°C to +80°C (Ambient and oil temperature dependent) |
For our clients, these technical features translate into tangible operational benefits. The high load capacity means you can trust this reducer for heavy-duty starting and running conditions. The hardened gears dramatically reduce maintenance frequency and costs associated with gear wear. The smooth operation minimizes vibration transfer to surrounding structures, protecting other machine components. Finally, the versatile design simplifies integration into both new projects and existing system retrofits.
Choosing Jiangsu Manqi Machinery means partnering with a manufacturer that combines practical engineering with a commitment to quality. Operating from a 10,000-30,000 square meter facility, our team of engineers and technicians oversees the production process to ensure every ZSY500 reducer meets stringent standards. We have successfully supplied reliable power transmission components to markets in Eastern Europe, Southeast Asia, Africa, and South Asia, building a reputation for durability and value. Our direct manufacturing capability allows for responsive communication and the potential for customization to meet your specific torque, ratio, or mounting needs. We invite you to experience the robust performance of the ZSY500 Hardened Helical Gear Reducer—contact us today with your application details to discuss how this reducer can strengthen your machinery's drive system.
Frequently Asked Questions (FAQ)
Q1: What is the main advantage of hardened helical gears over standard gears?
A1: Hardening (typically carburizing and quenching) increases the surface hardness and fatigue strength of the gear teeth. This results in much higher resistance to pitting, wear, and tooth breakage, especially under heavy and shock loads, leading to a significantly longer service life and reduced maintenance.
Q2: Can the ZSY500 reducer be used in outdoor or harsh environments?
A2: Yes, its design is suitable for challenging conditions. The high-strength cast iron housing offers good corrosion resistance and protection. Combined with effective sealing solutions, it can perform reliably in environments with dust, moisture, and variable temperatures, common in mining and construction.
Q3: How do I select the correct reduction ratio for my application?
A3: The required ratio depends on your input motor speed and desired output speed or torque. Our technical team can assist you with this selection. Please provide your motor specifications (power, speed) and the required output speed or torque for your driven machine.
Q4: What type and quantity of lubricant are required, and what is the maintenance interval?
A4: We recommend using high-quality extreme pressure (EP) industrial gear oil. The specific oil grade and fill quantity are provided in the product manual. Initial oil change is suggested after the first 400-500 hours of operation. Subsequent change intervals can typically be extended to 4000-8000 hours, depending on operating conditions.
Q5: Is a backup service or warranty provided for this product?
A5: As the manufacturer, we stand behind our products. The ZSY500 reducer comes with a standard warranty covering material and workmanship defects. We also provide technical support and can supply spare parts such as seals, bearings, and even complete gear sets if needed in the future.
Q6: Can you provide a customized version with a special input flange or shaft?
A6: Customization is a key service we offer. Modifications such as special input flanges to match specific motors, unique shaft dimensions, or special paint finishes can be discussed and engineered based on your project requirements and volume.
Q7: What is the typical lead time for an order of ZSY500 reducers?
A7: Lead times vary based on order quantity, configuration, and customization level. For standard models, we often have shorter lead times. We provide estimated production and shipping schedules upon receipt of your detailed inquiry to ensure it aligns with your project timeline.
Q8: How does this reducer compare to a worm gear reducer in terms of efficiency?
A8: Helical gear reducers, like the ZSY500, generally offer higher mechanical efficiency (often above 94% per stage) compared to single-stage worm gear reducers. This means less energy is lost as heat, leading to lower operating costs and often a more compact solution for the same output torque.
