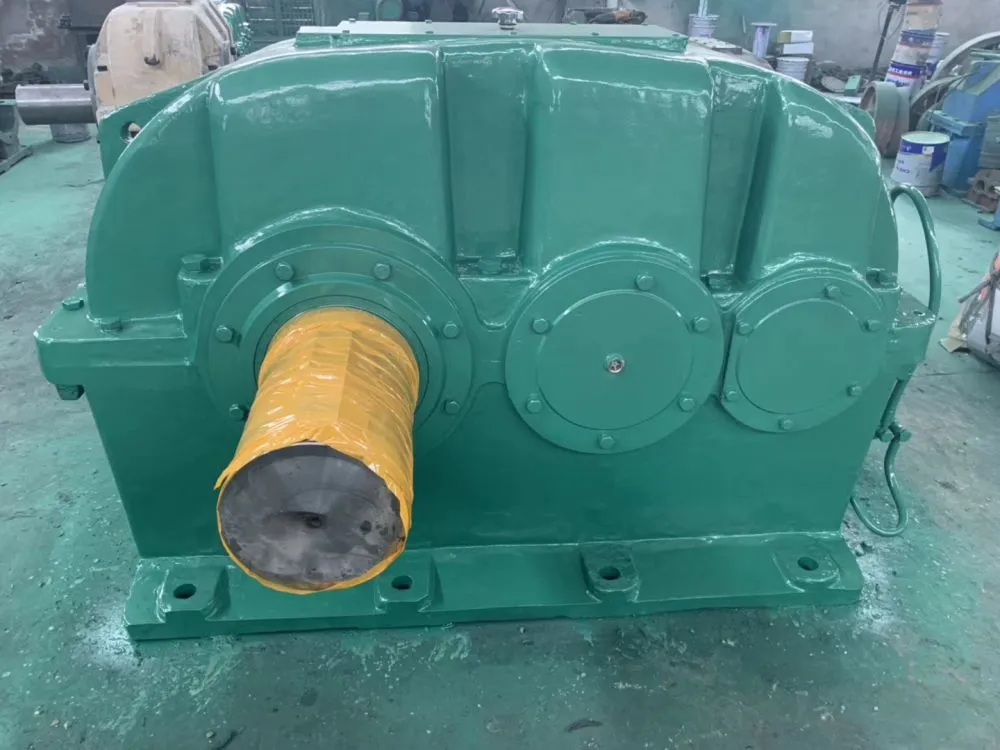

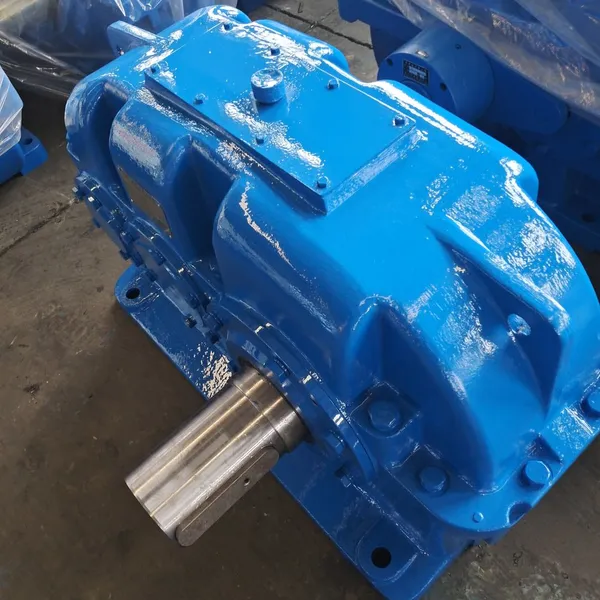

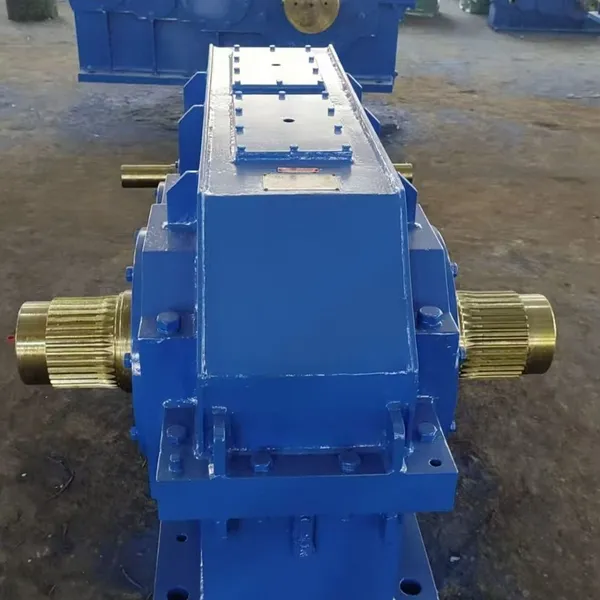

As a dedicated manufacturer of industrial power transmission solutions, Jiangsu Manqi Machinery Co., Ltd. proudly presents the ZLY315 Helical Cylindrical Gear Reducer. Engineered with a standard compliant design, this reducer is crafted to deliver reliable, efficient, and durable torque conversion for a wide array of demanding industrial applications. Our focus on precision manufacturing and robust construction ensures that the ZLY315 provides a dependable backbone for your machinery, enhancing operational stability and longevity.
The ZLY315 reducer is a cornerstone component in systems requiring precise speed reduction and high torque output. Its helical gear design offers significant advantages over other types, contributing to smoother operation, higher load capacity, and improved efficiency.
- High-Efficiency Helical Gear Design: The use of helical gears reduces noise and vibration during operation compared to spur gears. The gradual tooth engagement leads to smoother power transmission, higher contact ratios, and consequently, greater efficiency and load-bearing capacity.
- Robust Construction & Materials: The gear teeth are manufactured from high-strength alloy steel, processed through precision forging, cutting, and heat treatment (such as carburizing and quenching) to achieve exceptional hardness and wear resistance. The housing is typically constructed from high-quality cast iron, providing excellent rigidity, vibration damping, and protection for the internal components.
- Standard Compliant Design: The reducer is designed to align with common industry dimensional and performance standards, facilitating easier integration, replacement, and compatibility with existing systems or new machinery designs.
- Versatile Mounting Options: Available in standard foot-mounted or flange-mounted configurations to suit different installation requirements and space constraints.
- Effective Lubrication & Cooling: Utilizes an oil bath lubrication system to ensure all gear surfaces and bearings are adequately lubricated, minimizing friction and wear. Cooling is primarily through natural heat dissipation via the housing; an optional fan cooling unit can be provided for applications with higher thermal loads.
- Customizable Input/Output: While the ZLY315 model defines a core size and capacity, specific input speeds, power ratings, and output shaft configurations can be tailored to match the exact needs of your application.
Technical specifications provide a clear understanding of the reducer's capabilities. Below is a table outlining key parameters for the ZLY315 series. Note that specific values for power, torque, and ratio are application-dependent and should be confirmed during the selection process.
| Parameter | Description / Typical Range |
| Model | ZLY315 |
| Gear Type | Helical Cylindrical |
| Center Distance (Approx.) | 315 mm (indicative of size category) |
| Mounting Style | Foot-mounted (standard), Flange-mounted (optional) |
| Primary Housing Material | Cast Iron |
| Primary Gear Material | Alloy Steel |
| Lubrication Method | Oil Bath |
| Cooling Method | Natural Cooling (Fan Cooling Optional) |
| Design Standard Compliance | Aligns with common industry dimensional standards |
| Typical Application Power Range | Customizable, suitable for medium to high-power drives |
| Output Torque Capacity | High torque transmission, specific value depends on ratio and input |
Integrating the ZLY315 Helical Gear Reducer into your system brings tangible benefits:
- Enhanced Operational Smoothness: Reduced noise and vibration lead to a more pleasant working environment and less stress on connected equipment.
- Increased System Reliability & Life: The robust design and materials minimize wear and failure risks, extending the service life of both the reducer and the overall machinery.
- Improved Energy Efficiency: The high transmission efficiency of helical gears can contribute to lower energy consumption over time.
- Simplified Maintenance & Compatibility: Standard design and effective lubrication reduce maintenance frequency and complexity. Its compliance with common standards makes sourcing replacements or integrating into new designs easier.
- Adaptability: Customizable features allow it to be optimized for your specific speed, power, and mounting needs.
Jiangsu Manqi Machinery Co., Ltd. combines manufacturing expertise with a commitment to quality. Established in 2017 and operating from a facility spanning 10,000-30,000 square meters in Suzhou, we have built a foundation for producing reliable mechanical components. Our team of 11-50 skilled employees focuses on precision and durability. While our annual export value is below US$1 Million, our growing presence in markets like Eastern Europe, Southeast Asia, Africa, and South Asia reflects the trusted performance of our products, shipped efficiently from the Port of Shanghai. The ZLY315 Helical Cylindrical Gear Reducer embodies this commitment—a robust, standard-compliant solution designed to provide long-term, dependable service in your industrial applications. Contact us to discuss how this reducer can be configured to meet your exact requirements and strengthen your machinery's performance.
Frequently Asked Questions (FAQ)
Q1: What is the main advantage of a helical gear reducer compared to other types?
A: Helical gear reducers generally operate with less noise and vibration than spur gear reducers due to the angled tooth engagement. They also typically offer higher contact ratios, leading to greater load capacity and transmission efficiency.
Q2: What does "Standard Compliant Design" mean for the ZLY315?
A: It means the reducer's key dimensions, mounting interfaces, and performance characteristics are designed to align with widely accepted industry standards. This facilitates easier installation, compatibility with standard motor flanges or bases, and interchangeability within certain systems.
Q3: Can the input speed and reduction ratio be customized?
A: Yes. While the ZLY315 model defines a physical size and capacity framework, the specific gear ratio and compatible input speed/power range can be customized based on your application's requirements during the ordering process.
Q4: What are the typical mounting options available?
A: The standard configuration is foot-mounted, which is common for base installation. A flange-mounted option is also available, which allows for direct coupling to a motor or other equipment.
Q5: What maintenance does this reducer require?
A: Primary maintenance involves periodic checking and replacement of the lubricating oil according to the operating environment and hours of use. The oil bath system is designed for effective lubrication, and the robust construction minimizes other routine maintenance needs.
Q6: Is this reducer suitable for high-temperature environments?
A: The standard design uses natural cooling. For applications generating significant heat or operating in hot ambient conditions, an optional fan cooling unit can be specified to assist in heat dissipation and maintain optimal operating temperature.
Q7: What materials are used for the gears and housing?
A: The gears are typically made from high-strength alloy steel, treated for hardness and wear resistance. The housing is commonly constructed from cast iron, providing strength, durability, and good vibration damping.
Q8: How do I select the right ZLY315 model for my application?
A: Selection requires knowing your input power (or torque), input speed, desired output speed (or reduction ratio), and installation space/mounting preference. Providing these details to our technical team will allow us to recommend the appropriate configuration within the ZLY315 series.
