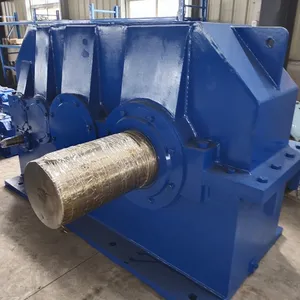

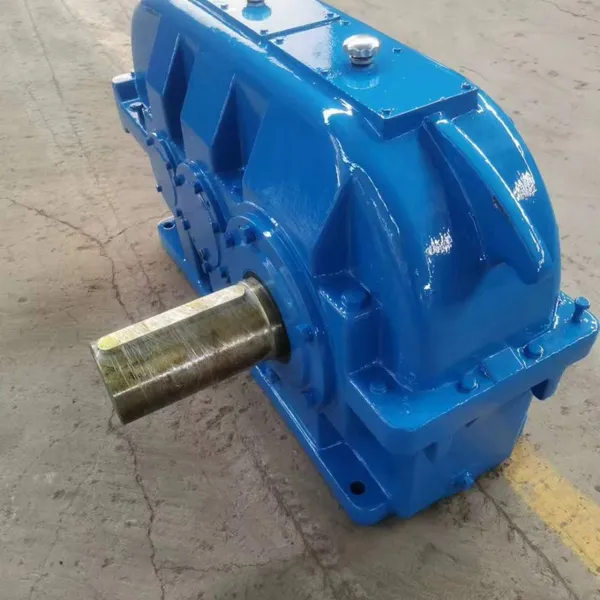

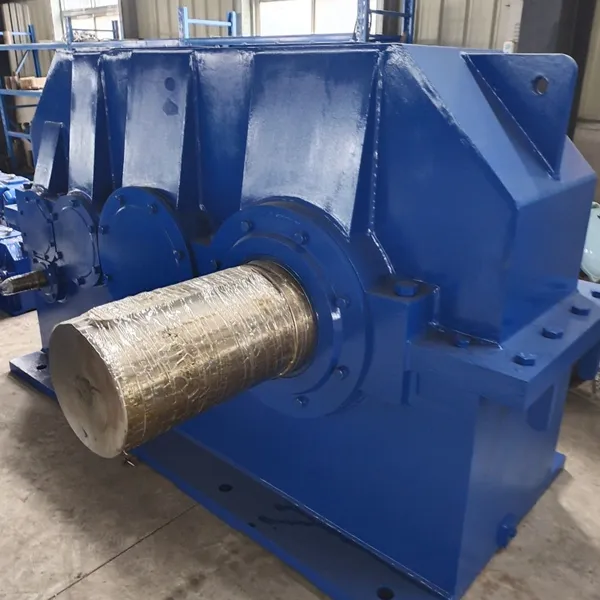

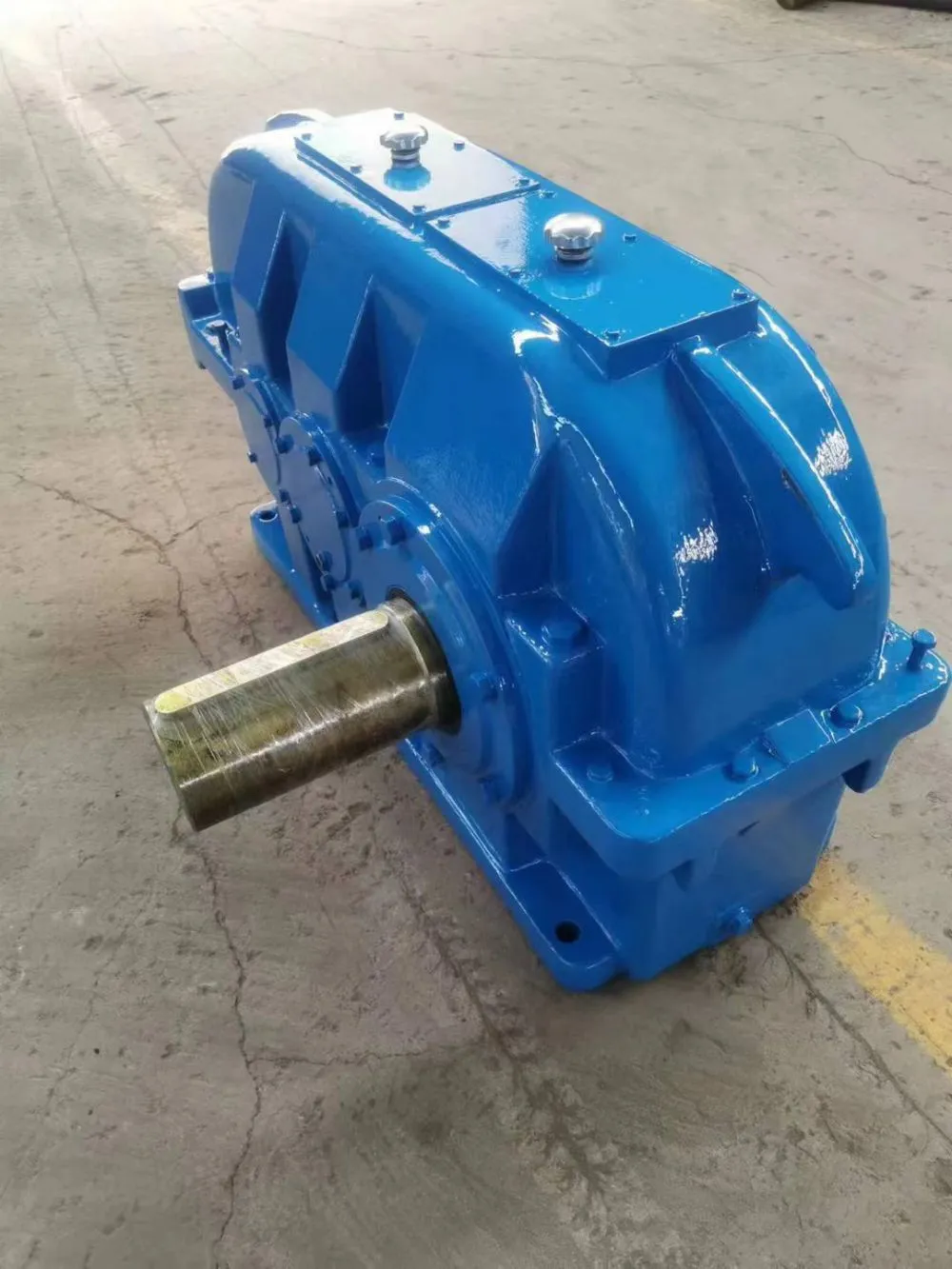

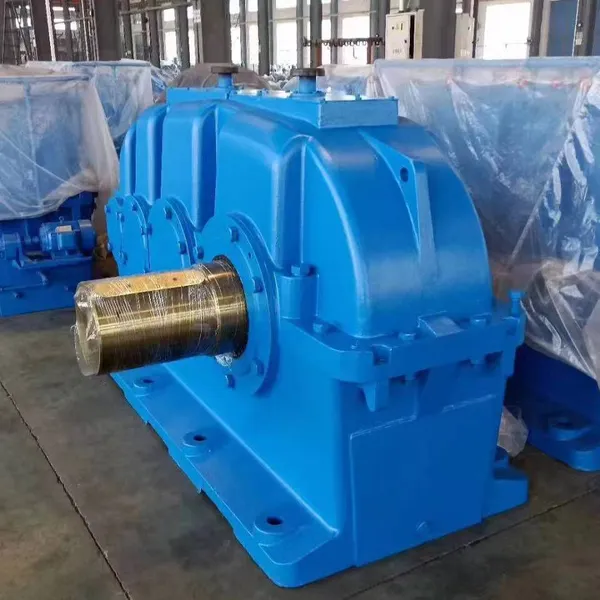

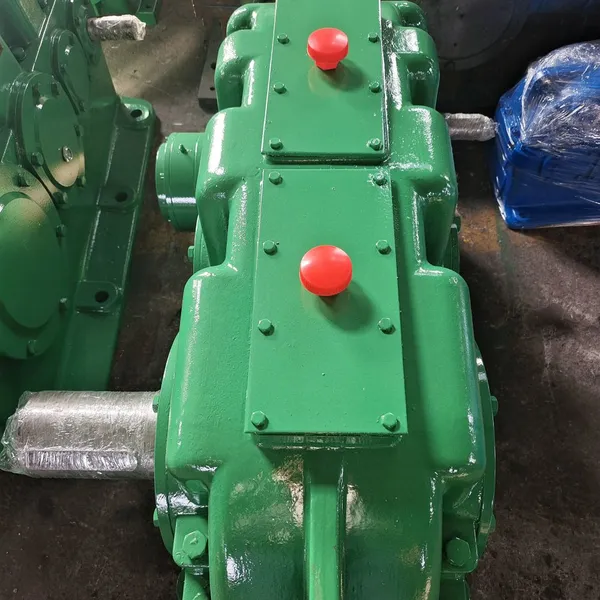

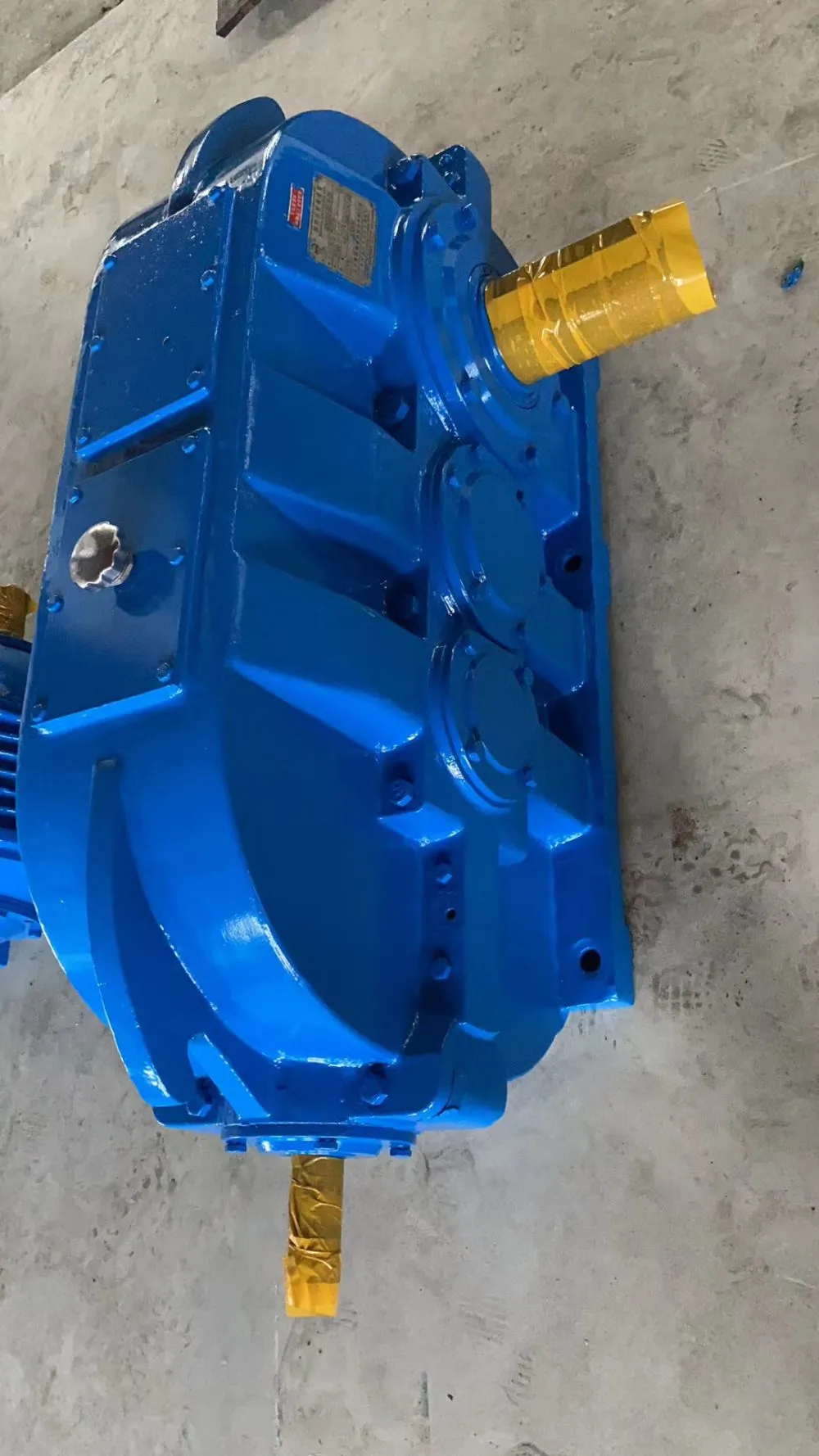

As a leading manufacturer in the power transmission industry, Jiangsu Manqi Machinery Co., Ltd. leverages our expertise and modern manufacturing facility to deliver robust and reliable gear reducers. Our ZSY280 High Bearing Capacity Hardened Helical Cylindrical Gear Reducer is engineered for demanding applications where durability and consistent performance are critical. Built with precision and high-quality materials, this reducer is designed to provide long service life and efficient power transmission, helping our clients in Eastern Europe, Southeast Asia, Africa, and South Asia enhance their operational productivity and reduce maintenance costs.
Product Overview and Key Advantages
The ZSY280 series represents our commitment to producing heavy-duty gear reducers. The core of its design lies in the use of hardened helical cylindrical gears, which offer several distinct advantages over standard gear types. The helical tooth design ensures smoother, quieter operation with less vibration, while the hardening process significantly increases surface hardness and wear resistance. Combined with a high-capacity bearing system, this reducer is capable of handling substantial radial and axial loads, making it a reliable choice for strenuous industrial environments.
- Enhanced Durability: The gears undergo a specialized hardening treatment, greatly improving their resistance to pitting, scoring, and wear, which extends the overall lifespan of the unit.
- High Load Capacity: Engineered with a robust housing and high-grade bearings, the ZSY280 is built to withstand high shock loads and continuous heavy-duty operation.
- Operational Efficiency: The helical gear design provides a higher contact ratio, leading to smoother power transmission, reduced noise levels, and improved overall efficiency compared to spur gear reducers.
- Compact and Versatile Design: Despite its high power density, the design is relatively compact. It offers multiple mounting options (foot and flange) for flexible integration into various machinery layouts.
- Reliable Lubrication: Utilizes a proven oil bath lubrication system to ensure all critical gear and bearing surfaces are adequately lubricated, minimizing friction and heat generation.
Technical Specifications and Configuration
The ZSY280 reducer can be customized to meet specific application requirements. Below is a table outlining some of its typical configuration parameters. Please note that specific values for input power, output torque, and reduction ratios are determined based on the customer's needs.
| Parameter | Description / Typical Range |
|---|---|
| Model Series | ZSY280 |
| Gear Type | Hardened Helical Cylindrical Gears |
| Housing Material | High-Strength Cast Iron (GGG50 or equivalent) |
| Input Configuration | IEC Standard Motor Flange or Direct Shaft Input |
| Output Configuration | Solid Output Shaft |
| Mounting Position | Foot Mounted (M1), Flange Mounted (M4), or Combination |
| Reduction Ratio | Available in a wide range from approximately 5:1 to 100:1 |
| Service Factor | Designed for heavy-duty service (SF ≥ 1.4) |
| Lubrication | Initial fill with synthetic or mineral industrial gear oil |
Application Scenarios and Customer Benefits
This high-capacity reducer is ideally suited for a multitude of heavy industrial applications where reliable speed reduction and torque multiplication are required.
- Conveyor Systems: Drives long-distance belt conveyors in mining, aggregate, and port handling, providing steady power under variable loads.
- Mixers and Agitators: Powers large mixing equipment in chemical, pharmaceutical, and construction material industries, handling high starting torque.
- Crane and Hoist Mechanisms: Serves as a key component in lifting equipment, offering precise control and high overload capacity.
- Extruders and Calenders: Used in plastic and rubber processing lines, delivering consistent torque for continuous production.
- For the customer, choosing the ZSY280 translates into reduced downtime due to its robust construction, lower long-term operating costs through improved energy efficiency and less frequent maintenance, and increased system reliability for critical processes.
With over five years of industry presence since our establishment in 2017, Jiangsu Manqi Machinery has built a reputation for manufacturing quality power transmission components. Our 10,000-30,000 square meter factory is equipped to maintain strict quality control throughout the production process. We consistently serve a growing international clientele, exporting through the Port of Shanghai to markets worldwide. The ZSY280 Hardened Helical Gear Reducer embodies our dedication to providing durable, high-performance solutions. By integrating this reducer into your machinery, you gain a partner in reliability. Contact us today to discuss your specific torque, speed, and mounting requirements, and let us provide a tailored solution that drives your productivity forward.
Frequently Asked Questions (FAQ)
Q1: What is the primary advantage of using hardened helical gears in this reducer?
A1: The hardening process significantly increases the surface hardness and fatigue strength of the gear teeth. This results in superior resistance to wear, pitting, and tooth breakage, especially under heavy and shock loads, leading to a much longer operational life compared to non-hardened gears.
Q2: Can the ZSY280 reducer be used in both horizontal and vertical mounting positions?
A2: The standard ZSY280 design is primarily for horizontal mounting. However, vertical mounting or other specific orientations can be accommodated. It is crucial to discuss your exact mounting configuration with our technical team to ensure proper lubrication and bearing arrangement are specified.
Q3: How do I determine the correct reduction ratio and size for my application?
A3: Selecting the right configuration requires knowing your input speed, desired output speed, required output torque, service hours, and load characteristics (constant, shock, etc.). Our engineering team can assist you with this selection process based on the detailed parameters of your application.
Q4: What type of maintenance does this gear reducer require?
A4: Maintenance is relatively straightforward. It primarily involves periodic checks of the oil level and condition, with oil changes recommended at intervals specified in the manual based on operating conditions. The unit is designed for easy access to check plugs and drain ports. Regular inspection for leaks and unusual noise is also advised.
Q5: Are spare parts readily available for the ZSY280 model?
A5: Yes. As the manufacturer, we maintain an inventory of critical spare parts such as seals, gaskets, and bearings. For major components like gears and shafts, lead times may apply. We recommend keeping a record of your unit's serial number for efficient part identification.
Q6: What is the typical lead time for ordering a custom-configured ZSY280 reducer?
A6: Lead times vary depending on the specific configuration and current production schedule. Standard configurations may have shorter lead times. We provide estimated lead times upon receipt of your detailed inquiry and required specifications.
Q7: Does the unit come pre-filled with lubricant?
A7: Yes, the reducer is shipped from our factory pre-filled with a high-quality industrial gear oil suitable for initial running-in and general operation. The specific oil grade used is indicated on the product nameplate and in the manual.
Q8: Can this reducer be directly coupled with any brand of electric motor?
A8: The input flange of the ZSY280 is designed to match standard IEC motor frame sizes, allowing for direct coupling with motors from most major manufacturers. For non-standard motors or other prime movers (like hydraulic motors), adapter flanges or special input configurations can be provided.
