Home > Consumer Electronics > LED Display > Indoor LED Display > 1602 LCD Screen, 1602A Blue/Yellow-Green, 5V White Text With Backlight, LCD1602

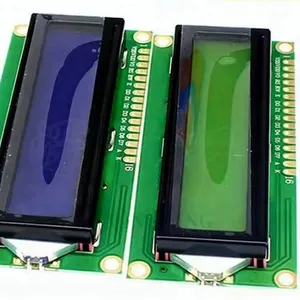

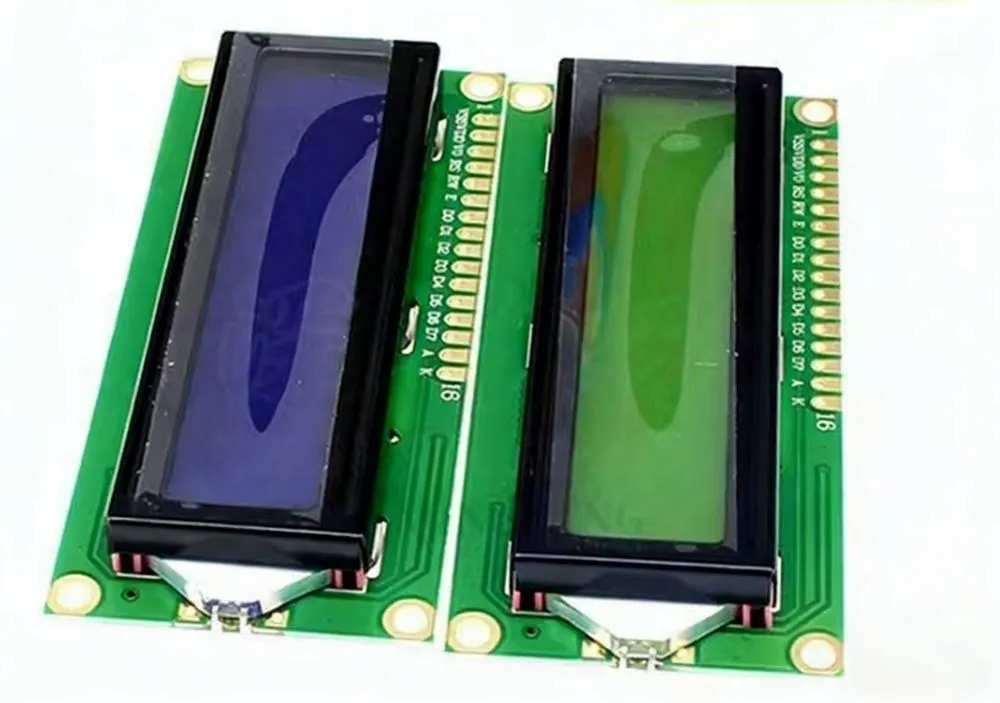

1602 LCD Screen, 1602A Blue/Yellow-Green, 5V White Text With Backlight, LCD1602
Product Spotlights
Display Type 16characters × 2 lines —
LCD Type STN, POSITIVE（Y-G）, TRANSFLECTIVE —
Driver Condition LCD Module : 1/16Duty, 1/5Bias —
LCD Type STN, POSITIVE（Y-G）, TRANSFLECTIVE —
Driver Condition LCD Module : 1/16Duty, 1/5Bias —
US$ 2.3
1 - 999 Unit
US$ 1.9
1000 - 4999 Unit
US$ 1.86
≥5000 Unit
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LCD Screen, 24 Character X 2 Line STN POS Customer Pole Display Character/Graphic COB LCD Display for Sale118*36 mmUS$ 3.0 - 3.5MOQ: 1 Piece -
128x64 COG 12864 Blue Background White Words LCD Display Dimensions:60*50.3MMUS$ 5.0 - 6MOQ: 1 Piece
-
1602 Character Screen With Metal Pin External SPI InterfaceUS$ 2.5 - 2.6MOQ: 1 Piece
-
128*64 Graphic DOT-Matrix 12864LCD Screen Cog12864 LCD DisplayUS$ 3.6MOQ: 1 Piece
-
20 Characters X 2 Lines Monochrome FSTN DOT Matrix LCD Type 2002 LCDNegotiableMOQ: 1 Piece
Certification
ROHS
Item Standard Value Unit
Display Type 16characters × 2 lines —
LCD Type STN, POSITIVE（Y-G）, TRANSFLECTIVE —
Driver Condition LCD Module : 1/16Duty, 1/5Bias —
Viewing Direction 6 O'clock —
Backlight Type SIDE Y-G —
Interface 8-bit MPU interface —
Driver IC SPLC780D or AIP31066 —
1.2 Mechanical Specifications
Item Standard Value Unit
Outline Dimension 80(L) * 36(W) * 11.8(T) mm
Viewing Area 64.3(L) * 16( W) mm
Dot size 0.56(W) × 0.61(H) mm
Dot pitch 0.6(W) × 0.65(H) mm
Character size 2.96(W) × 5.16(H) mm
