Help Center1602 Character Screen With Metal Pin External SPI Interface
Product Spotlights
2. Display mode : STN, Positive, Transmissive
3. Driving method : 1/16 Duty, 1/4 Bias
4. Viewing direction : 12:00 o’clock
Related Products
-
128*64 Graphic DOT-Matrix 12864LCD Screen Cog12864 LCD DisplayUS$ 3.6MOQ: 1 Piece -
20 Characters X 2 Lines Monochrome FSTN DOT Matrix LCD Type 2002 LCDNegotiableMOQ: 1 Piece
-
4.3-inch TFT Color Screen Module LCD Low Power ConsumptionUS$ 10.5 - 10.7MOQ: 1 Unit
-
4.3-inch TFT Smart Serial LCD Screen 480*800NegotiableMOQ: 1 Piece
-
240X320 2.8 - Inch TFT for Water Treatment Systems for Smart AppliancesUS$ 28MOQ: 1 Piece
1 Display, Electrical & Environmental Parameters
1. Display resolution : 16(Column)*2(Row) characters
2. Display mode : STN, Positive, Transmissive
3. Driving method : 1/16 Duty, 1/4 Bias
4. Viewing direction : 12:00 o’clock
5. Backlight : LED, White(or Other)
6. Built-in controller : ST7032
7. Operation temp : 0℃~50℃
8. Storage temp : -10℃~60℃

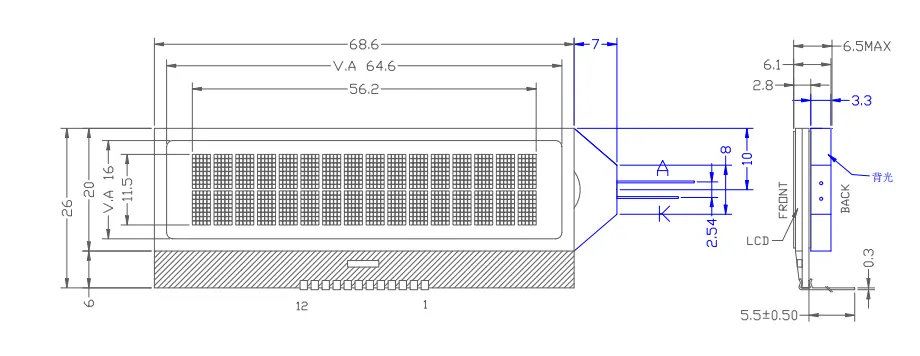

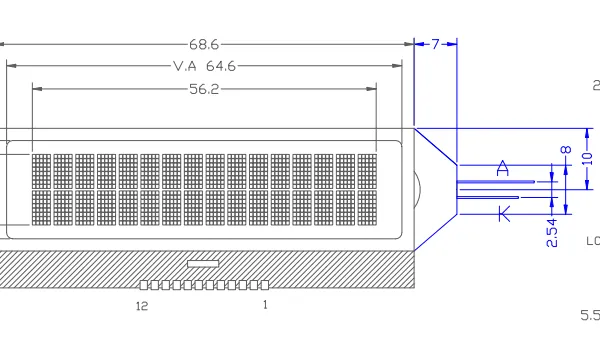

2. Dimension & Weight Parameters
1. Dimensional outline (WHT) : 68.6mm26.0mm2.8mm（+BL5.0）
2. Viewing area (WH) : 64.6mm16.0mm
3. Active area(WH) : 56.25mm11.5mm
4. Dot pitch (WH) : 0.6mm0.7mm
5. Dot size (WH) : 0.55mm0.65mm
We specialize in providing a full range of display modules, including character LCDs, segment LCDs, Graphic lcd and TFT displays.
Our products are widely used in industrial control, home appliances, instruments, automotive, medical, smart home and other fields.
We also provide custom display solutions according to customers’ specific requirements, including size, interface, driver, structure and function development. We offer one-stop service from samples to mass production.
