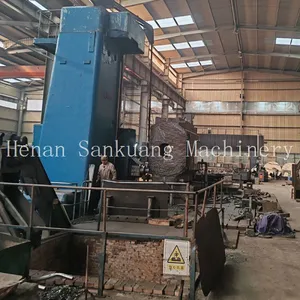

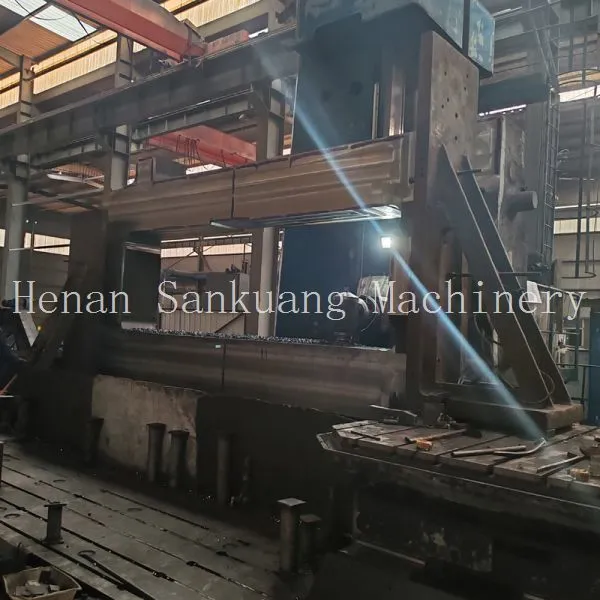

As a leading manufacturer with over a decade of experience, Henan San Kuang Machinery Technology Co., Ltd. specializes in providing robust, precision machining solutions for heavy industries. Our OEM Heavy Duty CNC Horizontal Boring Machines are engineered specifically to handle the demanding requirements of machining large, complex steel castings used in mining equipment. We understand that downtime is costly in mining operations, which is why our machines are built for relentless performance, accuracy, and long-term reliability, directly contributing to increased productivity and reduced operational costs for our clients.
This machine is a cornerstone for fabricating critical mining components such as crusher housings, shovel bases, gearbox casings, and dragline frames. Its powerful construction and advanced CNC capabilities ensure that even the most intricate and heavy-duty parts are machined to exact specifications, batch after batch.
Core Technical Specifications & Advantages:
- Unmatched Rigidity & Stability: The machine bed and column are constructed from high-grade cast iron with advanced stress-relieving treatment, providing exceptional vibration damping and thermal stability. This is crucial for maintaining precision during long-duration machining of tough steel castings.
- High-Precision Spindle System: Equipped with a high-torque, precision-ground spindle supported by pre-tensioned angular contact bearings. Options include spindle diameters of 130mm, 150mm, or larger to suit specific boring and milling needs.
- Customizable Travel & Capacity: We design machines around your workpiece. Key travels (X, Y, Z) and table load capacity (often exceeding 20 tons) are fully customizable to accommodate your largest casting dimensions.
- Advanced CNC Control & Software: Standard configuration includes renowned Siemens or Fanuc CNC systems, paired with user-friendly software for complex contouring, deep-hole boring, and thread milling operations essential for mining parts.
-
Enhanced Productivity Features:
- High-Pressure Coolant System: Efficiently manages heat and chip evacuation during heavy cutting.
- Optional Automatic Tool Changer (ATC): Reduces non-cutting time significantly, enabling uninterrupted machining for complex parts.
- Optional Rotary Table or Pallet System: Allows for multi-face machining in a single setup, drastically improving accuracy and throughput.
Key Specifications Table:
| Parameter | Description / Typical Range |
| Spindle Diameter | 130 mm / 150 mm / Custom |
| Table Load Capacity | Up to 20,000 kg (Customizable) |
| X-axis Travel (Longitudinal) | Customizable (e.g., 4000 mm, 6000 mm) |
| Y-axis Travel (Vertical) | Customizable (e.g., 2500 mm, 3500 mm) |
| Z-axis Travel (Cross) | Customizable (e.g., 1200 mm,1480 mm) |
| W-axis Travel (Spindle) | Customizable |
| Control System | Siemens 840D sl / Fanuc 31i-B (or equivalent) |
| Spindle Speed | 10 - 1,500 rpm (or as required) |
| Positioning Accuracy | As per JIS B6330 or equivalent standards |
Benefits for Your Mining Operation:
- Extended Component Life: Precision machining ensures perfect fit and finish, reducing wear and tear on assembled mining machinery.
- Reduced Scrap & Rework: High repeatability minimizes errors in critical, high-value castings.
- Faster Time-to-Market: The machine's power and optional automation accelerate the production of replacement parts or new equipment.
- Lower Total Cost of Ownership: Built for durability with accessible service points, it ensures high uptime and manageable maintenance costs.
Backed by a company operating from a 10,000-30,000 square meter facility with a dedicated team of 51-100 professionals, our commitment to quality is evidenced by a robust management system framework. We serve a global clientele across North America, South America, Europe, Asia, Africa, and Oceania, with an annual export value ranging from US$2.5 to US$5 million, proving our reliability and market acceptance. When you choose our OEM Heavy Duty CNC Horizontal Boring Machine, you are not just buying a machine; you are investing in a partnership with a proven supplier dedicated to supporting the backbone of the mining industry with dependable, high-performance manufacturing technology. Contact us today to discuss customizing a solution for your specific steel casting machining challenges.
Frequently Asked Questions (FAQ)
Q1: Can this machine handle the very large castings required for draglines or large crushers?
A: Absolutely. A core feature of our offering is full customization. We design the machine's travels (X, Y, Z), table size, and load capacity specifically to accommodate your largest workpiece dimensions, ensuring it meets your exact application needs.
Q2: What level of precision can we expect for machining gearbox housings or other precision components?
A: Our machines are engineered for high precision suitable for critical mining components. Positioning accuracy conforms to international standards like JIS B6330. The rigid construction and thermally stable design ensure that this precision is maintained consistently, even under heavy cutting loads.
Q3: Is the control system user-friendly for our existing operators?
A: Yes. We typically equip our machines with industry-standard Siemens or Fanuc CNC systems, which are widely recognized for their reliability and intuitive programming interfaces. We also provide comprehensive training and documentation to ensure your team can operate the machine effectively.
Q4: Do you offer automation options to reduce manual intervention?
A: Yes, several productivity-enhancing options are available. These include Automatic Tool Changers (ATC) for uninterrupted machining, rotary tables for multi-face operations, and even pallet changers for continuous production, allowing one workpiece to be set up while another is being machined.
Q5: How does your company ensure the quality and durability of the machine?
A> Our manufacturing processes are guided by a structured quality approach. We utilize premium materials like high-grade cast iron, implement rigorous assembly procedures, and conduct extensive testing before shipment. This focus on build quality is fundamental to delivering a machine capable of long-term, reliable service in a harsh mining component production environment.
Q6: What kind of after-sales support and service do you provide?
A> We provide comprehensive support including installation guidance, operator training, detailed technical documentation, and a readily available supply of spare parts. Our experienced technical team is accessible for remote support and, if necessary, can arrange on-site service to ensure minimal disruption to your operations.
Q7: Can you assist with the foundation design and installation planning?
A> Certainly. We supply detailed foundation drawings and installation manuals well in advance of delivery. Our engineers can also consult on the installation process to ensure your facility is properly prepared, helping to streamline the commissioning phase.
Q8: What is the typical lead time for a customized machine like this?
A> Lead time varies depending on the level of customization and current production schedule. After finalizing the technical specifications, we will provide a detailed project timeline. Our efficient production流程 within our sizable facility allows us to offer competitive lead times for these specialized machines.
