Help CenterDirect Supply From the Manufacturer of Yxb65-185-555 Type Closed Profiled Steel Decking Floor Panels
Related Products
-
Manufacturer Direct Supply of Yxb65-170-510 Type Floor Panels of Closed Profiled Steel DeckingUS$ 4 - 4.31MOQ: 500 Meters -
Hubei Bilantian Roof Blt - 666US$ 4.62MOQ: 500 Meters
-
Hubei Bilantian Antique Metal Glazed Tiles Blt - 980US$ 5.85MOQ: 500 Meters
-
Hubei Bilantian Antique Metal Glazed Tiles Blt-780US$ 5.85MOQ: 500 Meters
-
Qianghuang Custom Manufacturer of Aluminum-magnesium-manganese Antique Metal Barrel Tiles for Temple RoofsUS$ 28.46 - 29.23MOQ: 500 Meters
Hubei Bilantian Bolai Construction Co., Ltd. is a manufacturer mainly engaged in the research and development of steel structure supporting products, and has a certain influence and popularity in the domestic steel structure market. The company has advanced domestic floor deck production lines, aluminum-magnesium-manganese roofing system production lines, special wall color steel profiled sheets, and professional equipment for antique color steel glazed tiles.
The company is located beside Jiangbei Highway in Tuanfeng Chengnan Industrial Park. The business logistics is very convenient. We welcome customers from all over to visit. The company will welcome guests from all directions with high-quality products, affordable prices, down-to-earth services, and a sincere and responsible attitude.
Bilantian Floor DeckThe models are as follows:
Floor deck thickness: 0.7mm~1.5mm |
Floor decks (profiled steel sheets) are divided into: open floor decks, closed floor decks, and dovetail floor decks |
Open floor deck models: YX51-240-720 YX51-250-750 YX76-344-688 YX76-305-915 YX51-305-915 YX75-293-880 YX38-152-914 YX75-200-600 YX75-230-690 YX75-280-840 YX51-340-1025 |

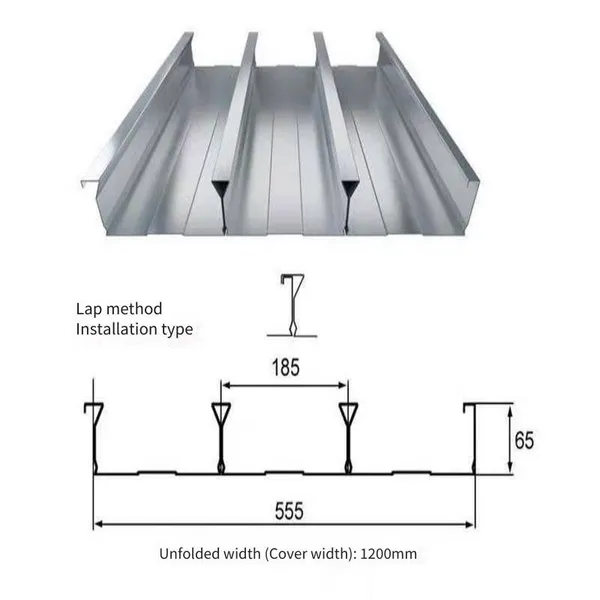

Closed-type floor deck models: YXB65-185-555 YXB65-170-510 YXB65-236-710 YXB65-254-762 YX60-180-540 YX60-185-555 YX60-200-600 YX60-253-760 YX65-240-720 |
|
Dovetail-type floor deck models:YX51-200-600 YX51-200-800 YX51-190-760
|
Closed-type floor deckMaincharacteristics:
The closed-type floor deck is a new high-tech product newly introduced by Hubei Bilantian Bolai Construction Co., Ltd. It is a more advanced composite floor deck system. Experiments have confirmed that it has a stronger bearing capacity and shear resistance than other open-type floor deck systems. The special design of the closed ribs allows the ribs of the steel deck to be completely wrapped by the concrete, just like the steel bars in a cast-in-place slab. Thus, it can maximize the respective characteristics of steel and concrete and is successfully applied in the floor deck system with reinforcement for stress, and has excellent fire resistance.
1、This type of panel has a flat bottom and well - fitting webs. It can provide various ceiling treatment methods according to the different functions and needs of various rooms. For example, it can be directly painted to make a tongue - and - groove ceiling (resembling an aluminum gusset plate), or it can be plastered with putty and then painted with water - based paint to make a flat ceiling. It can also be directly pasted with wall cloth or wallpaper to decorate a colored ceiling, or use the unique card slot suspension system of the closed - type composite floor deck to install a suspended ceiling. Thus, it can more economically meet the aesthetic needs of the owners.
2、The distance from the centroid of the cross - section of the closed - type composite floor deck to the bottom of the panel is about15mm, which is smaller than the cross - section parameters of the open - type or tapered - opening type. When analyzing the structural bearing capacity of the composite floor slab according to the plastic theory, the internal force arm between the resultant force center of the concrete pressure and the resultant force center of the steel plate tension is larger. This indicates that the material strength is more fully utilized. Therefore, the closed - type composite floor slab has a greater structural bearing capacity or a higher safety factor.
3、The closed - type composite floor deck can completely replace the tensile reinforcement in the positive - moment area of the floor slab, and it can reach a fire - resistance rating of1.5 hours without spraying fire - proof paint.
4、The special closed - rib shape of the closed - type composite floor deck and the riveted connection on the webs make the concrete have a stronger grip on the floor deck, enabling the composite floor slab to achieve a true composite effect.
5、The composite floor slab with the closed - type composite floor deck can reduce the floor thickness, reduce the self - weight, and increase the clear height. When using an open - type composite floor deck and spraying fire - proof paint, the minimum floor thickness required is126mm, and when using this panel type, without the need for fireproof coatings, the minimum thickness only needs to be100mm.
6. The unique slot suspension system of the closed-type floor deck can facilitate the installation of mechanical and electrical pipelines at the bottom of the building slab. This system does not require drilling holes or embedding iron parts at the slab bottom. You only need to easily insert two cards into the grooves at the slab bottom, and it can provide a lifting point with a lifting capacity of200kg. The disassembly is also very convenient.
Floor deck product applications:The products are widely used in steel structure buildings such as power plants, power equipment companies, automobile showrooms, steel structure workshops, cement warehouses, steel structure offices, airport terminals, railway stations, sports stadiums, concert halls, grand theaters, large supermarkets, logistics centers, and Olympic sports stadiums.
Characteristics of the closed-type floor deck system:
1. Strong concrete bonding. There is very excellent bonding between the steel deck and the concrete, avoiding the slippage phenomenon with the concrete;
2. Superior composite floor slab section: The centroid of the closed panel is very close to the slab bottom, with a stronger positive bending moment resistance moment;
3. Excellent fire resistance: The special design of the closed ribs of the closed-type floor deck provides better fire resistance;
4、 Superior suspension system: It can be freely moved, removed, or reinstalled;
5、 Simple and rapid construction: No end plugs are required, and there is no grout leakage, which shortens the construction period;
6、 Flat bottom appearance of the deck: There is no need to install a ceiling on the bottom of the deck, which is aesthetically pleasing;
Commonly used deck types and materials:
Commonly used widths: 1000mm, 1250mm
Commonly used thicknesses: 0.8mm, 0.9mm, 1.0mm
Commonly used material: Galvanized sheet
