Description of Bucket Elevator
The TDTG Series Bucket Elevator produced by Fengyuan is specially designed for the continuous vertical conveying of grain and bulk materials. Featuring a compact structure, large conveying capacity, low energy consumption, and stable performance, it is widely used in grain storage silos, feed mills, flour plants, fertilizer factories, and agricultural processing industries.
Bucket elevators are highly efficient equipment for vertically transporting free-flowing bulk materials such as grain, wheat, maize, sorghum, pellets, powders, and granular materials. With a reasonable operating structure, wear-resistant steel construction, and high-strength HDPE buckets, Fengyuan bucket elevators ensure smooth operation, easy installation, and long service life.
The bucket elevator consists of a series of buckets attached to a rubber or nylon belt, driven by pulleys located at the top and bottom of the equipment. The buckets move inside an enclosed casing, minimizing material loss and dust leakage. Materials are loaded through the inlet and discharged efficiently at the outlet. Fengyuan can design and manufacture customized bucket elevators according to different material characteristics and project requirements.
Main Features of Fengyuan Bucket Elevator
Compact Structure & High Capacity
Elegant appearance with compact size, large conveying capacity, and optimized transmission structure for stable operation.Durable & Wear-Resistant Design
The head pulley is coated with rubber to reduce wear, while the machine head is lined with high-density wear-resistant materials. Equipped with premium motors, gearboxes, PVC belts, and HDPE buckets for long-lasting performance.Explosion-Proof Safety Design
Equipped with anti-explosion vents on the head, casing, and bottom section to reduce dust explosion risks during grain transportation.Excellent Sealing & Waterproof Performance
Special production technology is applied to the elevator casing, ensuring excellent waterproof performance and effective sealing.Anti-Slip & Backstop Protection
The cage-type bottom wheel effectively prevents belt slipping. A non-return device is installed to prevent reverse movement of buckets in case of sudden power failure.Wide Application Range
Suitable for transporting powder, pellets, grains, wheat, maize, rice, sorghum, soybean, fertilizer, feed, and other bulk materials.High Working Capacity
Conveying capacity ranges from 10–1500 m³/h, meeting different production requirements.Low Energy Consumption
Optimized transmission system reduces power consumption and operating costs.Long Service Life
Manufactured with high-quality materials to ensure durability and stable long-term operation.Environmental Protection
Excellent sealing performance minimizes dust leakage and prevents air pollution.
Main Components of Bucket Elevator
The bucket elevator mainly includes:
Bucket belt
Head pulley
Bottom pulley
Buckets
Machine head

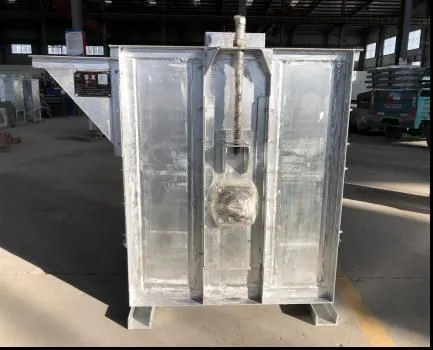

Base section
Transmission device
Tensioning device
Feeding inlet
Discharge outlet
Inspection plate

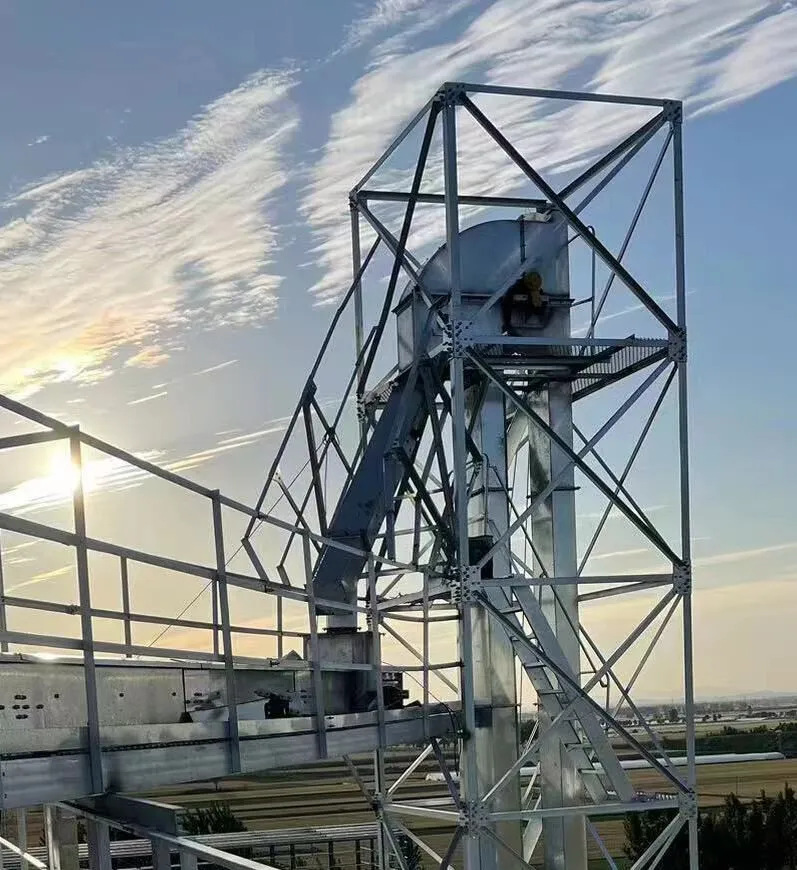

Elevator Head: Rubber-coated pulley
Elevator Buckets: High-strength HDPE material
Elevator Belt: Rubber belt or nylon belt
Application of Grain Bucket Elevator

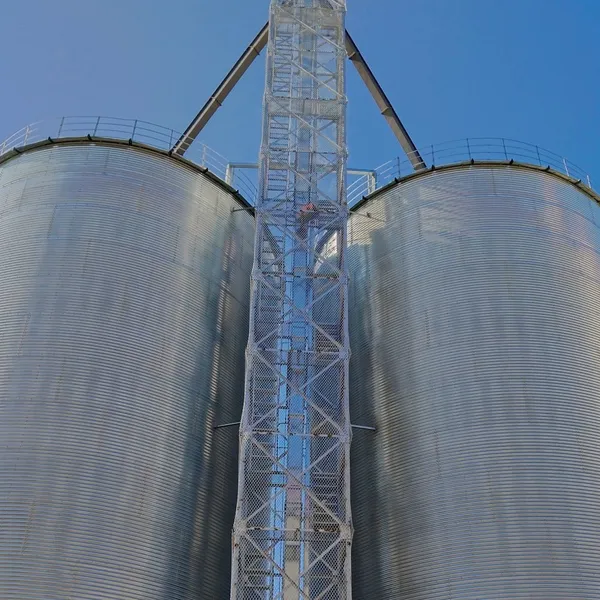

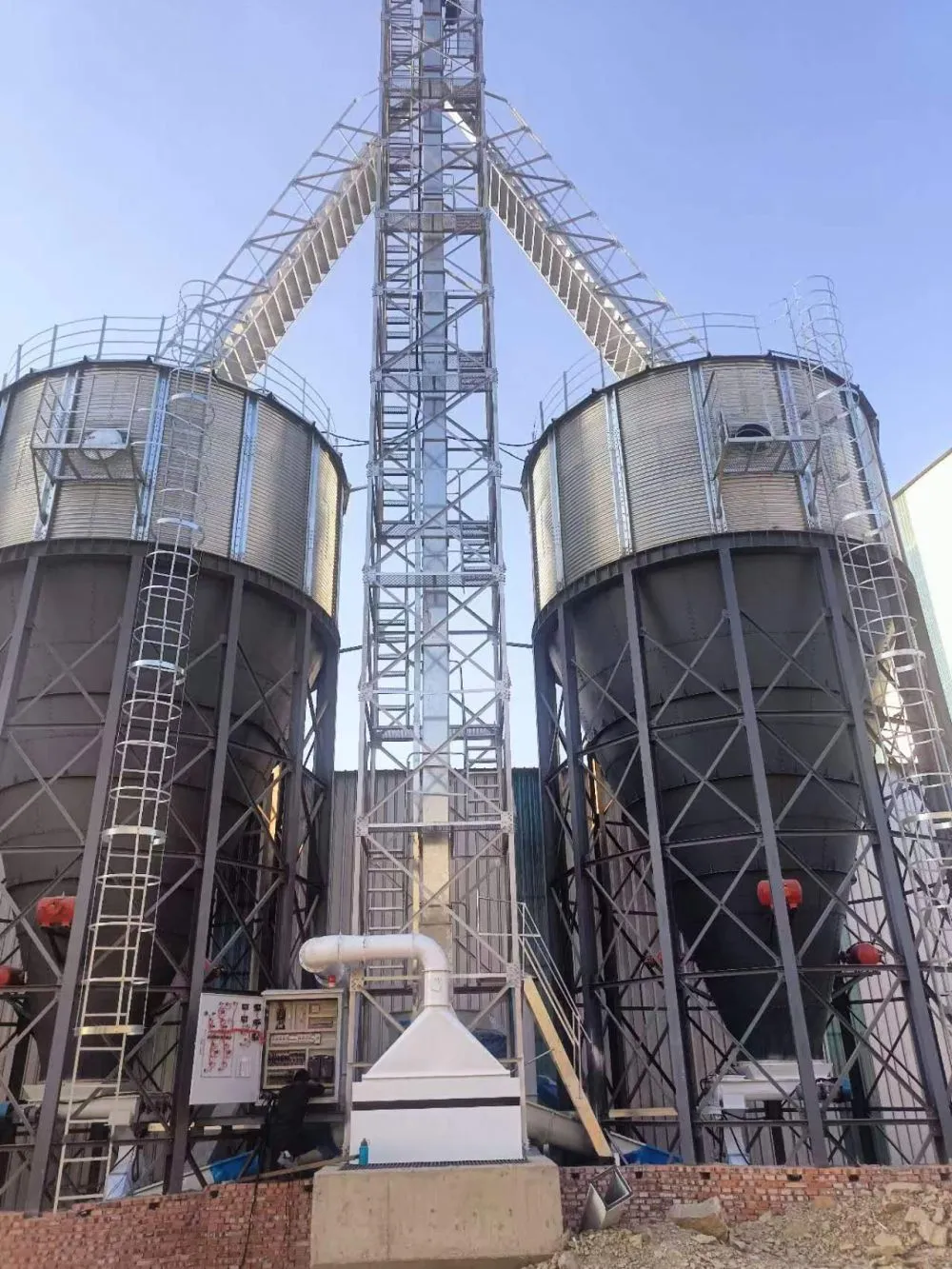

Fengyuan grain bucket elevators are widely used for the vertical transportation of free-flowing bulk materials in grain storage silos, flour mills, feed plants, fertilizer industries, agricultural processing plants, and bulk material handling systems.
Suitable materials include grain, wheat, maize, sorghum, rice, soybean, powder, pellets, seeds, and fertilizer materials.
Fengyuan bucket elevators are designed with a stable transmission system, wear-resistant components, and durable structure, ensuring reliable performance, easy maintenance, and long-term trouble-free operation.
