Fengyuan Temperature Monitoring System — The Smart Choice for Grain Storage Safety
Precise temperature control during grain storage is the key to ensuring grain quality and minimizing losses. As a core component of grain silo safety management, the Fengyuan Temperature Monitoring System utilizes high-precision DS18B20 digital sensor cables to provide stable and reliable real-time temperature data support for grain storage control systems.
Why Choose Fengyuan?
🌡️ High-Precision Sensing Technology. Equipped with the internationally recognized DS18B20 digital sensor, the system covers a temperature range of -30℃ to 70℃, delivering accurate and stable data collection to effectively handle a wide variety of complex grain storage environments.
🔧 Flexible Customization, Compatible with Multiple Silo Types. Cable length and specifications can be fully customized upon request. Whether for large-scale steel silos or small-to-medium grain warehouses, our system adapts perfectly to meet the individual needs of every customer.
⚡ Real-Time Monitoring, Early Problem Detection. Temperature is the "barometer" of grain quality deterioration — whenever grain spoilage or pest infestation occurs inside the silo, the temperature will rise abnormally as an early warning signal. The Fengyuan system enables 24/7 uninterrupted real-time monitoring, detecting temperature anomalies at the earliest stage and stopping potential losses before they escalate.
🏭 Professional Chinese Manufacturing, Quality You Can Trust. Produced in a specialized factory in Shandong, China, with an annual production capacity of up to 100,000 meters and a comprehensive quality control system in place. Our products are exported to multiple countries and regions worldwide, earning the trust of global customers.
💰 Prevent Spoilage, Protect Value, Maximize ROI. Effectively prevents grain mold, pest damage, and financial losses caused by uncontrolled temperatures, helping grain storage enterprises minimize economic risks and ensure the safety of stored grain.
Purpose-built for large-scale steel silos and grain warehouses. Featuring imported DS18B20 single-bus digital sensors, the system delivers precise temperature measurement across a -30℃ to +70℃ range, providing 24/7 protection for safe grain storage.

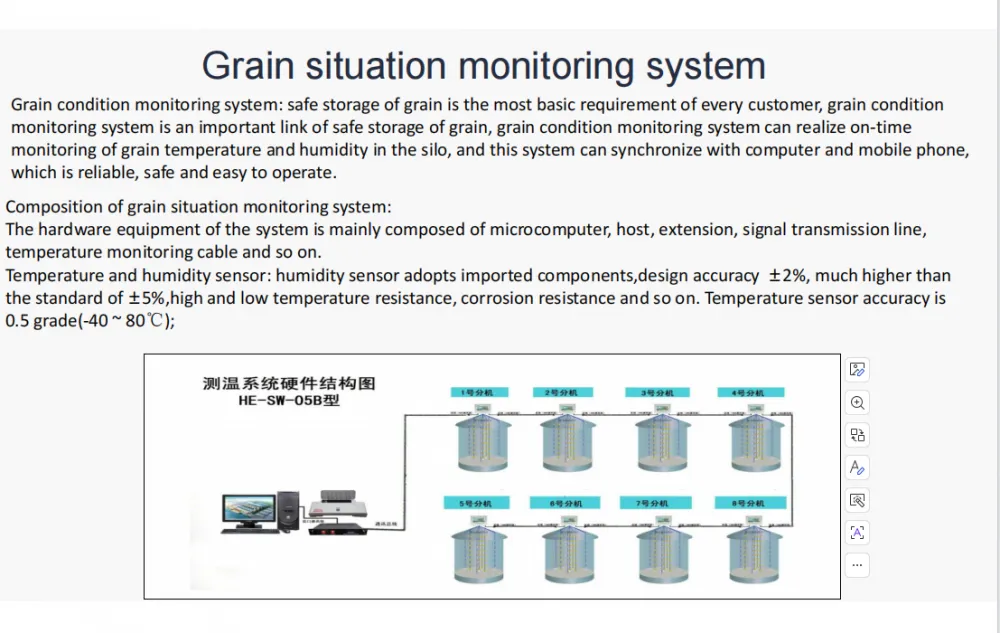

How It Works
DS18B20 Sensor → Digital Signal Conversion → Single-Bus Transmission → Host Controller → Real-Time Software Display
Key Points
High-Precision DS18B20 Sensor
Features imported DS18B20 chips with 9–12 bit programmable resolution and single-bus communication. Strong anti-interference capability ensures stable, reliable data transmission.
Fully Customizable Specifications
Cable length and number of sensor nodes can be tailored to your exact silo layout. Compatible with large, medium, and small grain storage facilities. MOQ as low as 2 meters.
Multi-Point Networked Monitoring
Each DS18B20 carries a globally unique 64-bit serial number, enabling multiple sensors to share a single bus. One controller can manage distributed temperature points across a large area.
Parasitic Power Mode
Supports parasitic power supply — the sensor draws power directly from the signal line, eliminating the need for a separate power cable. Simplifies installation and significantly reduces wiring costs.
Programmable Temperature Alarms
Built-in programmable non-volatile memory supports configurable upper and lower alarm thresholds. Triggers real-time alerts the moment an anomaly is detected — keeping losses to a minimum.
Factory Direct — Certified Quality
Manufactured at our Shandong facility with an annual capacity of 100,000 meters. ISO / BV / CE certified. Exported to multiple countries. 1-year warranty with consistent supply guaranteed.
FAQ
Q: What are the advantages of the DS18B20 sensor?
The DS18B20 uses a single-bus protocol, requiring only one signal wire for full communication. Each chip carries a globally unique 64-bit serial number, enabling multiple sensors to operate on the same bus. A single host controller can cover a large monitoring area, dramatically reducing wiring complexity and installation costs.
Q: Can cable length and sensor node count be customized?
Yes. Both cable length and the number of sensor nodes can be fully customized to match your silo's actual dimensions and layout. The minimum order quantity is 2 meters. Please contact us for a tailored solution and quotation.
Q: What applications is this product suitable for?
The system is primarily designed for real-time temperature monitoring in steel grain silos, large grain warehouses, and flat-storage grain facilities. It is also well-suited for industrial plants, HVAC systems, and any environment where precise temperature control is critical.
Q: What certifications does the product hold?
The product is certified under ISO international quality management standards, BV Bureau Veritas certification, and CE European conformity marking. Our quality meets international standards, satisfying procurement requirements across global markets.
