Leo Bodnar Electronics designs and manufactures a wide range of innovative electronic products—from versatile USB interface boards and signal generators to network time servers, video test tools, and custom-built solutions for research, education, and embedded systems. We offer a variety of accessories including push buttons, rotary encoders, and switches. Many of our products are based on personal interests of our team.
Based near Towcester, we serve a global customer base with practical, high-performance solutions across a range of industries. We give highest priority to quality, reliability, and customer support to make sure we continue delivering what you have come to expect from us.
USB joystick interfaces that are easy to use
Connect switches, potentiometers, buttons, rotary encoders, load cells and pressure sensors to any computer. Reliable, quick and easy solution for OEM and DIY.
GPSDO with adjustable output frequency
GPSDO precision frequency references with very low phase noise. Used by HAM radio amateurs, aerospace, calibration labs.
Steering system for racing simulators
Force feedback system - realistic feel, well respected by top drivers in motorsport and gaming industry.
Racing car simulator products
Logitech® interfaces, shift light indicators, Fanatec® wheel conversion.
Video testing, RF and timing products

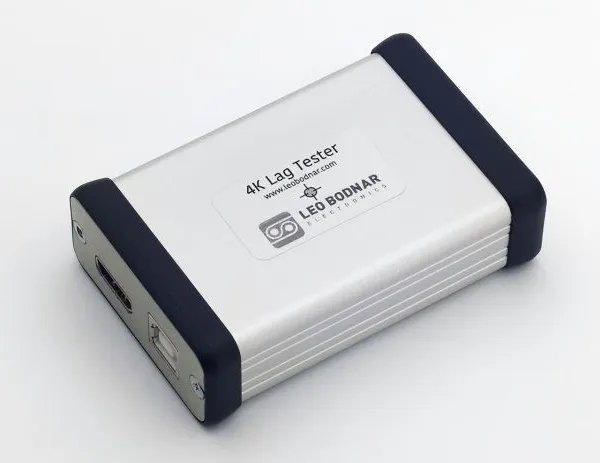

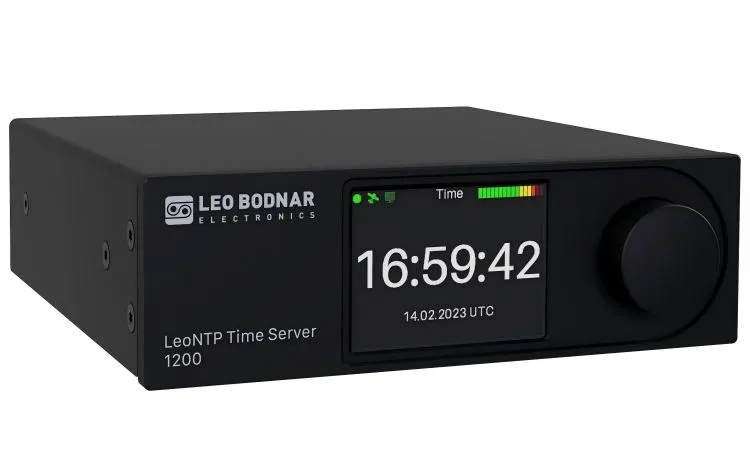

Video signal lag testers, NTP servers, fast rise time pulse generators for lab use, data centers, monitor reviewers and manufacturers.
This device outputs high purity signal with frequency locked to GPS.
LBE-1425 is perfect for both - accurate frequency calibration and RF reference use in mixers or multipliers. It has an additional output which can be programmed for different frequency outputs.
Frequency stability of its output is defined by the accuracy of GPS satellite onboard Caesium references and approaches 1x10-12 or 0.000001 ppm.
Output phase noise is shaped by high quality internal TCXO, providing clean clock signal with sub-picosecond RMS jitter.
Multi-loop digital-analog PLL allows output frequency to be set to any value between 1 Hz and 1.4 GHz with infinite resolution. For example, 144800000.025Hz
Output signal is a 3.3V CMOS square wave with 50Ω source impedance. It can be used directly by most instrumentation and RF equipment.
LBE-1425 comes with a magnetic base active GPS antenna.
Output power level (at 10MHz, fundamental power channel): +11dBm
Typical phase noise at 10MHz:
-72 dBc/Hz at 1 Hz
-101 dBc/Hz at 10 Hz
-128 dBc/Hz at 100 Hz
-147 dBc/Hz at 1 kHz
-156 dBc/Hz at 10 kHz
-159 dBc/Hz at 100 kHz
-164 dBc/Hz at 1 MHz
Power draw through 5V USB is 250mA max
Rise/fall time of output signal at 10MHz is 300ps/260ps measured between 10% and 90% levels.
Operation requires presence of GPS signal, however temporary satellite signal loss is handled seamlessly with no frequency or phase jumps. Active or passive antennas are supported. An active antenna with 5 metre cable is provided but can be substituted by other common types. GPS acquisition time after power-up is around 30 seconds. If GPS signal is lost, digital PLL will maintains best estimated output frequency based on historical data. On reacquisition of GPS lock, output is seamlessly brought back in sync with GPS reference. Entry and exit of this frequency hold is glitchless.
Frequency setting is configurable via USB connection from Windows PC.
Satellite signal NMEA data telemetry is available via virtual serial port over USB connection, 1 PPS is also available on the DCD signal on the virtual serial port.
GPS clock can be powered via USB-C connector from a PC, USB charger or USB power bank. LBE-1425 comes ready to use and configured for 10MHz output. USB connection to computer is required only for configuration changes. All settings are stored inside the device and maintain values when off. The SMA antenna connector voltage is 3.3V. Most active antennas marked as 3.3V or 5V will work.
Examples of use include:
10.000MHz, 1.000MHz or other frequency reference for lab equipment and instrumentation
reference for transmitter equipment - HAM equipment, propagation beacons, frequency markers, VHF, UHF and microwave converters.
reference for receiving equipment, RTL SDRs (28.8MHz) and band scanners
calibration source for radio receivers
master clock for audio and video equipment, DACs and studio recording gear
Increased stability GPSDO-locked frequency source with 2 low-jitter outputs and switchable 1PPS on output 1.
Device uses a TCXO with the stability performance approaching that of an OCXO with much less power and almost instant startup time. Output 1: 1Hz to 800MHz and 1PPS, Output 2: 1Hz to 1.4GHz
Specifications:
Dimensions
69mm x 40mm x 12mm (including connectors)
Power
USB-C Connector
5V 250mA max
GPS Antenna Connection
SMA
Provides 3.3V 30mA max
Output 1
SMA
1Hz-800MHz 3.3V 50Ω or 1 PPS
Square Wave
Output 2
SMA
1Hz-1.4GHz 3.3V 50Ω
Square Wave
Certification
CE FCC UKCA
Warranty
2 years
