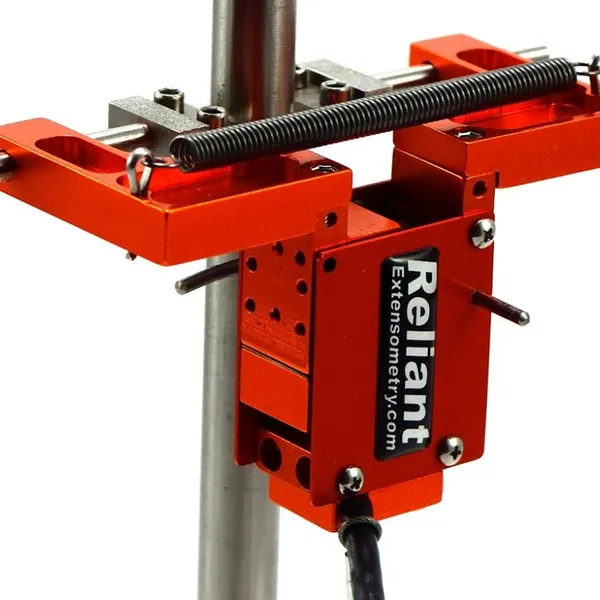

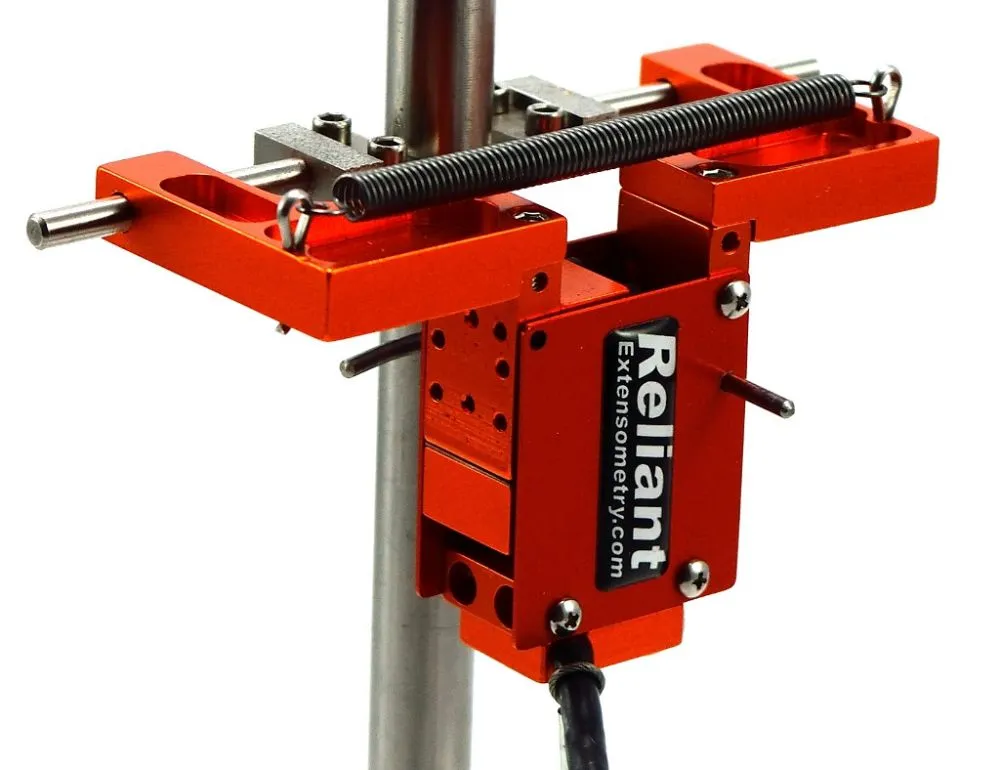

Reliant Technology model ETG transverse / diametral extensometer is designed for general purpose measurement of transverse or diametral strain on axially loaded specimens. It may also be simultaneously used with a Model EAG axial extensometer for measurement of Poisson's ratio (per ASTM E132) and sheet metal testing such as r-value.
Model ETG is designed to be self-supported and can be used on any width or diameter specimen from 0 to 32 mm (0 to 1.250"). Designed around our innovative, cross-flexure module, this extensometer is designed for improved performance and ruggedness. It features a side-exit cable to reduce cable wear and damage.
With a full bridge, 350 ohm, strain gaged design, model ETG is compatible with most test systems and signal conditioning electronics design for strain gage based transducers. Reliant can provide stand-alone electronics to allow the use of data acquisition boards (DAQ), chart recorders or other test equipment.
Features
· May be left on through specimen failure.
· 350 ohm, full bridge strain gaged design to ensure compatibility with most any test system.
· Designed to measure in both tension and compression and can be used for cyclic testing.
· Built-in mechanical over-travel stops provide protection in both directions.
· May be used simultaneously with a Model EAG axial extensometer for measurement of Poisson's ratio (per ASTM E132) and sheet metal testing such as r-value.
· Rugged, optimized, dual flexure design for strength and improved performance.
· Replaceable, tool steel knife edges and all units are shipped with a spare set.
· Self-supporting on the specimen.
· High and low temperature options extend operation range from -270°C to +200 °C (-454 °F to +400 °F).
Options
· Connectors to interface to most any brand of test equipment.
· Stand alone signal conditioners for use with DAQ boards.
· High-Toughness, and specialty knife edges.
Specifications
Excitation: 5 to 10 VDC recommended, 12 VDC or VAC max.
Output: 2 to 4 mV/V, nominal.
Linearity: ≤0.15% of full scale measuring range.
Standard Temp. Range: -40 °C to +100 °C (-40 °F to 210 °F) (optional temperature ranges available)
Cable: Standard 2.5 m (8 ft), ultra-flexible cable.
Quick Attach System: Fits round samples up to 32 mm (1.250") diameter and flats samples up to 32 mm (1.250") wide.
