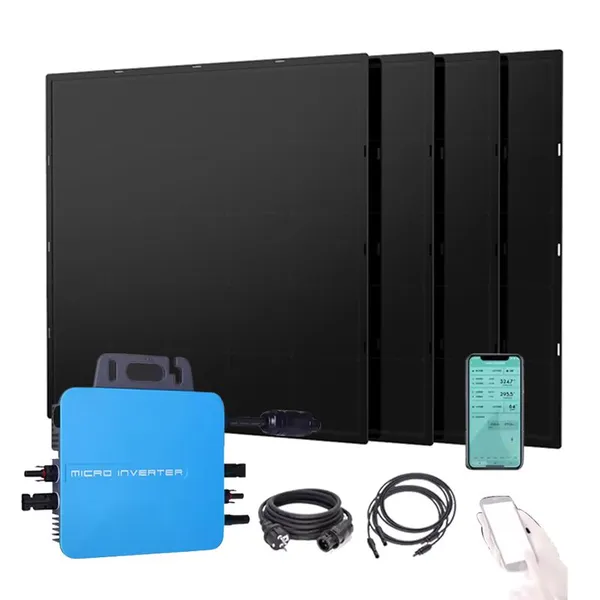

800W Balcony Solar System Kit, Stainless Steel Mounting Bracket Black, Plug and Play Home Solar Power Generator
Specification

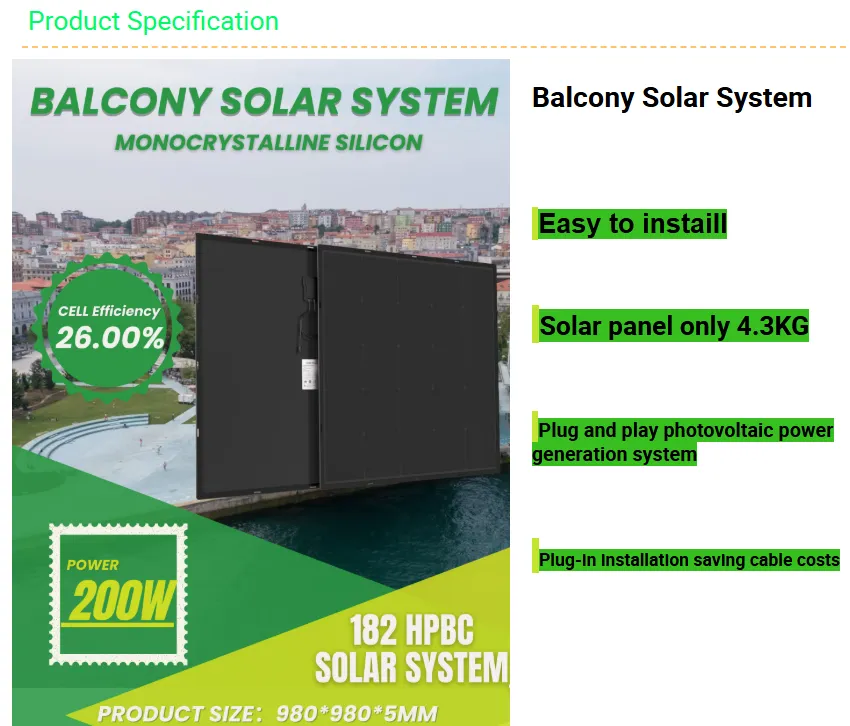

Balcony Solar System(Solar panel) | |||
Electrical Parameters at(STC) |
Mechanical Parameters | ||
Power |
200W |
Solar cell |
Mono(158.75*158.75) |
Voltage at Pmax(Vmp) |
17.5V |
Solar cells Number |
36pcs(6*6) |
Current at Pmax(Imp) |
11.43A |
Dimension |
1025*1025*5mm |
Open Circuit Voltage |
21.5V |

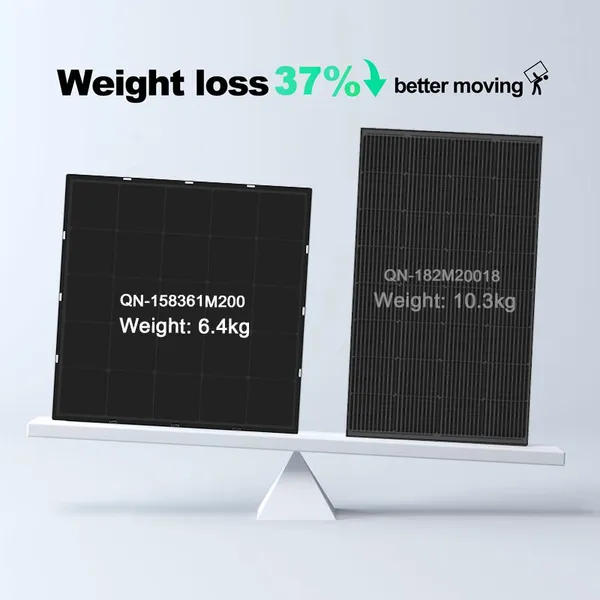

Weight |
6.4KG |
Short Circuit Current |
12.4A |
Border Meterial |
Aluminum alloy |
Module Effciency |
19.04% |
Cable |
2.5m㎡/900mm |
Power Tolerance |
+3% |
Connector |
MC4 |
Balcony Solar System(Solar inverest) | |||
Input Data(DC) |
Output Data(AC) | ||
Module Power |
210~550W+(2 Pieces) |
Rated output power |
800W |
Input voltage |
60V |
Rated output current |
3.5A/3.6A |
MPPT voltage range |
25~55V |
Output Voltage Range |
220V/180-275V 230V/180-275V |
Start-up voltage |
25V |
Frequency/range (Hz) |
50/48-52Hzor 60/58~62Hz |
Maximum input current |
2x13A |
Power factor |
>0.99 |
Short circuit current |
2x19.5A |
Harmonic distortion |
|
Number of MPPTS |
2 |
Maximum units per 13 AWG branch |
5 |
