Help CenterSolid Tungsten Carbide Saw Blade
Product Spotlights
2.Precision Cut: Clean, burr-free cuts with fine-tooth design
3.High Efficiency: Fast, smooth cutting for metal & non-ferrous materials
4.Heat Resistant: Stays sharp under high-speed machining
5. Customizable: Available in various sizes, teeth, and bore configurations
Related Products
Product Overview

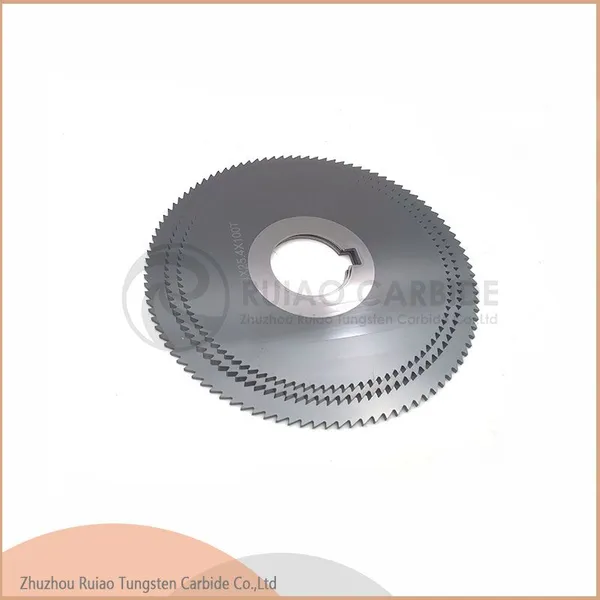

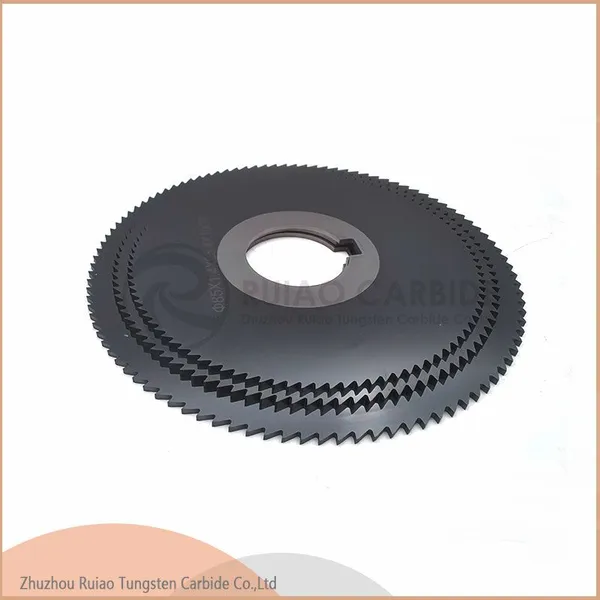

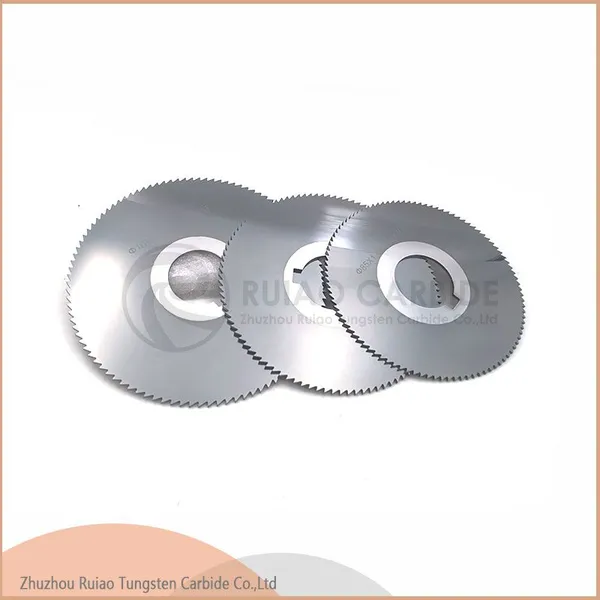

This Solid Tungsten Carbide Circular Saw Blade is a high-performance cutting tool manufactured by Zhuzhou Ruiao Tungsten Carbide Co., Ltd. Designed for industrial-grade metalworking and precision machining, it delivers exceptional durability, sharpness, and cutting efficiency, making it an ideal choice for high-volume production and precision cutting tasks.
Key Features
| Feature | Details |
|---|---|
| Premium Material | Made of high-purity tungsten carbide with a cobalt binder, offering high hardness (HRA 91-92.5), excellent wear resistance, and thermal stability. It maintains cutting performance even at temperatures up to 900°C, with a service life 50-100 times longer than conventional HSS blades. |
| Precision Machining | Mirror-polished blade surface with finely ground, evenly spaced teeth, ensuring burr-free, smooth cuts with minimal kerf loss. Strict dimensional tolerance control guarantees consistent performance. |
| Customizable Design | Available in a wide range of outer diameters (Ø20-Ø260mm), thicknesses (0.2-6mm), bore sizes (with optional keyways), and tooth counts (40-250 teeth) to match specific cutting requirements. OEM/ODM services are supported. |
| High Heat & Impact Resistance | Optimized carbide grade balances fracture toughness and wear resistance, preventing edge chipping or softening during continuous high-speed cutting operations. |
Applications
This saw blade is suitable for cutting and slotting a variety of materials, including:
Metals: Carbon steel, stainless steel, aluminum, copper, brass, and other non-ferrous alloys
Non-metals: Plastics, acrylic, PVC, and composite materials
Common use cases: Pipe cutting, bar stock machining, CNC slitting, and precision slotting in mechanical processing, hardware manufacturing, and automotive industries.
📋 Technical Specifications (Customizable)
Material: 100% solid tungsten carbide
Hardness: HRA 91-92.5
Density: 14.5-14.8 g/cm³
Outer Diameter: Customizable (typically Ø20-Ø250mm)
Thickness: Customizable (typically 0.2-6mm)
Bore Size: Customizable (with optional keyway)
Tooth Count: Customizable (40-250 teeth, or as per request)
Surface Treatment: Optional TiAlN/TiN coating for enhanced wear resistance
🔧 Usage & Maintenance Tips
Proper Installation: Use the correct arbor and ensure the blade is securely fastened to avoid vibration during operation.
Cooling: Use appropriate cutting fluid for metal cutting to reduce heat buildup and extend blade life.
Speed & Feed Rate: Match cutting parameters (speed, feed) to the material type and blade specifications to prevent premature wear or breakage.
Sharpening: The blade can be re-sharpened multiple times to restore cutting performance, maximizing cost-effectiveness.
