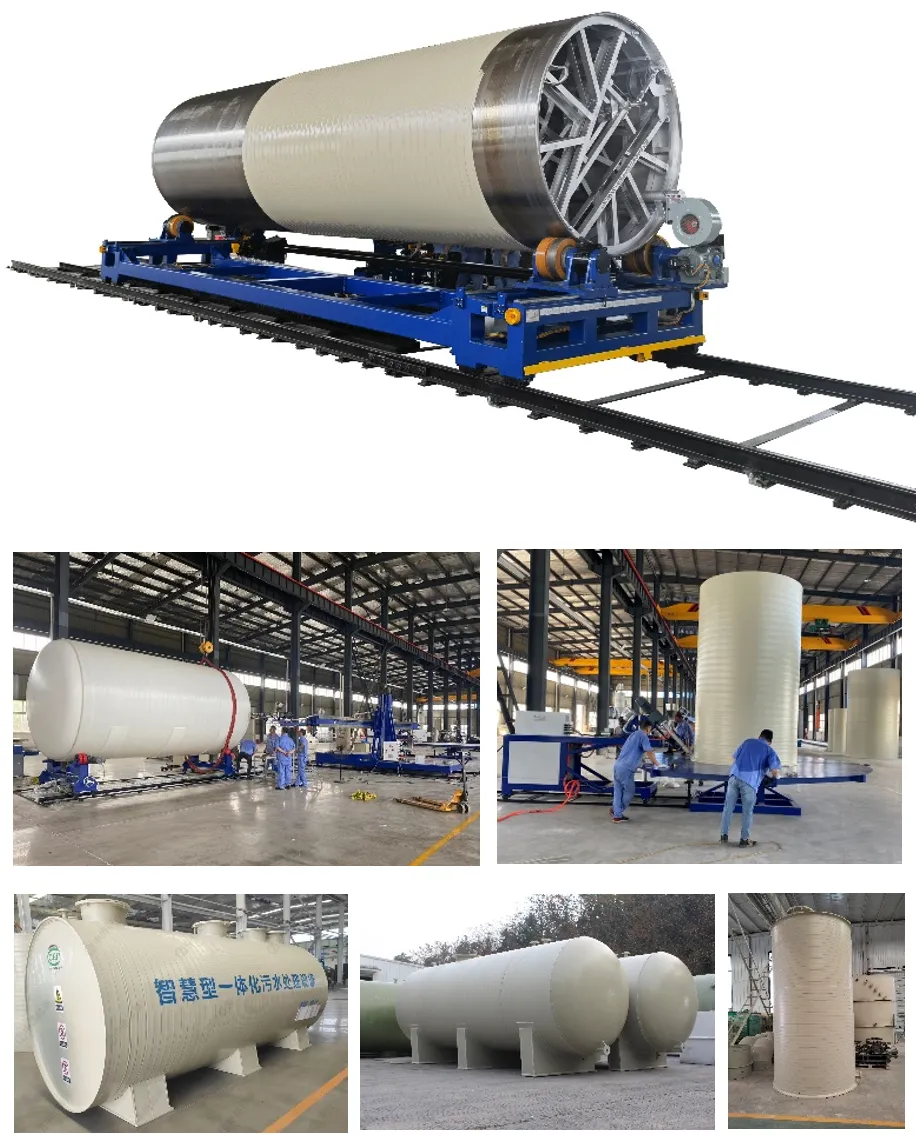

As a leading manufacturer with over a decade of expertise, Qingdao Yongke Machinery Co., Ltd. proudly presents the HW-5000 Horizontal Welding Equipment. Engineered specifically for the demanding fabrication of over-length tank containers and large-scale rain retention tanks, this machine embodies our commitment to delivering robust, precision-focused solutions for the heavy industrial sector. Our ISO9001, ISO14000, and OHSAS18001 certified production processes ensure that every HW-5000 unit meets stringent quality, environmental, and safety standards, providing our global partners with reliable equipment for critical welding applications.
The HW-5000 is designed to tackle the unique challenges of welding lengthy, cylindrical structures. Its core value lies in delivering consistent, high-integrity welds along the horizontal seam, a critical factor for the structural integrity and leak-proof performance of pressure vessels and storage tanks. By automating and stabilizing the welding process for these oversized components, we help manufacturers significantly enhance productivity, reduce manual labor intensity, and achieve superior weld quality that meets rigorous industry specifications.
Key Product Features & Technical Advantages:
Specialized for Over-Length Applications: The machine's design accommodates extended workpieces, making it ideal for tank containers and rain tanks that exceed standard lengths. The travel mechanism and support systems are calibrated for stability across long welding paths.
Precision Horizontal Welding: Ensures uniform bead placement and penetration along the circumference of horizontal seams, which is crucial for the strength and sealing of cylindrical tanks.
Adaptable Welding Process: Compatible with various arc welding processes (e.g., MIG/MAG, Submerged Arc) based on material thickness and client requirements, offering flexibility for different project needs.
Enhanced Stability & Rigidity: Constructed with a heavy-duty steel frame and reinforced guiding systems to minimize vibration and deflection during operation, guaranteeing consistent weld quality even on large, heavy structures.
User-Centric Control Interface: Features an intuitive control panel (CNC or PLC-based options available) that allows operators to easily set parameters like travel speed, voltage, and wire feed speed, streamlining the setup process.
Safety-First Design: Incorporates essential safety features such as emergency stops, protective guarding, and fume extraction interfaces to ensure a secure working environment, aligning with OHSAS18001 principles.
Technical Specifications Overview:
| Parameter | Specification / Description |
| Model | HW-5000 |
| Primary Application | Over-Length Tank Containers, Rain Retention Tanks |
| Welding Position | Horizontal (1G / 1F position for circumferential seams) |
| Max Workpiece Length | Customizable to client specifications |
| Control System | CNC or PLC Programmable (Optional) |
| Drive System | Servo or Precision Gear Drive |
| Power Requirements | Standard Industrial 3-Phase |
Benefits for Your Operation:
Increased Production Output: Automates the horizontal welding process, allowing for faster cycle times and the ability to handle longer tanks without manual repositioning.
Consistent, High-Quality Welds: Reduces human error, producing uniform seams that meet pressure vessel and storage tank codes, minimizing rework and ensuring product reliability.
Reduced Labor Costs & Skill Dependency: Simplifies the welding operation, allowing semi-skilled operators to achieve professional results, optimizing your workforce.
Versatility for Large Projects: The ability to customize the working length makes it a future-proof investment for various tank fabrication projects, from shipping containers to municipal water storage.
Improved Workplace Safety: Minimizes operator exposure to arc flash and fumes through automated operation and integrated safety features.
Trust in the proven capability of Qingdao Yongke Machinery. Operating from a modern facility spanning 10,000-30,000 square meters and supported by a dedicated team of 51-100 professionals, we have established a strong export footprint, delivering over US$1 Million in equipment annually to markets across North America, South America, Europe, Asia, Africa, and Oceania. Our direct manufacturing control and shipment from the Port of Qingdao ensure competitive pricing, reliable lead times, and comprehensive after-sales support. Choose the HW-5000 to elevate your tank fabrication capabilities—contact us today for a detailed quotation or to discuss customizing this horizontal welding solution for your specific production requirements.
Frequently Asked Questions (FAQ):
Q1: What is the maximum tank length the HW-5000 can weld?
A: The HW-5000 is specifically designed for "over-length" applications. The standard model can be adapted, and the maximum effective welding length is fully customizable based on your project needs. Please provide your typical tank dimensions for a tailored solution.
Q2: Which welding processes can this equipment perform?
A: The machine is primarily designed for automated arc welding. It can be configured for processes like Gas Metal Arc Welding (GMAW/MIG) or Submerged Arc Welding (SAW), depending on material thickness and the desired weld profile. The specific welding power source can be selected accordingly.
Q3: Is the machine suitable for welding both tank containers and rain retention tanks?
A: Absolutely. The HW-5000's core function is horizontal circumferential welding on large cylindrical vessels. Whether it's a ISO tank container for transportation or a large-scale rain harvesting tank, the machine provides the precision and stability required for high-integrity seams.
Q4: What level of operator skill is required?
A: The equipment is designed to simplify the welding task. While a basic understanding of welding parameters is beneficial, the automated travel and control systems allow semi-skilled personnel to operate it effectively after proper training, reducing dependency on highly specialized welders.
Q5: Does the price include the welding power source and wire feeder?
A: The standard offering typically includes the mechanized welding carriage, travel system, and controls. The welding power source, wire feeder, and torch are often specified separately to match your preferred process and existing workshop setup. We offer complete package solutions upon request.
Q6: What after-sales support do you provide?
A: As a manufacturer, we provide comprehensive support including installation guidance (manuals, videos), operator training documentation, a standard warranty on mechanical parts, and access to technical support. Spare parts are readily available from our factory.
Q7: Can the machine be integrated into an existing production line?
A: Yes. The HW-5000 is designed as a standalone station but can be positioned within a flow line. Its dimensions and interfaces can be discussed to facilitate integration with material handling systems like rollers or positioners.
Q8: What is the typical lead time for delivery?
A: Lead time depends on the configuration and customization level. For standard models, it generally ranges from 4 to 8 weeks ex-works. We provide a firm delivery schedule upon order confirmation, with efficient shipment arranged from Qingdao Port.
