DIN 17175 Seamless Boiler Tube
Heat-Resistant Steel – Elevated Temperature Service
Product Overview
DIN 17175 is the German standard for seamless heat-resistant steel tubes intended for boilers, superheaters, heat exchangers, and pressure piping at elevated temperatures. These tubes offer excellent creep strength and oxidation resistance for high-temperature service.
Steel Grades: St35.8, St45.8, 15Mo3, 13CrMo44, 10CrMo910
⚠️ Note: DIN 17175 has been withdrawn and replaced by EN 10216-2. We supply both DIN 17175 specified material and its EN 10216-2 equivalents. Contact us for clarification.
✅ Fully traceable with EN 10204 3.1 MTC
✅ Excellent creep strength at high temperatures
✅ Factory direct | Boiler tube specialist
Key Specifications
| Parameter | Details |
|---|---|
| Standard | DIN 17175 (withdrawn – superseded by EN 10216-2) |
| Type | Seamless – Hot Finished or Cold Drawn |
| Material | Heat-Resistant Carbon & Alloy Steel |
| Steel Grades | St35.8, St45.8, 15Mo3, 13CrMo44, 10CrMo910 |
| OD Range | 10mm – 610mm (1/8″ – 24″) |
| Wall Thickness | 1.5mm – 50mm+ |
| Length | 4m – 12m (fixed or random) |
| Surface Finish | Black / Bare / Oiled |
| End Finish | Plain / Beveled / Threaded |
Steel Grade Cross-Reference
| DIN 17175 | EN 10216-2 | ASTM Equivalent | Application |
|---|---|---|---|
| St35.8 | P235GH | A106 Grade B | General boiler service |
| St45.8 | P265GH | A106 Grade C | Higher strength boiler |
| 15Mo3 | 16Mo3 | A209 T1 | Molybdenum steel – 450°C |
| 13CrMo44 | 13CrMo4-5 | A213 T12 | 1Cr-0.5Mo – 550°C |
| 10CrMo910 | 10CrMo9-10 | A213 T22 | 2.25Cr-1Mo – 550°C |
💡 Recommendation: For new projects, specify EN 10216-2 equivalents. For replacement/maintenance, DIN 17175 material is still available.
Chemical Composition
| Steel Grade | C | Si | Mn | P max | S max | Cr | Mo |
|---|---|---|---|---|---|---|---|
| St35.8 | ≤0.17 | 0.10-0.35 | 0.40-0.80 | 0.040 | 0.040 | — | — |
| St45.8 | ≤0.21 | 0.10-0.35 | 0.50-1.20 | 0.040 | 0.040 | — | — |
| 15Mo3 | 0.12-0.20 | 0.10-0.35 | 0.40-0.80 | 0.035 | 0.035 | — | 0.25-0.35 |
| 13CrMo44 | 0.10-0.18 | 0.10-0.35 | 0.40-1.00 | 0.035 | 0.035 | 0.50-0.80 | 0.45-0.65 |
| 10CrMo910 | 0.08-0.15 | 0.10-0.50 | 0.30-0.70 | 0.030 | 0.030 | 2.00-2.50 | 0.90-1.10 |
Mechanical Properties at Room Temperature
| Steel Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| St35.8 | 360-480 | ≥235 | ≥25 |
| St45.8 | 410-530 | ≥255 | ≥23 |
| 15Mo3 | 450-600 | ≥270 | ≥22 |
| 13CrMo44 | 450-600 | ≥290 | ≥22 |
| 10CrMo910 | 480-630 | ≥280 | ≥20 |
Elevated Temperature Yield Strength (Rp0.2 MPa min)
| Temp °C | St35.8 | St45.8 | 15Mo3 | 13CrMo44 | 10CrMo910 |
|---|---|---|---|---|---|
| 100 | 190 | 210 | 210 | 230 | 230 |
| 200 | 160 | 180 | 185 | 205 | 205 |
| 300 | 140 | 160 | 170 | 190 | 195 |
| 400 | 120 | 140 | 160 | 180 | 185 |
| 500 | — | — | 130 | 165 | 170 |
Key Features & Advantages
| Feature | Benefit |
|---|---|
| Heat-resistant design | Excellent creep and rupture strength |
| Seamless construction | No weld seam, safe for pressure applications |
| Widely recognized | Still specified in many legacy projects |
| Multiple grades | From carbon steel to chrome-moly alloy |
| Interchangeable with EN/ASTM | Easy cross-reference |
| 100% non-destructive tested | UT per specification |
Applications
| Industry | Application |
|---|---|
| Power Generation | Boilers, superheaters, reheaters |
| Industrial Boilers | Steam boilers, thermal oil heaters |
| Petrochemical | High-temperature process piping |
| Refineries | Transfer lines, furnace tubes |
| Heat Exchangers | Shell and tube type |
Grade Selection Guide
| Steel Grade | Type | Max Temp | Best Application |
|---|---|---|---|
| St35.8 | Carbon | 400°C | General boiler service – most economical |
| St45.8 | Carbon | 400°C | Higher strength boiler tubes |
| 15Mo3 | Mo-alloy | 450°C | Medium temperature boilers |
| 13CrMo44 | 1Cr-0.5Mo | 550°C | Most popular alloy grade |
| 10CrMo910 | 2.25Cr-1Mo | 550°C | High-pressure, hydrogen service |
Quality Testing & Inspection
| Test | Method | Coverage |
|---|---|---|
| Ultrasonic Testing (UT) | DIN 17175 | 100% |
| Hydrostatic Test | Water pressure | 100% |
| Tensile Test | Mechanical properties | Per batch |
| Impact Test (KV) | Charpy V-notch | Per batch |
| Hardness Test | Brinell / Rockwell | Per batch |
| Flattening Test | Boiler tube requirement | Per batch |
Mill Test Certificate
EN 10204 Type 3.1 – Standard (in-house inspection)
EN 10204 Type 3.2 – Available upon request (third-party: SGS, BV, TUV)
Full traceability from melt to finished tube
Processing Services (Available)
| Service | Description |
|---|---|
| Cutting | Precision cutting to exact length |
| Beveling | For welding preparation |
| Threading | NPT, BSP, or custom threads |
| Bending | Cold or hot bending |
| Heat treatment | Normalizing, stress relieving |
Packaging & Shipping
| Item | Details |
|---|---|

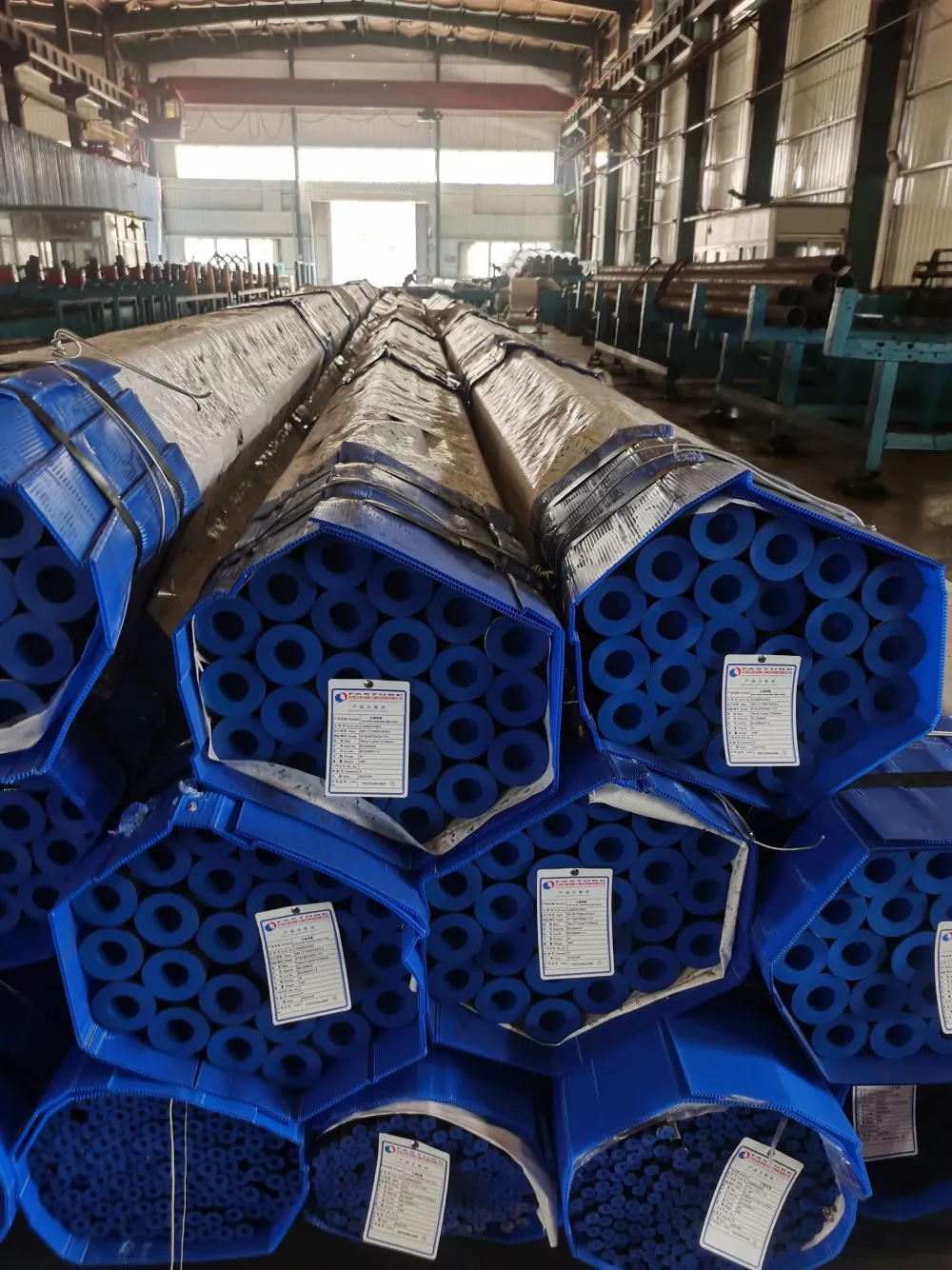

| Packaging | Hexagonal or square bundles |

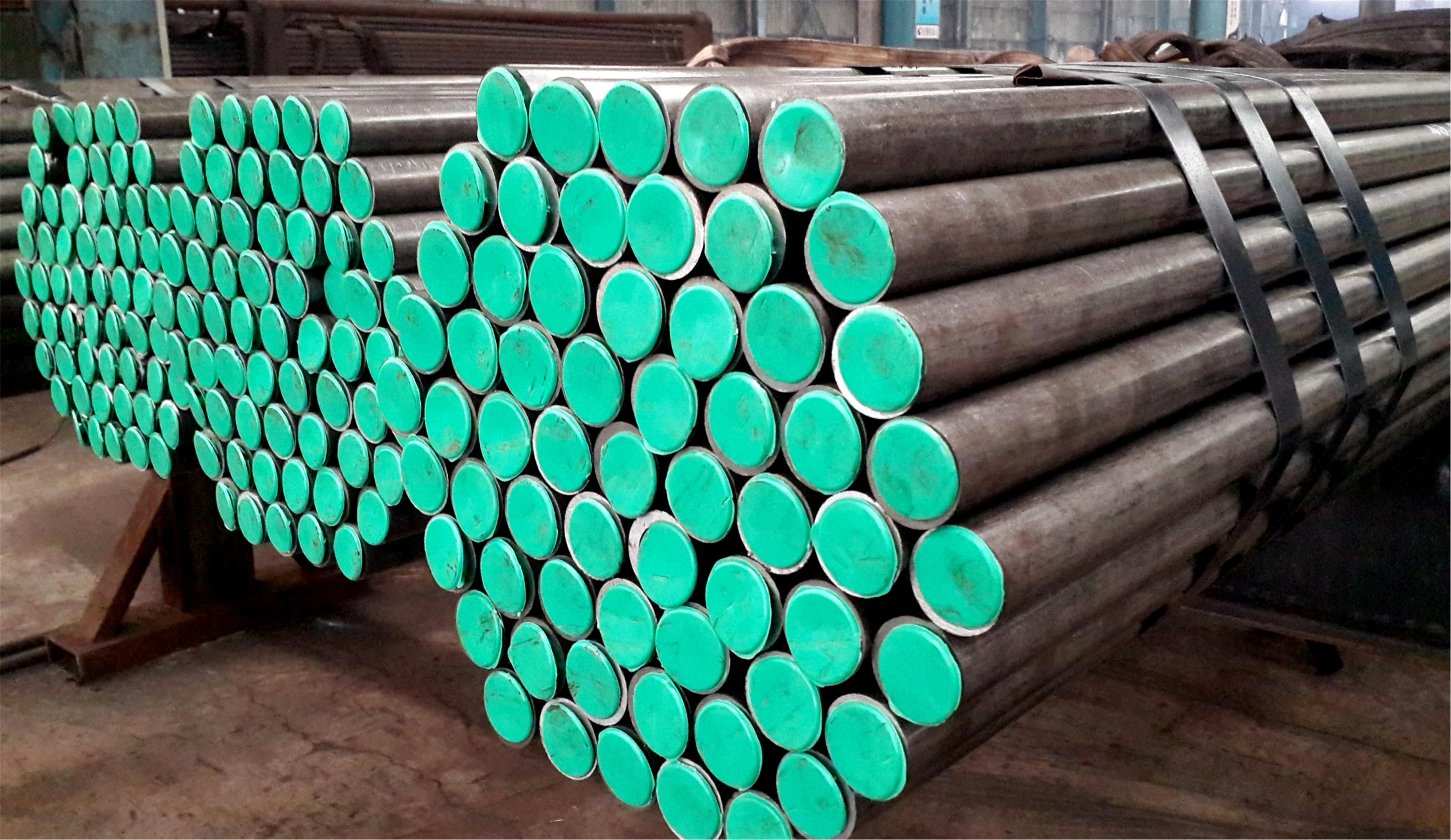

| Protection | Anti-rust oil + plastic end caps |
| Marking | Stencil / spray with grade, size, heat number |
| Lead time | 7–15 days (stock), 20–35 days (custom) |
| Port | Tianjin / Shanghai / Guangzhou |
Why Choose Us?
| Advantage | Description |
|---|---|
| DIN Standard Expertise | Familiar with both DIN 17175 & EN 10216-2 |
| Legacy Project Support | Supply for replacement/maintenance |
| Full Traceability | EN 10204 3.1 MTC with each shipment |
| Stock Availability | St35.8, St45.8, 13CrMo44 ready to ship |
| Global Export | Shipped to power plants worldwide |
DIN 17175 vs EN 10216-2 vs ASTM
| Grade (DIN 17175) | EN 10216-2 Equivalent | ASTM Equivalent | Availability |
|---|---|---|---|
| St35.8 | P235GH | A106 Grade B | Stock |
| St45.8 | P265GH | A106 Grade C | Stock |
| 15Mo3 | 16Mo3 | A209 T1 | MTO |
| 13CrMo44 | 13CrMo4-5 | A213 T12 | Stock |
| 10CrMo910 | 10CrMo9-10 | A213 T22 | MTO |
Contact for Quote
Please provide:
Steel Grade : St35.8 / St45.8 / 15Mo3 / 13CrMo44 / 10CrMo910
OD (mm) : _______
WT (mm) : _______
Length (m) : _______
Quantity : _______ (m / tons / pieces)
📧 Email: yjhtrade@gmail.com
📞 WhatsApp: +86 15106174543
🌐 Website:
Reply within 24 hours.
FAQ
Q1: Is DIN 17175 still valid?
A: No. DIN 17175 has been withdrawn and replaced by EN 10216-2. However, we still supply material to DIN 17175 specifications for legacy and replacement projects.
Q2: Can I use EN 10216-2 instead of DIN 17175?
A: Yes. EN 10216-2 is the direct replacement with equivalent grades (St35.8 = P235GH, etc.).
Q3: Which grade is most popular for boilers?
A: St35.8 for general service, 13CrMo44 for high-temperature service.
Q4: Do you provide both DIN and EN certificates?
A: Yes. We can provide mill test certificates referencing either standard as required.
Q5: Can you provide third-party inspection?
A: Yes. SGS, BV, TUV, or any customer-specified agency.
Q6: Do you offer free samples?
A: 30cm sample available upon request. Shipping fee applies.
Related Products
EN 10216-2 – Current European standard (replaces DIN 17175)
ASTM A192 – Seamless boiler tube
ASTM A106 – Seamless carbon steel pipe
ASTM A213 – Alloy steel boiler tube
DIN 2391 – Precision steel tube
Tags: DIN 17175 St35.8 St45.8 15Mo3 13CrMo44 10CrMo910 Boiler Tube Seamless Boiler Tube
Quick Selection Guide
| Operating Temp | Pressure | Recommended DIN Grade | EN Equivalent |
|---|---|---|---|
| ≤400°C | Low-Medium | St35.8 | P235GH |
| ≤400°C | Medium | St45.8 | P265GH |
| ≤450°C | Medium-High | 15Mo3 | 16Mo3 |
| ≤550°C | High | 13CrMo44 | 13CrMo4-5 |
| ≤550°C | Very High | 10CrMo910 | 10CrMo9-10 |
